Product SKU: APC-PS-6000-DC-WF-INF

The Most Advanced WiFi Control Smart Gate Automation with APC Infinity Wi-Fi Module. Double Swing Gate Opener WiFi Kit. Italian Made Proteous PS-3000 Linear Actuator with APC Infinity WiFi Control Smart Gate Automation Module.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Double Swing Gate Opener, Automatic Motorized Remote Controls Gate, Gate Automation System DIY Kit

The Most Advanced WiFi Control Smart Gate Automation with APC Infinity Wi-Fi Module. Double Swing Gate Opener WiFi Kit. Italian Made Proteous PS-3000 Linear Actuator with APC Infinity WiFi Control Smart Gate Automation Module.

Product SKU: APC-PS-6000-DC-WF-INF

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,225.00

  • Electric Gate Opener 24V System, 3 Meter/300KG Each, with Adjustable Built In Stop

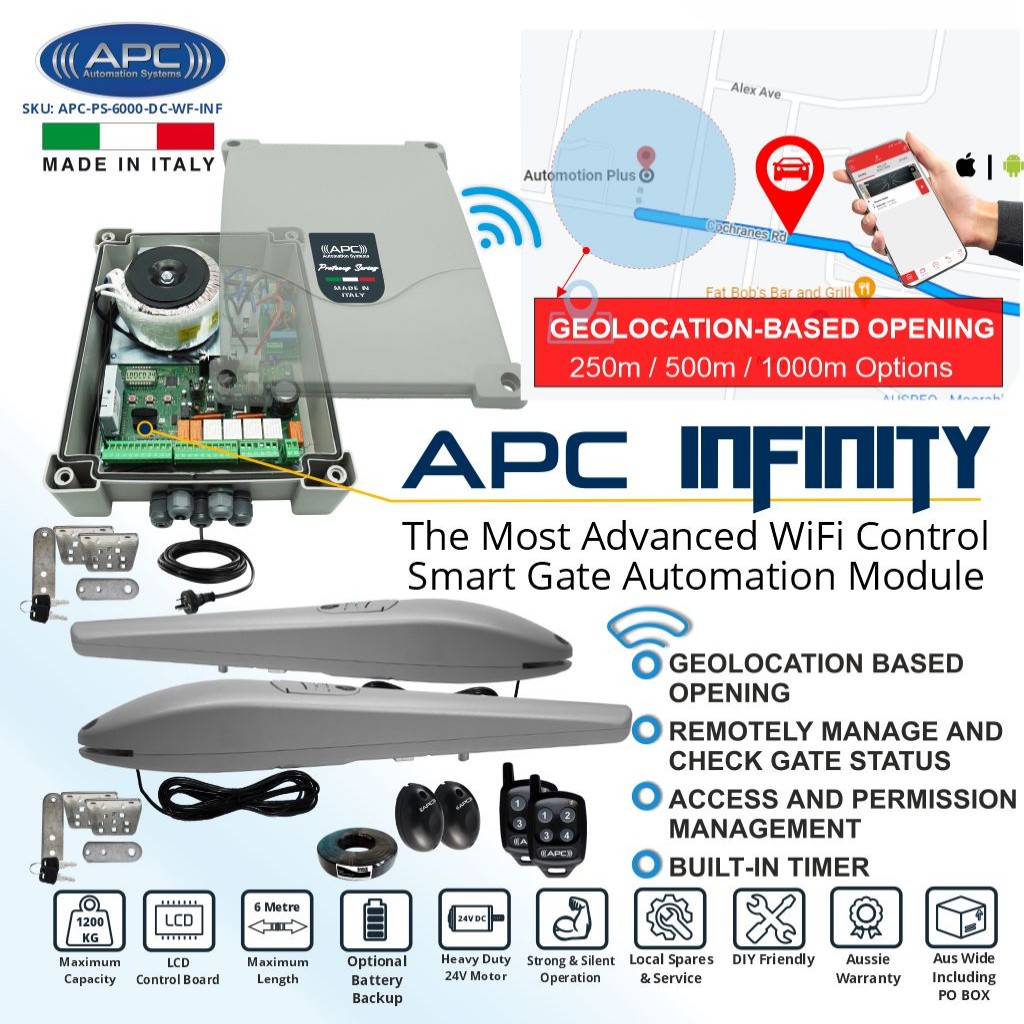

  • Kit Includes

    01 APC Proteous 3000 Linear Actuator with Built in Adjustable Stop. Italian Made Swing Gate Opener Motor (QTY: 2)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 3 or 11m ) (QTY: 2)
    03 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    04 APC Infinity The Most Advanced WiFi Control Smart Gate Automation Management Module (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    07 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    08 10m 4 Core Non Shielded Cable (QTY: 1)
    09 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Linear Actuator APC PS-6000






Packing a punch the APC Proteous 6000 system can deliver 2000N of thrust to operate gates up to 600kg for each gate leaf or 3m in length for each gate leaf. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Adjustable built-in stopper


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity For Each Gate Leaf

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 2000N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
360mm (without stoppers -30mm for each stopper)
Gates size
3m max for each gate leaf
Gate weight
600kg max for each gate leaf

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Extra Features With Infinity WiFi Module

Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance  (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

APC Infinity The Most Advanced WiFi Control Smart Gate Automation Management Module (for APC Proteous Range only)


The most advanced gate automation Wi-Fi module (for APC Proteous Range only)

Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance  (250m / 500m/1000m options)

Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)

Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.

Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day

Unlimited User - First 4 User Free (Admin +3 user)| $29 per extra user.


Compatible With

  • APC Proteous Sliding Gate Opener Systems
  • APC Logico24 Swing Gate Opener Systems

Features

  • Remotely manage all your automation even when you are not at home. Not only check their status but also control them! (Open, close, stop, activate the pedestrian opening, etc.)
  • Geo Location Enabled - Enter your home without lifting a finger. By using the geolocation from your smartphone, APC Infinity knows where you are and will open the chosen automation for you when you approach it (250m, 500m, 1000m options)
  • Check at any time who comes and goes. The App lets you manage all your access by giving specific time slots to who you want when you want.
  • Set up programmed scenarios to manage your gate access the way you want: Daily, weekly, monthly programable timer options



TECHNICAL FEATURES

Input
Voltage 15V
Current 45mA
Max absorbed power 700mW
WiFi interface
Type 802.11b/g/n – 2.4GHz
Power e.i.r.p.  ≤ 100mW
Safety OPEN/WEP/WPA-PSK/WPA2-PSK
Environment
Operating temperature  -20°C ... +50°C
Storage temperature  -25°C ... +70°C
Humidity  15% - 85%



STATUS OF LED
• FIXED RED: The module is in Access Point mode, waiting for a connection
• FLASHING RED: Mismatch between the serial of the control panel and the serial stored in the module. Perform the module reset procedure
• FIXED BLUE: STA mode, module connected to the server



INSTALLATION
1. Disconnect the power supply to the control unit
2. Insert the module into the ADI port of the control board
3. At the first installation, make sure that the module is in access point mode (RED LED ON STEADY)
4. Then proceed to enroll the control panel to the server following the instructions provided by the Mobile APP



NOTE: If the module is not in access point mode, reset the module using the reset procedure: press the reset button for 3 seconds, the LED must go out and light up again, remaining steady red



How does APC Infinity Smart Gate Automation Management Wi-Fi Module work?



Download the free Application from the official stores (Google Play, Apple App Store)


APC Infinity Smart Gate Automation Management Wi-Fi Module
  • Multiple management of unlimited gate automation systems (also located on different sites)
  • Geolocation via GPS (Activation of openings and devices in automatic or manual mode)
  • Access control (History Log)
  • Permissions for other users
  • Set new scenarios at a specific time/day, according to your needs

To use the App, you need to connect to your APC Proteous Range Gate Opener System via APC Infinity Module

APC Infinity Access Control Features

  • FULL REMOTE CONTROL OF THE AUTOMATION
    • Opening
    • Closing
    • Stopping
    • Managing outputs
    • Geo fence management of the automation
    • Knowing the status of the automation (opened, closed, % opened, stopped)

  • FULL ACCESS CONTROL FEATURES
    • Defining the users that can have access to the site
    • Limiting user access in time (hour, day, week, and month)
    • Log and record every access to each user
    • Adding/Blocking/Deleting users

  • AUTOMATIC SETUP OF SCENARIOS
    • Opening and closing with scenarios
    • Each scenario can be performed under a timing ( specific hours of the day, daily, monthly, specific day of the year)
    • Managing multiple automation with one single command/scenario





Optional Battery Back Up Box


An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •
