SALE
Product SKU: BG-NUUR6-SOL-ACK-CF
In Stock
Freight Delivery
Kit Price:
$5,195.00
$5,650.00
Ultra-low power consumption. Suitable for solar-powered systems.

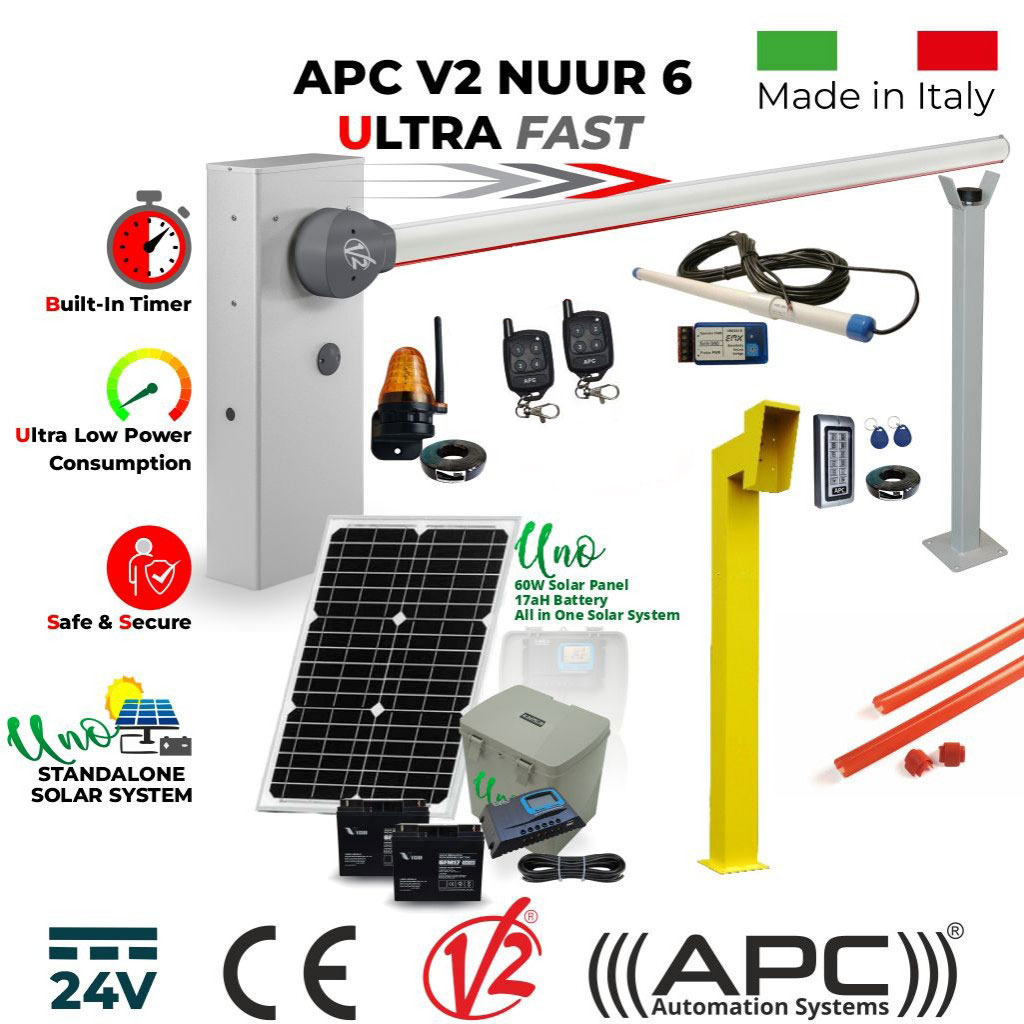

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate
24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). For 33aH batteries, a Master Uno Large Box and Slave Uno Large Box are required; see details below.
Key Features:
| Height | 281mm (Including cable glands) 255mm Without |
| Width | 263mm |
| Depth | 230mm Including Mounting bracket, 189mm without |
| Battery Dimensions (each) | Battery Size | 12V Configuration | 24V Configuration | Uno Box Requirments |
| 151x65x99mm | BAT-9 (9aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box |
| 181x77x167mm | BAT-17 (17aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box Large |
| 195x130x167mm | BAT-33 (33aH) | 1x Battery Required | 2x Batteries Required | One Battery in Master Uno Box Large (and One Battery in a Slave Uno Box Large for 24V) |
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
| System Voltage | 12V/24V DC auto |
| PV Max Input Voltage | 55V |
| Self-consumption | 10mA |
| Max Charging current | 10A |
| Max Discharging current | 10A |
| Battery type | Sealed(Default)/Gel/Flood/Lithium |
| LVD | 11.0V ADJ 9V...12V ; x2/24V |
| LVR | 12.6V ADJ 11V...13.5V ;x2/24V |
| Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V |
| Boost Voltage | 14.4V ADJ 13V...17V ;x2/24 |
| battery voltage less than 12.6v auto boost 2hours | |
| Battery Over Voltage | 16.5V ; x2/24V |
| Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, each 30s auto restart again |
| Controller Over Temperature | Yes |
| USB Output | 5VDC/1A 2PCS |
| Charging Type | PWM |
| Charge circuit voltage drop | <=0.25V |
| Discharge circuit voltage drop | <=0.1V |
| Temperature Consumption# | For 12V system:-24mV /°C ; x2/24V |
| Relative humidity | ≤95%, N.C. |
| Working Temperature | -20°C~+55deg;C(Product can work continuously at full load) |
| LCD temperature range | -20°C~+70°C |
| Waterproof grade | IP32 |
| Mounting hole size | Φ5mm |
| Terminals | 10mm²/8AWG |
| Weight | 245g |
| Overall dimension(mm) | 190×108×41.5 |
24v 60 Watts Solar Panel With Solar Panel Post & Bracket for 60 Watt Solar Panel APC Off-Grid Stand Alone Solar Power System
The SP-24V-60 is a 60 Watt, 24 Volt solar panel and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.
A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and a Tedlar-Polyester-Tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating the module.
| Open Circuit Voltage | 42.48V |
| Optimum Operating Voltage | <36V |
| Short Circuit Current | 1.83A |
| Optimum Operating Current | 1.66A |
| Dimensions | 805 x 535 x 30MM |
| Cells | Mono Crystalline |
This solar panel, post & bracket set suits the APC 60-watt solar panels.
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pads
- T Brackets

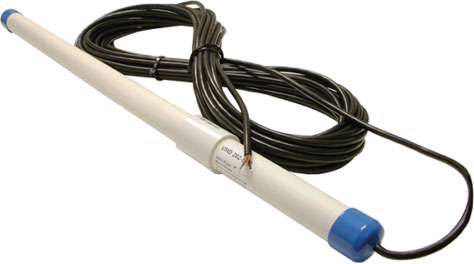

The VMD202 is the most advanced single-piece vehicle motion detector on the market today. The probe and its electronics are housed in a slim design that is buried next to a driveway. The VMD202-R sensitivity remote makes installation and fine-tuning simple.

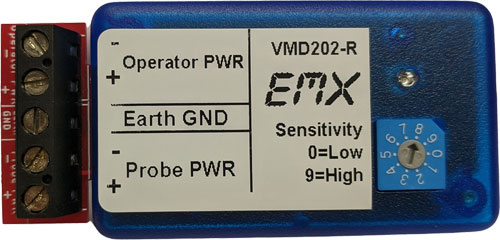

Program the VMD202 vehicle motion detector’s 10 sensitivity settings with the VMD202-R, and the setting is retained in non-volatile memory. Then the VMD202-R can be removed and used for multiple installations or left in place if tampering is not a concern.
The VMD202 vehicle motion detector accepts a wide range of power inputs – 12-39 VDC or 12-27 VAC.
The low standby current of 70uA is suitable for solar power applications.
The VMD202 vehicle motion detector is supplied with a 15M cable. The sensitivity remote is included in the kit.
| Power | 12-39 VDC or 12-27 VAC |
| Current | 70 uA standby and 25 mA activated |
| Relay | Form C (SPDT) 1 A@24 VDC, 1 A@120 VAC |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) 0 to 95% relative humidity |
| Material | ABS Plastic for VMD202-R, PVC for Probe |
| Dimensions | VMD202-R (7.4 x 3.5 x 1.5 cm) Probe (2.5 x 61 cm) |
| Probe Cable | 5-wire direct burial |
IMPORTANT: EARTH GROUND CONNECTION
The VMD202 contains protection devices to guard against damage and false triggering due to electrical transients caused by lightning or other sources. Always provide a good earth-ground connection to the green wire of the VMD202 remote control in standard applications or the black wire of the VMD202 probe in solar applications. A 20cm copper rod or metal cold-water pipe provides a sufficient earth-ground connection.
SOLAR NOTE: The probe consumes only 70 uA when no vehicle motion is detected and draws a higher current for 5 seconds when detecting vehicle motion. This table provides an average current draw based on an estimate of how many cars per day may activate the VMD202. Connect the remote to the probe to adjust the sensitivity, then remove the remote and power the probe directly from the operator (the remote draws extra current). A 12 VDC battery is recommended for solar applications (a 24 VDC battery can be used as well).
*Values are without remote connected
| Number of Vehicle Activations Per Day | Average Current (Amps) |
| 720 | 0.001442 |
| 288 | 0.000619 |
| 144 | 0.000344 |
| 72 | 0.000207 |
| 48 | 0.000161 |
| Features | Description |
| Appearance | Metal case, anti-explosion and anti-tamper |
| Waterproof | IP 65 |
| Dimension | 135×58×26mm |
| Input voltage | DC: 12-24V AC: 12-18V |
| Capacity(max) | 2000 Users |
| PIN | 4-8 digits. Not related to the card. |
| Master card | Add/Delete User |
| As reader | Support Wiegand 26bits, PIN Wiegand output, is a virtual number. |
| Connect external reader | Can connect any EM/HID/IC readers with Wiegand 26 output |
| Connect high-power alarm. | External current of the alarm ≥3A |
