Product SKU: GFR45-GE400-P500-SOL

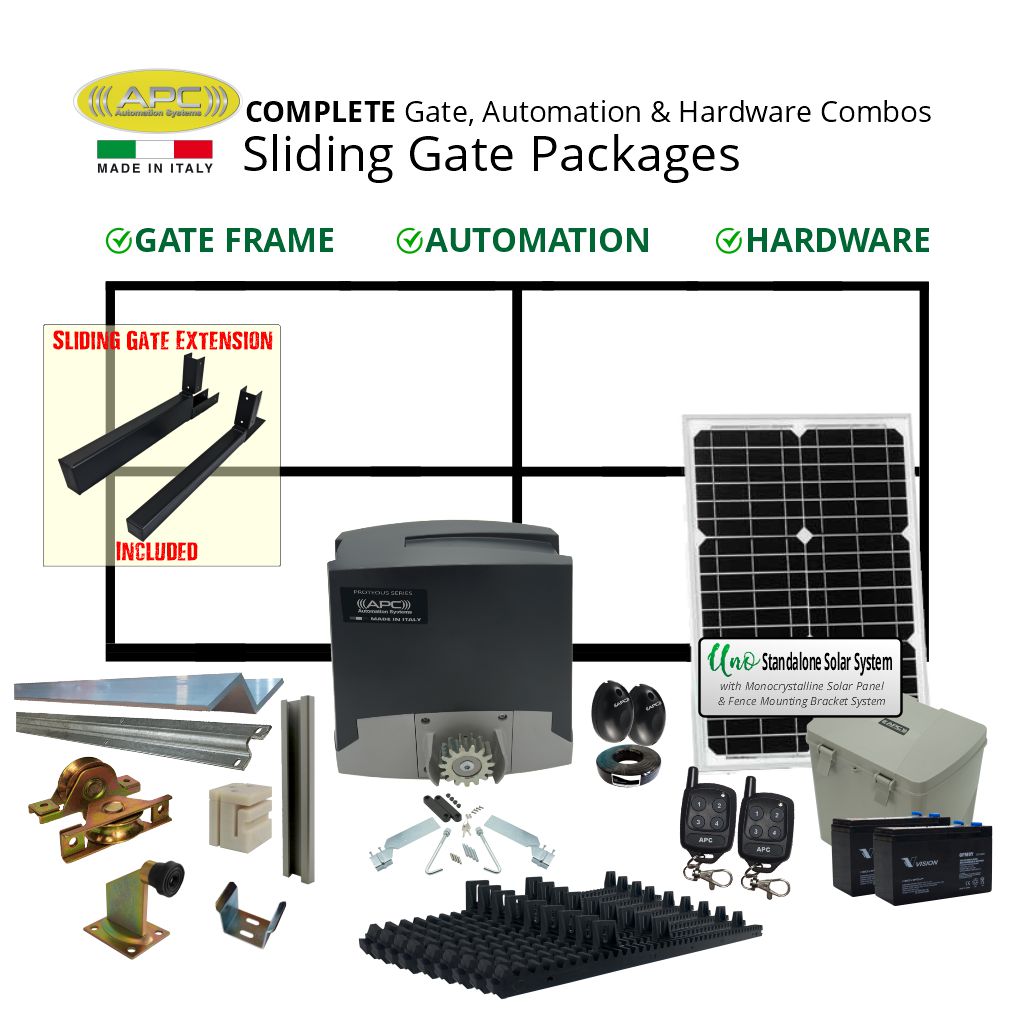

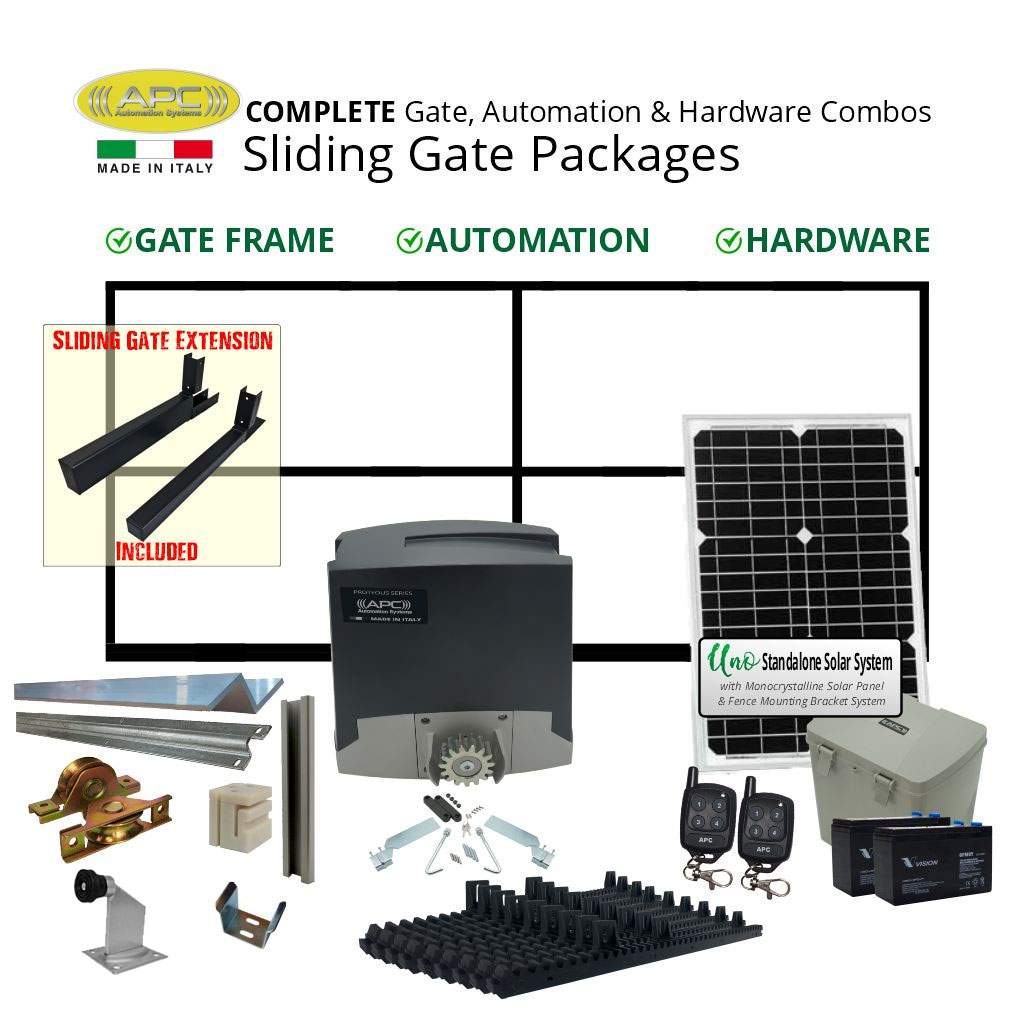

Solar Gate Automation 4.9m Gate Frame Combo Package (4.5m Gate Frame + 0.4m Gate Extension) including Hardware, Sliding Gate Opener, Solar Panel, and Batteries

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

SOLAR POWERED
  • Solar Gate Automation 4.9m Gate Frame Combo Package (4.5m Gate Frame + 0.4m Gate Extension) including Hardware, Italian Made Sliding Gate Opener, Solar Panel, and Batteries

    YEAR END SALE

    TOP DEALS

Solar Gate Automation 4.9m Gate Frame Combo Package (4.5m Gate Frame + 0.4m Gate Extension) including Hardware, Sliding Gate Opener, Solar Panel, and Batteries

Product SKU: GFR45-GE400-P500-SOL

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,525.00 $2,804.00 APC Automotion Plus Sale

  • Gate Frame, Satin Black Powdercoating, Robust 80x40 - 40x40 Steel + 19mm Pickets

  • Kit Includes

    01 4.5m Gate Frame (1.5m Height) (QTY: 1)
    02 400mm Sliding Gate Tail Extension System (QTY: 1)
    03 APC Proteous 500 Italian Made FEATURE RICH Sliding Gate Motor (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 APC Uno Multipurpose Battery Box (QTY: 1)
    06 9aH High Capacity Battery (QTY: 2)
    07 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    08 2m 2 Core 2mm Non-Shielded Cable (QTY: 1)
    09 24v 20 Watts Solar Panel (QTY: 1)
    10 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels (QTY: 1)
    11 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    12 10m 4 Core Non Shielded Cable (QTY: 1)
    13 520mm Nylon Rack (QTY: 10)
    14 APC Superior White Nylon Guide Block, Two Piece Assembly For Sliding Gate With Angle or Z Profile (QTY: 1)
    15 Vertical Guide Channel for Nylon Block (QTY: 1)
    16 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 10)
    17 Singular 78mm Recess Mount Wheels (QTY: 2)
    18 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    19 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
    20 1m Length Z Channel Guide Angle (QTY: 5)
    21 Pack Of Hammer in Anchor Nails for Sliding Gate Track (QTY: 1)
    22 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

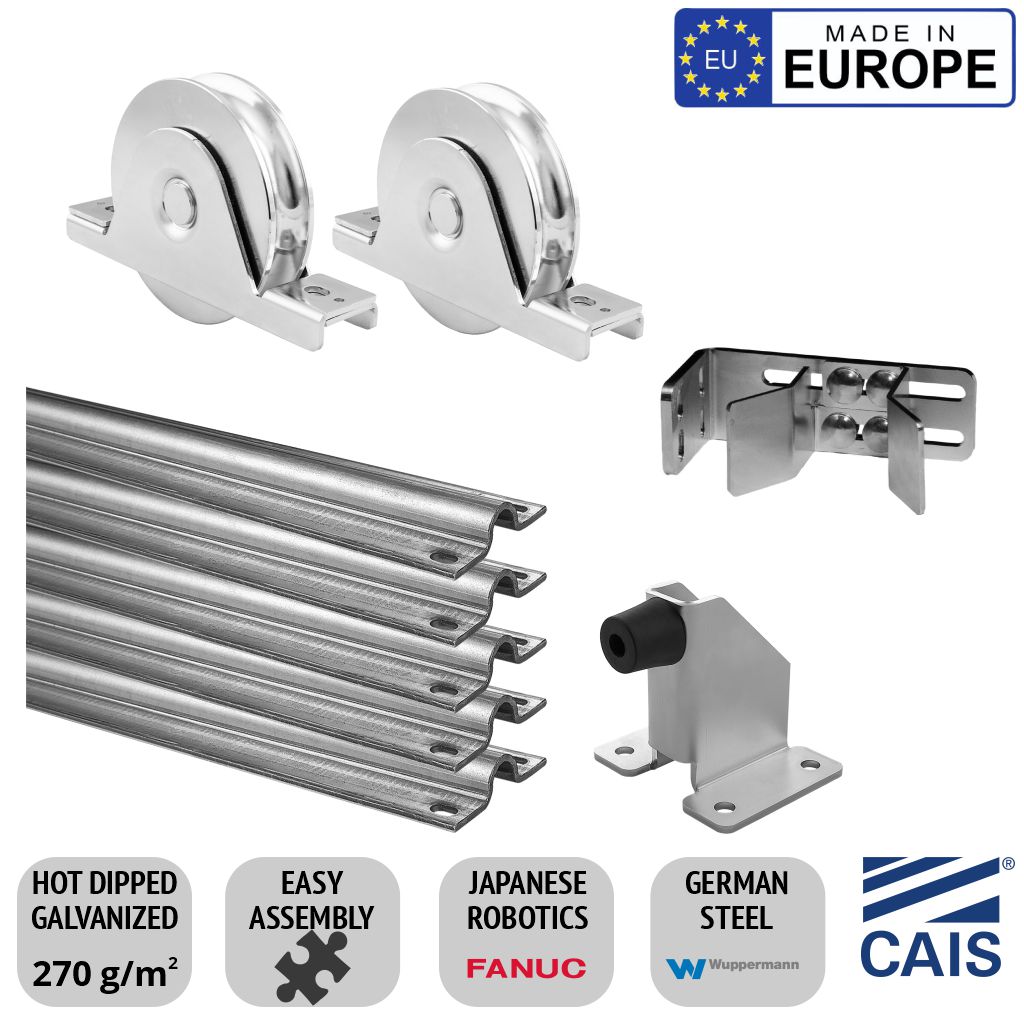

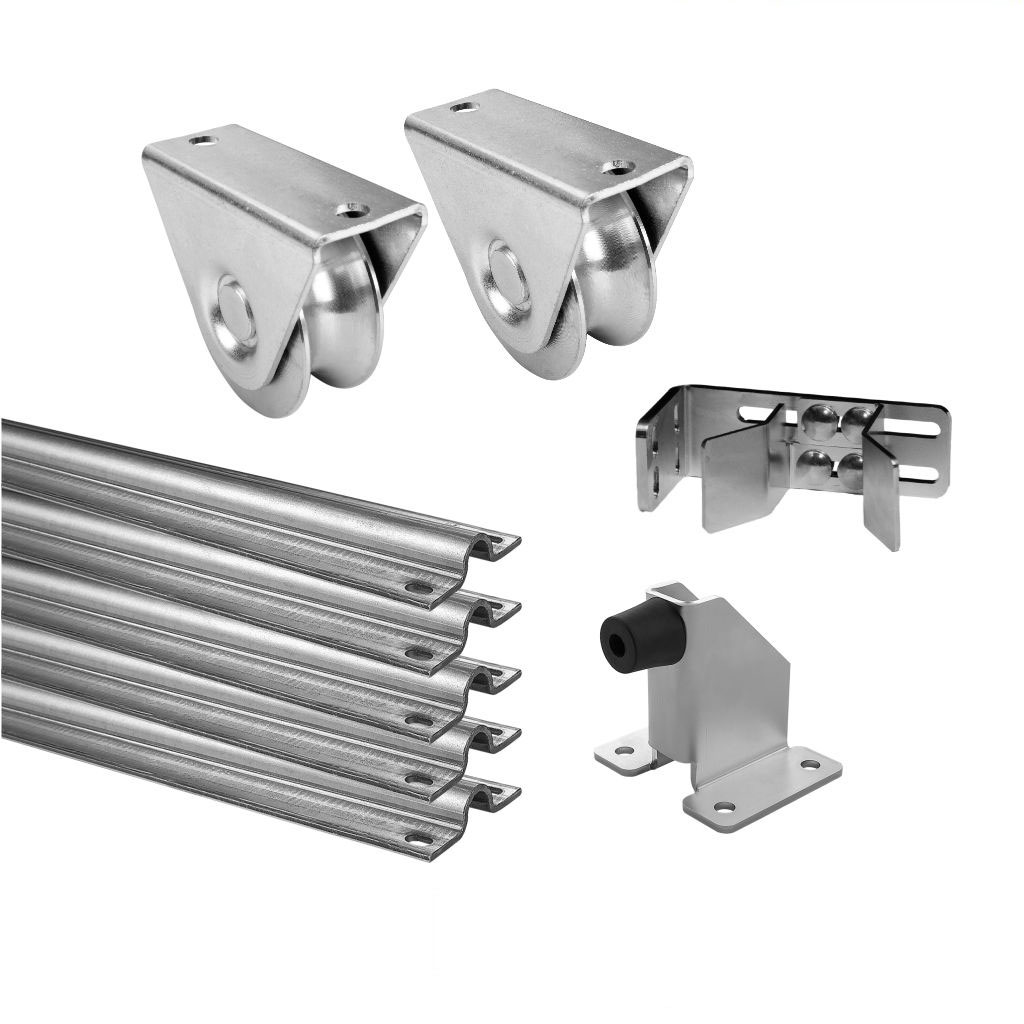

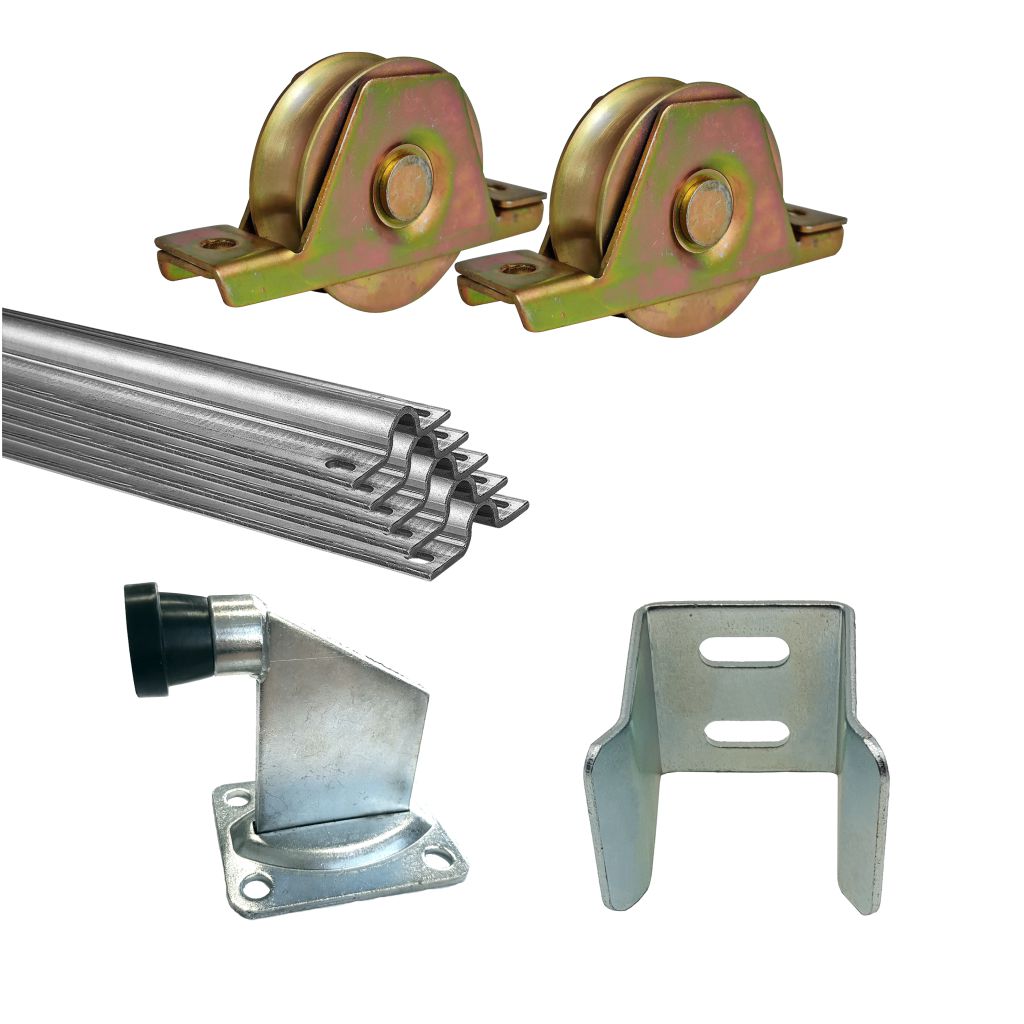

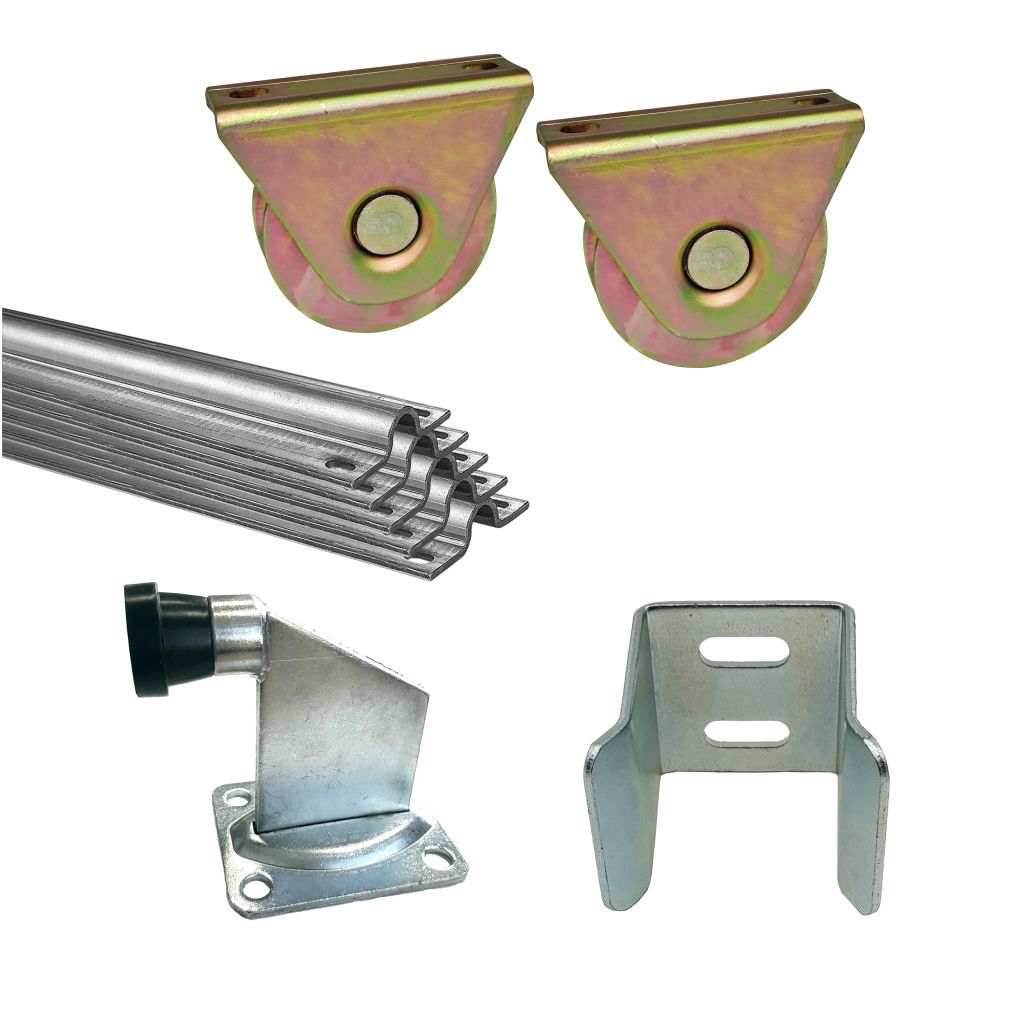

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials




Key Features
  • 1500mm Height
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

APC-GE400 Gate extension System




Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance

The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Dimensions

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Add-On Item)

Four point Tilt Leveling



24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)






Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power 20W/40W/60W
Optimum Operational Voltage 36V
Open Circuit Voltage 43.2V
20W Panel Dimensions 640 x 300 x 25mm
40W Upgrade Panel Dimensions 535 x 515 x 30mm
60W Upgrade Panel Dimensions 805 x 535 x 30mm




APC Uno Standalone Solar System





The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.

Key Features:

  • Direct fitting of APC Sun power Regulator (available separately)
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions (UNO BOX and UNO BOX LARGE)

UNO BOX

Uno Box Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without

UNO BOX LARGE

Extra Heavy Duty Single Gate Opener

Uno Box Large Outer Dimensions

Height 281mm (Including cable glands) 255mm Without
Width 263mm
Depth 230mm Including Mounting bracket, 189mm without

Battery Requirments and Configuration

Battery Dimensions (each) Battery Size 12V Configuration 24V Configuration Uno Box Requirments
151x65x99mm BAT-9 (9aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box
181x77x167mm BAT-17 (17aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box Large
195x130x167mm BAT-33 (33aH) 1x Battery Required 2x Batteries Required One Battery in Master Uno Box Large
(and One Battery in Slave Uno Box Large for 24V)

Typical Configuration

Extra Heavy Duty Single Gate Opener

Battery Wiring


33aH Configuration

Extra Heavy Duty Single Gate Opener

At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5

24V 9aH Battery System




Supplied with the automation kit, the 24V Battery System* (2 x 12V  9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.

 *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life

Specifications

Transformer 24V (Uno Solar System)
Motor Output Voltage 24v DC
Max Operating Power 300 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 500 KG
Speed 28 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 90%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •
