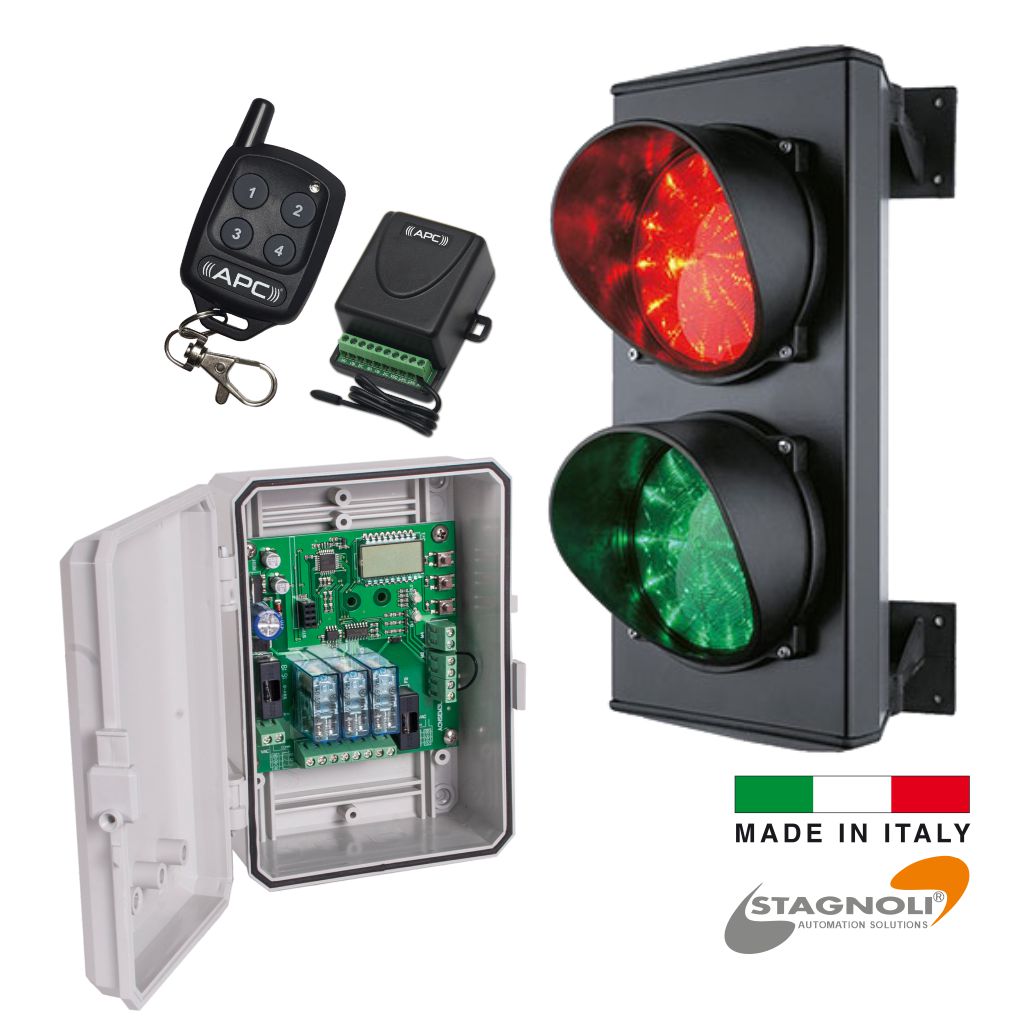

Remote Control Traffic Light Signals with Dual Traffic Lights Combo | Traffic Lights Control Board, Remote Control, Two Channel Reciever and Dual (Red & Green) LED Traffic Light, Easy Traffic Flow Control | Made in Italy by Stagnoli

Traffic Light Controller for Two-Lights and 2 or 3 Light Lens | 24v ACNSEM3L Made in Italy by Stagnoli

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

It can be programmed to operate cyclically or logically (e.g. when used with external sensors).

Highlights

• One Board for Two Trafic Lights
• Time-based work method
• Priority-based work method

Specifications and Wiring Diagram

Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A


Control Board Overview

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
     IN1: programmable input for traffic light 1, N.O. by default
     IN2: programmable input for traffic light 2, N.O.by default
     IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
     DL2- Traffic light operation 1
     DL1- Traffic light operation 2

Double Traffic Lights | Red&Green Trafic Light Flow Control

APOLLO traffic light series with two lights (Red and Green), 24 V AC/DC, vandal-resistant, and IP66.

Used in parking lots, logistic areas, and industrial plants.

Traffic Control Light, Twin, Red & Green

24v Apollo Trafik Light Made in Italy by Stagnoli

Red and Green Dual Traffic Light for Easy Traffic Flow Control to Use Car Parks, Commercial, Residential, Public Events and Organizations)

Technical Specification:

• Number of LEDs: 25
• Brightness: 50Lux
• Lens size: 120mm
• Power supply: 24v
• Protection: IP66 / Vandal-resistant

Automotion Plus Traffic Signal Light Solutions

Commercial: LED Traffic Signal Lights Australia, Car Park Traffic Light System, Boom Gate Traffic Light Kit, Driveway Red-Green Signal Light, Industrial Traffic Light Indicator, Warehouse Traffic Control Lights, Custom Traffic Signal Solutions. Traffic Light Signal System with Integrated Advanced Access Control Solutions

Solution/Intent: Single-lane Car Park Signal Lights, Commercial Access Control Traffic Lights, IP65 Weatherproof Traffic Signal, Automatic Gate Traffic Light Indicator, Tailored Traffic Control Solutions Australia. Advanced Access Management Solutions with Traffic Light and Signal Controller System

LED Traffic Signal Lights & Car Park Control Systems Australia | Automotion Plus

Browse heavy-duty LED traffic signal lights for car parks, boom gates, driveways, and industrial sites. Ultra-bright red/green signal indicators engineered for Australian conditions. Speak to our experts for a tailored solution today.

| [email protected] | 1800 694 283 |

Commercial LED Traffic Signal Light Solutions

Streamline Access & Boost Safety with Industrial LED Traffic Signals

Automotion Plus supplies high-performance LED Traffic Signal Lights and Access Control Signal Indicators engineered specifically for Australian commercial, industrial, and residential environments. Designed for seamless integration with automatic driveway gates, boom barriers, garage access controls, and single-lane car parks, our LED signal lights deliver clear, high-visibility guidance to reduce traffic congestion and prevent accidents.

Whether you need a compact dual red-green indicator for a basement car park or a heavy-duty multi-lens traffic lantern for industrial loading docks, our solutions are built with IP65-rated weatherproof housings, energy-efficient LED arrays, and long service life.

Why Choose Automotion Plus Traffic Light Systems?

• Ultra-Bright Optical Visibility: High-intensity LED technology ensures maximum contrast and visual recognition even in direct sunlight, dark underground basements, or heavy weather.

• Seamless Automation Integration: Effortlessly connects with boom gates, motorised bollards, automatic sliding and swing gate openers, vehicle loop detectors, and access control keypads.

• Rugged IP65 Weatherproof Housings: Heavy-duty polycarbonate and aluminium casings built to withstand harsh Australian outdoor UV, heat, rain, and dusty warehouse environments.

• Low Power Consumption & Maintenance: Modern LED technology reduces operating costs and provides long, maintenance-free operational life compared to traditional halogen signal lanterns.

• Custom Engineering & Expert Advice: Every site has unique operational demands. Our team of experts can tailor a solution to your exact requirements—from simple driveway indicators to multi-level commercial traffic control systems.

Traffic Light Solutions by Application

Need a Specialized Configuration? No two traffic access setups are identical. Contact Automotion Plus today—our experts can tailor a traffic signal light solution to your specific site requirements. | [email protected] | 1800 694 283 |

Frequently Asked Questions (FAQ)

Q1: How do traffic lights work with single-lane car park setups?

A: In single-lane car park control systems, a dual red/green LED traffic light works alongside e-loop(V4) wireless vehicle induction loop detectors or photo-beams. When a vehicle approaches, the system sets the entrance light to green and the exit light to red, preventing opposing vehicles from entering the narrow pass simultaneously.

Q2: Are Automotion Plus traffic signal lights suitable for outdoor Australian conditions?

A: Yes. All traffic lights supplied by Automotion Plus carry IP65 dust and water ingress ratings with UV-stabilized housings to ensure long-term reliability in harsh Australian climates.

Q3: Can traffic lights be synchronised with boom barrier gates?

A: Absolutely. Our red/green LED traffic signal kits integrate directly with automated boom gate control boards. The red signal stays active while the boom arm is down or in motion, changing to green only when the barrier arm is fully raised.

Q4: What if I have a complex site setup or non-standard requirements?

A: We offer full technical consultation. Our experts can tailor a traffic signal solution to your exact requirements, ensuring complete compatibility with your existing controllers, sensors, and access protocols.

Need a Specialised Configuration?
Please contact our experts, who can tailor a traffic signal light solution to your specific site requirements.

| [email protected] | 1800 694 283 |

APC Automation Systems FOUR Button Keyring Remote Control



• Featuring High-Security rolling codes transmitting a unique code chosen at random
• Slim design
• Keyring Clip-on System
• Compatible with APC RX2 Two Channel Receiver
• Completely Backwards Compatible with all legacy APC control boards



APC RX2 Two Channel Receiver

The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.

Prerequisites

open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.

There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.

If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.

Other uses

The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.

Package options

The receiver can be purchase in multiple package options such as

• Receiver only
• Receiver with a low voltage power adapter (in case power is not available for the device)
• Receiver and a two remote combo
• Receiver, power adapter and a two remote combo
• Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
• Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
• or any package can be made using any of the APC compatible devices

Compatible devices

• APC-RC4S Four Button Keyring remote
• APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
• APC-RC450S Long Distance Remote
• APC-KP2W Two Channel Wireless Keypad APC-KP2W
• APC-PBS-KW Single Wireless Button with Isolation Key
• APC-PBD-KW Double Wireless Button with Isolation Key
• ANT-1 External Boosted Antenna

Specifications

• 433.92Mhz High-Security Rolling Code compatible with APC devices
• Dual Mode Receiver with momentary and latching modes
• Normally Open and Normally Closed circuits
• Supports 12-24V AC/DC
• Single Remote Delete or Full Format
• Max switching load 24VDC/2A
