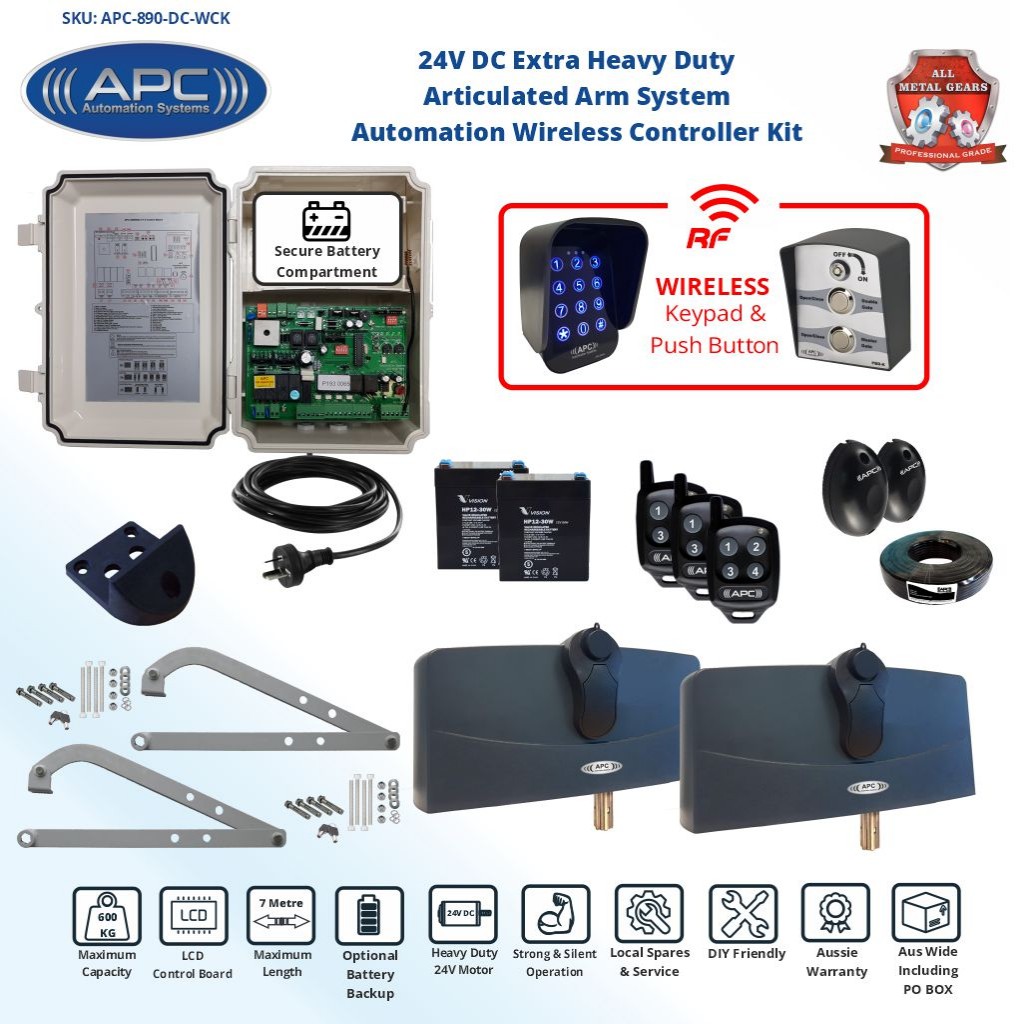

Extra Heavy Duty High-Speed Articulated Arm System-Reliability, Durability & Weatherproof
Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 3.5m each gate or 300kg of weight each gate. Furthermore it is completely weatherproof and concealed to suit all weather conditions.
All Metal Gear Box (NO PLASTIC OR NYLON)
Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.
Limit Switches and Manual Override
Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.
360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.
24V Extra Heavy Duty DC Motor
Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.
Adjustable Long Span Powder coated Steel Arms
Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.
Option 1: Forward Mount Bracket (Pull to Open)
Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).
Option 2: Upgrade to Side Mount Bracket Upgrade (Pull or Push to Open)
Powder Coated Side Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 350mm in width making it ideal to be used on pillars for optimal holding strength across brick work or to be offset off the post in push to open installs.
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Any or all of the following may be connected to operate the gate
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Battery Back Up
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
|240V AC (Pre wired with 1.2m Cable)
|On Board Bridge Rectifier
|Motor Output Voltage
|-10° - 50°
|APC Rolling code 433.92mhz
|Lock Output (Primary)
|12-30V DC (Depending on Configuration)
|Lock Output (Secondary)
|0V Momentary Pulse
|1A to 5A
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
APC-KP2W Wireless Keypad Features
- Up to 11 pin codes can be programmed
- Low Power Consumption only 18uA in standby.
- Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
- High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
- Blue Backlight illumination upon touch with an automatic timeout to return to standby.
- Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
- IP53 Weatherproof rated and suited for outdoor and indoor environments.
- Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
- Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.
Wireless Double Push Button with Isolation Key
The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.
It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
