Product SKU: APC-P450-LV-SYNCRO

Build Your Own Bi-Parting Double Electric Sliding Gate Opener Kit Low Voltage System with Italian Made APC P450 Sprint Ultra Fast Automatic Double Sliding Gate Automation

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

MADE IN ITALY

Build Your Own Bi-Parting Double Electric Sliding Gate Opener Kit Low Voltage System with Italian Made APC P450 Sprint Ultra Fast Automatic Double Sliding Gate Automation

Product SKU: APC-P450-LV-SYNCRO

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,383.00

  • Italian Made Automatic Sliding Gate Opener (Proteous), 450 KG / 10 Metre Maximum Capacity **Battery Backup Optional**

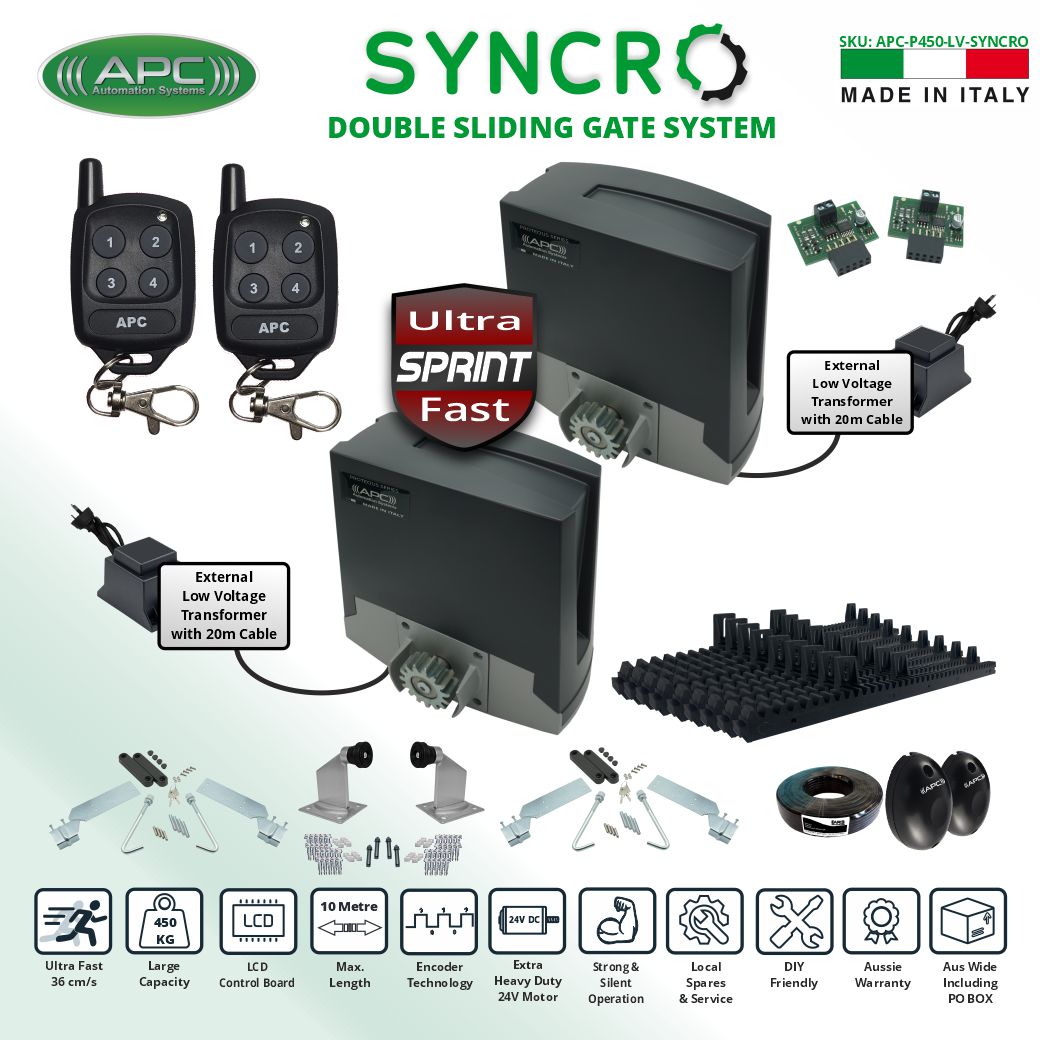

  • Kit Includes

    01 APC Proteous 450 Sprint ULTRA FAST Italian Made Sliding Gate Motors (QTY: 2)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 APC Syncro Module Set for Proteous 450, Proteous 500 and Proteous 1000 (QTY: 1)
    04 520mm Nylon Rack (QTY: 8)
    05 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 2)
    06 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    07 10m 4 Core Non Shielded Cable (QTY: 1)
    08 115mm High Bolt Down Galvanized Gate Stop (QTY: 2)
    09 10m 2 Core Non Shielded Cable (QTY: 1)
    10 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Heavy Duty ULTRA FAST 24V Italian Sliding Gate Opener Motor Overview

At a glance

The Proteous 450 Sliding Gate Opener provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

Gate Automation System Features

Capacity

Ultra Fast 36 CM per Second Speed
70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
450KG Capacity
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Dimensions

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Add-On Item)

Four point Tilt Leveling

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Transformer 24V AC
Rectification In Housing Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 450 KG
Speed 36 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 70%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 34V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity


APC-Syncro Dual Motor Synchronization Module

The Syncro modules are connected as a pair, one into each sliding motor of a bi-parting installation. They are interconnected to one another using twisted pairs. This enables a synchronised simultaneous operation of the sliding gates using only one set of accessories connected to either of the two units.

Installation Layout when using Syncro





Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.

Compartment with Battery Pack and Charger Installed





APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,383.00
