Product SKU: APC-SG3000-AC-WF-e

APC Electric Gate Automation Wi-Fi System Extra Heavy Duty APC Typhoon 3000 (3 Tonne), Automatic Sliding Gate Openers, Automated Gate AC Powered DIY WiFi Kit With Spring Limits

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Sliding Electric Gate Automation System With Spring Limits - Sliding Gate Opener

    On Sale

APC Electric Gate Automation Wi-Fi System Extra Heavy Duty APC Typhoon 3000 (3 Tonne), Automatic Sliding Gate Openers, Automated Gate AC Powered DIY WiFi Kit With Spring Limits

Product SKU: APC-SG3000-AC-WF-e

  • Out Of Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,299.00 $1,369.00 APC Automotion Plus Sale

  • Or in 4 payment of $324.75 with afterpay info
  • Wifi Sliding Gate Opener Kit Upto 3000kg and 12m capacity, Spring Limit

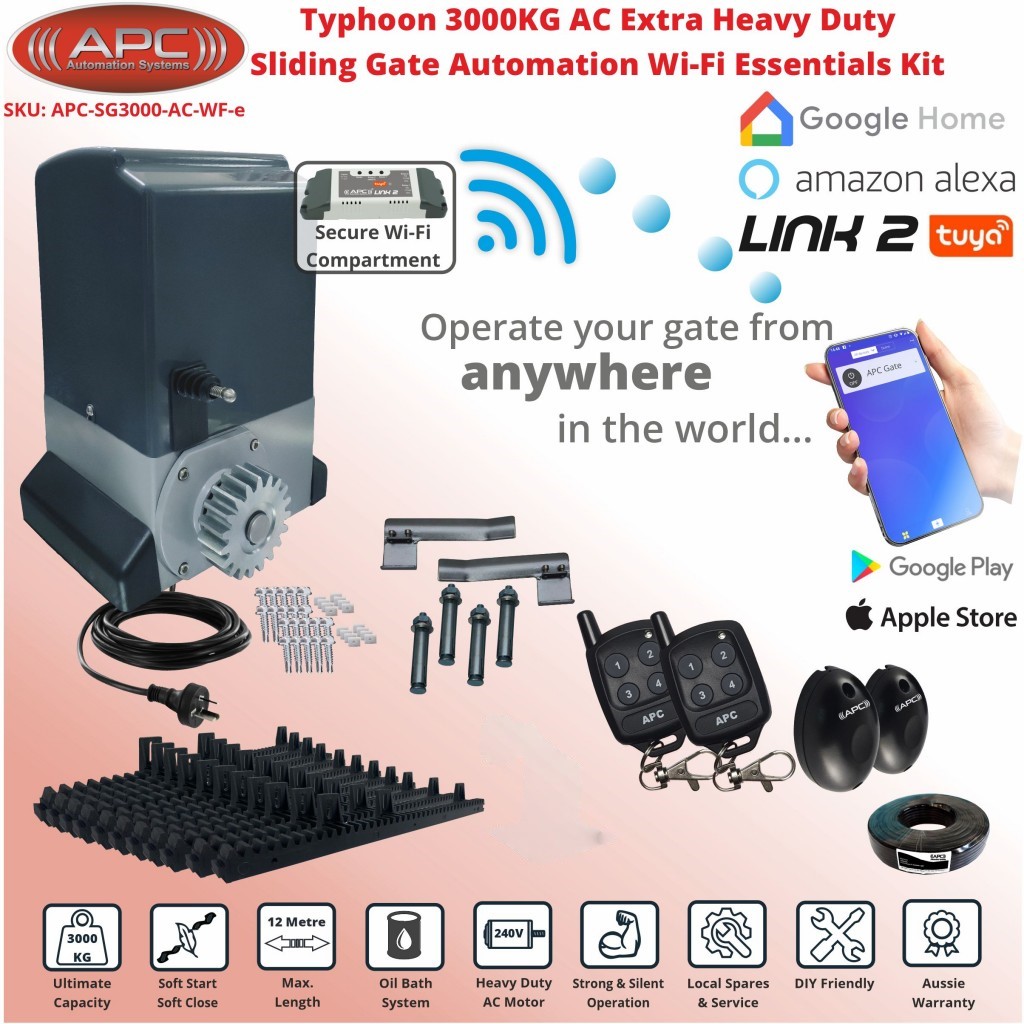

  • Kit Includes

    01 APC Typhoon 3000 SG3000AC 3000KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    04 10m 4 Core Non Shielded Cable (QTY: 1)
    05 APC Link 2 WiFi Switch - DUAL Relay Wifi Remote Smart Switch Gate Garage Door Openers IOS and Android APP Control (QTY: 1)
    06 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Out Of Stock

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Typhoon 3000 Extra Heavy Duty

AC Sliding Gate Automation System

Easy Installation All in one Motor and Control Panel for Sliding Gate

Suitable for sliding gates up to 3000kg



Strong & Durable
Strong & Durable Sliding gate motor with 3000KG capacity
All In One Motor
All in one motor with built-in control board and limit switches
AC Sliding Gate Automation System
Manual Override
Built-in a manual override for emergencies
Metal Pinnion & Gears (NO PLASTIC OR NYLON)
Strong Metal Cut Pinnion ensuring the highest durability
AC Sliding Gate Automation System
AC Sliding Gate Automation System



This all-in-one AC-powered sliding gate motor kit is designed to operate sliding gates up to 3000kg in weight. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.

- Manual Override
- All Metal Gears
- Metal Gear Drive
- All in one internal Motor and Control Panel

Controlling Options:

(any or all of the following may be connected to operate the gate)

- Remote Controls (2 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Available as an optional accessory)
- Wireless or Wired Keypads (Available as an optional accessory)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with separate power supply (Available as an optional accessory)
- Wi-Fi receiver with separate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)



Motor Dimensions



AC Sliding Gate Automation System



Rated Power 1200W
Power supply 220V±10% 50Hz
Maximum Weight of Gate 3000kg
Maximum Width of Gate 12m
The working temperature of the motor -25°? +55°
Open (Close) speed 12m/min
Maximum Pull 65Nm
Working Humidity ≤85%
Voltage output Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Open/Stop/Close




AC Sliding Gate Automation System
Here are the Commonly FAQ asked about this product
Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This motor can handle a sliding gate up to 3000 kg in weight
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a separate power pack must be used.
Does this gate system automatically close?
YES
When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
Can I lock my gate if I go away?
YES
This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.
AC Sliding Gate Automation System

Remember, You are welcome to ask more questions! You can always rely on Automotionplus for quality products and great service, we are only a phone call away or please visit our showroom.

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



WiFi Control Switch
















  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • Works with Amazon Alexa, Google Assistant, Smart Things
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location




(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $1,299.00
