Product SKU: APC-SG1600-AC-WCK

AC Extra Heavy Duty Tsunami 1600KG (1.6 Tonne) Sliding Gate System With Spring Limits

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$956.00 $1,195.00

  • Upto 1600kg and 9m capacity, Spring Limit

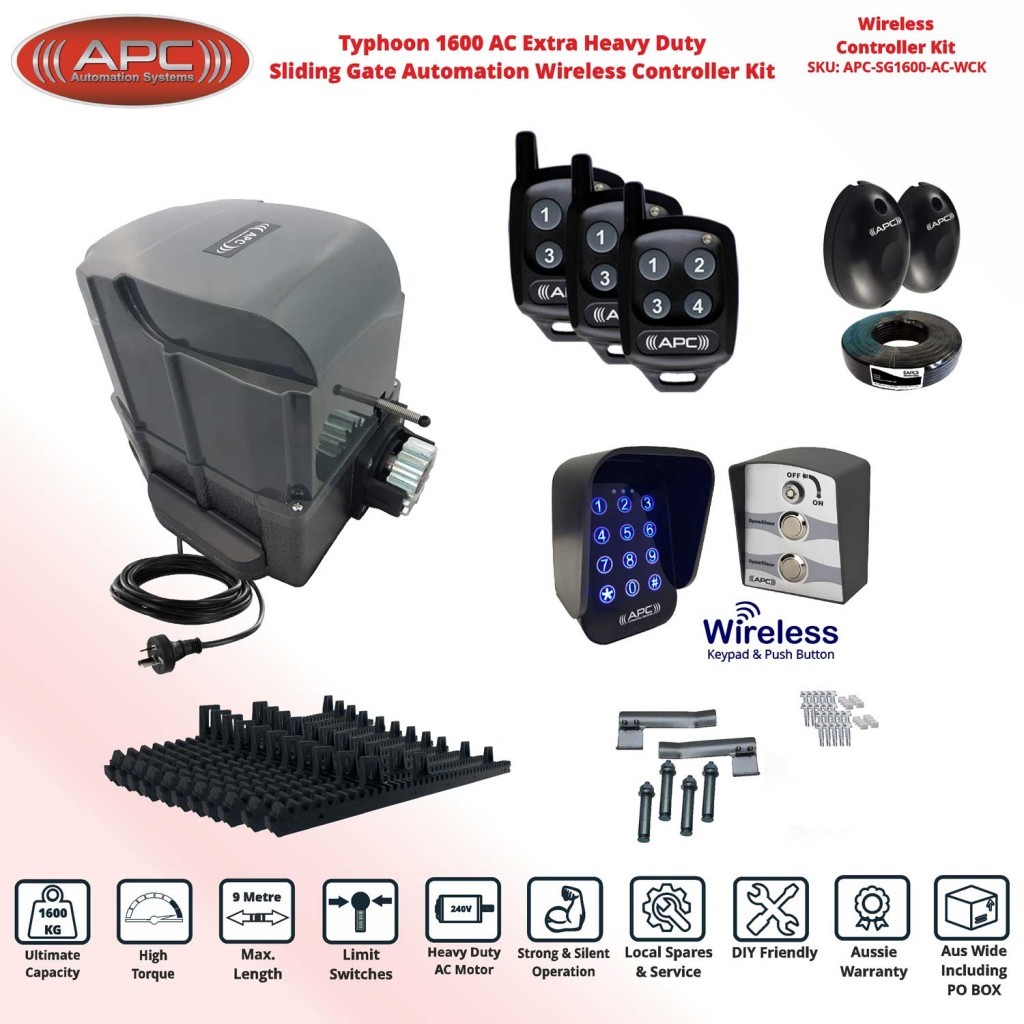

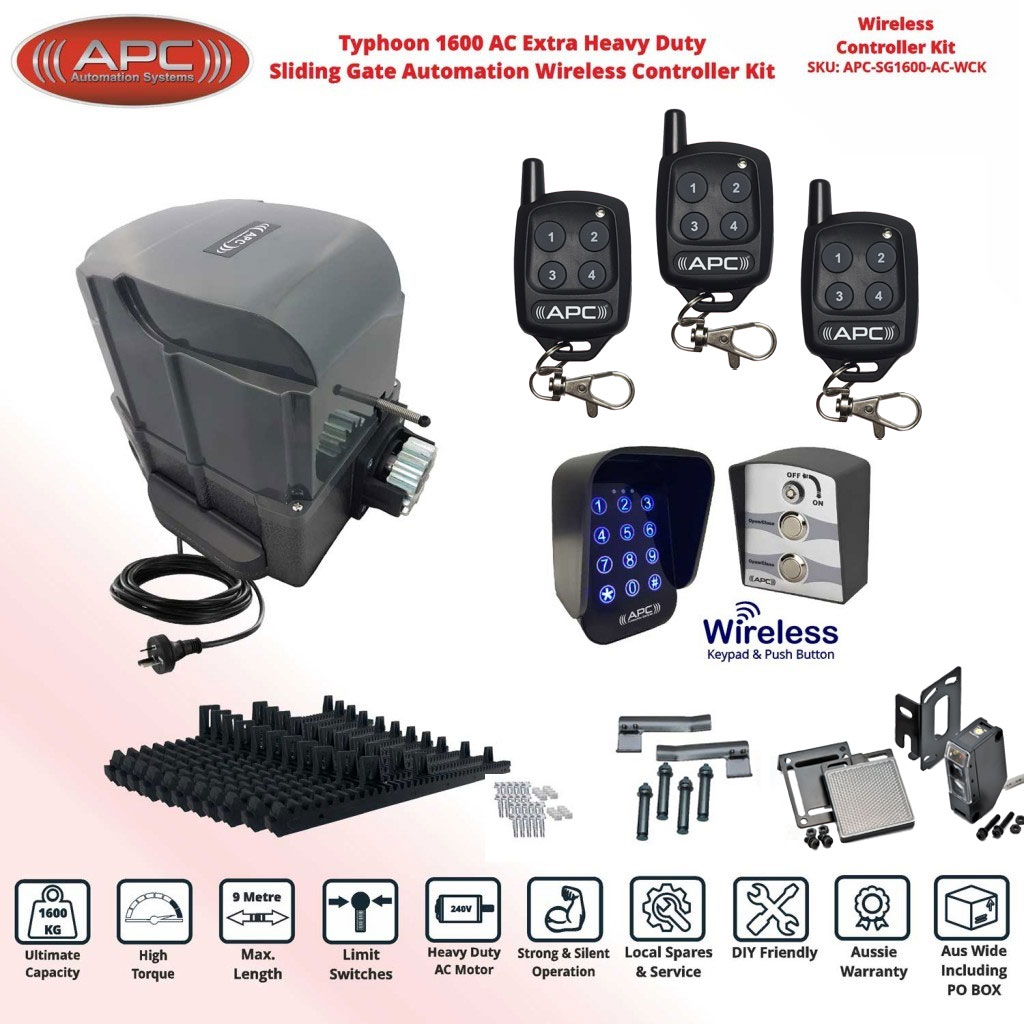

  • Kit Includes

    01 APC SG1600AC 1600KG Sliding Gate Motor with Power Cord (Built in Control Board)(QTY: 1)
    02 APC Four Button Keyring Remote(QTY: 3)
    03 115mm High Bolt Down Anodized Gate Stop(QTY: 1)
    04 V4 520mm Nylon Rack(QTY: 10)
    05 APC Two Channel Wireless Keypad(QTY: 1)
    06 APC Wireless Single Push Button Switch with Key Issolation(QTY: 1)
    07 APC Photoelectric Gate Safety Sensor - Infrared beam security sensor(QTY: 1)
    08 10m 4 Core Non Shielded Cable(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Extra Heavy Duty
AC Sliding Gate Automation System
Easy Installation All in one Motor and Control Panel for Sliding Gate
Suitable for sliding gates up to 1600kg


Strong & Durable
Strong & Durable Sliding gate motor with 1600KG capacity
All In One Motor
All in one motor with built in control board and limit switches
AC Sliding Gate Automation System
AC Sliding Gate Automation System
Manual Override
Built in manual override for emergencies
Metal Pinnion & Gears (NO PLASTIC OR NYLON)
Strong Metal Cut Pinnion ensuring the highest durability
AC Sliding Gate Automation System
AC Sliding Gate Automation System


This all in one AC powered sliding gate motor kit is designed to operate sliding gates up to 1600kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.

- Manual Override
- All Metal Gears
- Metal Gear Drive
- All in one internal Motor and Control Panel

Controlling Options:

(any or all of the following may be connected to operate the gate)

- Remote Controls (2 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Available as an optional accessory)
- Wireless or Wired Keypads (Available as an optional accessory)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with seperate power supply (Available as an optional accessory)
- Wi-Fi receiver with seperate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)



Motor Dimensions


AC Sliding Gate Automation System


Remote Control


AC Sliding Gate Automation System Remote Control
Rolling code 433.92MHZ.
The remotes supplied have 4 buttons, 1 and 2 can be used for the gates. Buttons 3 and 4 can be used for the party mode and second lock or alternatively they can be programmed to a compatible second gate opener or a garage door(s). A compatible 2 channel reciever is available to interface to any garage doors. Please see remotes and recievers in our store to find this add on reciever for the garage door.


Safety Sensors


AC Sliding Gate Automation System Safety Sensors
Photo electric sensor function:
If PE sensors are installed:
- The gate will not close while the beam is obstructed.
- The gate will stop and re-open if an object obstructs the beam.
The sensors are wired back to the control panel using the supplied cables.
Specifications:
Detection technology: Infrared
Range: 15m max.
Frequency: 1.92Khz
Power: 12-24V AC/DC
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm


Wireless Entry Keypad


Wireless Entry Keypad

APC-KP2W Wireless Keypad Features

- Low Power Consumption only 18uA in standby.
- Easy to replace AA battery powered system (supplied) with up to two years usage on general use.
- High strength tempred glass face plate with an ultra modern and highly reliable touch sensitive operation.
- Blue Backlight illumination upon touch with an automatic timeout to return to standby.
- Two Channel operation allowing the user to control two different items or functions using separate pin codes.

Channel 1 supports up to 8 Pin Numbers
Channel 2 supports up to 3 Pin Numbers

- Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
- IP53 Weatherproof rated and suited for outdoor and indoor environments.
- Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
- Pin code scramble allowing the user to input a series of random number before the pin code to
prevent pin code theft.

Specifications:
- Touch sensitive buttons
- Tempered glass face plate
- 6V DC supply (4x AA Batteries)
- Consumption 18uA Standby, 6mA Active, 28mA Working
- Two channel output (CH1=8 Pins, CH2=3 Pins)
- LED Indicators + Backlight
- Anti tamper + Pin code scramble
- IP53 Rated



Wireless Exit Push Button Switch


Wireless Exit Push Button Switch
This wireless APC single push button switch with isolation key is a stand alone unit powered by a durable 12V internal battery.
This switch is wireless and DOES NOT require any wiring or external power to operate any of the APC automatic gate openers.


Gate Stop


AC Sliding Gate Automation System Gate Stop
Gate Stop

Heavy duty galvanised metal gate stop with rubber end.


"U" Guide


AC Sliding Gate Automation System U Guide
"U" Guide and stop for sliding gates

The "U" Guide is installed at the closing end of the sliding gate.


GR-52-V3 Interlocking 520mm Lengths Nylon Coated Gear Rack


AC Sliding Gate Automation System GR-52-V3 Interlocking 520mm Lengths Nylon Coated Gear Rack
520mm Lengths Nylon Coated Gear Rack

This GR-52-V3 gear rack is nylon coated and re-inforced with a steel rod. The gear rack is supplied in 520mm interlocking lengths with a male and female end.
More gear rack is available for purchase for larger sliding gates.
Please Note: This nylon gear rack can be upgraded to steel gear rack at an additional cost.


Suitability


This automatic sliding gate opener is suitable for:
→ Sliding gate not exceeding 1600kg maximum
→ A power point at the gate
→ Level ground installations


Specifications


Rated Power 650W
Power supply 220V-240V
Maximum Weight of Gate 1600kg
Working temperature of motor -45° ~ +65°
Open (Close) speed 12m/min
Maximum Pull 38Nm
Voltage output Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Open/Stop/Close


AC Sliding Gate Automation System
Here are the Commonly FAQ asked about this product
Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This motor can handle a sliding gate up to 1600kg's in weight
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smart phone
Can I operate this gate system from a remote location?
YES
A GSM Receiever or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a seperate power pack must be used.
Does this gate system automatically close?
YES
When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
Can I lock my gate if I go away?
YES
This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.
AC Sliding Gate Automation System

Remember, You are welcome to ask more questions! You can always rely on Automotionplus for quality products and great service, we are only a phone call away or please visit our showroom.
