Typhoon 1600 High Torque AC Sliding Gate Automation System
Strong & Durable
The Typhoon 1600 650W Internal motor allows for an 1600kg capacity making it the ideal candidate for the larger gate installations including incline/decline situations.
Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.
All In One Motor Design
Ultra-compact, sleek design and with some clever re-arrangement the APC Typhoon 1600 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in an ultra-durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway
With separate open and close inputs as well as a shared open/close input the APC Typhon 1600 will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.
Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.
Manual Override System
Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.
Metal Pinion & Cast Casing
Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one-piece solid steel pinion gear no corners have been cut.
Motor and Base Plate Dimensions Including Pinion Height
Suitability
Sliding gate not exceeding 1600kg maximum (Telescopic Gates Supported up to 350KG PER gate)
Sliding gate not exceeding 9m width maximum (Telescopic Gates Supported up to 4m PER gate)
A power point is required at the gate (or can be hardwired by an electrician)
Level ground installations or minor gradients
Specifications
Rated Power
650W
Power supply
220V-240V
Maximum Weight of Gate
1600kg (Telescopic Gates 350KG PER Gate)
Maximum Width of Gate
9m (Telescopic Gates 4m PER Gate)
The working temperature of the motor
-5° ~ +65° C
Open (Close) speed
12m/min
Maximum Pull
38Nm
Voltage output
18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output
240V Light, 30 Watts or Less
Accessories input
Open Only
Close Only
Open/Halt/Close
FAQ
Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This system can handle a sliding gate up to 6m wide and 800kg in weight.
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location.
Does this gate system automatically close?
YES
When the automatic close timer is enabled, and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
Remote Features
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
Weather sealed with the supplied cover seals
Easy screw down wiring termination
Clydsdale 500 Telescopic Gate System
Consisting of Galvanized steel pulley carriers with sealed bearings this kit allows the final tensioning of the system to be performed from either (or both) ends of the gate rather than between the gates like conventional kits.
The Anchor bracket can be assembled in a raised setup (for bolt-on wheels) and a lowered setup (for recess mount wheels) to eliminate awkward and incorrect cable directions, this will improve the short term and long reliability of the cable and the system and help prevent cable fray.
The Trailing bracket is adjustable in depth to cater for varying distances between the two installed gates and has elongated fixing holes to allow for fine adjustment during the installation process prior to final fixing.
What is a Telescopic Gate:
A telescopic gate is a gate designed in two halves with a leading and a trailing gate. The leading gate will be the gate closest to the inside of the property whereas the trailing gate is the gate that is closest to the street.
Typically a sliding gate would require the width of the driveway + the tail of the gate (350mm) as the minimum clear area required however the telescopic gate system only requires half the driveway width + the tail of gate (350mm). This makes a telescopic gate superior in clearance space required and beneficial for townhouses, blocks of units and any other installation with limited space.
Using the information above if the driveway width is 4000mm then each gate would be manufactured to 2350mm thus making 2350mm the required clearance space. Ideally an additional 150mm would be ideal for a ground stop installation making the preferred clearance space 2500mm
Key Features of Telescopic Gate:
Face Mounted System (when using flat mount or recess mount wheels) but can be under mounted below gate (using flat-mount wheels)
Sealed bearings not bushings
Three cable tensioning points to allow an easier installation (other designs only have one tension point between the gates)
Adjustable brackets provided for the use of recess mount or flat mounted wheels
Low profile system (does not protrude above bottom section of the gate using 80x40 or greater)
All hard parts are galvanized.
All assembly screws are galvanized
Telescopic cable is stainless steel and is provided in a 10m length
Pulley Carrier
2mm Folded Galvanized Steel
Sealed Bearing (Replaceable)
64mm Pulley
25mm Adjustable Cable Tension
6 Fixing Points (Screws Supplied)
Pre-Assembled
Trailing Bracket
4mm Folded Galvanized Steel
Adjustable Depth
Cable Sandwich System
Stainless Steel Assembly Hardware
4 Fixing Points (Screws Supplied)
Anchor Bracket
4mm Folded Galvanized Steel
Adjustable Height (Supplied with Lowering Plate)
Cable Sandwich System
Stainless Steel Assembly Hardware
4 Fixing Points (Dynabolts Supplied)
F.A.Q
Q: Can the telescopic system be under mounted? A: Yes, Due to the design of the pulley carriers 4 Lug rear side fixing the carrier can be installed to the bottom of the gate without any need to remove the gate during the installation process.
Q:What size tubing will the system fit to? A: The carrier system can be installed onto a large variety of different size tubing's such as to 40x40, 80x40, 50x50, 75x50 and 100x50.
Q: What is the maximum size PER gate? A: The maximum size of each gate can be up to 4600mm including the 350mm overlap.
Q: What should each gate width be? A: Divide the width of your driveway in half and add 350mm to the measurement. This is the final width of each gate.
Q: Will the system be visible from the street? A:Initially when face installed the cable will be visible, it is highly recommended to have one of the following methods applied to cover the cable for safety and aesthetics.
- Enclosure on the gate face during fabrication process ready to fit after complete installation.
- Flashing folded to size ready to install after complete installation.
Q: Will i receive instructions? A: Yes you will receive a comprehensive clear english manual which will give clear instructions about the design of the gate all the way through to installation and parts placement.
The following video illustrates the telescopic sliding gates use

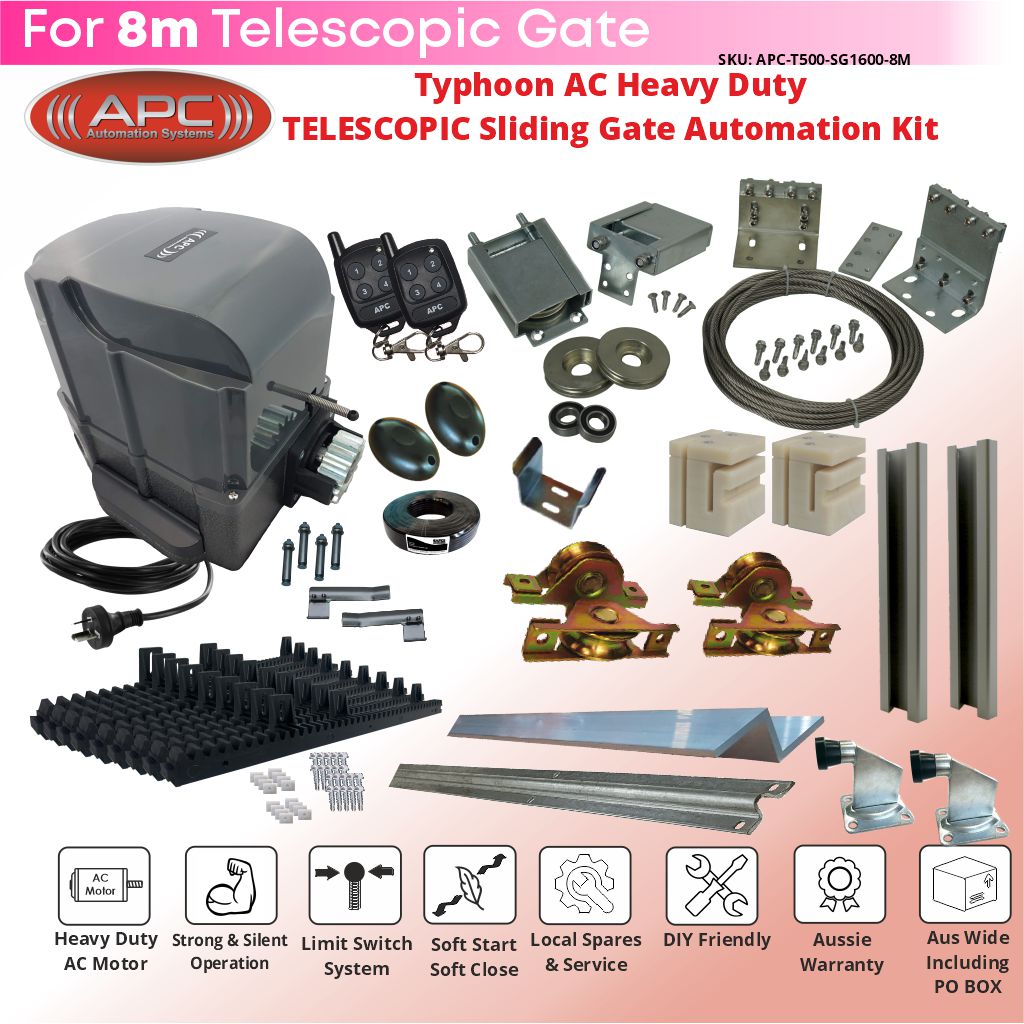

Heavy Duty Telescopic Gates Hardware Kit
This is a complete telescopic sliding gate hardware installation kit with all the parts required for an 8m telescopic sliding gate with Cladding.
Example of Telescopic Sliding Gate Leaf Size Calculation: If the driveway opening is 8000mm, then 2 x 4350mm gates leaf for telescopic gate systems, (2x4000mm + add 350mm on each leaf) The formula for telescopic sliding gate calculation is: Driveway opening size divided into 2 then add 350mm for each leaf.
This kit is suitable for 8m telescopic sliding gates with uneven surfaces for example gates with pickets or colourbond on the face of the gate and regular gates.
High quality galvanised compact yet very strong conversion kits with heavy-duty stainless steel 4mm cable, and this kit is complete and ready to install for 8m telescopic sliding gates. See kit contents above.
What is a Telescopic Gate:
Traditionally an 8m sliding gate requires another 8m of space away from the driveway opening for the gate to slide into.
The telescopic systems will almost halve this space required for the gate to slide into, this is because the telescopic systems enable the second gate to be pulled by the first gate once the first gate starts to move.
Telescopic Sliding Gate Leaf Size Calculation: The formula is: Driveway opening size divided into 2 then add 350mm for each leaf.
Example: if the driveway opening is 8000mm, then 2 x 4.35m gates (2x4000mm + add 350mm on each leaf)
Please see the above telescopic gate systems kit contents:
Key Features of Telescopic Gate:
Undermounted below gate (using flat-mount wheels) or face-mounted to the gate (using flat-mount or recess mount wheels)
Sealed bearings not bushings
Three cable tensioning points to allow an easier installation (other suppliers only one tensioning point)
Adjustable bracketing provides for the use of recess mount or flat mounted wheels
Low profile system (does not protrude above bottom section of the gate using 80x40 or greater)
All hard parts are galvanised.
All assembly screws are galvanised
Telescopic cable is stainless steel
Telescopic Gate System
Example of an assembled telescopic system as it is installed on the gates.
Floor Track
24 x 1m fully galvanised heavy-duty floor track.
This 1m gate track is heavy duty 3mm thick.
Please Note: 2m and 3m track sizes are available for pickup.
"Z" Channel
8 x 1m Aluminium "Z" Section for Sliding Gates.
Please Note: 2m and 3m Aluminium "Z" Section sizes are available for pickup.
This Aluminium "Z" Section is the ideal choice for gates:
- With an incline or decline (not on level ground)
- With pickets or cladding on the face of the gate making an uneven surface on the gate
- With spears at the top of the gate
- With an arched top design
Wheels
4 x 78mm Recess mounted heavy-duty wheels with dual bearings.
The wheels are fitted into the underside of the bottom gate frame, the wheel will raise the gate by approx 27mm from the sliding gate track.
U Guide
1 x 70mm U Guide Gate Keeper.
This "U" Guide-stop is suitable for gates up to 70mm thick.
The "U" Guide is installed at the closing end of the sliding gate.
Gate Stop
2 x 115mm Gate Stop.
Heavy-duty anodised metal with rubber end for the open position.
Sliding Gate Block with "C" Channel
2 x Nylon Block
2 x "C" Channel
This Nylon gate block and "C" channel is suitable for gates with uneven surfaces, for example, gates with pickets. The "C" channel is attached to the post, and the nylon block fits into the "C" channel and to the "Z" channel which is mounted to the top of the sliding gate.
