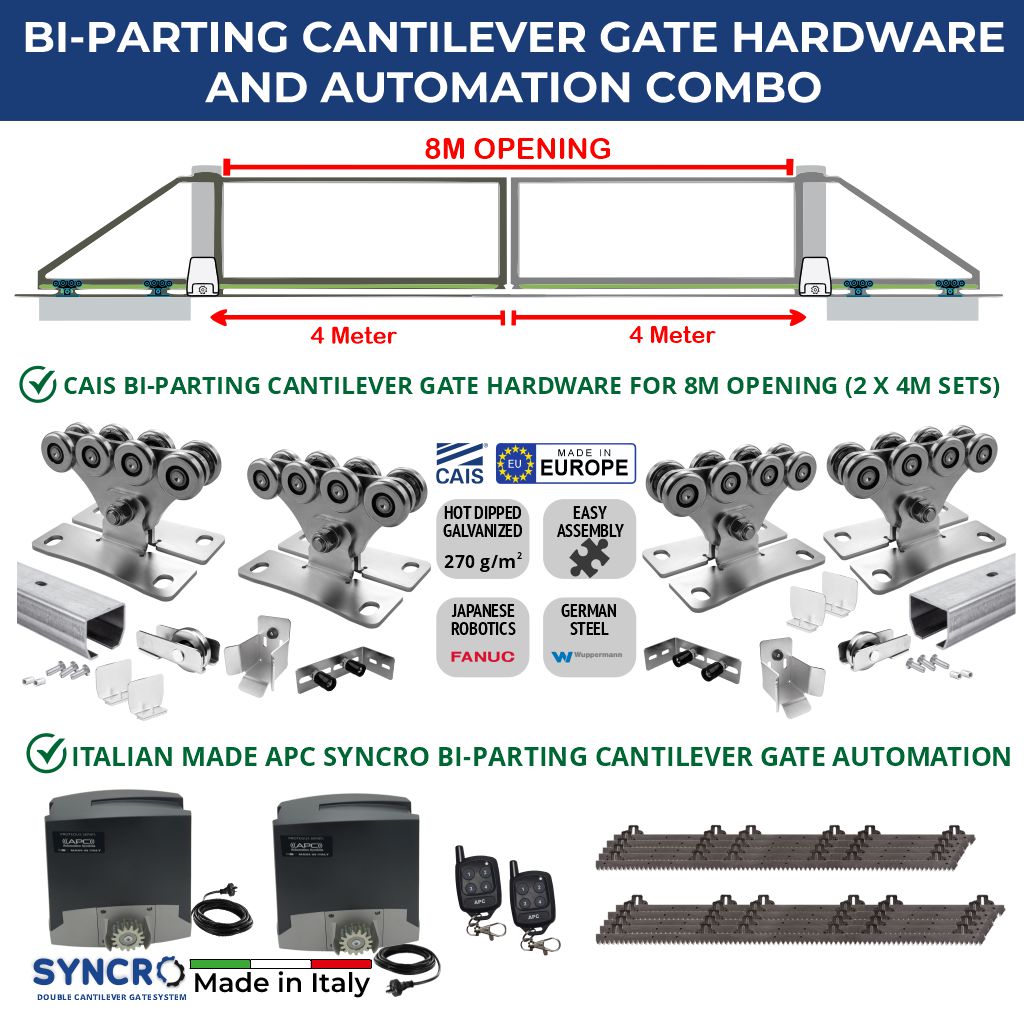

CAIS Bi-Parting Cantilever Gate Hardware For 8m Opening (2 x 4M Sets) Italian Made APC Syncro Automation Combo. Two 4M Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware Packages (Made in Europe by CAIS) and Bi-Parting Double Sliding Automation with Italian Made Heavy Duty Feature Rich 24V APC Proteous 500 Automatic Sliding Gate System, Remote Controls and Safety Sensor.
Product SKU: P500-SYNCRO-E-BOX-4
In Stock
Freight Delivery
This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
CAIS Bi-Parting Cantilever Gate Hardware For 8m Opening (2 x 4M Sets) Italian Made APC Syncro Automation Combo. Two 4M Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware Packages (Made in Europe by CAIS) and Bi-Parting Double Sliding Automation with Italian Made Heavy Duty Feature Rich 24V APC Proteous 500 Automatic Sliding Gate System, Remote Controls and Safety Sensor.
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Sliding Gate Opener P500, Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview
At a glance | The automatic sliding gate opener
The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.
Gate Automation System Features
Capacity
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth
Everything and more as standard. | The automatic sliding gate electric motor
Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Sliding Gater Safety Features
Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface | Sliding gate motor control board
Control Board Overview
Accessories Compatibility and Controlling Options | Sliding Gate Automation
Constant DC Accessories Output
Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
Remote Control Features
Dimensions | Italian Made Sliding Gate Electric Motor
Installation Options
Concrete in Base Plate
Surface Mounted Raised Base Plate (Optional Add On)
Four-point Tilt Leveling
Specifications
Transformer
24V AC
Rectification
In Housing Rectifier
Motor Output Voltage
24v DC
Max Operating Power
300 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
500 KG
Speed
28 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
90%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
34V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
APC-Syncro Dual Motor Synchronization Module
The Syncro modules are connected as a pair, one into each sliding motor of a bi-parting installation. They are interconnected to one another using twisted pairs. This enables a synchronised simultaneous operation of the sliding gates using only one set of accessories connected to either of the two units.
Installation Layout when using Syncro
Optional Battery Back Up
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.
Compartment with Battery Pack and Charger Installed
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
Weather sealed with the supplied cover seals
Easy screw down wiring termination
4m Cantilever Sliding Gate Hardware (All In One Box) DIY Kit | German Steel | Made in Europe by CAIS
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
CANTILEVER GATE SPACE REQUIREMENTS
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
THE INSTALLATION STEPS
The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
CANTILEVER CONSTRUCTION SITE PREPARATION
SPACE
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
THE "ALL-IN-ONE" CANTILEVER SLIDING GATE HARDWARE
We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.
See what the "ALL IN ONE" box includes:
Eight Wheel Carriages
Heavy Duty C Profile Guide Track (3.5mm German Steel) For Cantilever Gate
C Profile Guide End Cap With Screw
C Profile Guide Guide Support Wheel for Cantilever Gate System
U Guide Stop With Rubber for Cantilever Gate Closing Position
U Stop Bracket with Installation Bolts and Screws for Cantilever Gate System
Upper Rollers and Bracket Set for Cantilever Sliding Gate
Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly
