Product SKU: BG-NUUR4-DC-UM2

4 Meter Boom Gate Barrier with Remote Controls, Induction Loop Detectors and Retro Reflective Safety Sensor. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

4 METER BOOM GATE

  • On Sale

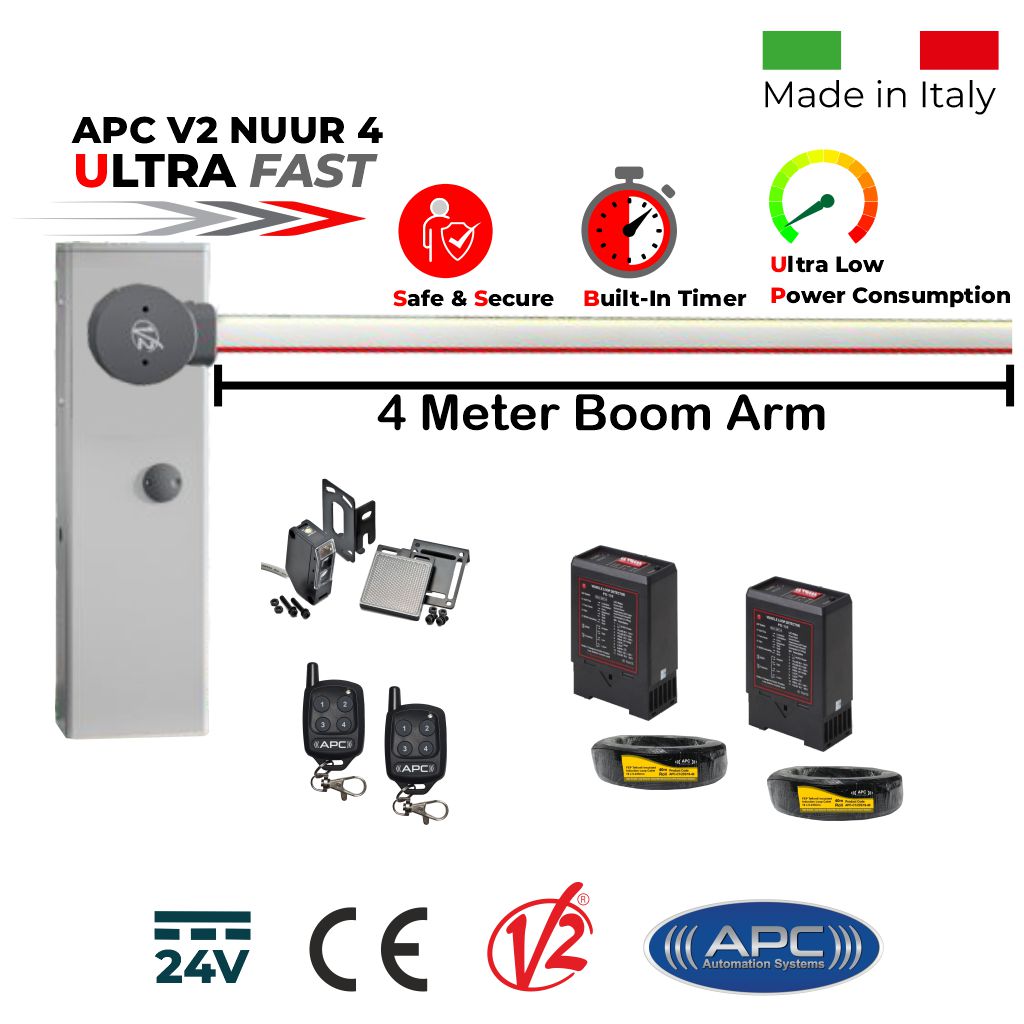

4 Meter Boom Gate Barrier with Remote Controls, Induction Loop Detectors and Retro Reflective Safety Sensor. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

Product SKU: BG-NUUR4-DC-UM2

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,345.00 $2,852.00 APC Automotion Plus Sale

  • Italian-Made Ultra High-Speed Boom Gate Operator with 4m Arm. Barrier/Boom Gate Operator Can Work With Either Side.

  • Kit Includes

    01 APC V2 NUUR4 Universal Boom Gate Operator Box (Pre-Configured Right Side) Ultra High-Speed 24V DC, Car Parking Access Control / Boom Barrier / Boom Gate / Parking Barrier | Made in Italy (QTY: 1)
    02 4m Boom Gate Arm for APC V2 NUUR4 Universal Boom Gate (QTY: 1)
    03 Boom Gate Cover for APC V2 NUUR Universal Barrier/Boom Gate Operator (QTY: 1)
    04 Concrete In Fixing Anchor Plate with Stay Bolts and Screws for APC V2 NUUR Universal Boom Gate Operator (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 40m Roll of Teflon Insulated Induction Loop Cable (QTY: 2)
    07 Single Channel 24V Induction Loop Detector (QTY: 2)
    08 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

APC V2 NUUR4 ULTRA FAST 24V Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 4m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy



  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Slow-down in the limit switch area
  • Balancing spring included
  • White painted aluminium bar (accessory)
  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for modular receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
  • Input for photocells with self-test function
  • Input for mechanical safety edges
  • Courtesy light output
  • Holding magnet output
  • Energy Saving function to minimise consumption in standby mode
  • Programmable acceleration and deceleration
  • Operation in case of absence of power using the backup battery
  • Operation with solar power using the ECO-LOGIC system



Motor Overview / Balancing Spring System







Technical Features

  • Power supply (Vac - Hz): 230 V~ 50 Hz
  • Motor power supply (Vac - Hz):  24 Vdc
  • Maximum electric power (W): 300W
  • Opening time (s): 3 Seconds for 4 Meter Boom Arm
  • Working temperature (°C): Between -20° to +55°
  • Duty cycle % - (max. cycles/hour): 80% - (300)



Control Panel





  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP



Dimensions



Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy



APC V2 NUUR4 Boom Gate System is Suitable to Use On Either Side.

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy





Easy to Swap Right Side and Left Side Raise Arm Barrier Operator











APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

Single Channel Loop Detector

loop detector





The loop detector sensor module that is used wherever vehicles need to be detected to automatically trigger the system to operate. The loop detector module is installed within the system and is powered by the system itself.

From the loop detector module the supplied induction loop cable is fed and layered into a cutout in the driveway as per the illustration below. The system is supplied with a 40m roll of teflon insulated cable which can be upgraded to a larger roll if necessary based on the loop size and distance from the module.

Installation Example

loop detector

loop detector

Loop Dimensions

Loop detector measurment size

Approximate Loop Sizes

Driveway Width
Loop Size
3m - 4.5m 1.8m x 1.2m
4.8m - 5.4m 2.4m x 1.2m
5.8m - 6.7m 3m x 1.2m
7m - 7.9m 4.3 x 1.2m

APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing
