Product SKU: SL180R-PG
Request a quote via phone or email.
Trade users, log in to place an order.
(Click for Trade User Login)
(This ad is for the only replacement gate motor. Please note no arm, no control board, no remote control.)
If you would like to purchase a complete kit, please click here.

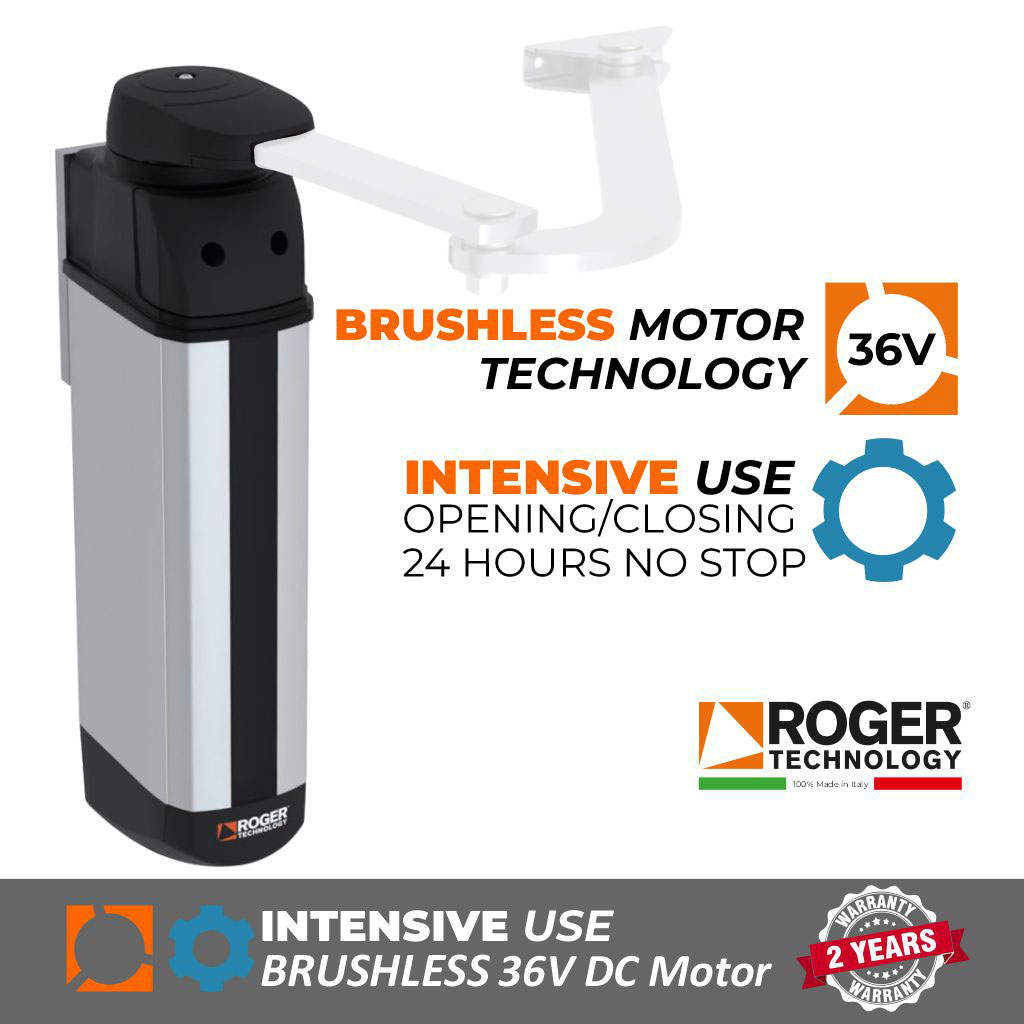

BRUSHLESS IPU TECHNOLOGY low voltage electromechanical gear motor for intensive use, reversible, on-board power inverter with integrated digital encoder, ideal for leaves up to 1.8 m.
Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 1.8M or 150KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Articulated Arm
Electromechanical articulated motor Super Intensive Use BRUSHLESS, low voltage, with native encoder onboard, irreversible, ideal for pedestrian swing gates with leaf up to 1.8 meters.
All measurements are expressed in mm.
All measurements are expressed in mm.
| Power line supply: | 230V AC 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Torque: | 105 N m |
| Operating temperature: | -20 + 55° C |
| Protection level: | IP44 |
| Reductor Type: | Reversible |
| Manoeuvre speed: | 0,6 - 6,6 Rpm |
| Opening time: | 6-30 s |
| Limit switch: | Mechanical stop on opening and closing only with LT341 Slide Arm accessory |
| Encoder: | Digital magnetic encoder sensor, 4096 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 400000 |
| Maximum dimension product in mm (L x W x H): | 492 x 102 x 144,5 |
280Kg Magnetic Lock with Z Mounting Bracket and 10m Cable Roll
|
Lock Size: |
220Lx42Wx25.5H (mm) |
|
Armature plate: |
180Lx40Wx11H (mm) |
|
Holding Force: |
280kg (600Lbs) |
|
Voltage: |
12/24VDC+10% |
|
Current Draw: |
12V/500mA 24V/250mA |
|
Suitable for: |
Outdoor use on gates, outdoor and indoor doors |
|
Operating Temp: |
-10º+55º(14-131F) |
|
Suitable Humidity: |
0~90% |
|
Finishing of the Magnetic lock: |
Zinc |
|
Finishing of the Armature: |
Zinc |
|
Weight:
|
2.1kg
|
Power Relay | DC 12V LED Indicator Light Electromagnetic Power Relay
Item Specifications
Contact type: DPDT (2NO 2NC)
Coil current: 10A
Coil voltage: 12V
Material: plastic, metal
Pin: 8 pin
