Product SKU: SL180R-PG-DC-BK
Free Shipping
Kit Price:
$3,295.00
BRUSHLESS IPU TECHNOLOGY low voltage electromechanical gear motor for intensive use, reversible, on-board power inverter with integrated digital encoder, ideal for leaves up to 1.8 m.

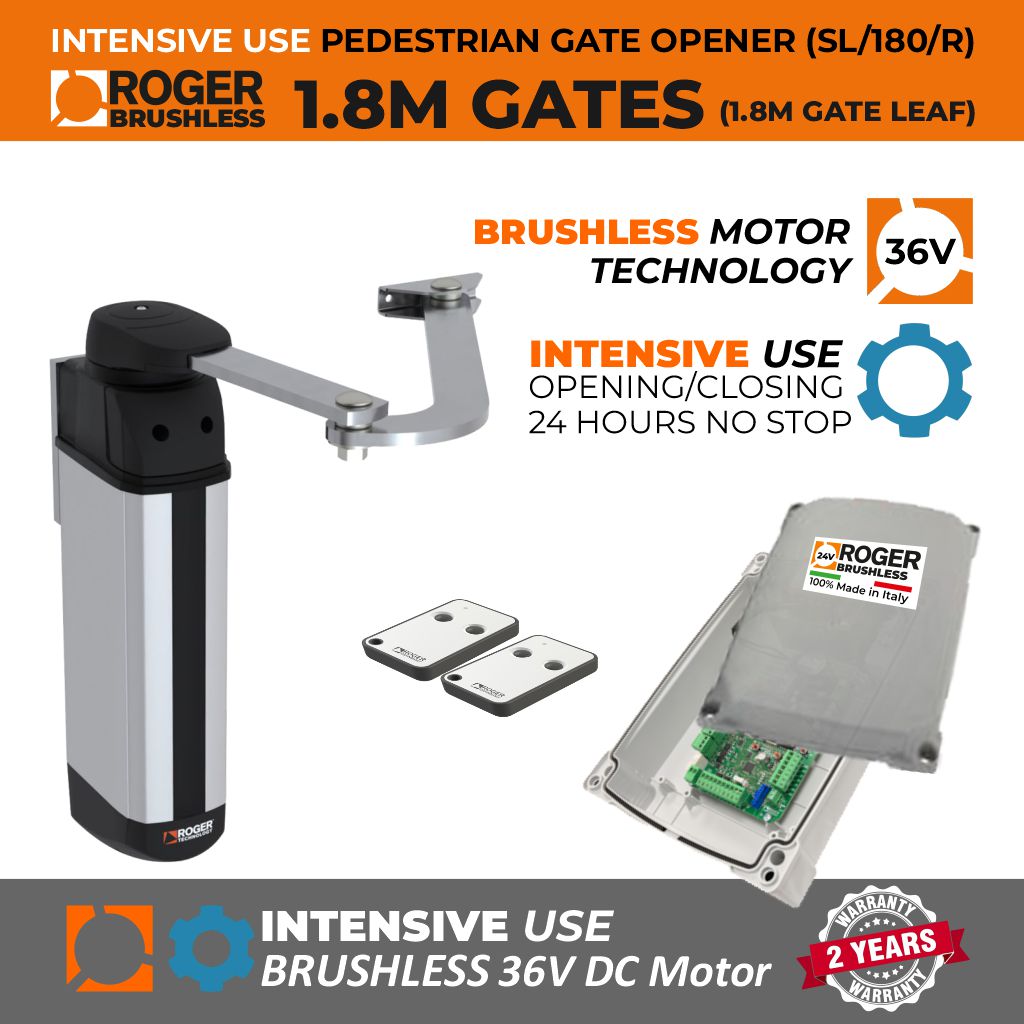

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 1.8M or 150KG Each Leaf | Super Intensive Use |

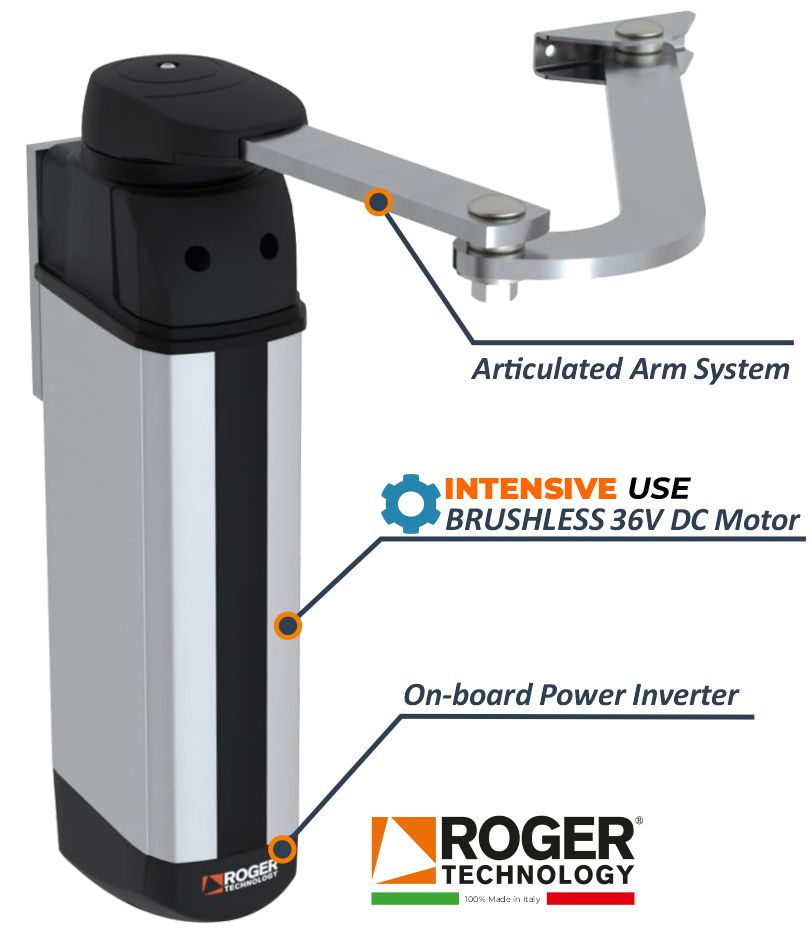

100% Duty Cycle Brushless Engine With Articulated Arm

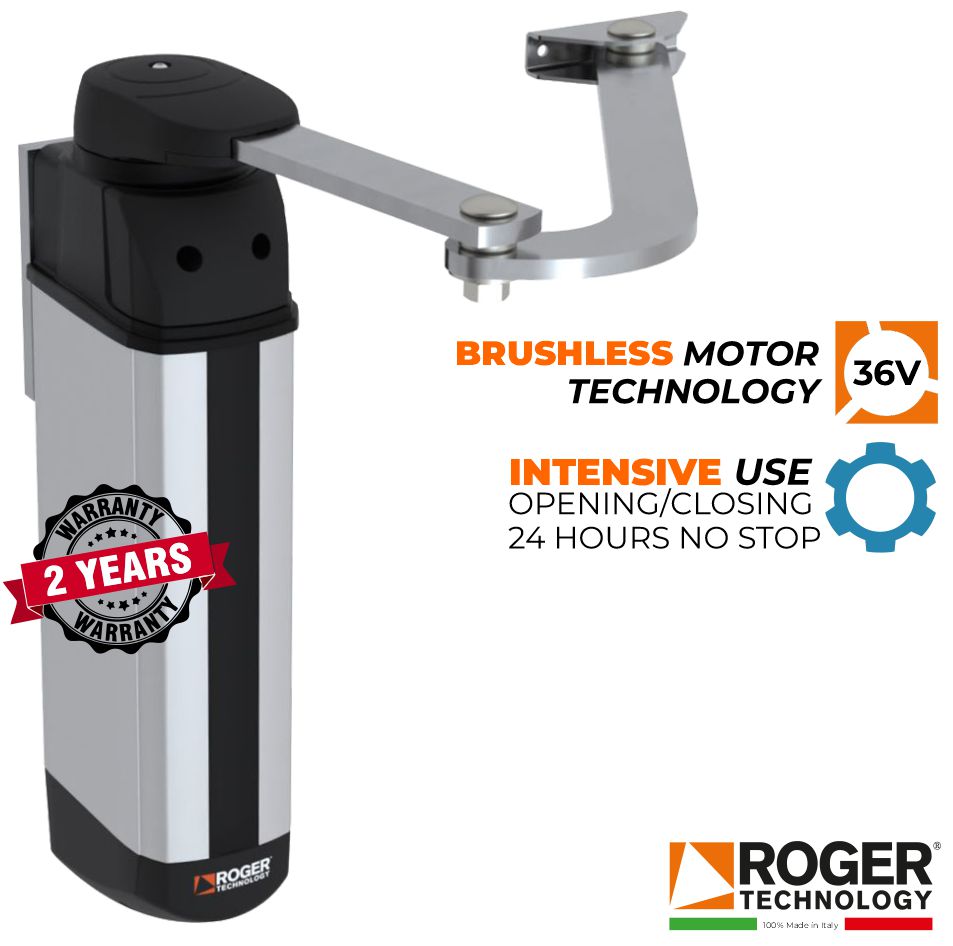

Electromechanical articulated motor Super Intensive Use BRUSHLESS, low voltage, with native encoder onboard, irreversible, ideal for pedestrian swing gates with leaf up to 1.8 meters.

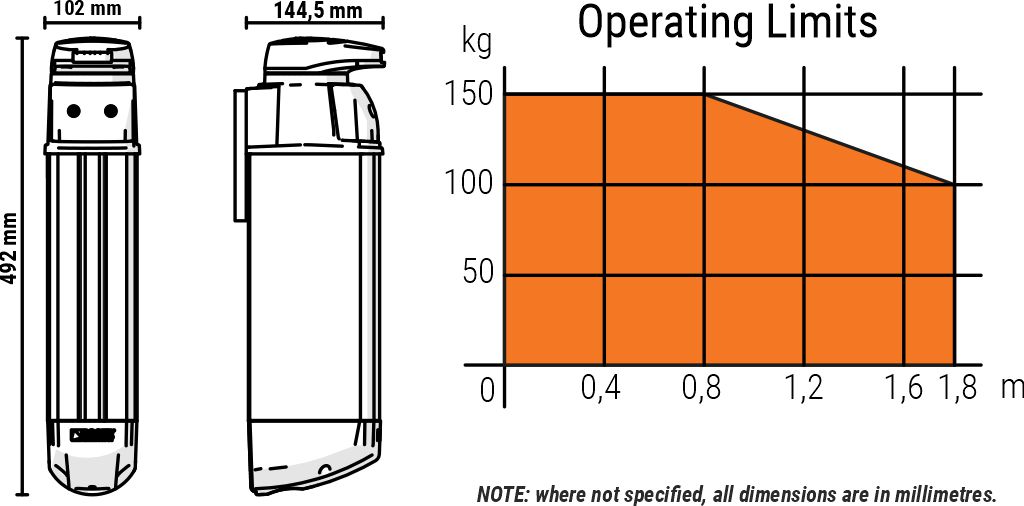

All measurements are expressed in mm.
All measurements are expressed in mm.
| Power line supply: | 230V AC 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Torque: | 105 N m |
| Operating temperature: | -20 + 55° C |
| Protection level: | IP44 |
| Reductor Type: | Reversible |
| Manoeuvre speed: | 0,6 - 6,6 Rpm |
| Opening time: | 6-30 s |

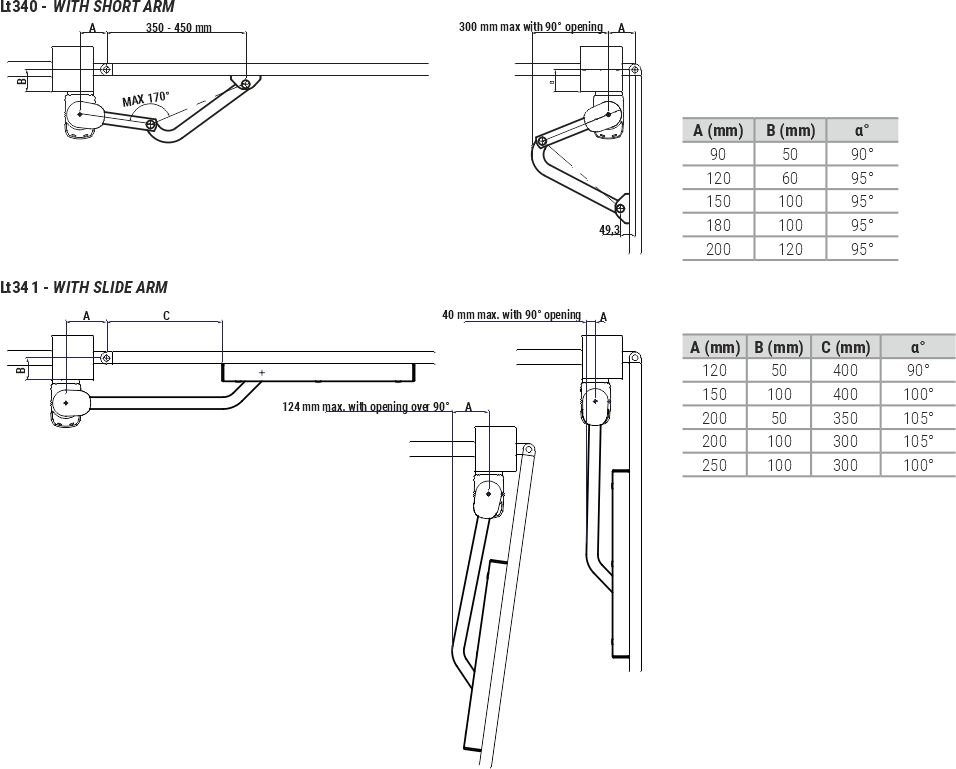

| Limit switch: | Mechanical stop on opening and closing only with LT341 Slide Arm accessory |
| Encoder: | Digital magnetic encoder sensor, 4096 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 400000 |
| Maximum dimension product in mm (L x W x H): | 492 x 102 x 144,5 |
IPU 36V controller for managing 2 BRUSHLESS IPU TECHNOLOGY motors with on-board inverter, in plastic housing.

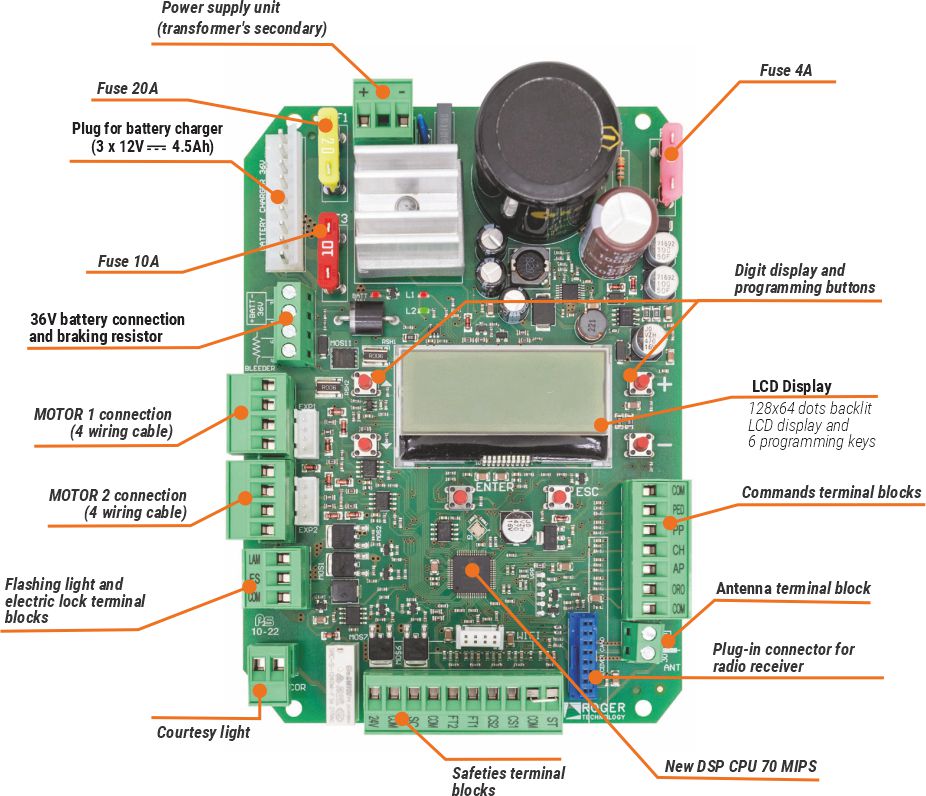

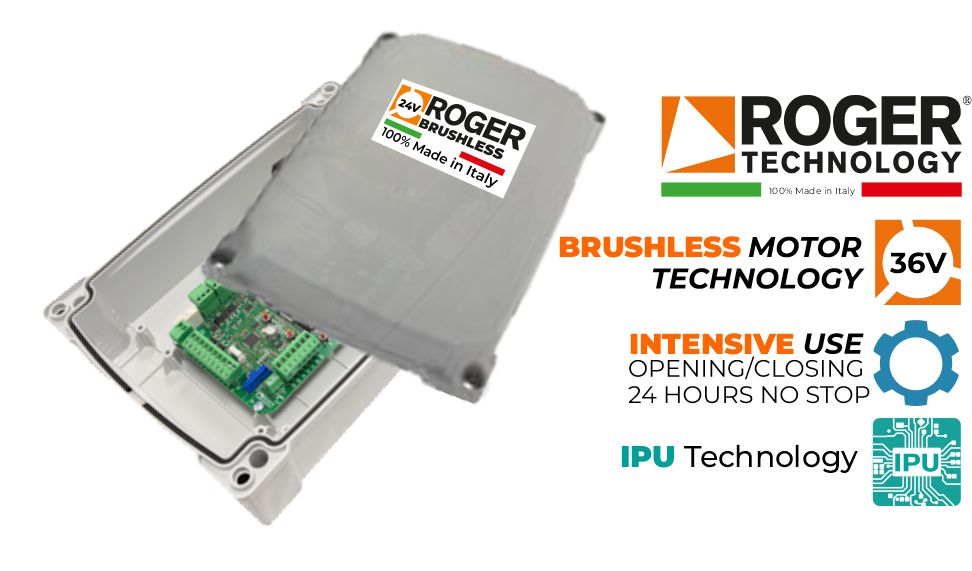

The Roger Technology 36V F70/IPU36/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 36V F70/IPU36 control unit controls 1 or 2 ROGER brushless motors.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230 V AC ± 10% 50 Hz |
| Operating temperature: | -20°C + 55°C |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor |
| Max power per motor: | 250W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 20W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 10W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
