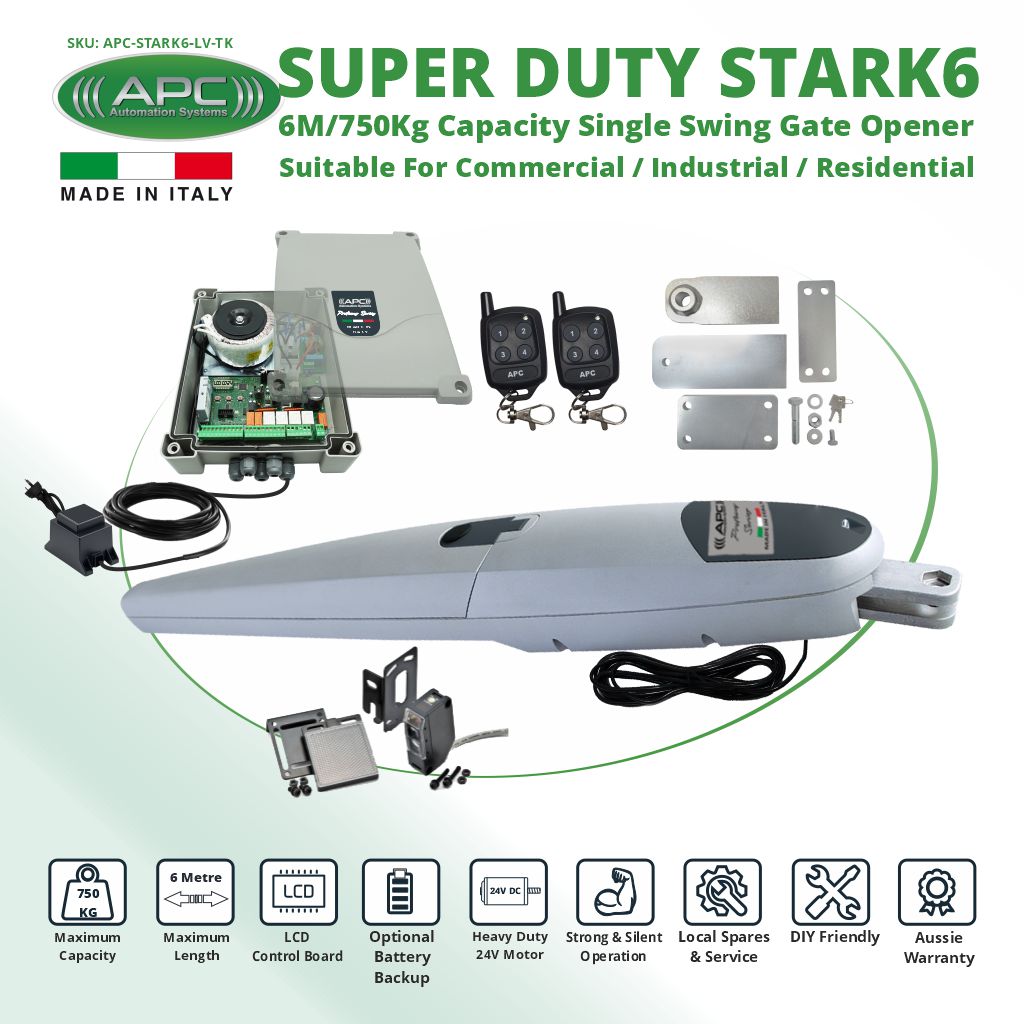

Italian Made Super Duty STARK6 Gate Opener, Industrial Strength Gate Automation Kit Suitable To Large Gates Up To 6 Metres
Packing a punch the APC-STARK6 system can deliver 2400N of thrust to operate gates up to 750kg or 6m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.

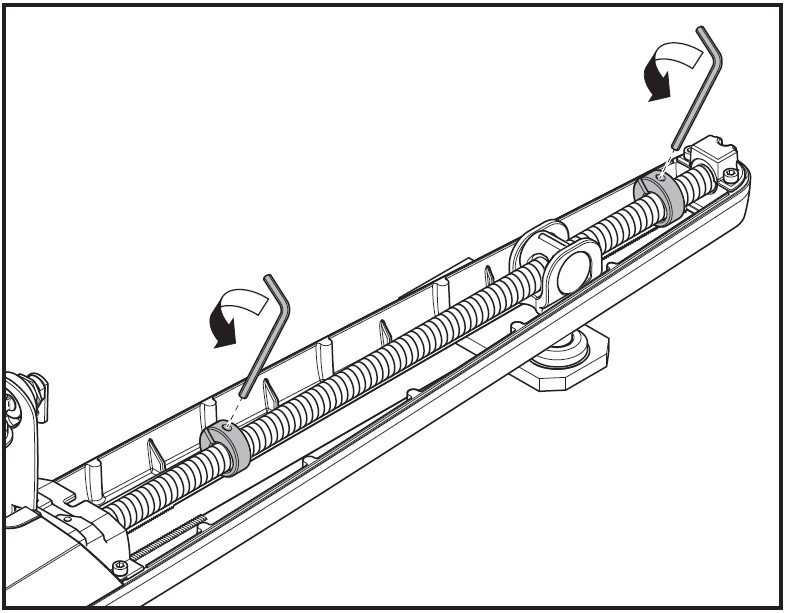

Adjustable built in stopper (Italian Made STARK6)
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

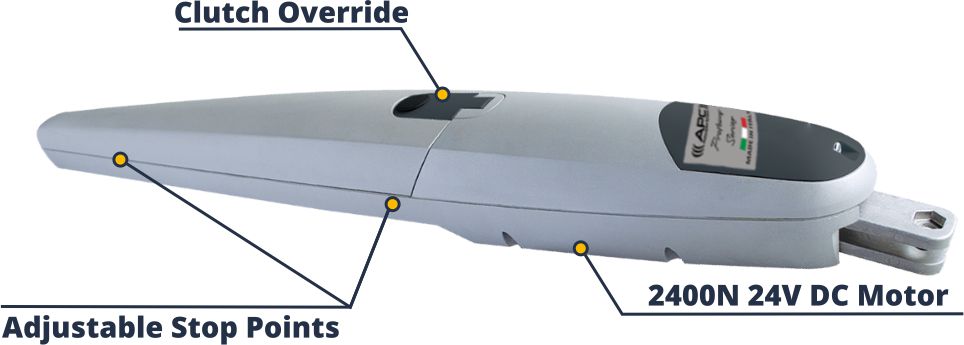

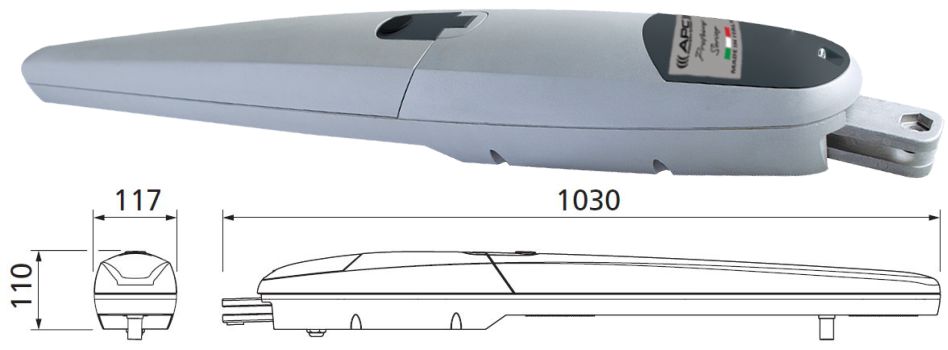

Actuator Overview (Italian Made STARK6)

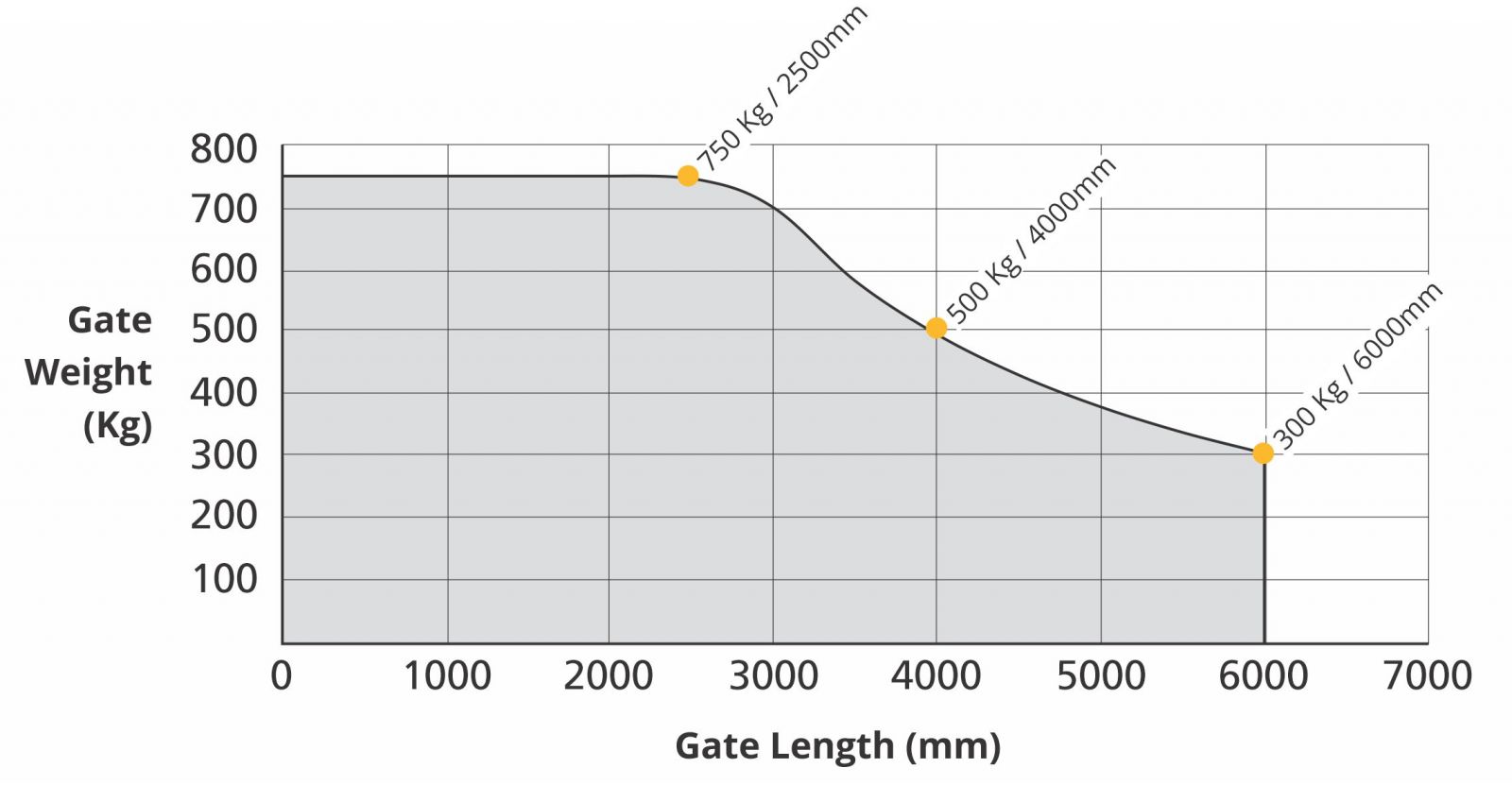

Italian Made Super Duty STARK6 Gate Automation System Capacity

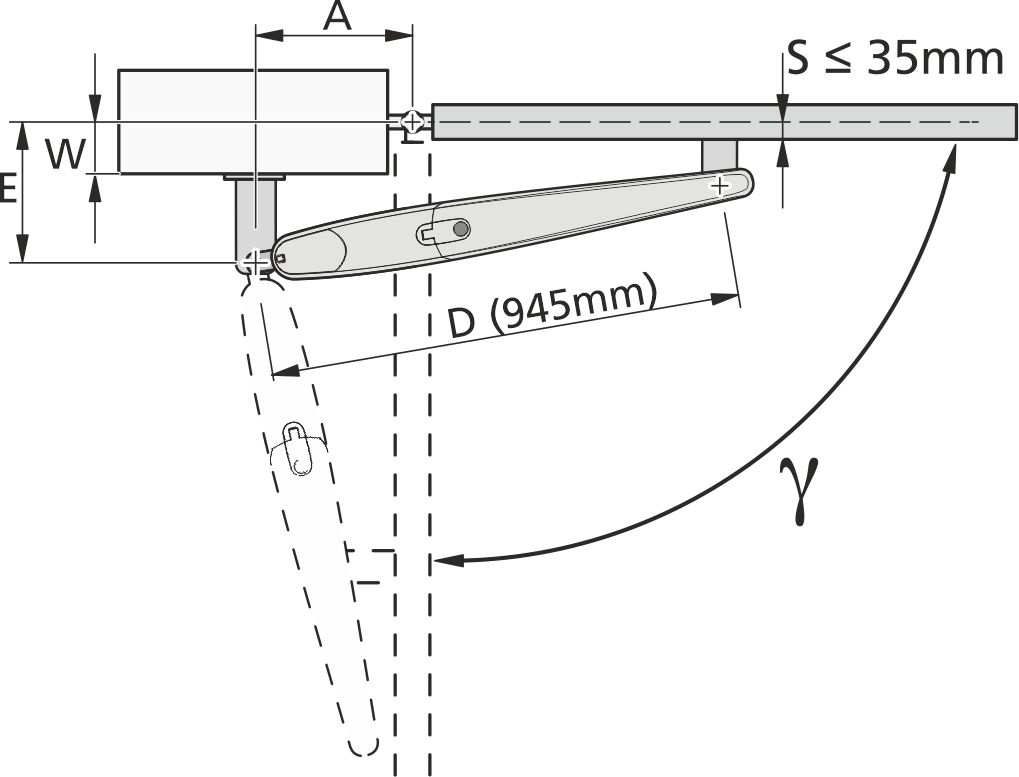

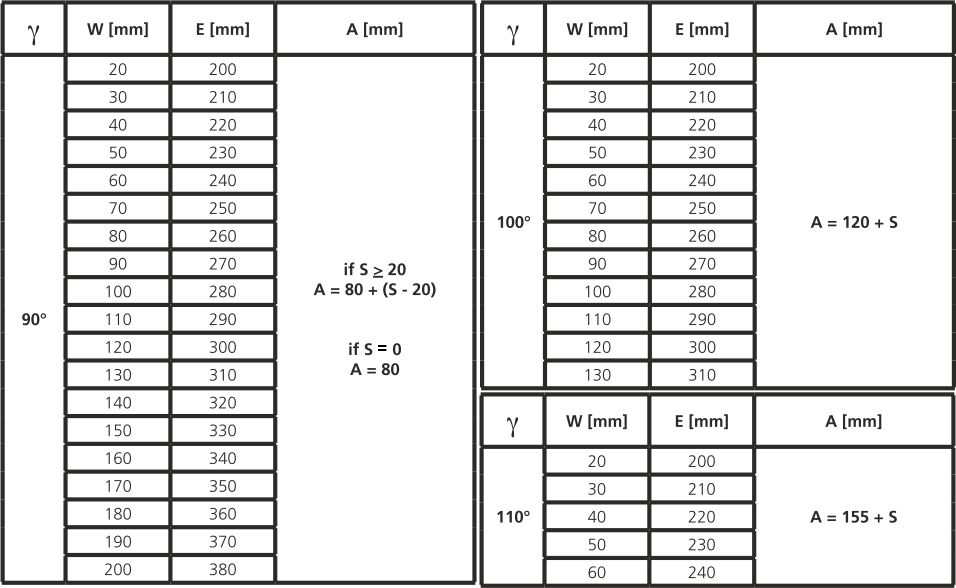

Italian Made STARK6 Gate Opener Installation Geometry
STARK6 Gate Motor Installation With The Flexible Fixing Bracket
STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.
NOTE - The bracket supplied with the gate opener kit is 180 mm long
STARK6 Gate Automation Specifications
Via override key supplied
-20° - +55°
Feature Rich and Highly Versatile Control Box
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points

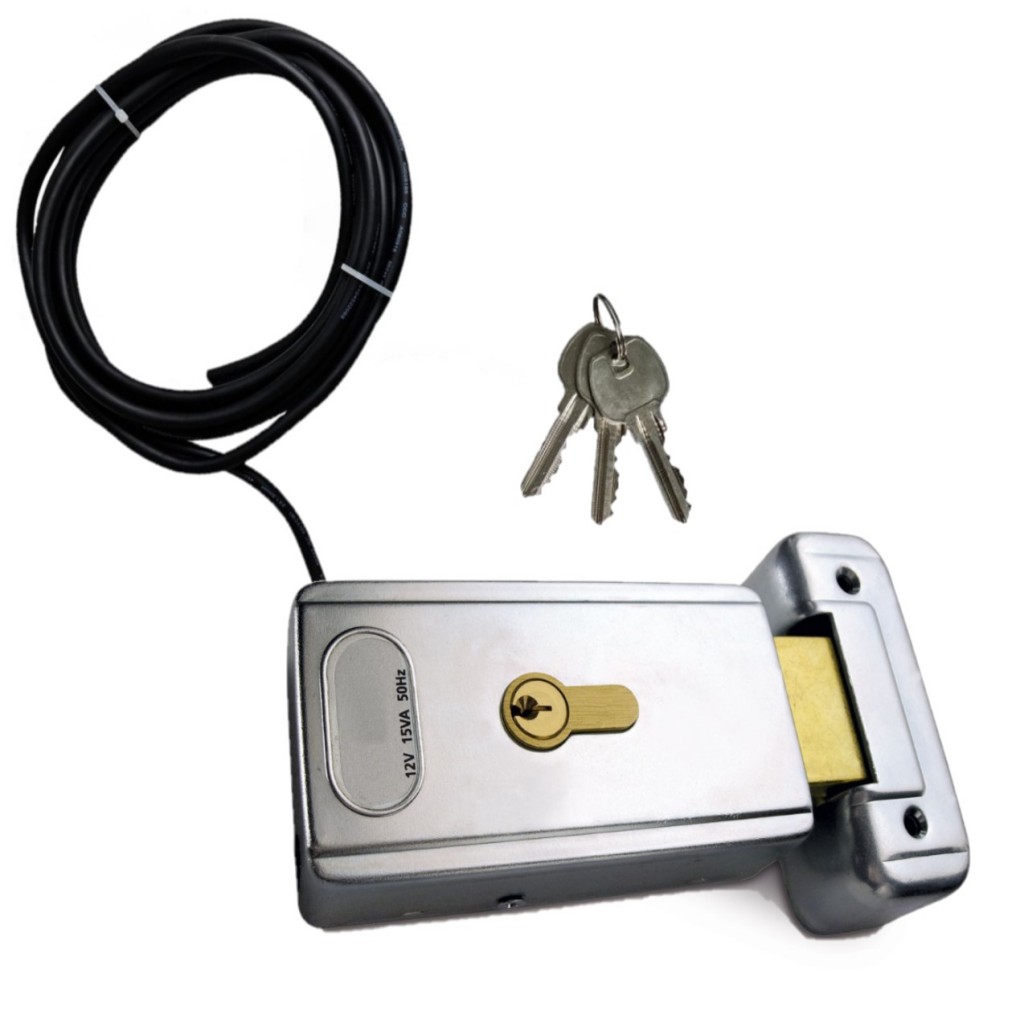

Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation

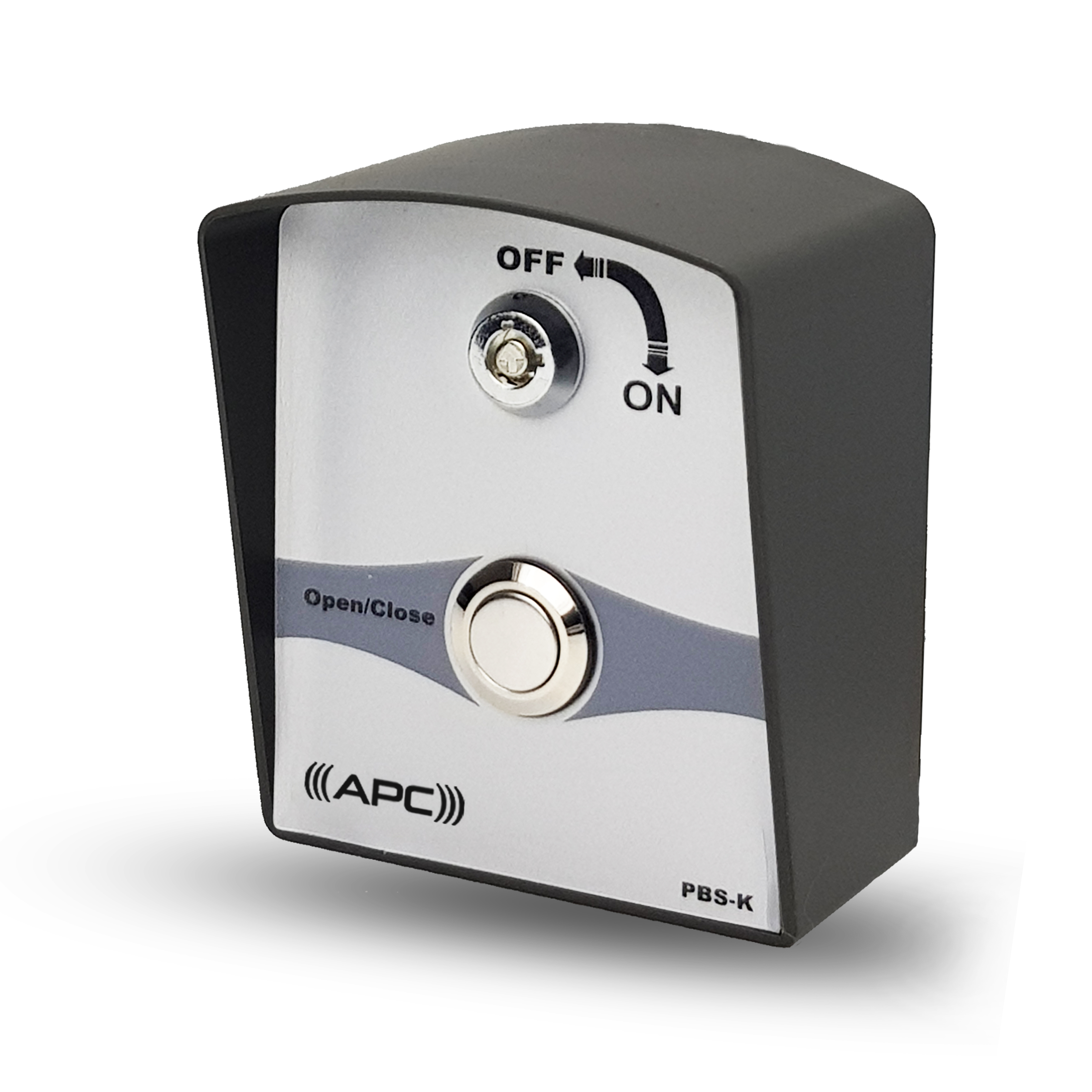

Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)

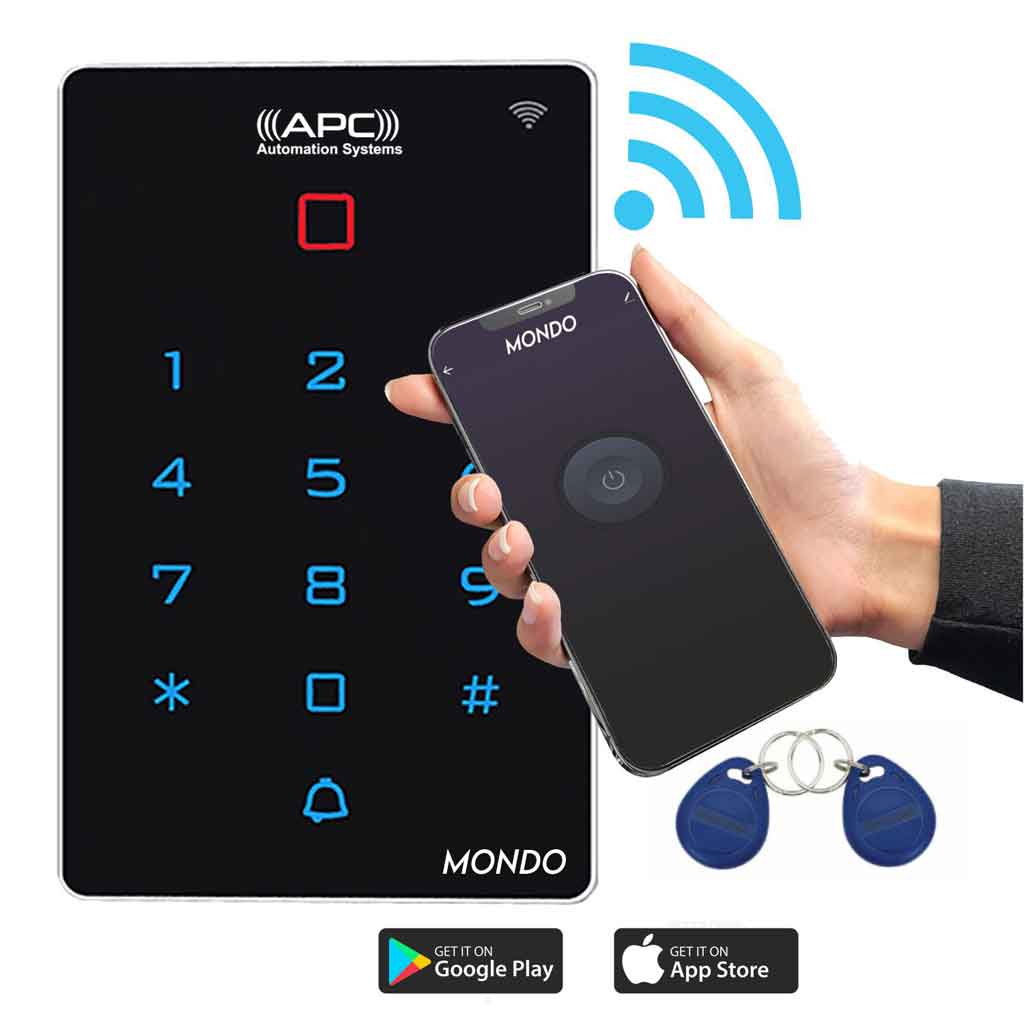

Keypads (Wired and Wireless Options Available)

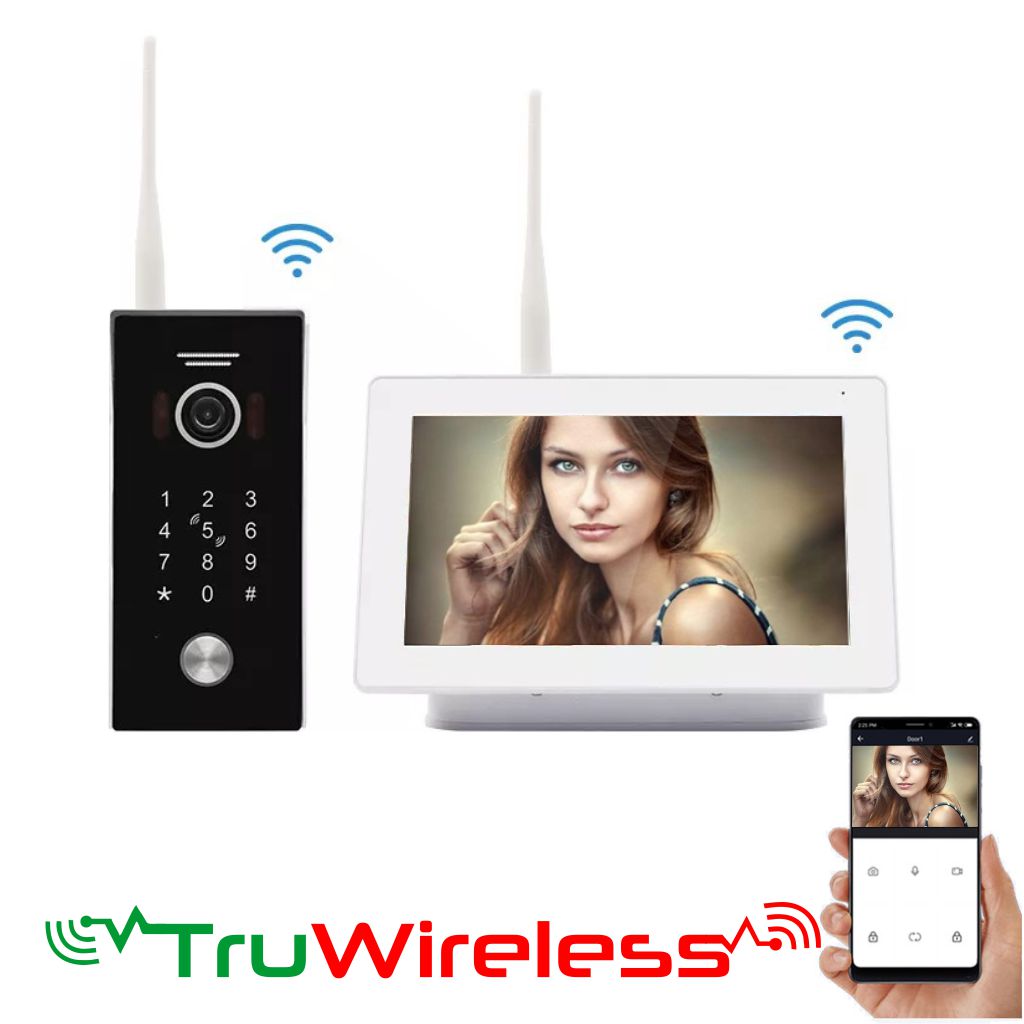

Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
||In Box Rectifier
|Motor Output Voltage
|Max Operating Power
||250 Watts (Accesories + Running Motors)
|Max. Accesories Load
|Control Board Duty Cycle
||-20° - 50°
||APC Rolling code 433.92mhz
||0V Momentary Pulse
|Operator Inbuilt Safety
||Over current + Encoder Sensitivity
Optional Battery Back Up Box
An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..

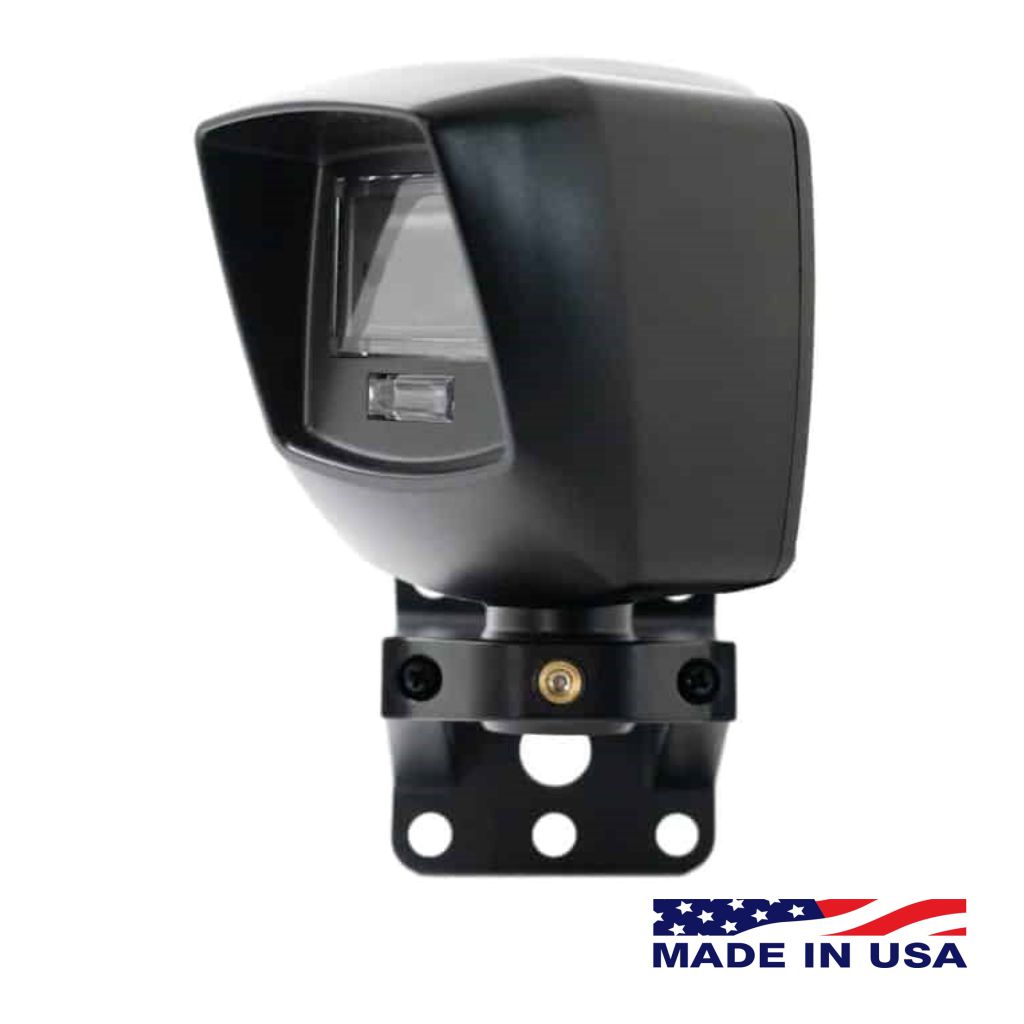

APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
