  • Double Swing Automatic Gate Opener System
    On Sale
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits
  •
Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits

Extra Heavy Duty Long Stroke, All Metal Gears, Telescopic Linear Actuator with Italian Made Logico 24 Control Unit Kit with Top Limits

Product SKU: APC-T850TL-L24-SOL-TK

  • In Stock

Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,042.00 $2,117.00 APC Automotion Plus Sale

  • 24V System, 3.5 Meter, /250KG Each, 540mm Stroke, Metal Gears, Top Limit

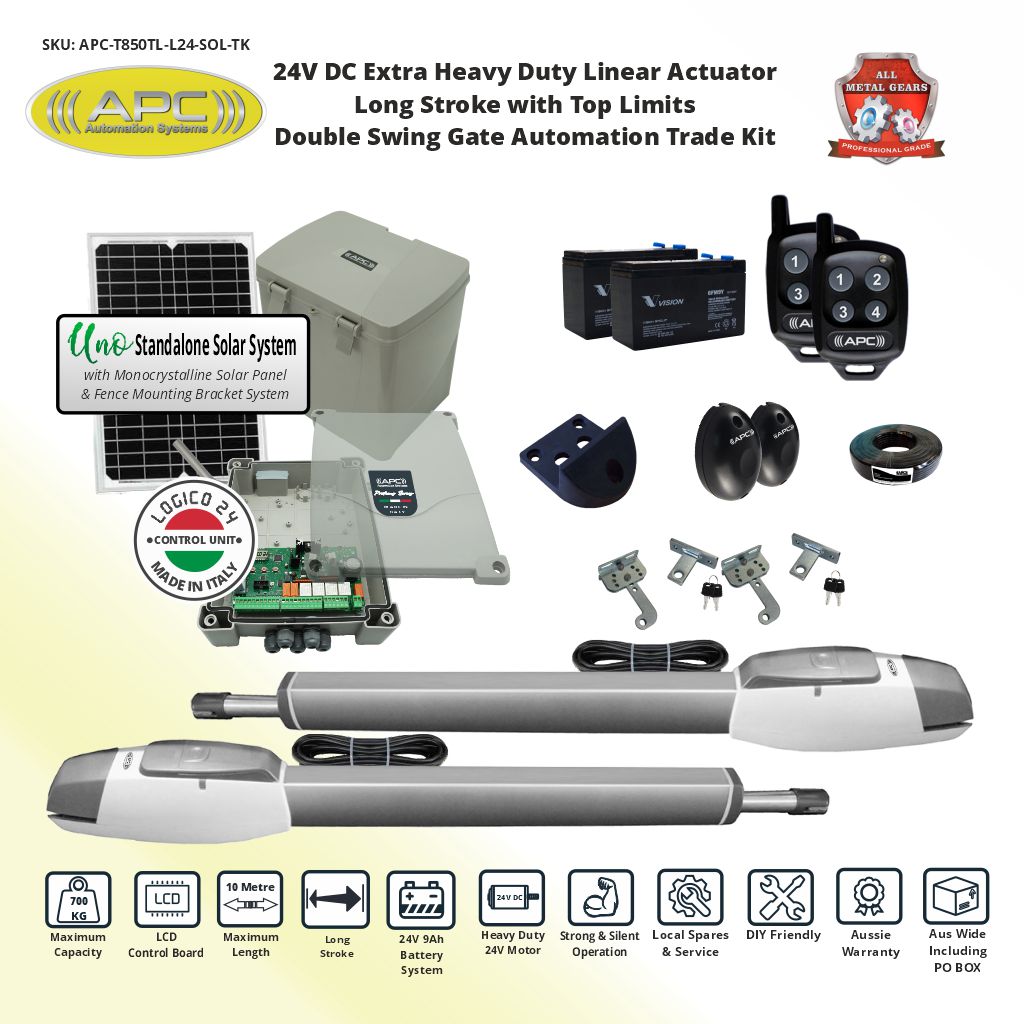

  • Kit Includes

    01 APC-T750TL Top Limit Actuator Kit, Extra Heavy Duty 24V DC Powered Gate Motor| Swing Gate Automation(QTY: 2)
    02 APC Logico 24V Feature Rich SOLAR Control Box(QTY: 1)

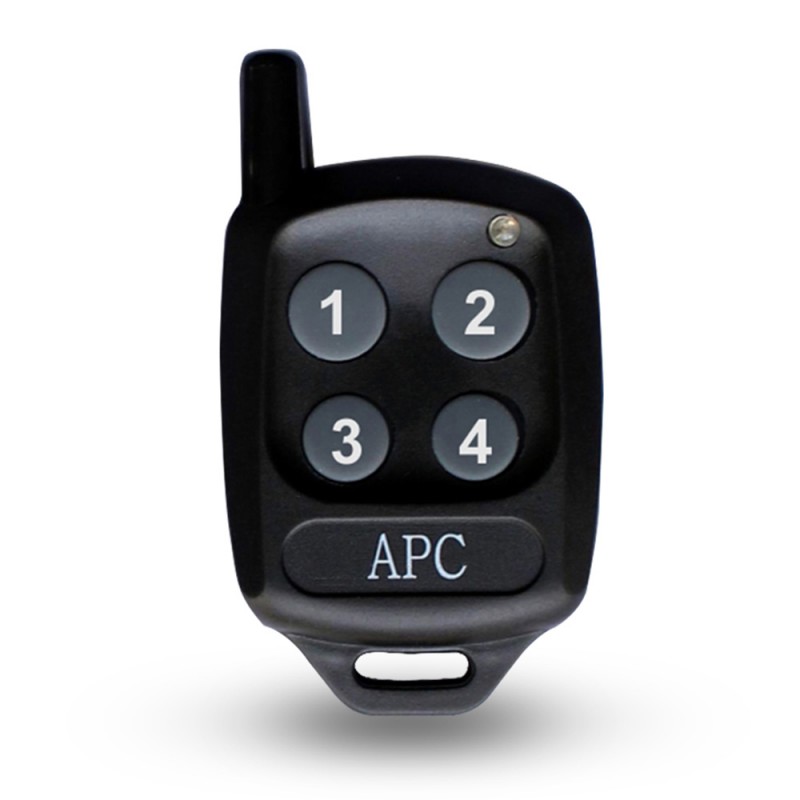

    03 APC Four Button Keyring Remote(QTY: 2)
    04 APC Uno Multipurpose Battery Box(QTY: 1)
    05 9aH High Capacity Battery(QTY: 2)
    06 APC Sun Power Series 12V/24V 10A PWM Solar Regulator(QTY: 1)
    07 2m 2 Core 2mm Non-Shielded Cable(QTY: 1)
    08 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
    09 24v 20 Watts Solar Panel(QTY: 1)
    10 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels(QTY: 1)
    11 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector(QTY: 1)
    12 10m 4 Core Non Shielded Cable(QTY: 1)
    13 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

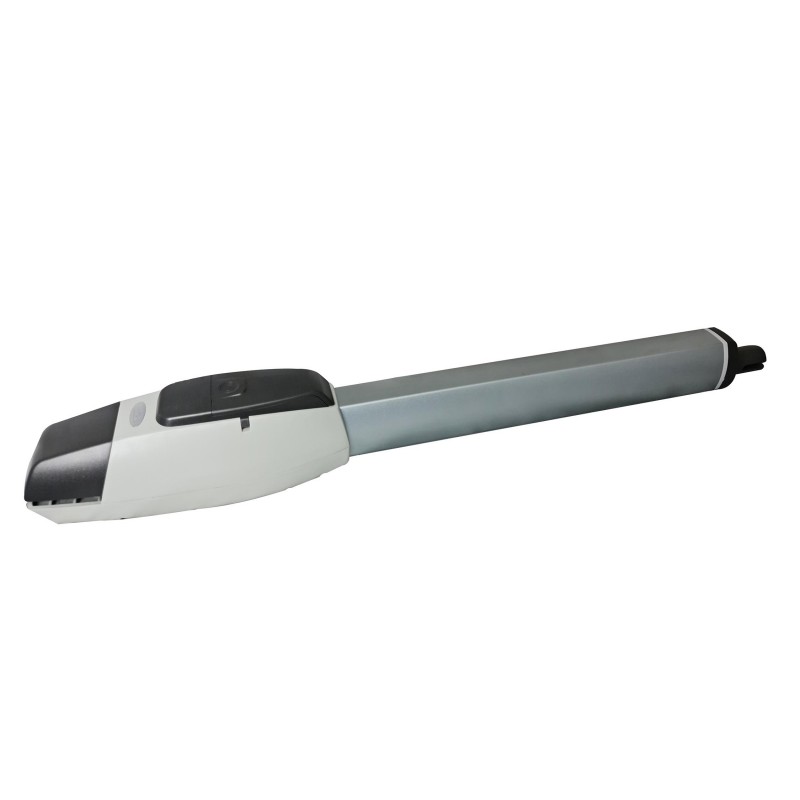

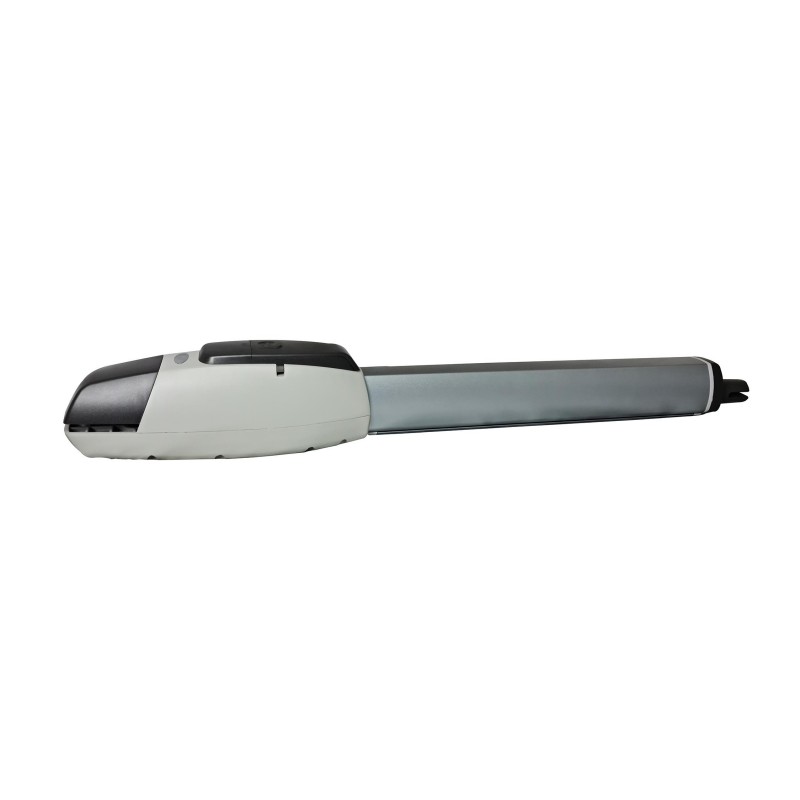

All Metal Gears Extra Heavy Duty Telescopic Linear Actuator with Top Limit Switches

Extra Heavy Duty 24V Motor with powerful and quiet operation. Robust all-metal internal gears, sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in an emergency situation. The system can handle light and heavy gates up to 350kg maximum weight for each gate leaf or up to 5m maximum length of each gate leaf.

Top Limit Switches ensure the precise setting of the open and closed positions along with a less strenuous life for the actuator.

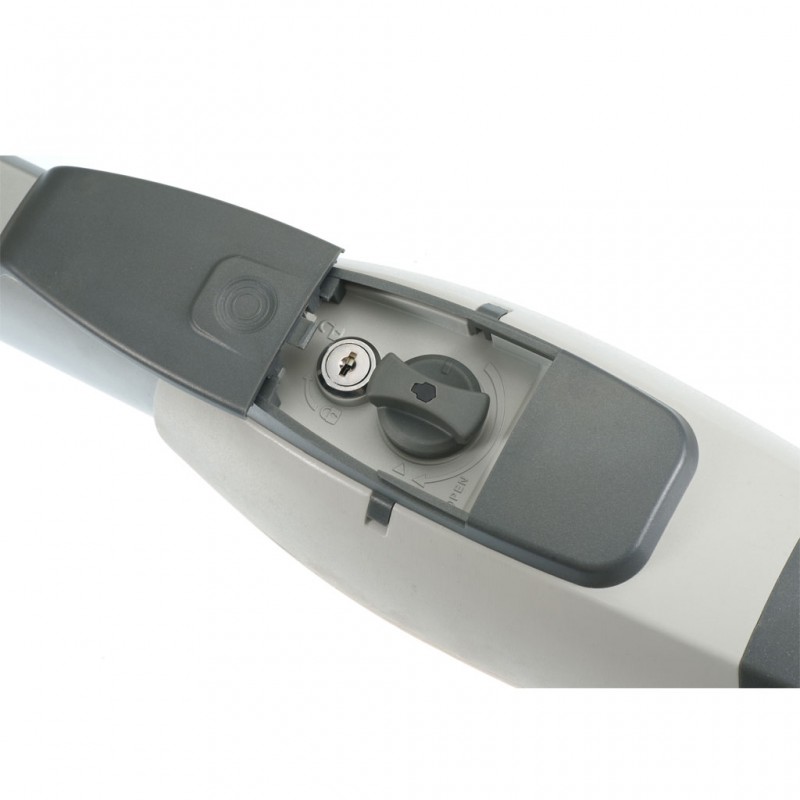

Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Dimensions



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, All metal gears
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
540mm (without limit switches)
Gates size
5m maximum gate size (Per Leaf)
Gate weight
350kg maximum gate weight (Per Leaf)

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

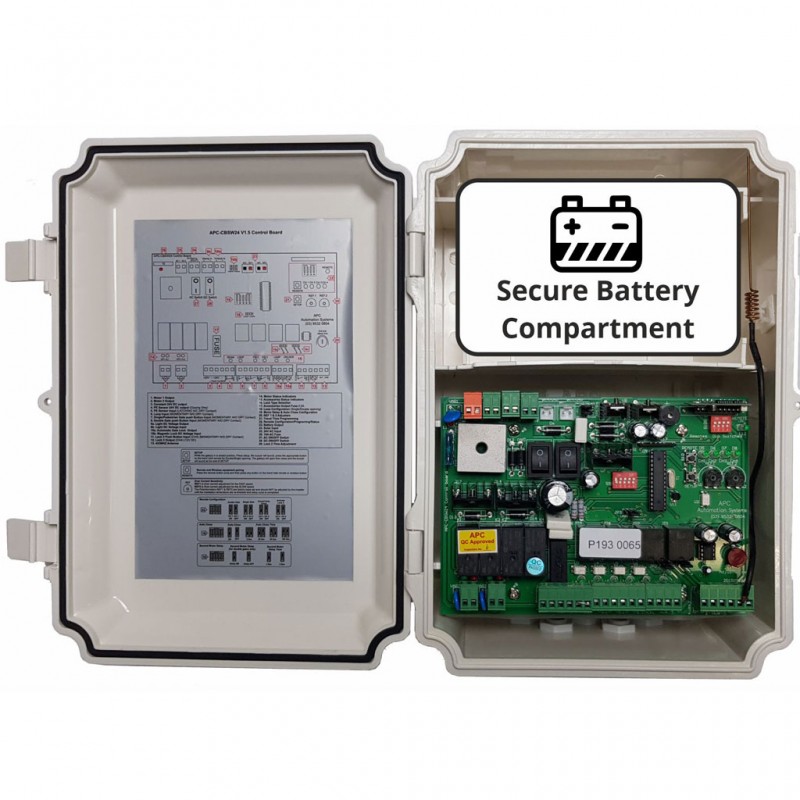

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

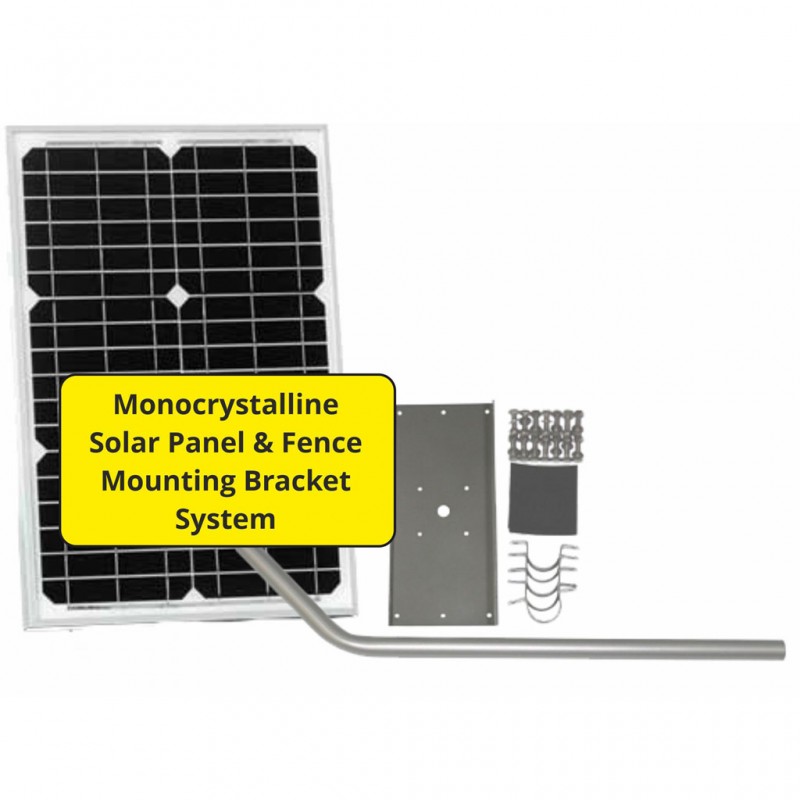

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)






Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power 20W/40W/60W
Optimum Operational Voltage 36V
Open Circuit Voltage 43.2V
20W Panel Dimensions 640 x 300 x 25mm
40W Upgrade Panel Dimensions 535 x 515 x 30mm
60W Upgrade Panel Dimensions 805 x 535 x 30mm




APC Uno Standalone Solar System





The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Extra Heavy Duty Single Gate Opener

24V 9aH Battery System







Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.

Specifications

Power Input 24V (Uno Solar System)
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity


APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with steel base is used to for the gate alignment and tension whilst they are in the closed position, it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehichle height from the ground is 100mm it will not interfere with the vehichle. In the case that the vehichle was lower than the typical minimum the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
