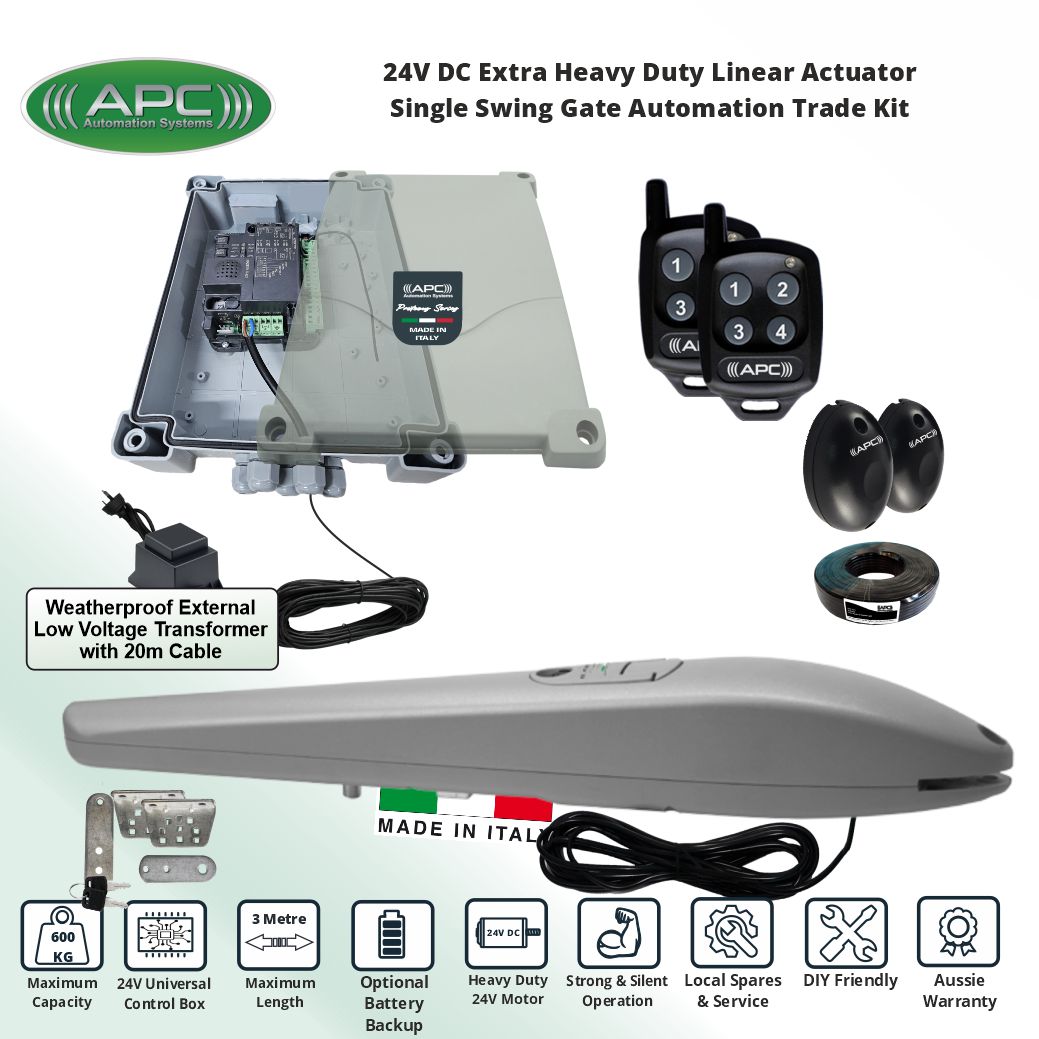

Single Swing Driveway Gate Opener 24V System, 3 Meter, 600KG, Adjustable Built In Stop. APC Gate Automation System
Packing a punch the Proteous 3000 system can deliver 2000N of thrust to operate gates up to 600kg or 3m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Thrust | 2000N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +50°
|
Duty Cycle
|
90%
|
Maximum stroke
|
360mm (without stoppers -30mm for each stopper)
|
Gates size
|
3m max
|
Gate weight
|
600kg max
|
The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).
APC Four Button Keyring Remote Control for Gate Automation System
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
