Product SKU: BI-006-TK

Boom Gate Trade Kit with Brushless 36V Boom Gate System | Super Intensive Use (up to 6 meters) Boom Gate Operator with Bionik Brushless 36V Boom Arm Barrier, Safety Sensor and Remote Controls | Highest Quality Automatic Boom Barrier Gate 100% Italian Made by Roger Technology

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Boom Gate Trade Kit with Brushless 36V Boom Gate System | Super Intensive Use (up to 6 meters) Boom Gate Operator with Bionik Brushless 36V Boom Arm Barrier, Safety Sensor and Remote Controls | Highest Quality Automatic Boom Barrier Gate 100% Italian Made by Roger Technology

Product SKU: BI-006-TK

  • Out Of Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$4,610.00

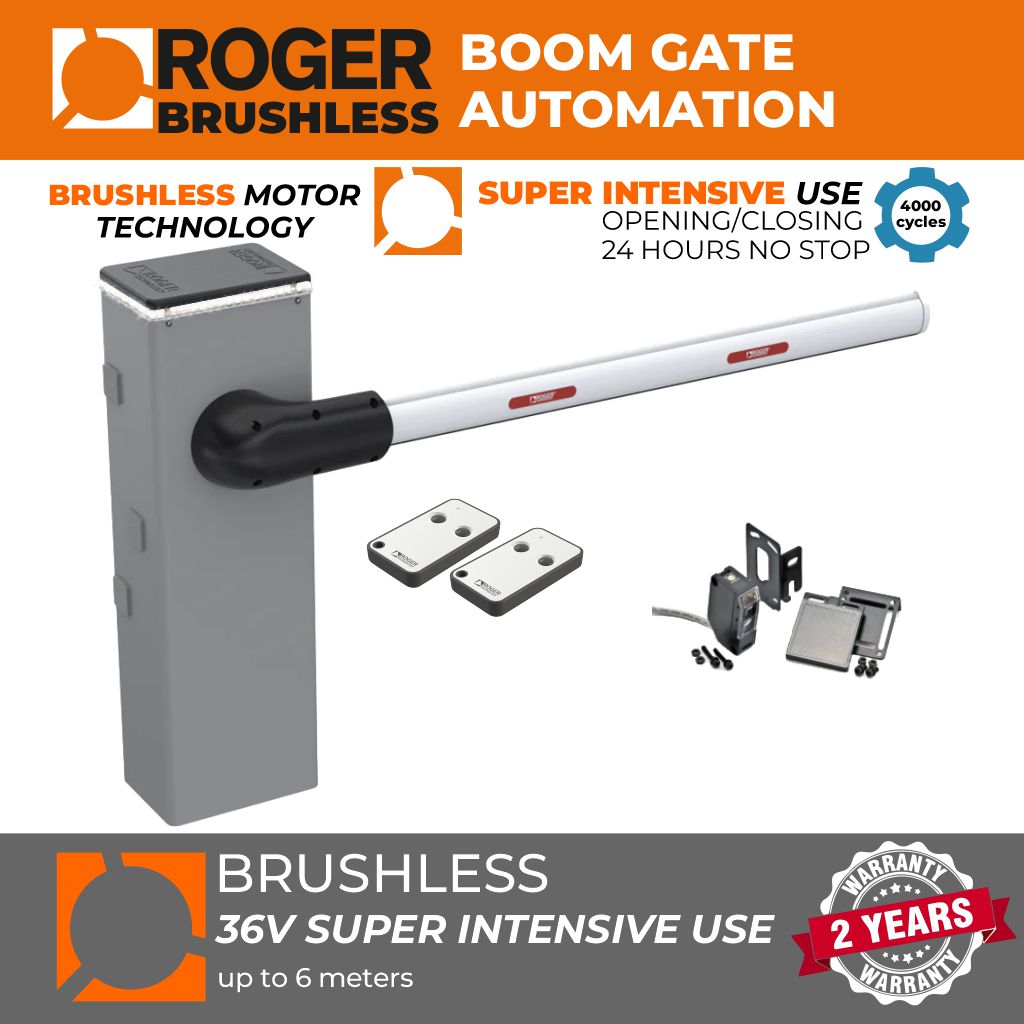

  • Brushless 36V Boom Gate System | Super Intensive Use up to 6 meters Boom Gate Operator Italian-Made by Roger Technology

  • Kit Includes

    01 BRUSHLESS 36V DC Boom Gate Operator - Security Boom Gates & Barriers Super Intensive Use (up to 6 meters) |100% Italian Made by Roger Technology | Highest Quality Automatic Boom Barrier Gate Systems (QTY: 1)
    02 Roger Technology Boom Gate Arm | White painted aluminium rod, 6 meters long, with LED cover profile and impact-resisting rubber profile. (QTY: 1)
    03 Roger Technology Two-Button Remote Control (QTY: 2)
    04 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    05 Spring Diameter 83 mm for BRUSHLESS 36V Boom Gate Operator - Security Boom Gates & Barriers |100% Italian Made by Roger Technology (QTY: 1)
    06 Fixing Plate With Stay Bolts and Screws for Roger Technology Security Boom Gate & Barrier Systems. (QTY: 1)
    07 Pack of 20 stickers for Roger Technology Boom Gate Barrier. (QTY: 1)
  • Out Of Stock

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Boom Gate Operator - Bionik Brushless 36V Security Boom Gates & Barriers
Super Intensive Use (up to 6 meters)

Automatic Barrier BRUSHLESS 36V DC super intensive use up to 6 meters, with an operator, built-in digital control panel, and absolute encoder on board.

|100% Italian Made by Roger Technology | Highest Quality Automatic Boom Barrier Gate Systems



Technical Features



Barriers: Up to 6 mt long
Power line supply: 230V AC - 50Hz
Motor power supply: 36V DC
Electrical absorption: max 15A
Power rating: 220W
Frequency of use: Super intensive use
Torque: 10 - 300 N m
Operating temperature: - 20 + 55 C°
Protection level: IP54
Reductor Type: Irreversible
Opening time: 4 ÷ 8 (sec)
Onboard control unit: CTRL Digital Controller 36V DC
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories power supply: 24V DC
Colour: Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt
Release system: European Key cylinder
Batteries recovery: Available (optional)
BUS synchronization Master/Slave: Yes
Operating cycles per day (opening/closing - 24 hours no stop): 4000 cycles
Maximum dimension product in mm (L x W x H): 380 x 270 x 1237

Dimensions





Boom Gate Arm Dimensions





Special Features of Brushless 36V Automatic Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Boom Gate Control Board Overview

CTRL Digital Controller 36V for Roger Technology Bionik Brushless Barrier/Boom Gate Operator



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing
