Wireless Vehicle Detection Loop System - Commercial e-Loop (Exit Mode-only loop available) Automatic Gate Vehicle Access Control | Wireless Vehicle Ground Loop

W-LD-CET50

Product Information

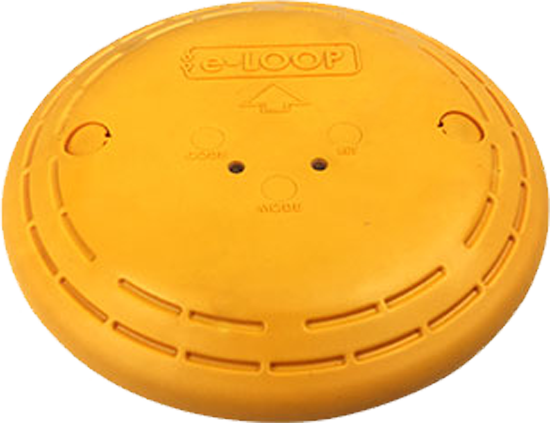

Wireless Vehicle Detection Systems | Commercial e-LOOP - Exit Mode

Introducing a new generation wireless vehicle detection. The Commercial e-Loop replaces traditional wired inductive loops, saving you time and money while increasing reliability and safety.



Commercial Wireless Loop Detection Sensor - Exit Mode

The Commercial Wireless Vehicle Detection Sensor System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable lithium batteries, and can withstand almost any vehicle.

Functions | Commercial Wireless Vehicle Sensor | Loop Detector

Lower power consumption

3-axis magnetometer for vehicle detection

  • 8 Hz sampling rate
  • Auto-calibration
  • Exit/Entry detection mode
  • Range up to 50 meters

Fast and simple installation

  • Quick non-permanent installation

Up to 10-year battery life

  • Compact design
  • Compatible with various gates

Reliable radio communications with transceiver

  • Reliable radio communication
  • High-security 128-bit AES Encryption

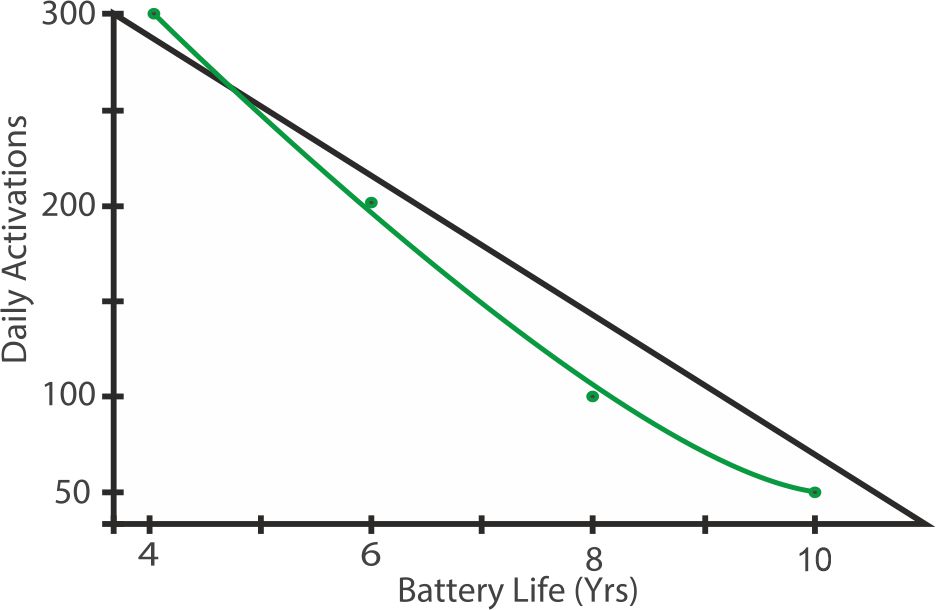

Battery Life vs Daily Activation

Note: Battery life is dependent on many factors, including daily activations, time used per activation, radar range and external conditions.



e-Loop Wireless Vehicle Detection Systems

The e-Loop commercial is the epitome of perfection when it comes to wireless vehicle detection systems designed specifically for commercial settings.

With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.

Additionally, the e-Loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.



Features | New Generation Wireless Vehicle Loop Detector

  • Quick and easy installation.
  • Exit mode - loop sensor.
  • 10600 mA lithium battery gives up to 6-10 years of battery life (depending on usage & mode).
  • Made of high-impact plastic (10-tonne static load capacity).
  • Small compact design – 28mm high x 220mm diameter (IP68).
  • High-security 128-bit encryption.
  • Range up to 50 meters



Power, Physical and Environment

Power: 4 * 3.6 V 2700ma

Dimensions: 220*220*26mm

Weight: 1000g

Environment: designed for above-ground mounting

Protection: IP68 ingress

Operating Temp : -40° to 80° C

Standby Power: 14µA

Activation Power: 50mA



Magnetometer Detection Area



E-Trans-50 Single Channel Transceiver

Wireless access control system for gate and door applications.

Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems.

A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range.



Specifications

Voltage: 10-36V DC

Current draw standby: 4.5 m/a

Current draw active: 30 m/a

Frequency: 433.39 MHz

Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons

Relay: 1-amp contact rating, COM and N/O connections x 1 relay

Modes: Pulse, Latch and Hold



FEATURES

  • Compact design with an exceptional range

  • SMA connector standard for external long-range antenna connection

  • Wide Voltage Range: 10-36V DC

  • Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a

  • Frequency: 433.39 MHz

  • Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons

  • Relay: 1-amp contact rating, COM and N/O connections x 1 relay

  • Multiple Modes: Pulse, Latch and Hold
