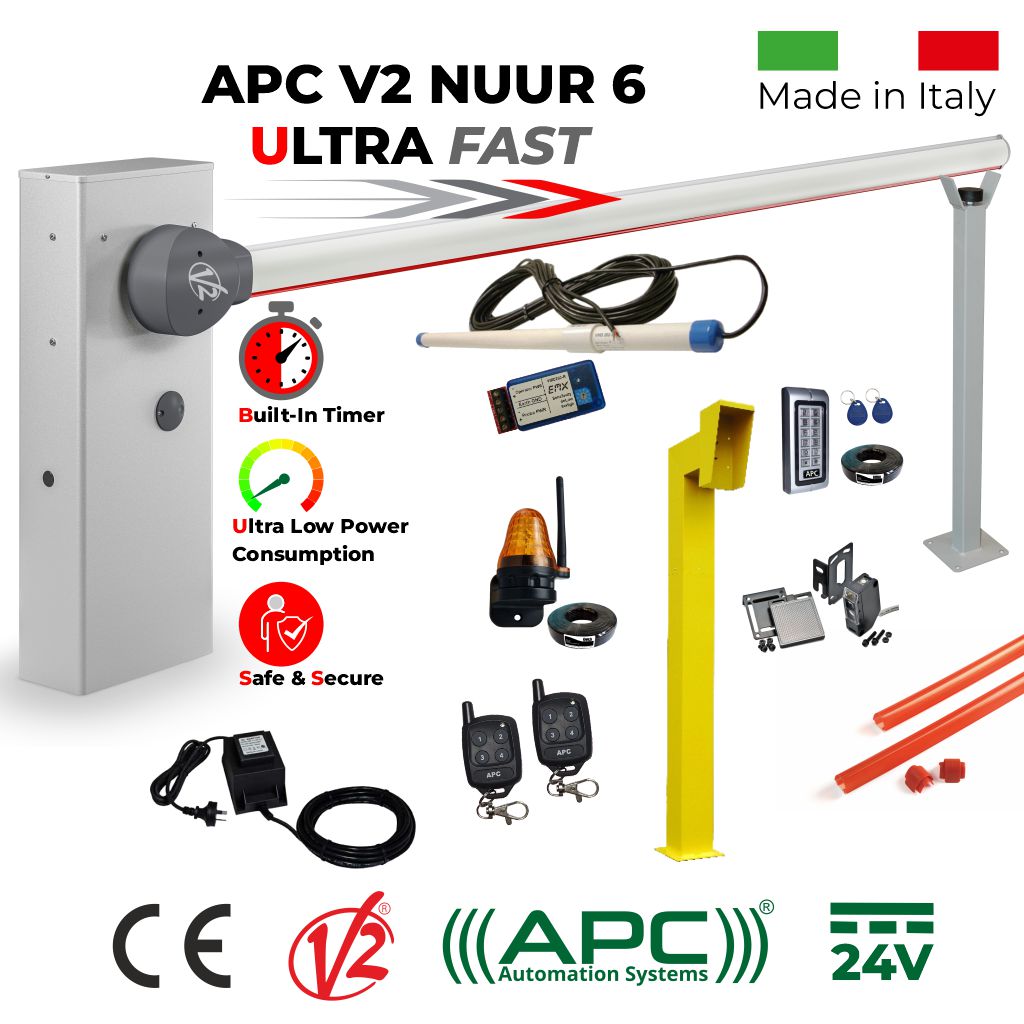

Boom Gate Operator Comfort Secure Access Control Kit | Italian-Made Boom Gate Barrier Car Parking Access Control System APC V2 NUUR 6. Universal Boom Gate Ultra High-Speed 24V Boom Gate Operator, 6 Meter Boom Barrier Arm, External 24V Transformer with 20m Low Voltage Cable, Two Remote Controls, Gooseneck Pedestals, Keypads with EM Card Reader, Safety Sensor, Gate Safety Light and Antenna, 6m Red Protective Rubber, Vehicle Motion Detector

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Slow-down in the limit switch area
• Balancing spring included
• White painted aluminium bar (accessory)
• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for modular receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
• Input for photocells with self-test function
• Input for mechanical safety edges
• Courtesy light output
• Holding magnet output
• Energy Saving function to minimise consumption in standby mode
• Programmable acceleration and deceleration
• Operation in case of absence of power using the backup battery
• Operation with solar power using the ECO-LOGIC system

Motor Overview / Balancing Spring System

Technical Features

• Power supply (Vac - Hz): 230 V~ 50 Hz
• Motor power supply (Vac - Hz):  24 Vdc
• Maximum electric power (W): 240W
• Opening time (s): 5 Seconds for 6 Meter Boom Arm
• Working temperature (°C): Between -20° to +55°
• Duty cycle % - (max. cycles/hour): 80% - (200)

Control Panel

• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

Dimensions

Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

APC Automation Systems FOUR Button Keyring Remote Control

Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

Vehicle Motion Detector VMD202 with 15m Cable and VMD202-R Sensitivity Remote

Vehicle Motion Detector - Substitute for Loop Detector

• Quick installation
• Easy sensitivity adjustments
• Energy conservation
  • The low standby current of 70uA is suitable for solar power applications.
• Cable Length 15m
• The Detection Range Sensitivity is 3.5m at a Minimum Speed of 8 km/h

Overview of The VMD202 Vehicle Motion Detector

The VMD202 is the most advanced single-piece vehicle motion detector on the market today. The probe and its electronics are housed in a slim design that is buried next to a driveway. The VMD202-R sensitivity remote makes installation and fine-tuning simple.

Program the VMD202 vehicle motion detector’s 10 sensitivity settings with the VMD202-R, and the setting is retained in non-volatile memory. Then the VMD202-R can be removed and used for multiple installations or left in place if tampering is not a concern.

The VMD202 vehicle motion detector accepts a wide range of power inputs – 12-39 VDC or 12-27 VAC.

The low standby current of 70uA is suitable for solar power applications.

The VMD202 vehicle motion detector is supplied with a 15M cable. The sensitivity remote is included in the kit.

 Vehicle Motion Loop Detector Specifications

VMD202 Features

• Probe assembly and cable are water-tight and direct burial compatible
• Settings are placed in non-volatile memory in case of power failure
• Accepts a wide range of power inputs from 12-39 VDC or 12-27 VAC
• Low current consumption of 70 uA standby and 25 mA activated
  • Suitable for solar power applications

VMD202 Wiring Diagram

IMPORTANT: EARTH GROUND CONNECTION

The VMD202 contains protection devices to guard against damage and false triggering due to electrical transients caused by lightning or other sources. Always provide a good earth-ground connection to the green wire of the VMD202 remote control in standard applications or the black wire of the VMD202 probe in solar applications. A 20cm copper rod or metal cold-water pipe provides a sufficient earth-ground connection.

SOLAR NOTE: The probe consumes only 70 uA when no vehicle motion is detected and draws a higher current for 5 seconds when detecting vehicle motion. This table provides an average current draw based on an estimate of how many cars per day may activate the VMD202. Connect the remote to the probe to adjust the sensitivity, then remove the remote and power the probe directly from the operator (the remote draws extra current). A 12 VDC battery is recommended for solar applications (a 24 VDC battery can be used as well).

*Values are without remote connected

Universal Flashing light with Built In Antenna



• Multiple options for operating voltage from 12V - 265V in AC or DC
• Ultra Low Consumption of less than 3W
• Two operating modes available: Flashing illumination (1HZ) or Solid Illumination
• Bright Orange Casing for Great Day and Night time visibility
• Built in booster antenna connection
• Simple wiring using two core for the light and RG58/59 for antenna
• IP54 outdoor Rating

APC-KP1C Wired keypad with built in card reader

The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:


• Built-in EM card reader.
• Robust cast alloy construction
• Resin filled for ultimate weatherproofing
• Blue backlit keys
• Anti-tamper feature
• IP65 Waterproof rated and suited for outdoor and indoor environments.
• Up to 2000 users for pin code and EM card.

Technical Specifications

Heavy Duty Safety Yellow Pedestal for Access Control

Dimensions:

• Height: 1150mm

• Tube Dimensions: 100mmx100mmx1.6mm

• Rain Cover: 200mm High x 100mm Wide

• Base Plate: 150mmx150mmx5mm

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.

Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C
