Product SKU: BI-006-KIT01
In Stock
Freight Delivery
Kit Price:
$4,495.00

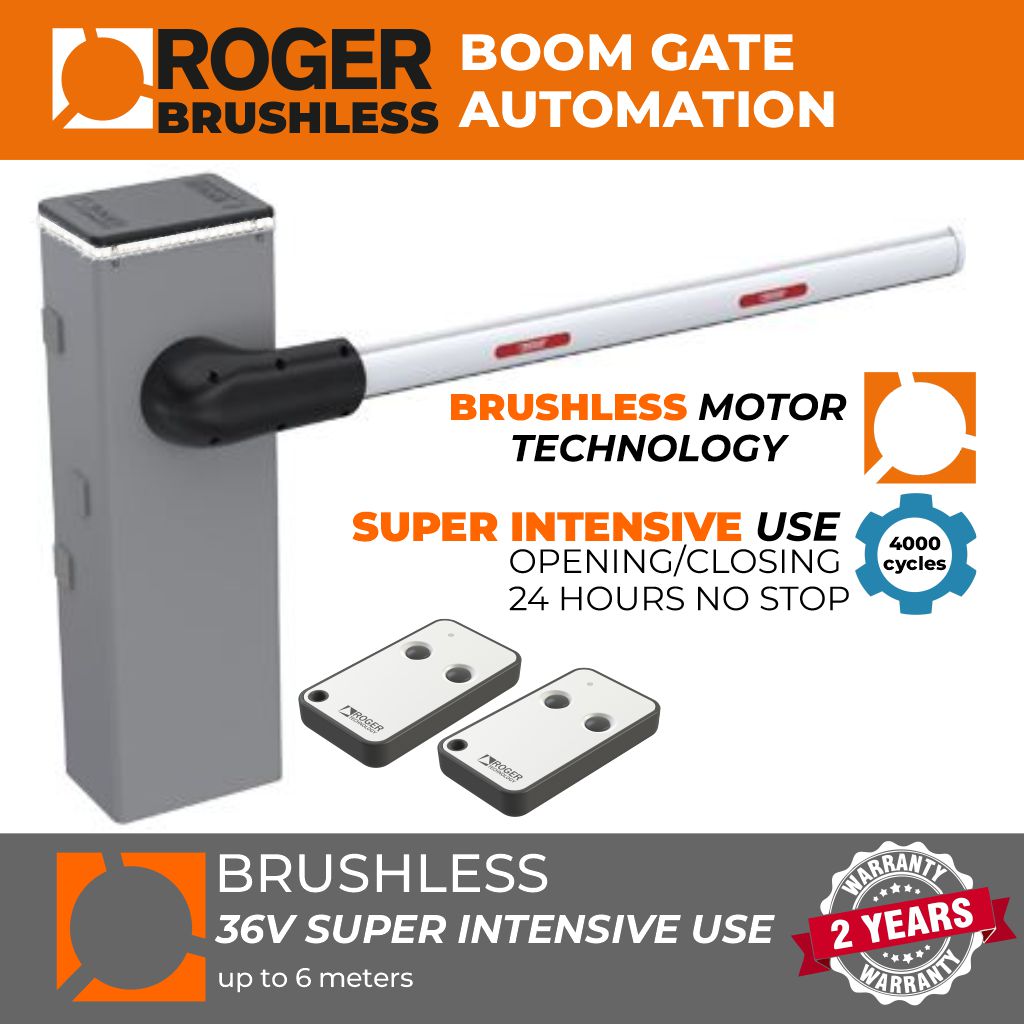

Automatic Barrier BRUSHLESS 36V DC super intensive use up to 6 meters, with an operator, built-in digital control panel, and absolute encoder on board.
|100% Italian Made by Roger Technology | Highest Quality Automatic Boom Barrier Gate Systems
| Barriers: | Up to 6 mt long |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V DC |
| Electrical absorption: | max 15A |
| Power rating: | 220W |
| Frequency of use: | Super intensive use |
| Torque: | 10 - 300 N m |
| Operating temperature: | - 20 + 55 C° |
| Protection level: | IP54 |
| Reductor Type: | Irreversible |
| Opening time: | 4 ÷ 8 (sec) |
| Onboard control unit: | CTRL Digital Controller 36V DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Accessories power supply: | 24V DC |
| Colour: | Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt |
| Release system: | European Key cylinder |
| Batteries recovery: | Available (optional) |
| BUS synchronization Master/Slave: | Yes |
| Operating cycles per day (opening/closing - 24 hours no stop): | 4000 cycles |
| Maximum dimension product in mm (L x W x H): | 380 x 270 x 1237 |
WHY BRUSHLESS...?
Digital, smart, powerful, elegant, robust and all-Italian.
A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.
Powerful Digital Brushless Motor
A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.
Digital & Vectorial Automation Controller
The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.
The Digital Silence Of The Motor
One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.
Motor For Super-Intensive Use
The brushless gate motor remains permanently cold even after many days of super-intensive use.
Speed, Acceleration & Deceleration With Extreme Elegance
The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.
Extremely Low Energy Consumption
A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.
Impact, Obstacle Detection & Reversal In Total Safety
Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.
Onboard Native Digital Encoder
The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.
No Problem In The Event Of Power Failure
With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.
Motor At Ambient Temperature
The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.
Simple Installation With A Single 3-Wire Cable
And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.
Advanced Precision Engineering To Obtain Optimal Motor Performance
We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
