Product SKU: TSGK-RM-7-C-Z

7m Telescopic Sliding Gate Complete Hardware Kit for Cladded Gate with Recess Mounted Wheels and More

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

7m Telescopic Sliding Gate Complete Hardware Kit for Cladded Gate with Recess Mounted Wheels and More

Product SKU: TSGK-RM-7-C-Z

  • In Stock

Get More Info..

Kit Price:

$894.00

  • Or in 4 payment of $223.50 with afterpay info

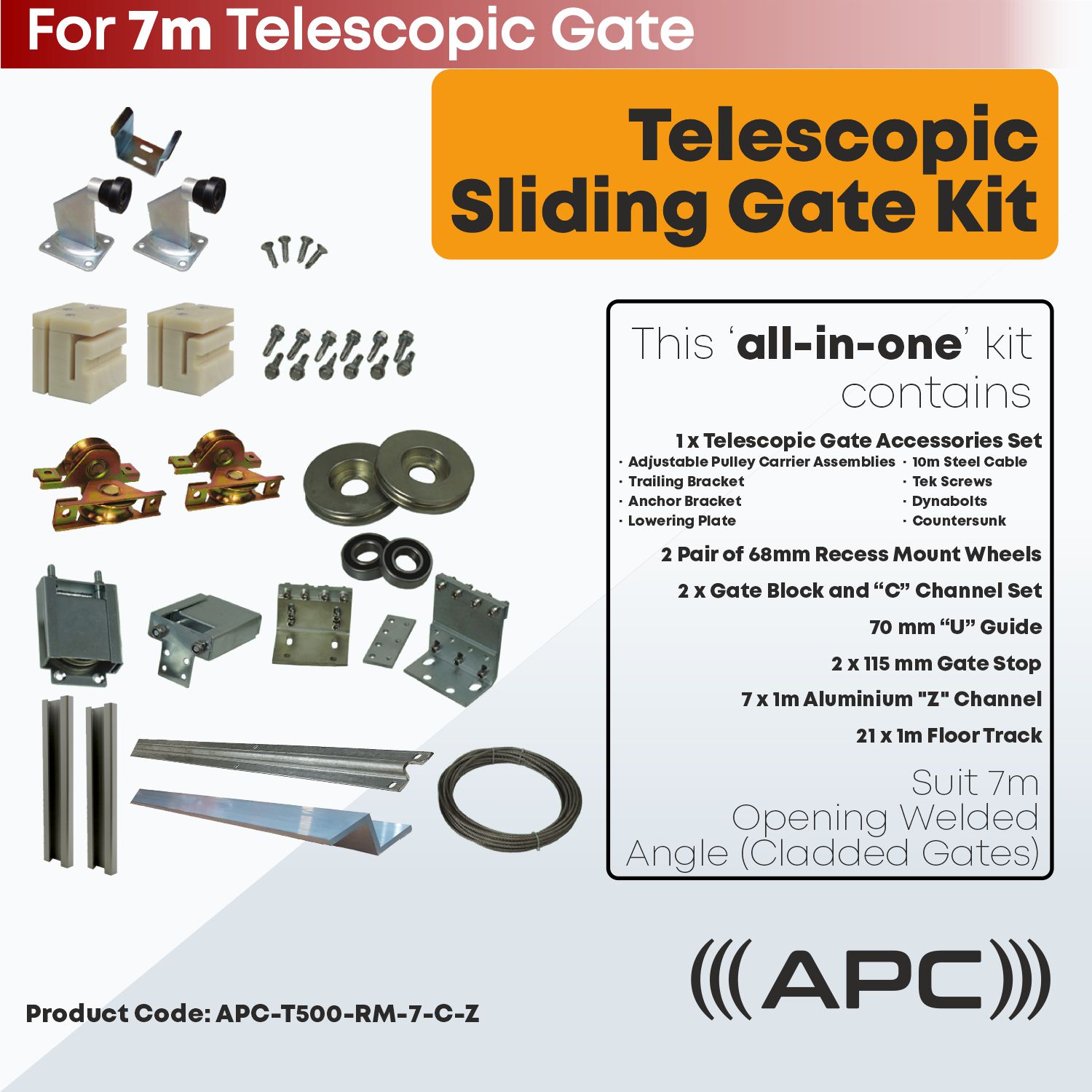

  • 7m Telescopic Sliding Gate Complete Hardware Kit for Cladded Gate with Recess Mounted Wheels and More

  • Kit Includes

    01 Clydsdale 500 Telescopic Gate System (4.5m Each Gate/500Kg) (QTY: 1)
    02 Singular 78mm Recess Mount Wheels (QTY: 4)
    03 115mm High Bolt Down Galvanized Gate Stop (QTY: 2)
    04 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    05 APC Superior White Nylon Guide Block, Two Piece Assembly For Sliding Gate With Angle or Z Profile (QTY: 2)
    06 Vertical Guide Channel for Nylon Block (QTY: 2)
    07 1m Length Z Channel Guide Angle (QTY: 7)
    08 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 21)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

The following video illustrates the telescopic sliding gates use

Heavy Duty Telescopic Gates Hardware Kit

This is a complete telescopic sliding gate hardware installation kit with all the parts required for a 7m telescopic sliding gate with Cladding.

Example of Telescopic Sliding Gate Leaf Size Calculation: If the driveway opening is 7000mm, then 2 x 3850mm gates leaf for telescopic gate systems, (2x3500mm + add 350mm on each leaf) The formula for telescopic sliding gate calculation is: Driveway opening size divided into 2 then add 350mm for each leaf.

This kit is suitable for 7m telescopic sliding gates with uneven surfaces for example gates with pickets or colourbond on the face of the gate and regular gates.

High quality galvanised compact yet very strong conversion kits with heavy-duty stainless steel 4mm cable, and this kit is complete and ready to install for 7m telescopic sliding gates. See kit contents above.

What is a Telescopic Gate:

Traditionally a 7m sliding gate requires another 7m of space away from the driveway opening for the gate to slide into.
The telescopic systems will almost halve this space required for the gate to slide into, this is because the telescopic systems enable the second gate to be pulled by the first gate once the first gate starts to move.

Telescopic Sliding Gate Leaf Size Calculation: The formula is: Driveway opening size divided into 2 then add 350mm for each leaf.

Example: if the driveway opening is 7000mm, then 2 x 3.85m gates (2x3500mm + add 350mm on each leaf)
Please see the above telescopic gate systems kit contents:

Key Features of Telescopic Gate:

Undermounted below gate (using flat-mount wheels) or face-mounted to the gate (using flat-mount or recess mount wheels)
Sealed bearings not bushings
Three cable tensioning points to allow an easier installation (other suppliers only one tensioning point)
Adjustable bracketing provides for the use of recess mount or flat mounted wheels
Low profile system (does not protrude above bottom section of the gate using 80x40 or greater)
All hard parts are galvanised.
All assembly screws are galvanised
Telescopic cable is stainless steel

Telescopic Gate System

Example of an assembled telescopic system as it is installed on the gates.Telescopic Sliding Gate Hardware

Floor Track

21 x 1m fully galvanised heavy-duty floor track.

This 1m gate track is heavy duty 3mm thick.

Please Note: 2m and 3m track sizes are available for pickup.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

"Z" Channel

7 x 1m Aluminium "Z" Section for Sliding Gates.
Please Note: 2m and 3m Aluminium "Z" Section sizes are available for pickup.
This Aluminium "Z" Section is the ideal choice for gates:
- With an incline or decline (not on level ground)
- With pickets or cladding on the face of the gate making an uneven surface on the gate
- With spears at the top of the gate
- With an arched top design

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Wheels

4 x Recess-mounted heavy-duty wheels with dual bearings.
The wheels are fitted into the underside of the bottom gate frame, the wheel will raise the gate by approx 27mm from the sliding gate track.

Complete Sliding Gate Hardware Kit

U Guide

1 x 70mm U Guide Gate Keeper.

This "U" Guide-stop is suitable for gates up to 70mm thick.
The "U" Guide is installed at the closing end of the sliding gate.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Gate Stop

2 x 115mm Gate Stop.

Heavy-duty anodised metal with rubber end for the open position.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Sliding Gate Block with "C" Channel

2 x Nylon Block
2 x "C" Channel

This Nylon gate block and "C" channel is suitable for gates with uneven surfaces, for example, gates with pickets. The "C" channel is attached to the post, and the nylon block fits into the "C" channel and to the "Z" channel which is mounted to the top of the sliding gate.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $894.00
