APC Electric Gate Automation Extra Heavy Duty Typhoon 1600 (1.6 Tonne), Automatic Sliding Gate Openers, Automated Gate AC Powered DIY Kit With Spring Limits
APC-SG1600-AC-TKProduct Information

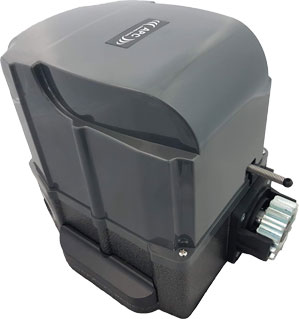

Typhoon 1600 High Torque AC Sliding Gate Automation System
Strong & Durable
The Typhoon 1600 650W Internal motor allows for an 1600kg capacity making it the ideal candidate for the larger gate installations including incline/decline situations.
Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.
All In One Motor Design
Ultra-compact, sleek design and with some clever re-arrangement the APC Typhoon 1600 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in an ultra-durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway
With separate open and close inputs as well as a shared open/close input the APC Typhon 1600 will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.
Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.
Manual Override System
Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.
Metal Pinion & Cast Casing
Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one-piece solid steel pinion gear no corners have been cut.
Motor and Base Plate Dimensions Including Pinion Height
Suitability
- Sliding gate not exceeding 1600kg maximum (Telescopic Gates Supported up to 350KG PER gate)
- Sliding gate not exceeding 9m width maximum (Telescopic Gates Supported up to 4m PER gate)
- A power point is required at the gate (or can be hardwired by an electrician)
- Level ground installations or minor gradients
Specifications
| Rated Power | 650W |
| Power supply | 220V-240V |
| Maximum Weight of Gate | 1600kg (Telescopic Gates 350KG PER Gate) |
| Maximum Width of Gate | 9m (Telescopic Gates 4m PER Gate) |
| The working temperature of the motor | -5° ~ +65° C |
| Open (Close) speed | 12m/min |
| Maximum Pull | 38Nm |
| Voltage output | 18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system |
| Light output | 240V Light, 30 Watts or Less |
| Accessories input | Open Only Close Only Open/Halt/Close |
FAQ
|
|
||
| Can I operate this sliding gate motor manually? |
YES
|
The motor is fitted with a manual override and supplied with a key to manually disengage the motor |
| Can I use this system to operate a large gate? |
YES
|
This system can handle a sliding gate up to 6m wide and 800kg in weight. |
| Are the motor & control panel all in one? |
YES
|
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact |
| Can I use push buttons to operate this system? |
YES
|
Both wireless & wired push-button switches can be used to open/close the gate motor |
| Can I use keypads to operate this system? |
YES
|
Both wireless & wired keypads can be used to open/close the gate motor |
| Can I connect a safety sensor to this system? |
YES
|
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate |
| Can I connect an intercom system to this gate system? |
YES
|
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone |
| Can I operate this gate system from a remote location? |
YES
|
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. |
| Does this gate system automatically close? |
YES
|
When the automatic close timer is enabled, and photoelectric safety sensors are installed the gate will automatically close |
| Can I connect a light to the system? |
YES
|
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing. |
Remote Features
APC-PE2000 Photoelectric Safety Sensor Set
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli
Interlocking Gear Racks Made in Italy by Stagnoli
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
Modular gear racks kit includes;
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
