Product SKU: TSGK-RM-6-C-Z

6m Telescopic Sliding Gate Hardware Complete Kit for Cladded Gate with Recess Mounted Wheels and More

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$841.20

  • 6m Telescopic Sliding Gate Hardware Complete Kit for Cladded Gate with Recess Mounted Wheels and More

  • Kit Includes

    01 Clydsdale 500 Telescopic Gate System (4.5m Each Gate/500Kg)(QTY: 1)
    02 Singular 78mm Recess Mount Wheels(QTY: 4)
    03 115mm High Bolt Down Galvanized Gate Stop(QTY: 2)
    04 70mm Galvanized U Guide(QTY: 1)
    05 APC Superior Nylon Guide Block, Two Piece Assembly(QTY: 2)
    06 Vertical Guide Channel for Nylon Block(QTY: 2)
    07 1m Length Z Channel Guide Angle(QTY: 6)
    08 1m Galvanized Sliding Gate Track(QTY: 18)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

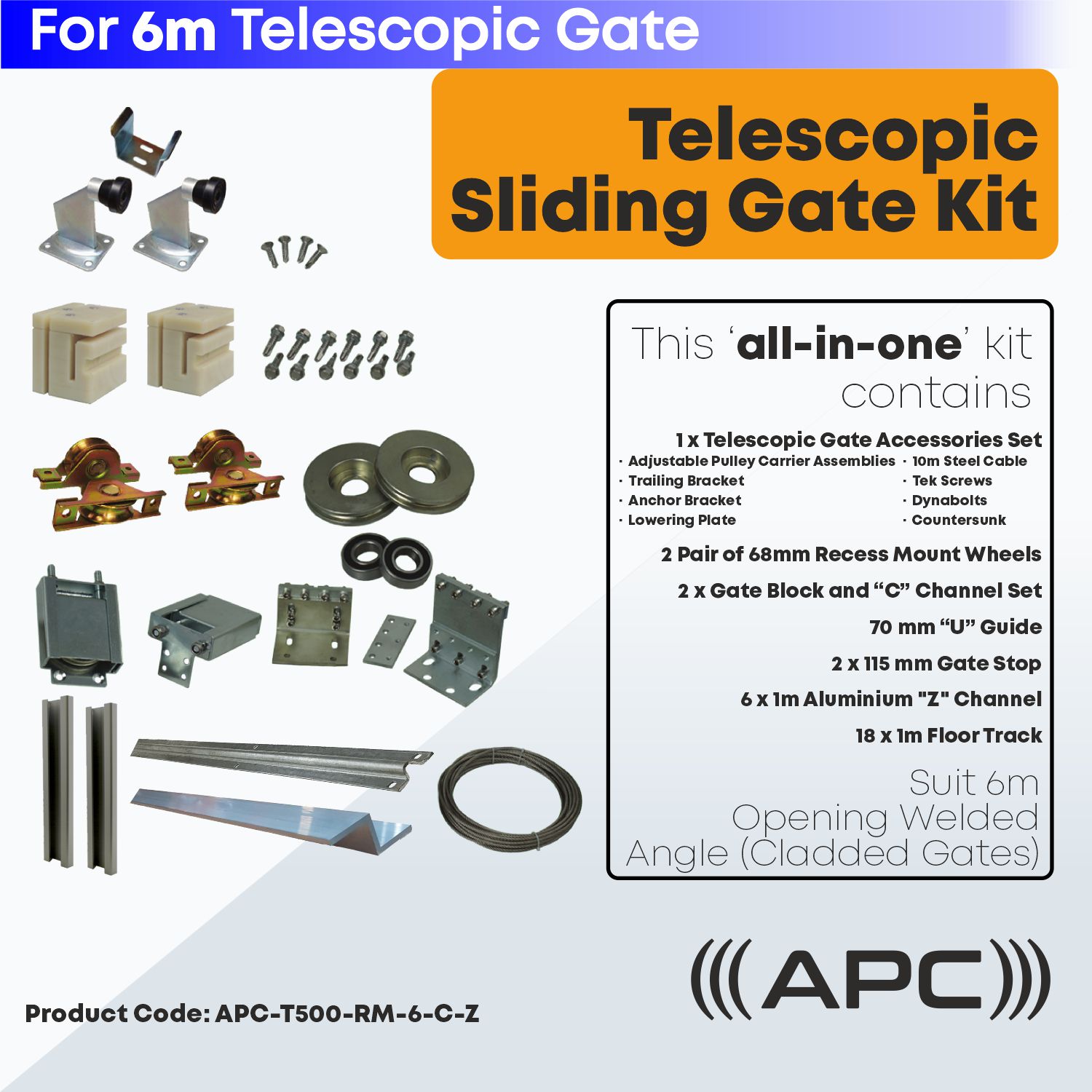

Complete Telescopic Sliding Gate Hardware Kit

Kit Contents

1 x Set of Telescopic Sliding Gate Hardware
    • Adjustable Pulley Carrier Assemblies
    • Trailing Bracket
    • Anchor Bracket
    • Lowering Plate
    • 10m Steel Cable
    • Tek Screws
    • Dynabolts
    • Countersunk Screws

18 x 1m Fully Galvanized Heavy Duty Floor Track
6 x 1m Aluminium "Z" Section for Sliding Gates.
4 x 78mm Recess Mounted Heavy Duty Wheels With Dual Bearings.
2 x "C" Channel
2 x Nylon Block
2 x 115mm Gate Stop.
1 x 70mm U Guide Gate Keeper.
Bag of Screws/Bolts
Installation Manuel



The following video illustrates the telescopic sliding gates use

Heavy Duty Telescopic Gates Hardware Kit

This is a complete telescopic sliding gate hardware installation kit with all the parts required for a 6m telescopic sliding gate with Cladding.

Example of Telescopic Sliding Gate Leaf Size Calculation: If the driveway opening is 6000mm, then 2 x 3350mm gates leaf for telescopic gate systems, (2x3000mm + add 350mm on each leaf) The formula for telescopic sliding gate calculation is: Driveway opening size divided into 2 then add 350mm for each leaf.

This kit is suitable for 6m telescopic sliding gates with uneven surfaces for example gates with pickets or colourbond on the face of the gate and regular gates.

High quality galvanised compact yet very strong conversion kits with heavy-duty stainless steel 4mm cable, and this kit is complete and ready to install for 6m telescopic sliding gates. See kit contents above.

What is a Telescopic Gate:

Traditionally a 6m sliding gate requires another 6m of space away from the driveway opening for the gate to slide into.
The telescopic systems will almost halve this space required for the gate to slide into, this is because the telescopic systems enable the second gate to be pulled by the first gate once the first gate starts to move.

Telescopic Sliding Gate Leaf Size Calculation: The formula is: Driveway opening size divided into 2 then add 350mm for each leaf.

Example: if the driveway opening is 6000mm, then 2 x 3.35m gates (2x3000mm + add 350mm on each leaf)
Please see the above telescopic gate systems kit contents:

Key Features of Telescopic Gate:

Undermounted below gate (using flat-mount wheels) or face-mounted to the gate (using flat-mount or recess mount wheels)
Sealed bearings not bushings
Three cable tensioning points to allow an easier installation (other suppliers only one tensioning point)
Adjustable bracketing provides for the use of recess mount or flat mounted wheels
Low profile system (does not protrude above bottom section of the gate using 80x40 or greater)
All hard parts are galvanised.
All assembly screws are galvanised
Telescopic cable is stainless steel

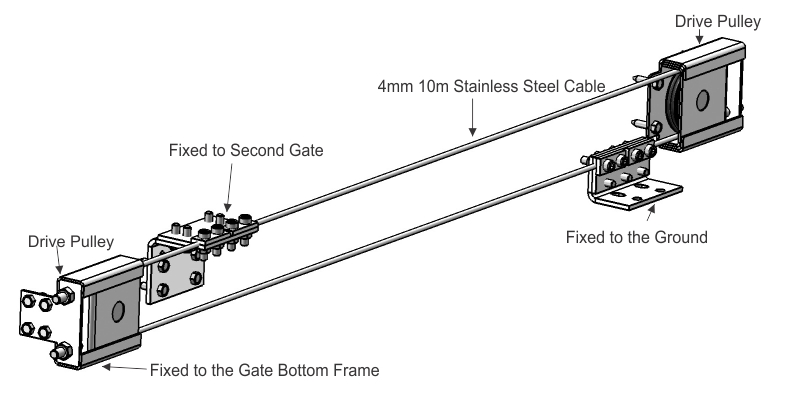

Telescopic Gate System

Example of an assembled telescopic system as it is installed on the gates.Telescopic Sliding Gate Hardware

Floor Track

18 x 1m fully galvanised heavy-duty floor track.

This 1m gate track is heavy duty 3mm thick.

Please Note: 2m and 3m track sizes are available for pickup.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

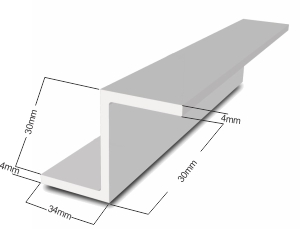

"Z" Channel

6 x 1m Aluminium "Z" Section for Sliding Gates.
Please Note: 2m and 3m Aluminium "Z" Section sizes are available for pickup.
This Aluminium "Z" Section is the ideal choice for gates:
- With an incline or decline (not on level ground)
- With pickets or cladding on the face of the gate making an uneven surface on the gate
- With spears at the top of the gate
- With an arched top design

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

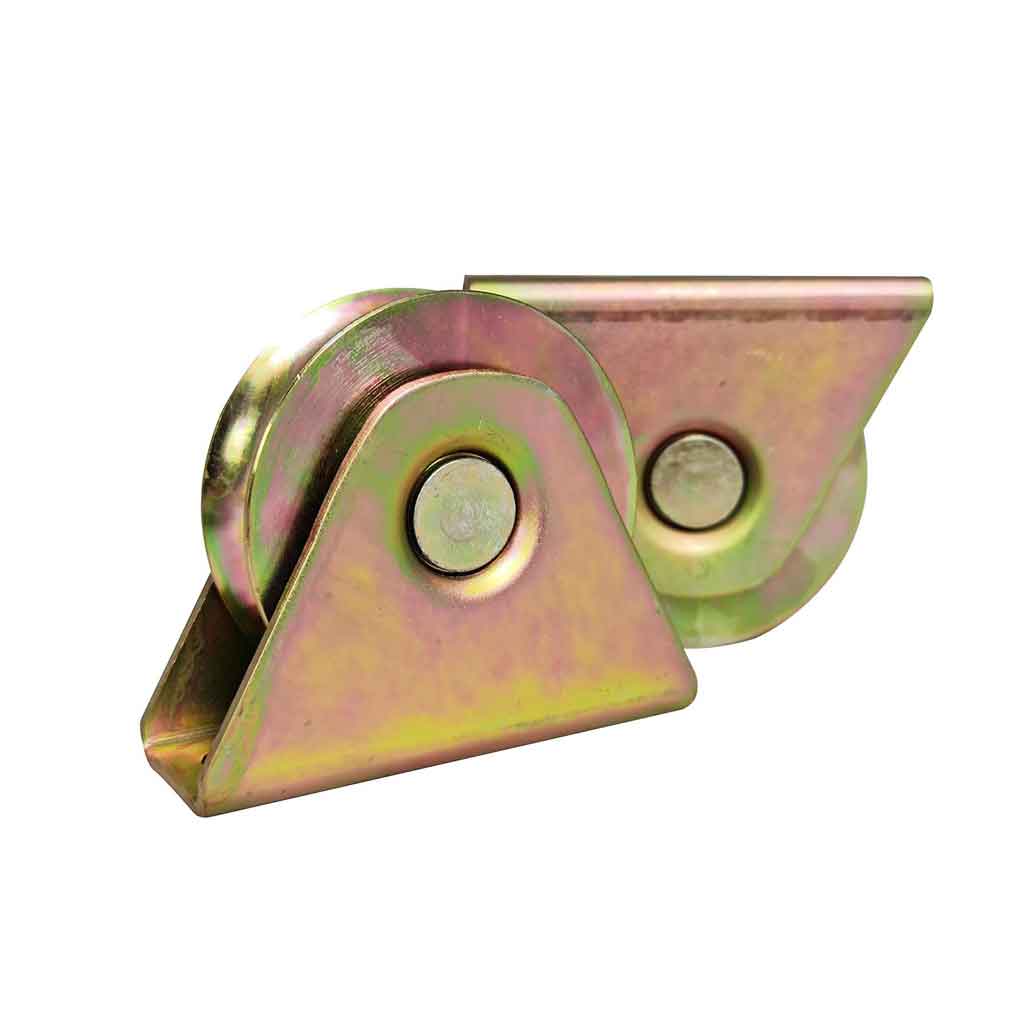

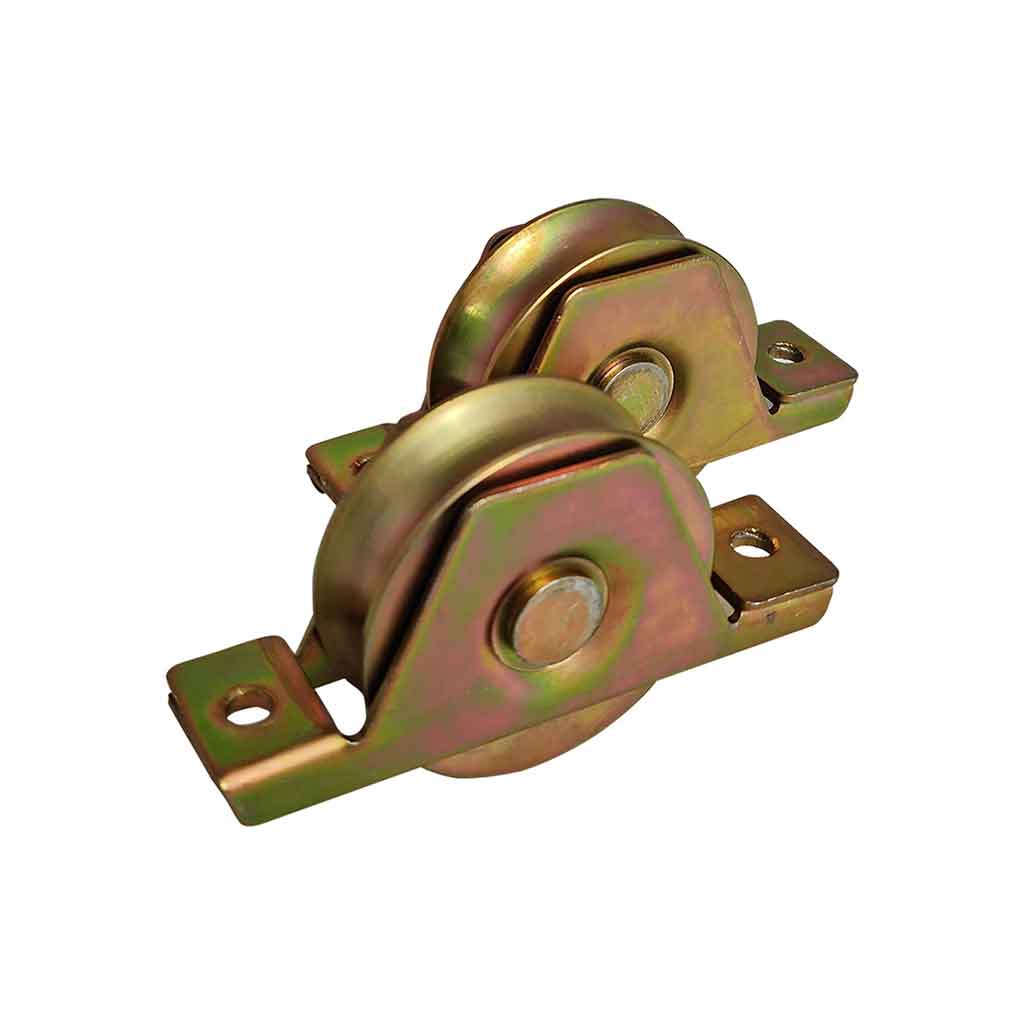

Wheels

4 x 78mm Recess mounted heavy-duty wheels with dual bearings.
The wheels are fitted into the underside of the bottom gate frame, the wheel will raise the gate by approx 27mm from the sliding gate track.

Complete Sliding Gate Hardware Kit

U Guide

1 x 70mm U Guide Gate Keeper.

This "U" Guide-stop is suitable for gates up to 70mm thick.
The "U" Guide is installed at the closing end of the sliding gate.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Gate stop

2 x 115mm Gate Stop.

Heavy-duty anodised metal with rubber end for the open position.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

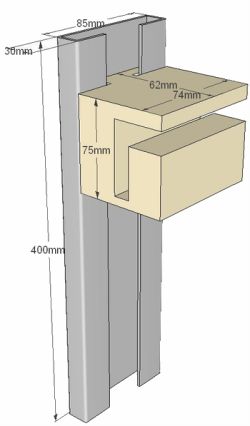

Sliding Gate Block with "C" Channel

2 x Nylon Block
2 x "C" Channel

This Nylon gate block and "C" channel is suitable for gates with uneven surfaces, for example, gates with pickets. The "C" channel is attached to the post, and the nylon block fits into the "C" channel and to the "Z" channel which is mounted to the top of the sliding gate.

Complete Sliding Gate Hardware Kit for 4m Cladded Gate with 78mm flat mounted wheels and more

Example of how the Z Section works when installed with Block & "C" Channel

Complete Sliding Gate Hardware Kit

Your Customised Kit Includes:

No Changes.
