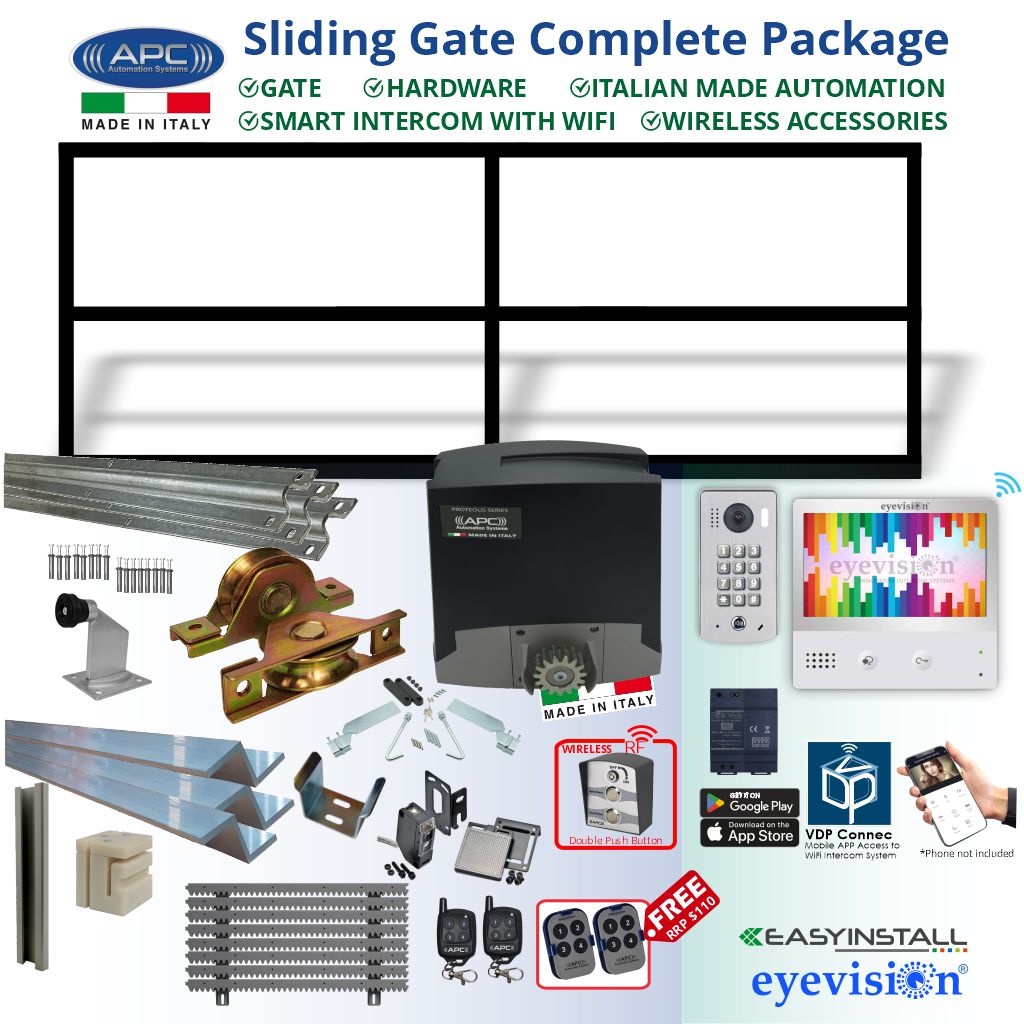

3.5m Complete Smart Home Gate Automation Package with Gate Frame including Sliding Gate Hardware + Heavy Duty Italian Made Gate Automation APC Proteous 500 + Access Control Accessories and Eyevision EasyInstall 2Wire WiFi Video Intercom System with Mobile APP

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials

Key Features

• 1500mm Height
• Robust Satin Black Powdercoating
• 40x40mm Steel for Top & Sides
• 40x40mm Vertical & Horizontal Support Rails
• 80x40mm Bottom Rail
• Completely Welded Throughout

Suitability

• Sliding Gate Applications
• Swing Gate Applications
• Residential Use
• Commercial Use

Sliding Gate Opener P500, Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance | The automatic sliding gate opener

The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.

Gate Automation System Features

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth

Everything and more as standard. | The automatic sliding gate electric motor

Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Sliding Gater Safety Features

Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface | Sliding gate motor control board

Control Board Overview

Accessories Compatibility and Controlling Options | Sliding Gate Automation

Constant DC Accessories Output
 Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

Dimensions | Italian Made Sliding Gate Electric Motor

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Optional Add On)

Four-point Tilt Leveling

Specifications

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)

Wireless Double Push Button with Isolation Key

The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.

Eyevision® Two-Wire 7" Touch Screen WiFi Monitor

7 " touch screen wi-fi monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

Monitor's Features

	2 Wire Technology The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface. The 2-wire technology is a non-polarity easy 2-wire connection.
	Internal Intercom Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.
	Ringtones This system has 22 Doorbell melodies to choose from.
	Touch screen 7" Colour TFT LCD touchscreen operation with easy-to-use menus.
	Additional Monitors Connection Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4 which can be found under 2 Wire Accessories.
	Wi-Fi Feature for Smartphone APP Surveillance of door station from mobile devices through the VDP Connect App (e-Mail registration is not required)

Additional Monitor Features:

- Wi-Fi Feature for Smartphone APP (No e-Mail registration needed)
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors

Specification

Power supply: DC 20~28V

Power consumption: Standby 0.25W; Working 5W

Communication: Hands-free

Screen: 7 Inch Digital Colour TFT

Display Resolutions: 800*3(R, G, B) x 480 pixels

Video signal: 1Vp-p, 75Ω, CCIR standard

Wiring: 2 wires, non-polarity

Dimension: 161(H) × 174(W) × 22(D)mm

Eyevision® 2 Wire Surface Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera
Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Surface Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay). When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed. When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor.
	Features: Stainless Steel Door Station With Full SSS Materials Design  170° Super Wide Angle Fish Eye Lens 2.0 Mega Pixel Camera Colour CMOS  Pan-Tilt Zoom Function Auto-sensor LED For Backlight Compensation Waterproof Structure Design With IP55 Protection Rating Anti-tamper Screw Installation Design 3mm Plexiglass Touch Keys Flush or Surface Mount Options Available
Door Station Specifications
Power Supply: DC 24V  Power Consumption: Standby 15mA; Working status 105mA Camera: Colour CMOS, 2.0 Megapixel                  1/2.7’’ Fisheye Camera, 170° Super Wide Angle; Unlocking time: 1~99s Lock Power supply: 12V dc, 280mA (Internal Power); Number of relay circuits: 2 (the second lock needs an external device to support) Mounting: Surface mounting (EV-D298KP-SM) Working temperature: -15 ºC ~ +55ºC Dimension: 182(H)×93(W)×44(D)mm (EV-D298KP-SM)
