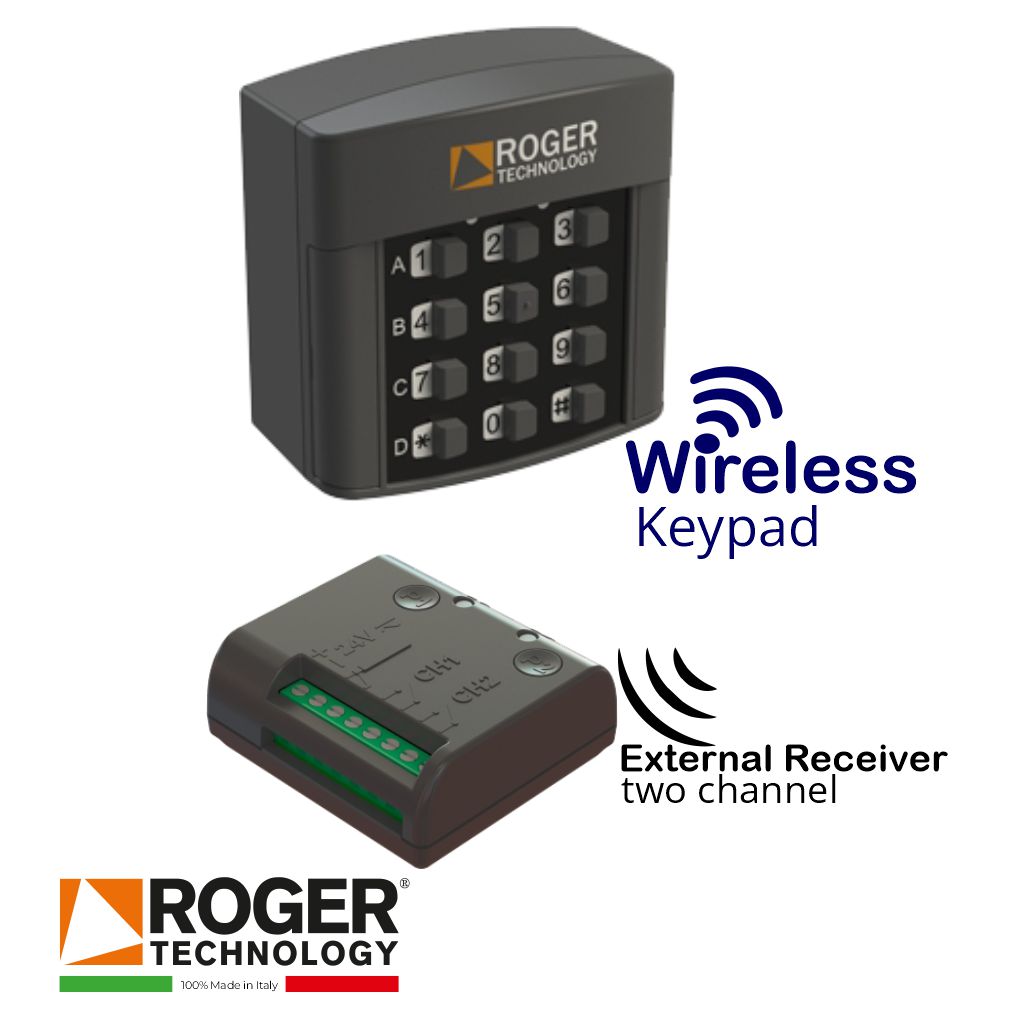

Wireless Secure Access Management with Four Channel Wireless Keypad and External Receiver Combo (Made in Italy by Roger Technology H85/TDR/E|R93/RX20/U) | Suitable for ALL Door/Gate and Garage Automation, Access Control Systems. Can used for Secure Access Management on Driveway Gate Opener, Pedestrian Gate, Garage, Door Access and Airbnb Property Access Control

Product SKU: H85-TDR-E-R93

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$335.00

  • Or in 4 payment of $83.75 with afterpay info
  • Secure Access Management with 4 Channel Wireless Keypad and External Receiver.

  • Kit Includes

    01 Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes(QTY: 1)
    02 Roger Technology external receiver two channels 433,92 Mhz (50 storable codes) with plastic box. Suitable For Roger Technology Remotes and Keypads. Adding Your Garage Motor to Roger Technology Remote.(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Roger Technology H85/TDR/E Wireless Keypad



Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.



Technical Features

Operating temperature: -10°C +55°C
Protection level: IP54
Average consumption when keypad active: 12 mA
A number of user codes storable: 450
Maximum number of digits per user code: 6
Minimum number of digits per user code: 3
Codification: Fix code - Rolling Code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
A number of combinations: 65536 (fix code) - 4.294.967.296 (rolling code)
Number of bits of the identification code: 16 (fix code) - 32 (rolling code)
Number of bits transmitted: 28 (fix code) - 144 (rolling code)
Battery: 2 x CR2032
Battery life: Minimum 2 years with 10 activations/day
Installation Type: External
Maximum dimension product in mm (L x W x H): 75 x 77 x 42



Dimensions and Predisposition

Dimensions

Predisposition for standard installation







External Receiver 2 Channels 433,92 Mhz

Technical Features

Standard power: 12/24V AC/DC
Absorption: 30mA
Operating temperature: -10+55°C
Number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
Relay contacts max current: 0.5A
Relay contacts max voltage: 24V AC/DC
Exit: Relay
Storable codes: 50
Sensibility: -107 dBm
Input impedance: 50 Ω
Maximum dimension product
in mm (L x W x H):
55 x 44 x 20
