Wireless Loop Detector Automatic Gate Vehicle Access Control | Wireless Vehicle Detection Ground Loop Sensor System - Domestic e-Loop Automatic Gate Vehicle Access Control Kit

Product SKU: W-LD-DT50

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$449.00 $470.00 APC Automotion Plus Sale

  • Or in 4 payment of $112.25 with afterpay info
  • Wireless Vehicle Detection Module | e-Loop Mini Domestic Loop Detector- Exit Mode

  • Kit Includes

    01 Wireless Vehicle Detection Loop System - Domestic e-Loop Automatic Gate Vehicle Access Control | Wireless Vehicle Ground Loop(QTY: 1)
    02 E-Trans-50 Single Channel Transceiver | Wireless Vehicle Detection Loop System | 12-24VDC(QTY: 1)
  • Product Information

Product Information

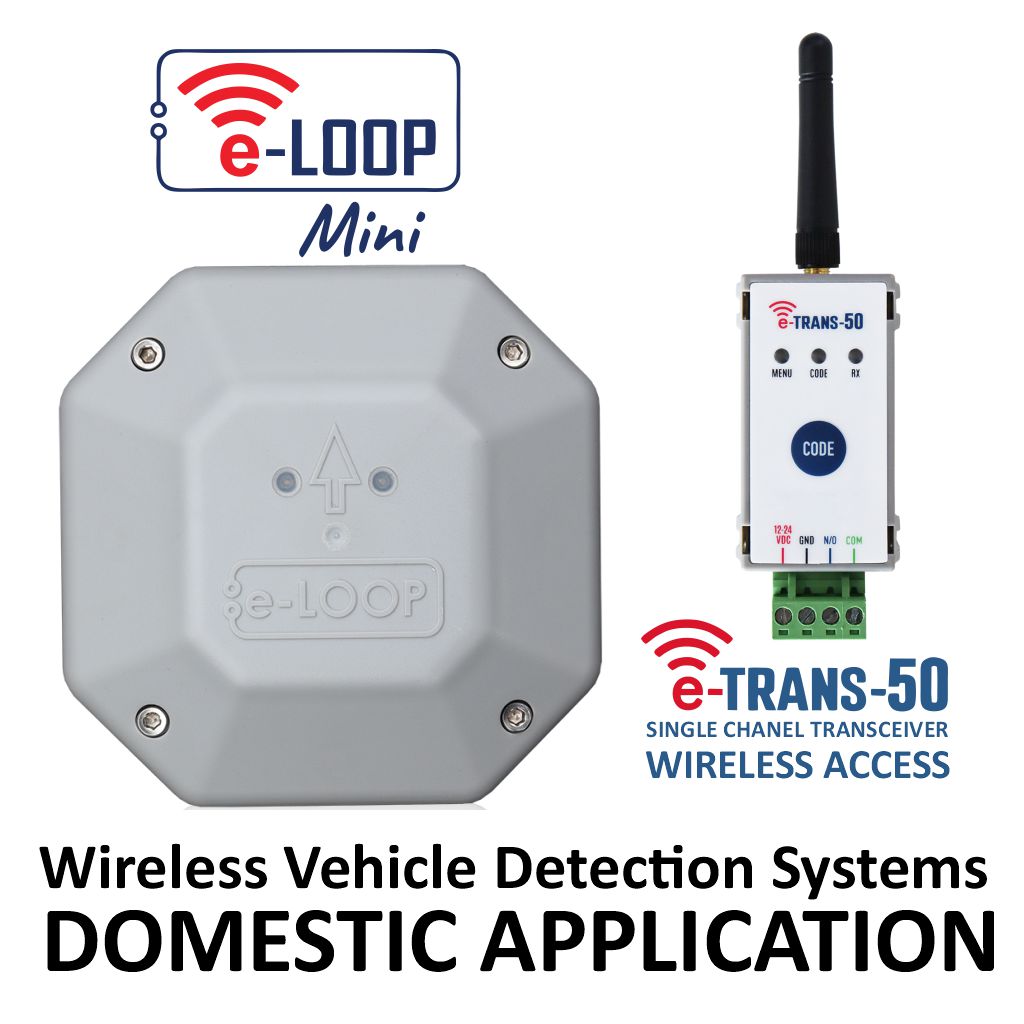

Wireless Vehicle Detection Systems

Introducing new generation wireless loop vehicle detection. The e-loop replaces traditional wired inductive loops, saving time and money while increasing reliability.



Wireless Domestic Loop - Exit Mode

The e-Loop Mini New Generation Wireless Loop replaces traditional wired inductive loops, saving you time and money while increasing reliability.

The e-Loop Mini is an exceptional wireless vehicle detection system for domestic house settings. Its compact design and easy installation seamlessly integrate into any residential environment without disrupting the aesthetic appeal.

The e-Loop Mini operates wirelessly, eliminating the need for complex wiring or extensive installation processes. Connects to an existing gate controller via a wireless transmitter. This cutting-edge technology gives homeowners a hassle-free solution for opening their entrances/gates.

The e-Loop Mini combines convenience, efficiency, and advanced technology, making it the perfect addition to a house setting.

  • Quick and easy installation.
  • It uses standard 1.5V AA Lithium batteries (included), providing up to 3-4 years of battery life.
  • Small compact design 120mm x 120mm x 30mm high.
  • Static load capacity 2500kg.
  • Range up to 50 metres.
  • High-security 128-bit encryption.



New Generation Wireless Loop Detector

The e-Loop Designs Domestic Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby Microtech transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dyna-bolts, contain two replaceable AA batteries, and can withstand almost any vehicle.

 Functions / Features | e-Loop Wireless Vehicle Detection System

Lower power consumption
3-axis magnetometer for vehicle detection

  • 8 Hz sampling rate
  • Auto-calibration
  • Exit/Entry detection mode

Fast and simple installation

  • Quick non-permanent installation

Up to 5-year battery life

  • Compact design
  • Compatible with various gates

Reliable radio communications with transceiver

  • Reliable radio communication
  • High-security 128-bit AES Encryption





Power, Physical and Environment

  • Power : 2 * 1.5 V 3000ma (battery)
  • Dimensions : 120*120*30mm
  • Environment: Designed for above-ground mounting
  • Protection: IP68 ingress protection
  • Operating Temp: -20° to 80° C



Magnetic Detection Areas | Wireless Loop Detector







E-Trans-50 Single Channel Transceiver

Wireless access control system for gate and door applications.

Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems.

A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range.



Specifications

Voltage: 10-36V DC

Current draw standby: 4.5 m/a

Current draw active: 30 m/a

Frequency: 433.39 MHz

Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons

Relay: 1-amp contact rating, COM and N/O connections x 1 relay

Modes: Pulse, Latch and Hold



FEATURES

  • Compact design with an exceptional range

  • SMA connector standard for external long-range antenna connection

  • Wide Voltage Range: 10-36V DC

  • Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a

  • Frequency: 433.39 MHz

  • Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons

  • Relay: 1-amp contact rating, COM and N/O connections x 1 relay

  • Multiple Modes: Pulse, Latch and Hold
