  • WiFi Access Control Smart Home Bundle for Front Door OR Gate with Magnetic Lock, Wifi Remote Smart Switch Gate Garage Door Openers Single Relay IOS and Android APP Control

    On Sale

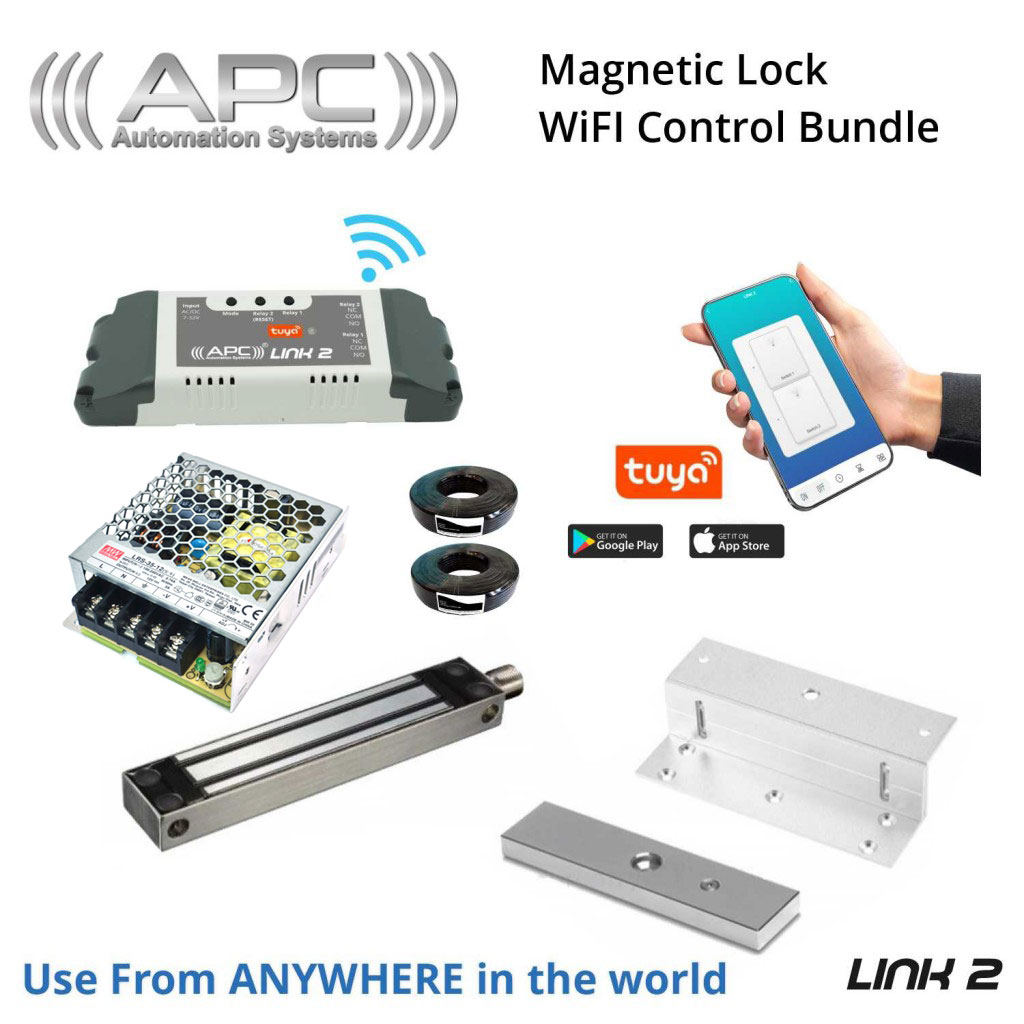

WiFi Access Control Smart Home Bundle for Front Door OR Gate with Magnetic Lock

Product SKU: APC-WF-BP2

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$345.00 $425.00 APC Automotion Plus Sale

  • Or in 4 payment of $86.25 with afterpay info
  • Kit Includes

    01 APC Link 2 WiFi Switch - DUAL Relay Wifi Remote Smart Switch Gate Garage Door Openers IOS and Android APP Control(QTY: 1)
    02 280KG Weatherproof Magnetic Gate Lock(QTY: 1)
    03 Z Bracket for 280KG Magnetic Lock(QTY: 1)
    04 5m 4 Core Non Shielded Cable(QTY: 1)
    05 5m 2 Core Non Shielded Cable(QTY: 1)
    06 Lock and Access Control Power Supply 12V 3A DC(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

WiFi Control Switch
















  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • Works with Amazon Alexa, Google Assistant, Smart Things
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location

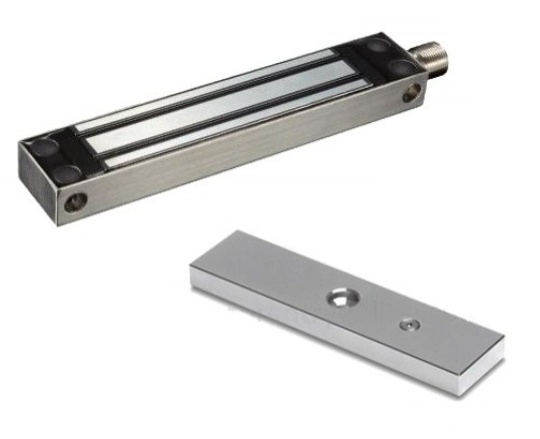

ML-280 Weatherproof Magnetic Lock


  • 280KG Holding Force
  • 12V and 24V Compatible
  • Automatically will release on power loss (Fail Safe)
  • Resin Filled and Weatherproof
  • Dimensions: 220Lx42Wx25.5H(mm)

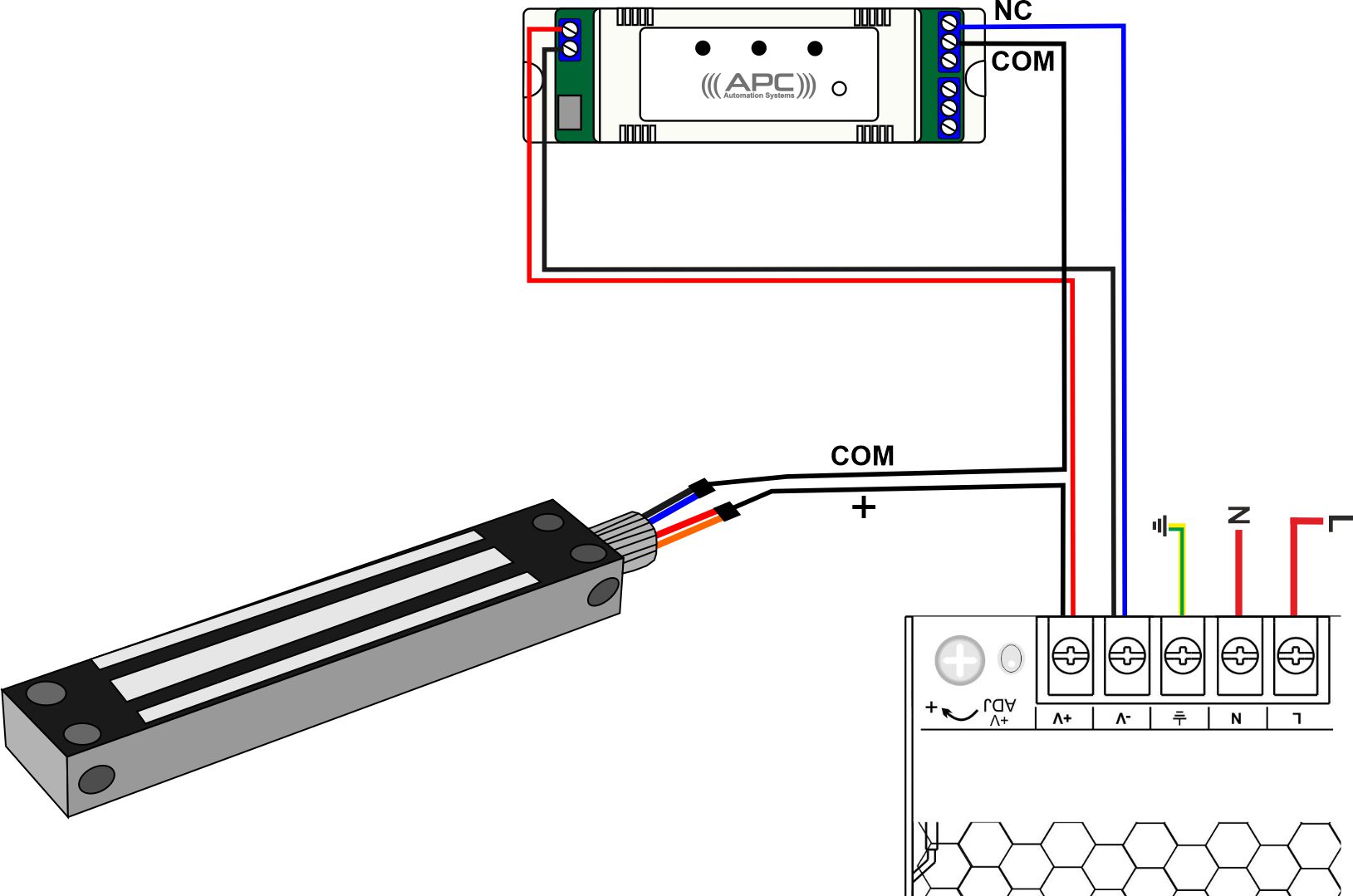

Wiring Diagram

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS

Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes

Your Customised Kit Includes:

No Changes.
