WiFi Access Control Smart Home Bundle for Front Door OR Gate with Electric Striker

Product SKU: APC-WF-BP1

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$219.00 $265.00 APC Automotion Plus Sale

  • Or in 4 payment of $54.75 with afterpay info

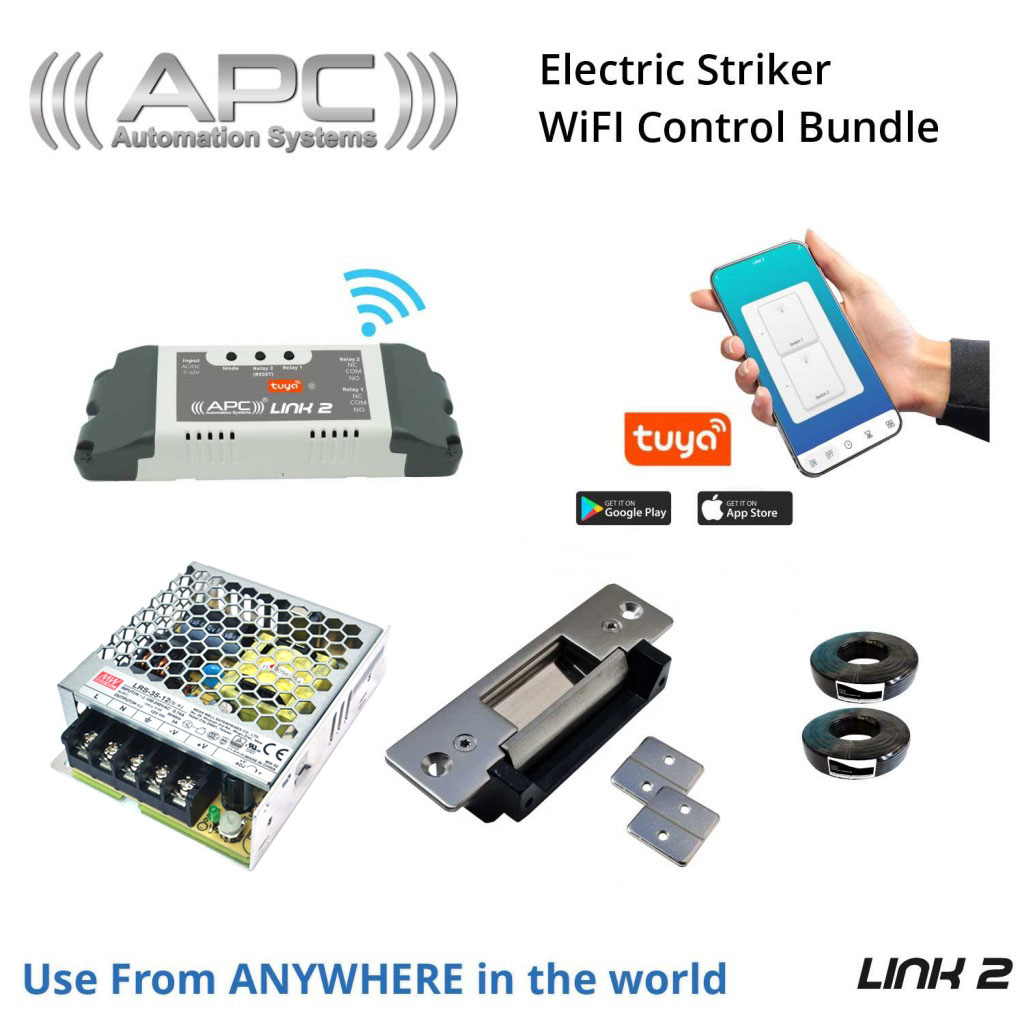

  • WiFi Access Control for Front Door OR Gate with Electric Striker Smart Home Bundle

  • Kit Includes

    01 APC Link 2 WiFi Switch - DUAL Relay Wifi Remote Smart Switch Gate Garage Door Openers IOS and Android APP Control(QTY: 1)
    02 Flush Mount Universal Stainless Steel Face Electric Striker(QTY: 1)
    03 5m 4 Core Non Shielded Cable(QTY: 1)
    04 5m 2 Core Non Shielded Cable(QTY: 1)
    05 Lock and Access Control Power Supply 12V 3A DC(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

WiFi Control Switch













  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location


ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

Wiring Diagram

Access Control for Front Door OR Gate with Electric Striker Smart Home Bundle

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS
Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes

Your Customised Kit Includes:

No Changes.

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day

        • Kit Quantity:
          • 1
