Wi-Fi Smart Entry Access Control Bundle Electric Striker Kit with APC Mondo Plus Airbnb Friendly Smart Wi-Fi Keypad (Remotely Manage Pin Code | Generate Temporary Pin Code | APP Control and Swipe Tag Reader) and Push Button Switch for Exit

Product SKU: ACB-WF-KP-Plus-ES

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$519.00 $544.00 APC Automotion Plus Sale

  • Or in 4 payment of $129.75 with afterpay info
  • This smart WIFI keypad and electric strike bundle is suitable for automating secure access doors/gates (Airbnb Friendly)

  • Kit Includes

    01 APC Mondo Plus Smart Wi-Fi Keypad | Remotely Change Pin Code | Generate Temporary Pin Code | APP Control and Swipe Tag Reader | Airbnb Friendly|(QTY: 1)
    02 EM Swipe Tag(QTY: 6)
    03 5m 4 Core Non Shielded Cable(QTY: 1)
    04 Flush Mount Universal Stainless Steel Face Electric Striker(QTY: 1)
    05 5m 2 Core Non Shielded Cable(QTY: 2)
    06 APC Wired Single Push Button Switch with Key Issolation(QTY: 1)
    07 Lock and Access Control Power Supply 12V 3A DC(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information







MONDO+Plus Wi-Fi Access Control Keypad With Card Reader

The APC Automation Systems® Mondo+Plus is a standalone access control smart WiFi keypad with a swipe card reader and can be controlled by a mobile APP from anywhere in the world.

Both Fail Secure and Fail Safe locks can be used and also allow the integration of exit buttons and allow the user to generate a temporary code remotely through the mobile APP.



Key Feature Set:

  • Ultra Low Power Consumption | Standby current less than 60mA at 12~18V DC
  • Wiegand Interface | Wg26 ~34 bits input and output
  • Searching time | Less than 0.1s after reading the card
  • Backlight keypad | Operate easily at night
  • Temporary code | The user can generate a temporary code through the APP
  • Access Methods | Card, Pin code, Card & Pin code, Mobile APP
  • Independent codes | Use codes without related card
  • Change codes | Users can change codes by themselves
  • Delete users by card No. | The lost card can be deleted by keypad





Dimensions

MONDO+Plus Wi-Fi Access Control Keypad With Card Reader



Automatic Gate Connection

MONDO+Plus Wi-Fi Access Control Keypad With Card Reader



Electric Striker Connection

MONDO+Plus Wi-Fi Access Control Keypad With Card Reader





Specifications

Working Voltage DC12-18V
Card Reading Distance 1~3cm
Working Temperature -40°~60°C
Load Output 2A Maximum
Standby Current ≤60mA
Capacity 1000 Users
Working Humidity 10-90%
Relay Time 0~99s Adjustable)

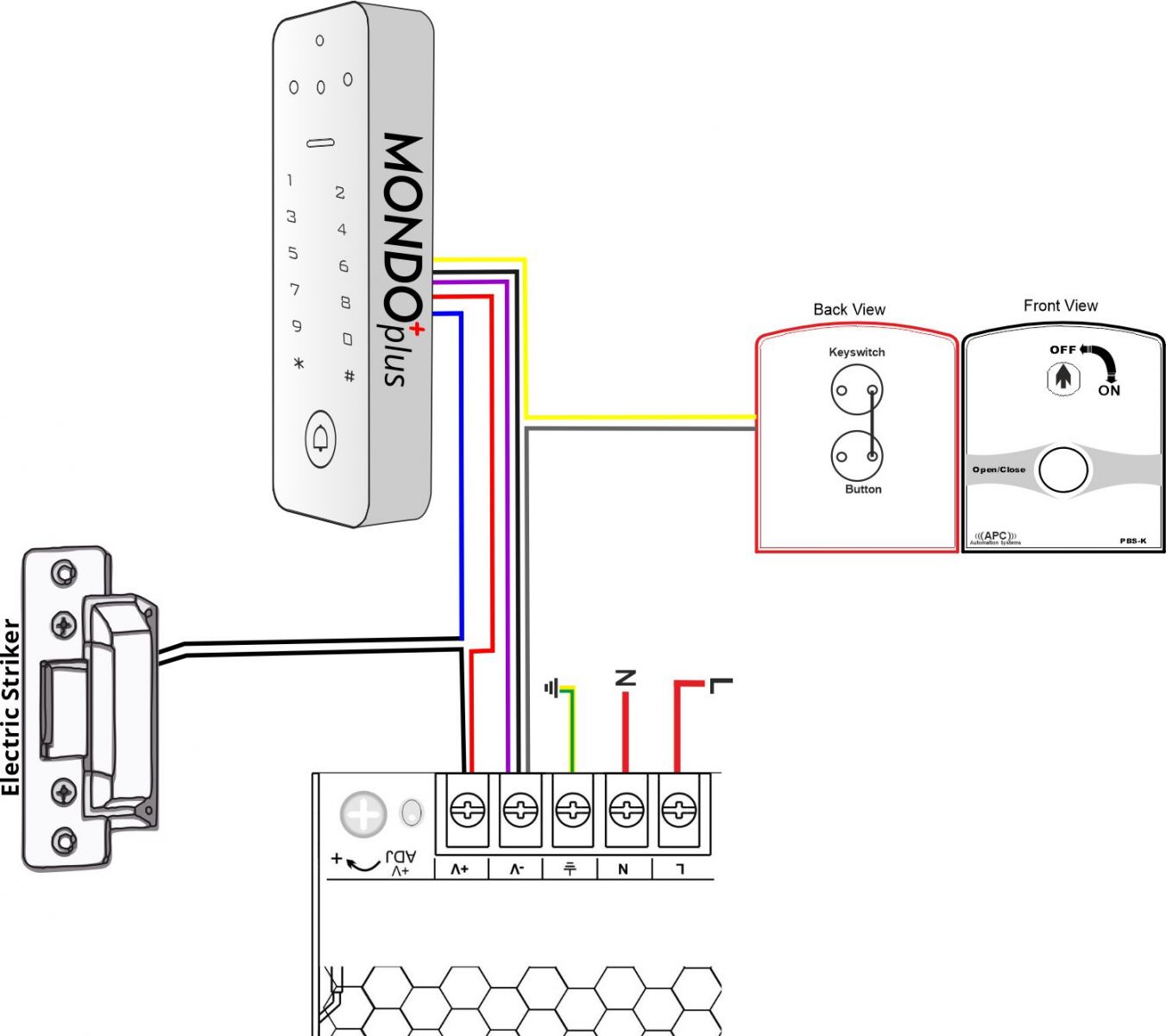

Wiring Diagram

Keypad Access Control Bundle

Wired Push Button with Isolation Key





The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .





ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS

Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes






Do you want to manage your main door/gate access codes remotely from wherever you are?

Airbnb access management and controller packages.

Remote smart management and control access to Airbnb properties via Mobile APP.

MondoPlus Smart WiFi Keypad Access Management Packages.

These packages include locks, keypads, IC TAG reader, keyless entry with pin code, and remote locking and unlocking with a smartphone app. Easily manage to add/change/delete access codes and grant access to guests for specific periods. APC MondoPlus provides a comprehensive and convenient access control solution.

Airbnb access controller packages offer several benefits for both hosts and guests. For hosts, they can help to improve security by ensuring that only authorized guests have access to the property. They can also save time and hassle by eliminating the need to manage keys or codes manually/on-site. For guests, they provide a convenient and secure way to access the property without worrying about keys.

Airbnb access controller packages are a convenient and secure way to manage and control access to Airbnb properties.

Manage your Airbnb property from anywhere in the world.

Airbnb owners… You can set up new access codes for your entry door/gate wherever you are.

Airbnb Remote Access Control/Manage

Do you want to manage your access codes from wherever you are?

You can do it easily with MondoPlus smart Wi-Fi keypad access control bundles. Smart access control will make your life more convenient, keep your property secure, and leave the guests with a quality first impression of your property. You will be able to manage access to your Airbnb property remotely… Guests arriving? Add a new access PIN, and revoke the PIN code when they leave.
