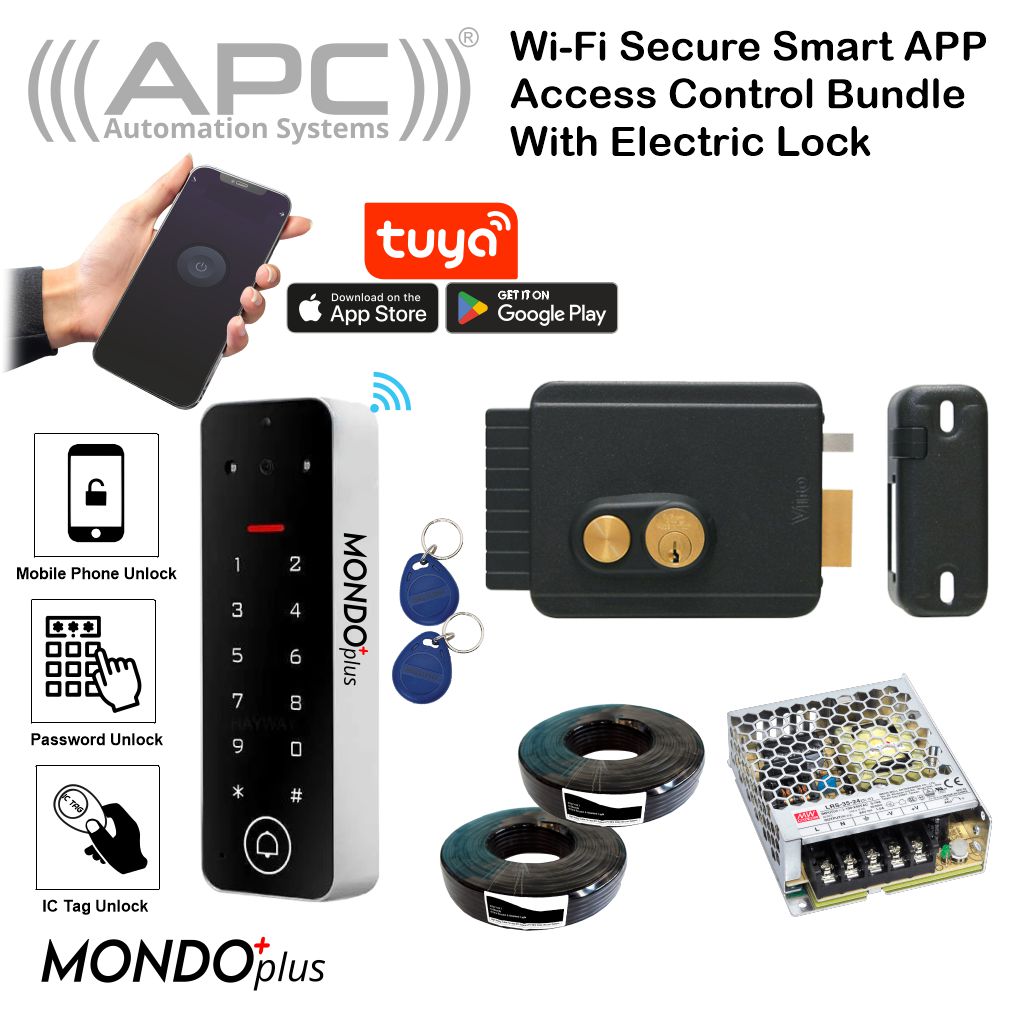

MONDO+Plus Wi-Fi Access Control Keypad With Card Reader
The APC Automation Systems® Mondo+Plus is a standalone access control smart WiFi keypad with a swipe card reader and can be controlled by a mobile APP from anywhere in the world.
Both Fail Secure and Fail Safe locks can be used and also allow the integration of exit buttons and allow the user to generate a temporary code remotely through the mobile APP.
Key Feature Set:
- Ultra Low Power Consumption | Standby current less than 60mA at 12~18V DC
- Wiegand Interface | Wg26 ~34 bits input and output
- Searching time | Less than 0.1s after reading the card
- Backlight keypad | Operate easily at night
- Temporary code | The user can generate a temporary code through the APP
- Access Methods | Card, Pin code, Card & Pin code, Mobile APP
- Independent codes | Use codes without related card
- Change codes | Users can change codes by themselves
- Delete users by card No. | The lost card can be deleted by keypad
Dimensions
Automatic Gate Connection
Electric Striker Connection
Specifications
Working Voltage |
DC12-18V |
Card Reading Distance |
1~3cm |
Working Temperature |
-40°~60°C |
Load Output |
2A Maximum |
Standby Current |
≤60mA |
Capacity |
1000 Users |
Working Humidity |
10-90% |
Relay Time |
0~99s Adjustable) |

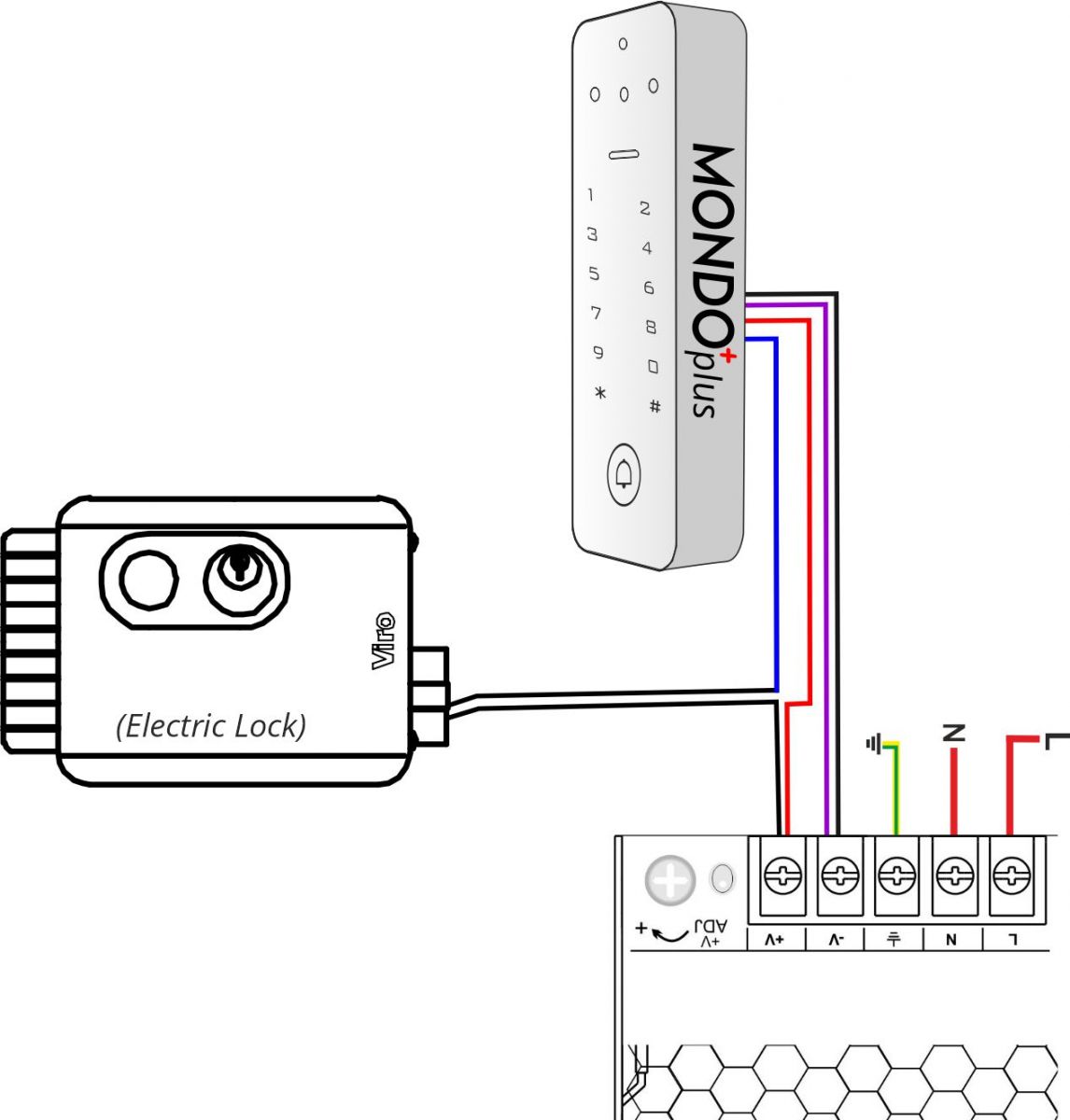

Wiring Diagram
12V Horizontal Automatic Electric Gate Lock (Viro V97), Right Hand Side for Inward Opening Swing Gates
|
Viro V97 automatic electric gate lock with push-button and adjustable backset from 50 to 80 mm. Suitable for the right hand and inward opening swing gates
The V97 electric lock with push-button is suitable for outside and inside doors and pedestrian gates and is interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.
|
|
|
Features:
- Galvanized and Anthracite Metallic-Painted Steel Case and Cover
- Operating voltage: 12V DC, 2600mA
- Push Button
- The electric lock can be operated in conjunction with most gate openers and access control systems.
- Specially designed for installation on manual or automatic opening gates and drive-through gates.
- Viro V97 Electric Lock Dimensions: 127,5 x 103,5 mm
Package Contents:
- striker,
- oval brass escutcheon,
- allen key for backset adjustment,
- fixing screws.
Usage:
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Garage Swing Door Electric Lock
Suitability:
The V97 electric locks with push button are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed.
|
|
|
|
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
Input Type |
Single Phase |
Input Voltage |
85 ~ 264VAC |
Input Current |
0.42A / 230VAC |
Output Voltage |
12V |
Output Current |
3A |
Rated Output Power |
36W |
Output Type |
Single |
Output Voltage Adjustment |
10.2 ~ 13.8V |
Prescribed Electrical Item |
No |
SELV |
Yes |
Efficiency |
86.00% |
Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
Warranty |
1 Year |
Approvals |
CE, CB, RCM |
IP Rating / Environmental Protection |
Less than IP65 |
Dimensions |
99*82*30mm (L*W*H) |
Recommended for New Designs |
Yes |
