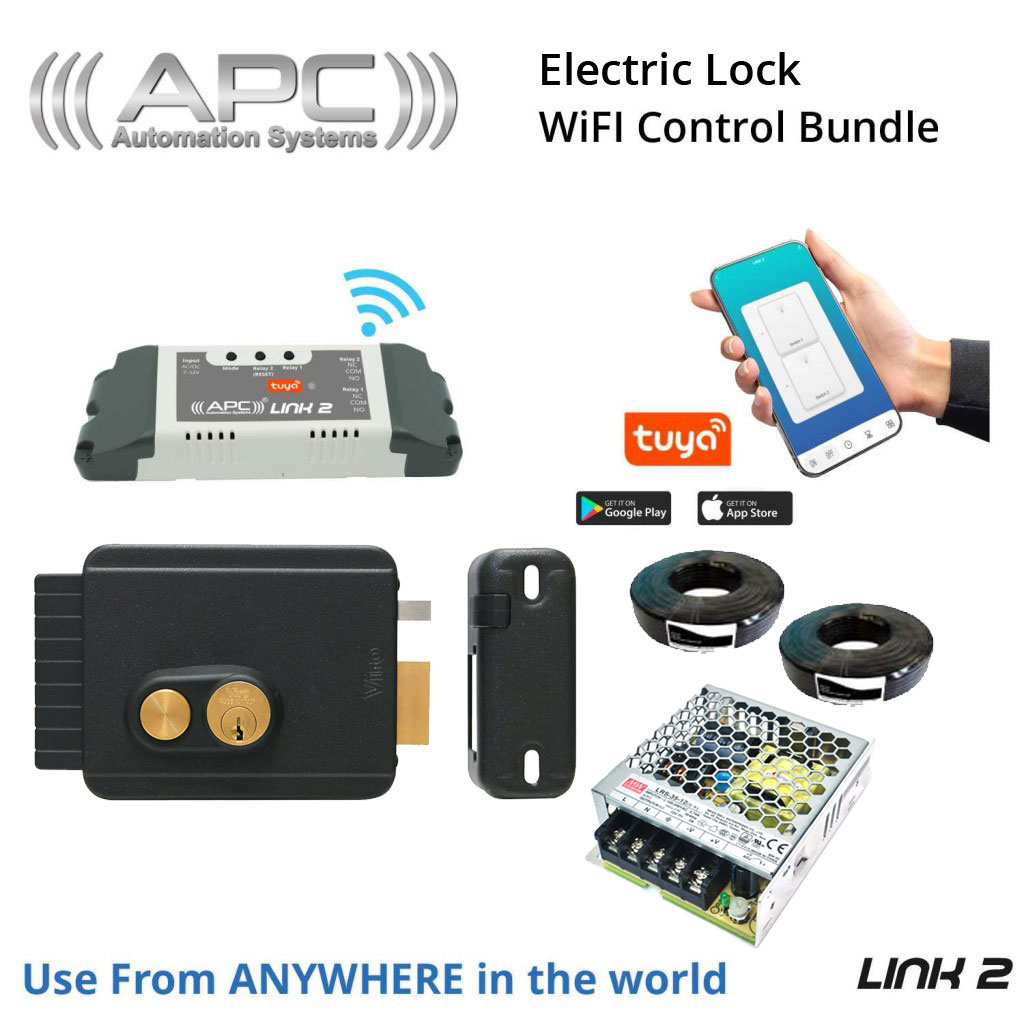

WiFi Control Switch
- 7-32V AC & DC Compatible
- Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
- One Master User (Administrator) and unlimited regular users
- Allows for manual operation and/or scheduled operation of the system
- Ultra Low power consumption of 20mA
- Requires good WiFi connection at its installed location

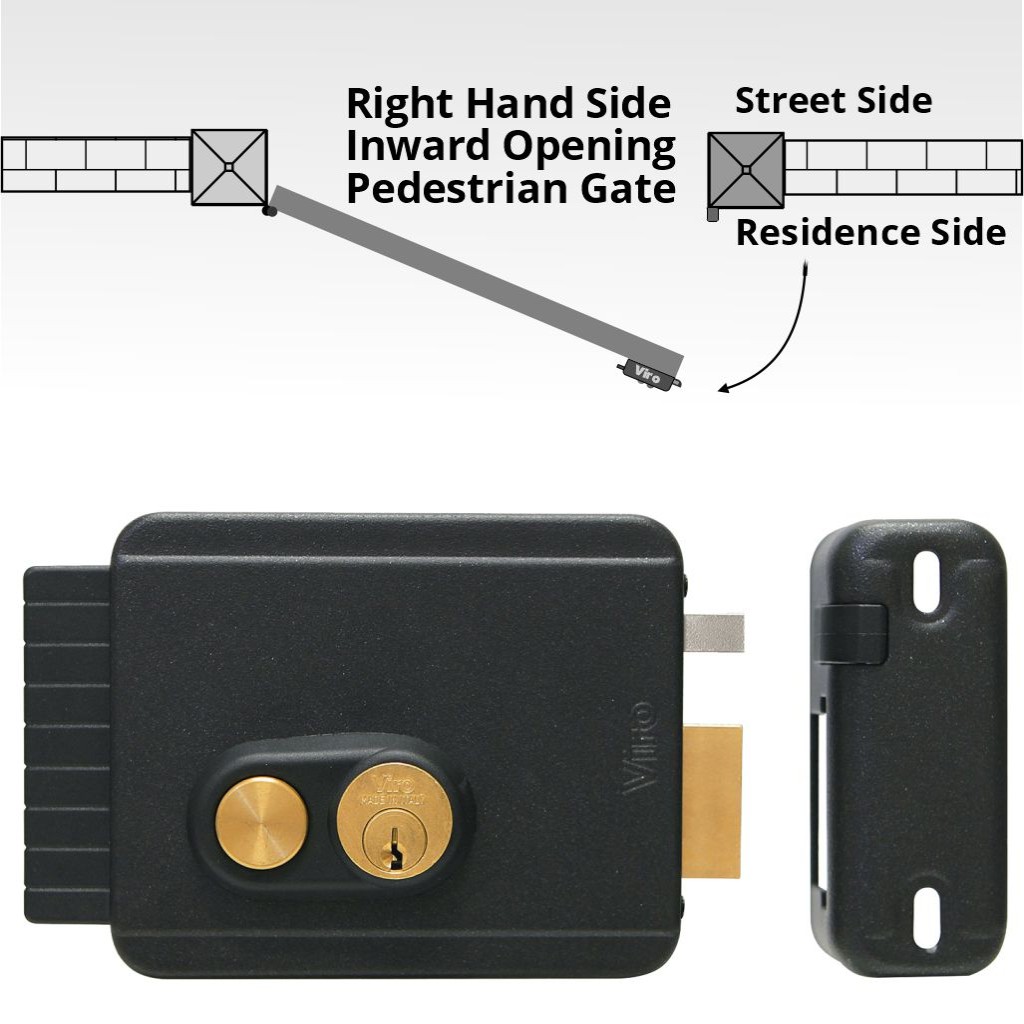

12V Horizontal Automatic Electric Gate Lock (Viro V97), Right Hand Side for Inward Opening Swing Gates
|
Viro V97 automatic electric gate lock with push-button and adjustable backset from 50 to 80 mm. Suitable for the right hand and inward opening swing gates
The V97 electric lock with push-button is suitable for outside and inside doors and pedestrian gates and is interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.
|
|
|
Features:
- Galvanized and Anthracite Metallic-Painted Steel Case and Cover
- Operating voltage: 12V DC, 2600mA
- Push Button
- The electric lock can be operated in conjunction with most gate openers and access control systems.
- Specially designed for installation on manual or automatic opening gates and drive-through gates.
- Viro V97 Electric Lock Dimensions: 127,5 x 103,5 mm
Package Contents:
- striker,
- oval brass escutcheon,
- allen key for backset adjustment,
- fixing screws.
Usage:
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Garage Swing Door Electric Lock
Suitability:
The V97 electric locks with push button are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed.
|
|
|
|

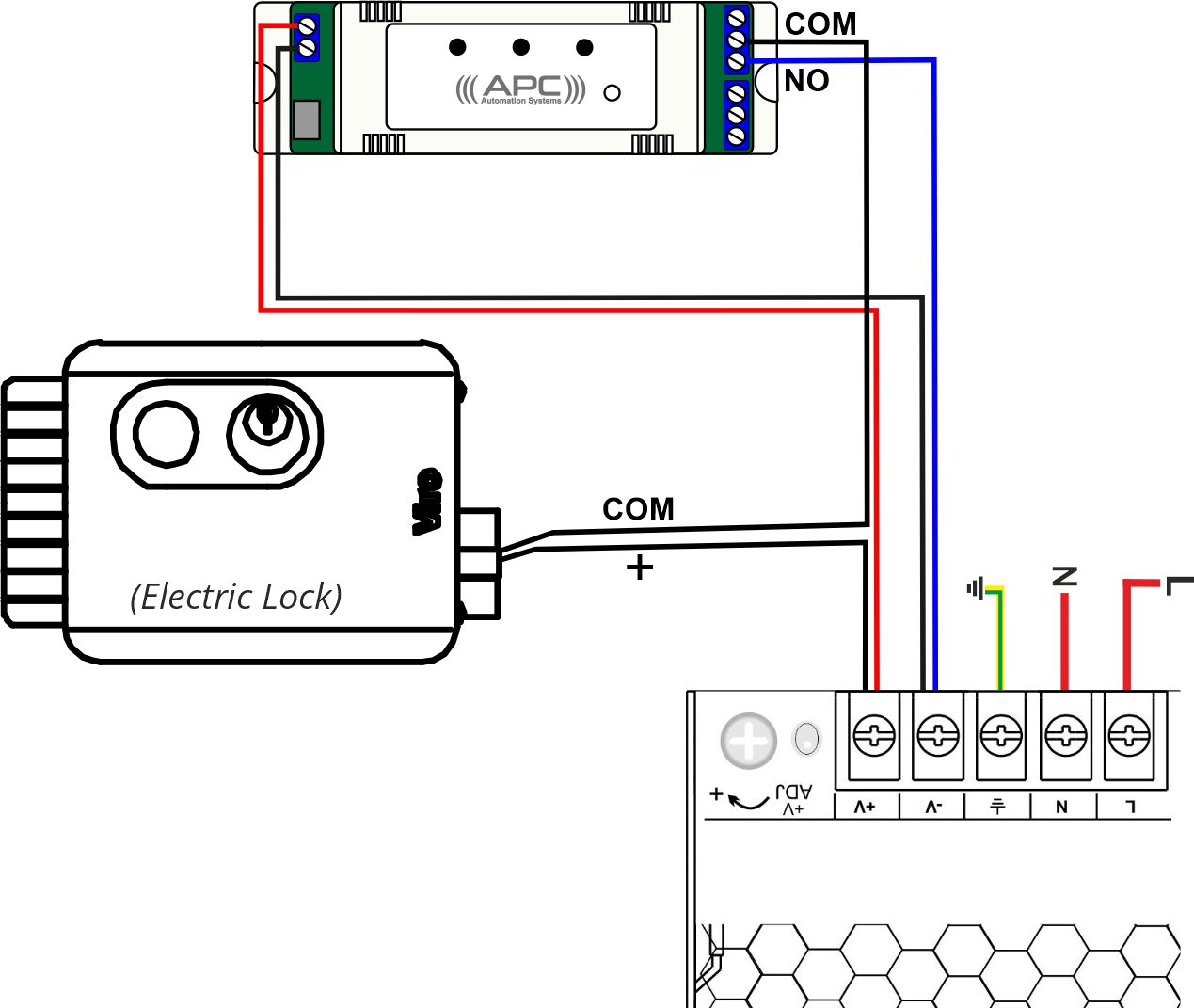

Wiring Diagram
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
Input Type |
Single Phase |
Input Voltage |
85 ~ 264VAC |
Input Current |
0.42A / 230VAC |
Output Voltage |
12V |
Output Current |
3A |
Rated Output Power |
36W |
Output Type |
Single |
Output Voltage Adjustment |
10.2 ~ 13.8V |
Prescribed Electrical Item |
No |
SELV |
Yes |
Efficiency |
86.00% |
Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
Warranty |
1 Year |
Approvals |
CE, CB, RCM |
IP Rating / Environmental Protection |
Less than IP65 |
Dimensions |
99*82*30mm (L*W*H) |
Recommended for New Designs |
Yes |
