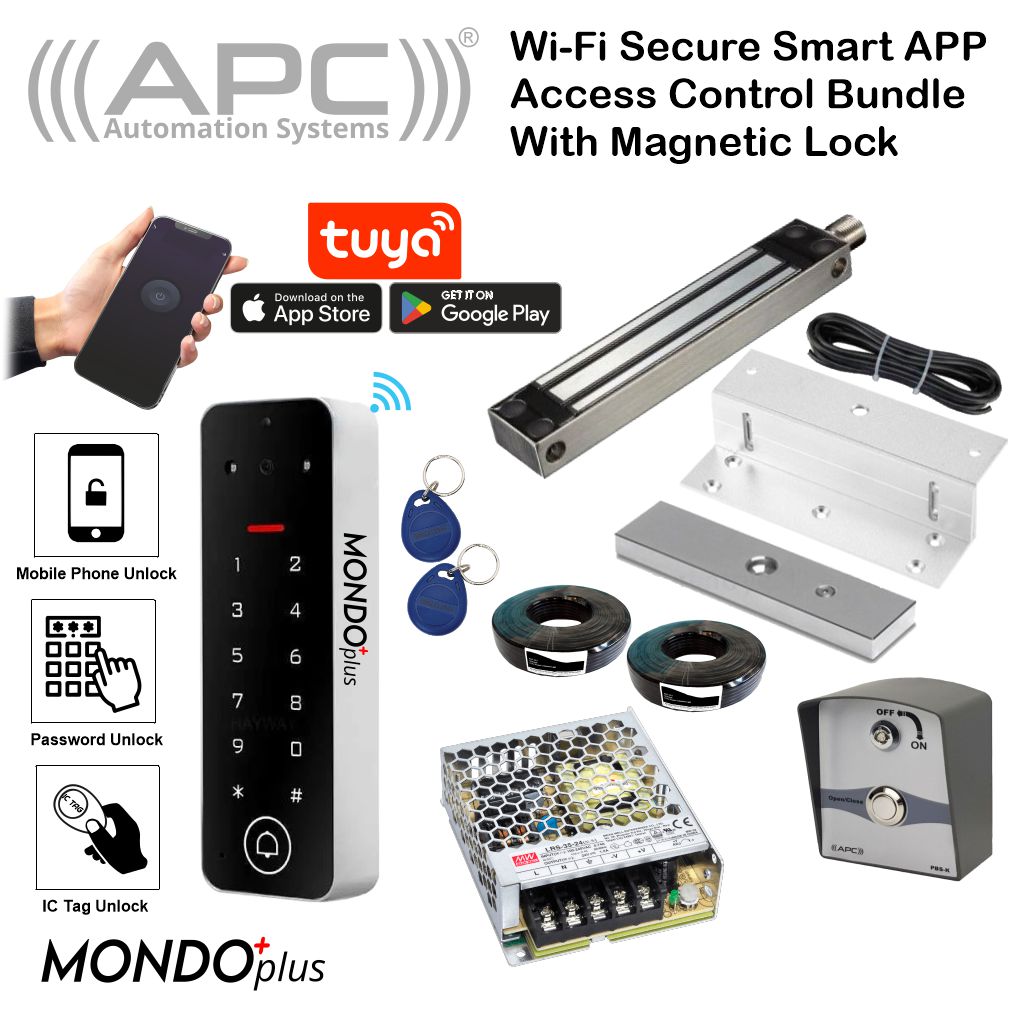

MONDO+Plus Wi-Fi Access Control Keypad With Card Reader
The APC Automation Systems® Mondo+Plus is a standalone access control smart WiFi keypad with a swipe card reader and can be controlled by a mobile APP from anywhere in the world.
Both Fail Secure and Fail Safe locks can be used and also allow the integration of exit buttons and allow the user to generate a temporary code remotely through the mobile APP.
Key Feature Set:
- Ultra Low Power Consumption | Standby current less than 60mA at 12~18V DC
- Wiegand Interface | Wg26 ~34 bits input and output
- Searching time | Less than 0.1s after reading the card
- Backlight keypad | Operate easily at night
- Temporary code | The user can generate a temporary code through the APP
- Access Methods | Card, Pin code, Card & Pin code, Mobile APP
- Independent codes | Use codes without related card
- Change codes | Users can change codes by themselves
- Delete users by card No. | The lost card can be deleted by keypad
Dimensions
Automatic Gate Connection
Electric Striker Connection
Specifications
Working Voltage |
DC12-18V |
Card Reading Distance |
1~3cm |
Working Temperature |
-40°~60°C |
Load Output |
2A Maximum |
Standby Current |
≤60mA |
Capacity |
1000 Users |
Working Humidity |
10-90% |
Relay Time |
0~99s Adjustable) |

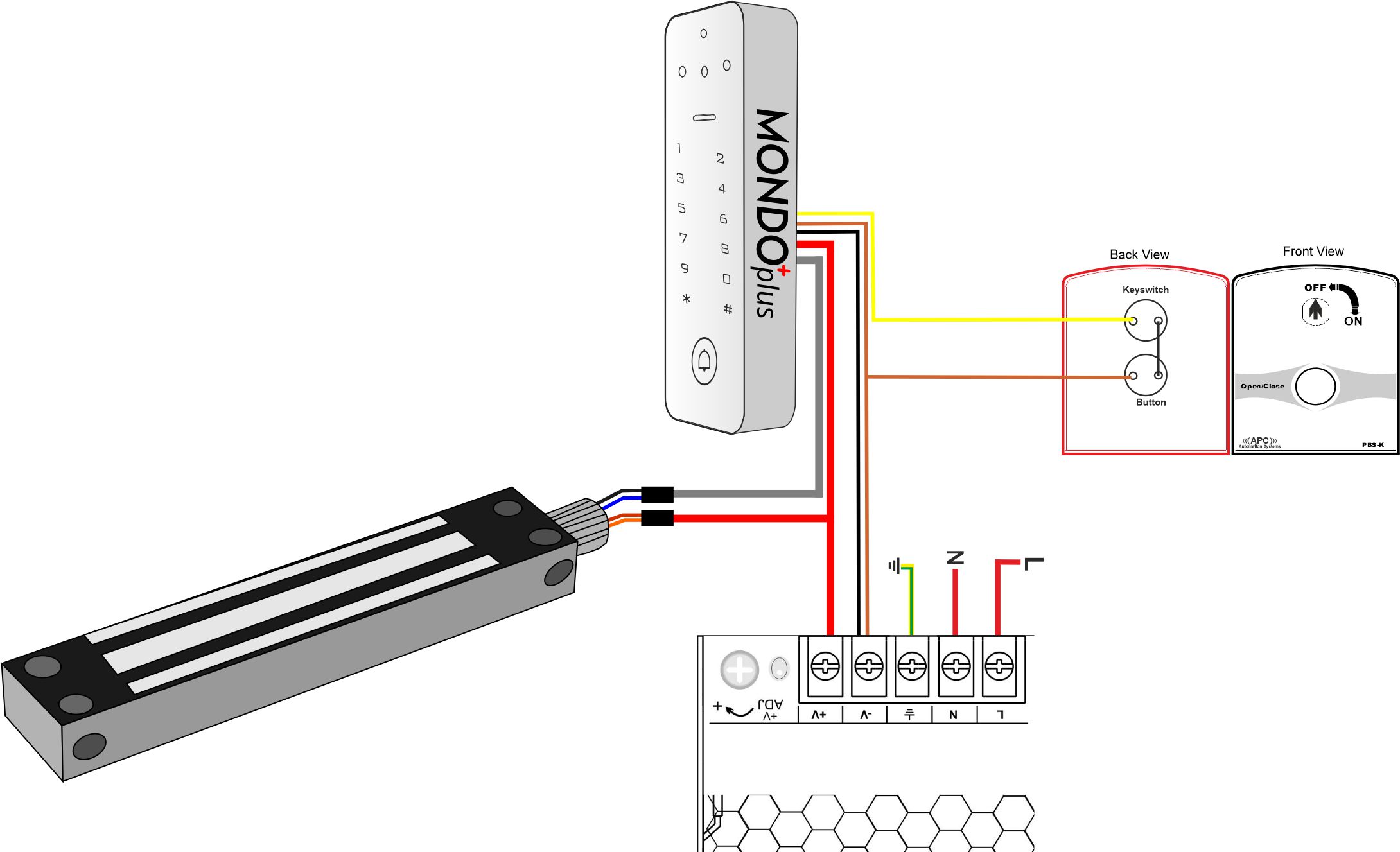

Wiring Diagram
Wired Push Button with Isolation Key
The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .
ML-280 Weatherproof Magnetic Lock
- 280KG Holding Force
- 12V and 24V Compatible
- Automatically will release on power loss (Fail Safe)
- Resin Filled and Weatherproof
- Dimensions: 220Lx42Wx25.5H(mm)
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
Input Type |
Single Phase |
Input Voltage |
85 ~ 264VAC |
Input Current |
0.42A / 230VAC |
Output Voltage |
12V |
Output Current |
3A |
Rated Output Power |
36W |
Output Type |
Single |
Output Voltage Adjustment |
10.2 ~ 13.8V |
Prescribed Electrical Item |
No |
SELV |
Yes |
Efficiency |
86.00% |
Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
Warranty |
1 Year |
Approvals |
CE, CB, RCM |
IP Rating / Environmental Protection |
Less than IP65 |
Dimensions |
99*82*30mm (L*W*H) |
Recommended for New Designs |
Yes |
Do you want to manage your main door/gate access codes remotely from wherever you are?
Airbnb access management and controller packages.
Remote smart management and control access to Airbnb properties via Mobile APP.
MondoPlus Smart WiFi Keypad Access Management Packages.
These packages include locks, keypads, IC TAG reader, keyless entry with pin code, and remote locking and unlocking with a smartphone app. Easily manage to add/change/delete access codes and grant access to guests for specific periods. APC MondoPlus provides a comprehensive and convenient access control solution.
Airbnb access controller packages offer several benefits for both hosts and guests. For hosts, they can help to improve security by ensuring that only authorized guests have access to the property. They can also save time and hassle by eliminating the need to manage keys or codes manually/on-site. For guests, they provide a convenient and secure way to access the property without worrying about keys.
Airbnb access controller packages are a convenient and secure way to manage and control access to Airbnb properties.
Manage your Airbnb property from anywhere in the world.
Airbnb owners… You can set up new access codes for your entry door/gate wherever you are.
Airbnb Remote Access Control/Manage
Do you want to manage your access codes from wherever you are?
You can do it easily with MondoPlus smart Wi-Fi keypad access control bundles. Smart access control will make your life more convenient, keep your property secure, and leave the guests with a quality first impression of your property. You will be able to manage access to your Airbnb property remotely… Guests arriving? Add a new access PIN, and revoke the PIN code when they leave.
