Product SKU: APC-BP1-WF-KP-ES

Wi-Fi Keypad Access Control Bundle Front Door OR Gate Electric Striker Kit with APP Control

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Wi-Fi Keypad Access Control Bundle Front Door OR Gate Electric Striker Kit with APP Control

    On Sale

Wi-Fi Keypad Access Control Bundle Front Door OR Gate Electric Striker Kit with APP Control

Product SKU: APC-BP1-WF-KP-ES

  • In Stock

Get More Info..

Kit Price:

$299.00 $415.00 APC Automotion Plus Sale

  • Or in 4 payment of $74.75 with afterpay info
  • This Keypad and Electric Striker Bundle Kit is suitable for automating pedestrian access gates or front doors.

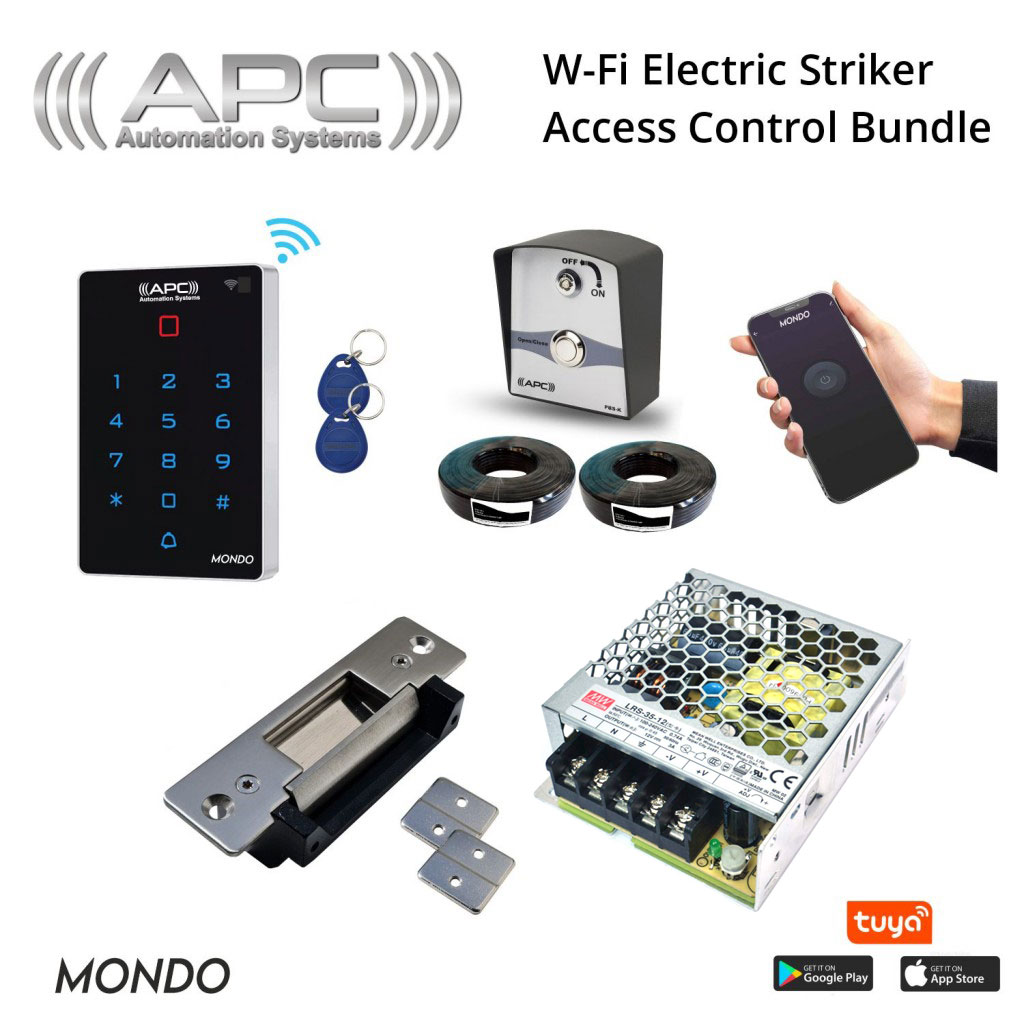

  • Kit Includes

    01 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    02 EM Swipe Tag (QTY: 6)
    03 5m 4 Core Non Shielded Cable (QTY: 1)
    04 Flush Mount Universal Stainless Steel Face Electric Striker (QTY: 1)
    05 5m 2 Core Non Shielded Cable (QTY: 2)
    06 APC Wired Single Push Button Switch with Key Issolation (QTY: 1)
    07 Lock and Access Control Power Supply 12V 3A DC (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • 12-24V DC Compatible
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system
  • Both NO and NC Circuits
  • Suits most automatic gates
  • Suits most electric strikers

Dimensions

Extra Heavy Duty Single Gate Opener

Automatic Gate Connection

Extra Heavy Duty Single Gate Opener

Electric Striker Connection

Extra Heavy Duty Single Gate Opener

Doorbell Connection

Extra Heavy Duty Single Gate Opener

Specifications

Working Voltage 12-24V DC
Card Reading Distance 1~3CM
Working Temperature -40°~60°C
Load Output Up to 3A
Standby Current 70mA 12V, 30mA 24V
Capacity 2000 Users
Working Humidity 10-90%
Relay Time 0~99s

Wired Push Button with Isolation Key





The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .





ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

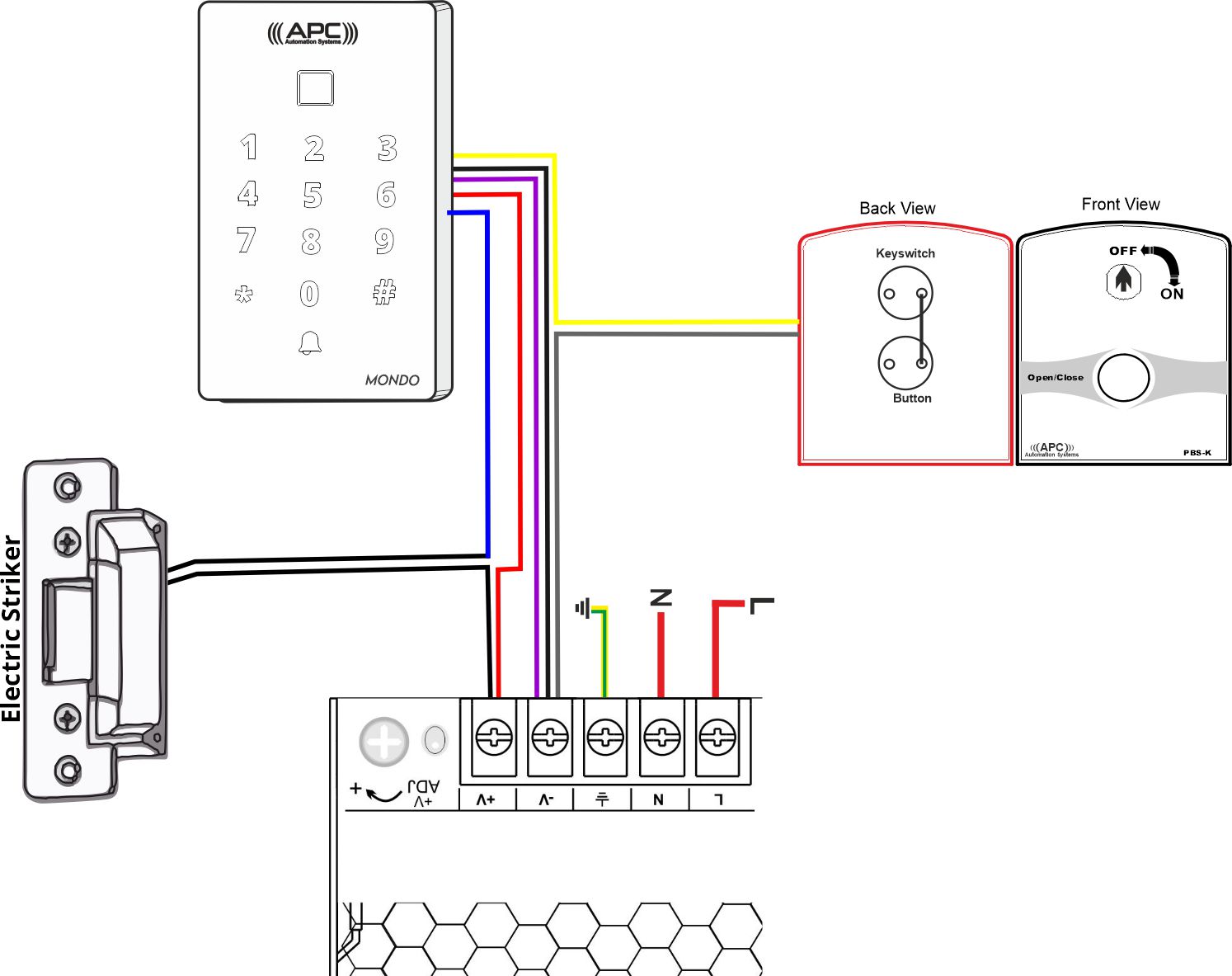

Wiring Diagram

Keypad Access Control Bundle

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS

Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $299.00
