The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).
Key Feature Set:
- Full operational control by Tuya APP
- Resin Filled for best weatherproofing
- 12-24V DC Compatible
- Low Power Consumption
- Backlit Touch Keys
- Up to 2000 Users
- Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
- Adjustable Relay Time from 0-99s or Latching ON/OFF
- Doorbell Contacts to connect to your doorbell system
- Both NO and NC Circuits
- Suits most automatic gates
- Suits most electric strikers
Dimensions
Automatic Gate Connection
Electric Striker Connection
Doorbell Connection
Specifications
| Working Voltage |
12-24V DC |
| Card Reading Distance |
1~3CM |
| Working Temperature |
-40°~60°C |
| Load Output |
Up to 3A |
| Standby Current |
70mA 12V, 30mA 24V |
| Capacity |
2000 Users |
| Working Humidity |
10-90% |
| Relay Time |
0~99s |
Wired Push Button with Isolation Key
The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .
ML-280 Weatherproof Magnetic Lock
- 280KG Holding Force
- 12V and 24V Compatible
- Automatically will release on power loss (Fail Safe)
- Resin Filled and Weatherproof
- Dimensions: 220Lx42Wx25.5H(mm)

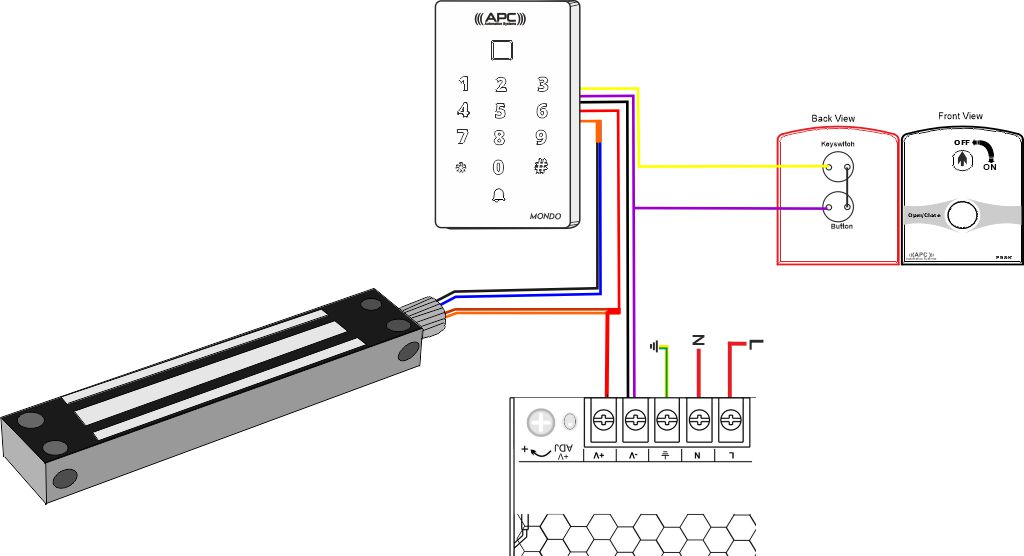

Wiring Diagram
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
| Input Type |
Single Phase |
| Input Voltage |
85 ~ 264VAC |
| Input Current |
0.42A / 230VAC |
| Output Voltage |
12V |
| Output Current |
3A |
| Rated Output Power |
36W |
| Output Type |
Single |
| Output Voltage Adjustment |
10.2 ~ 13.8V |
| Prescribed Electrical Item |
No |
| SELV |
Yes |
| Efficiency |
86.00% |
| Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
| Warranty |
1 Year |
| Approvals |
CE, CB, RCM |
| IP Rating / Environmental Protection |
Less than IP65 |
| Dimensions |
99*82*30mm (L*W*H) |
| Recommended for New Designs |
Yes |
