IRB-RET2 RETROREFLECTIVE PHOTOEYE

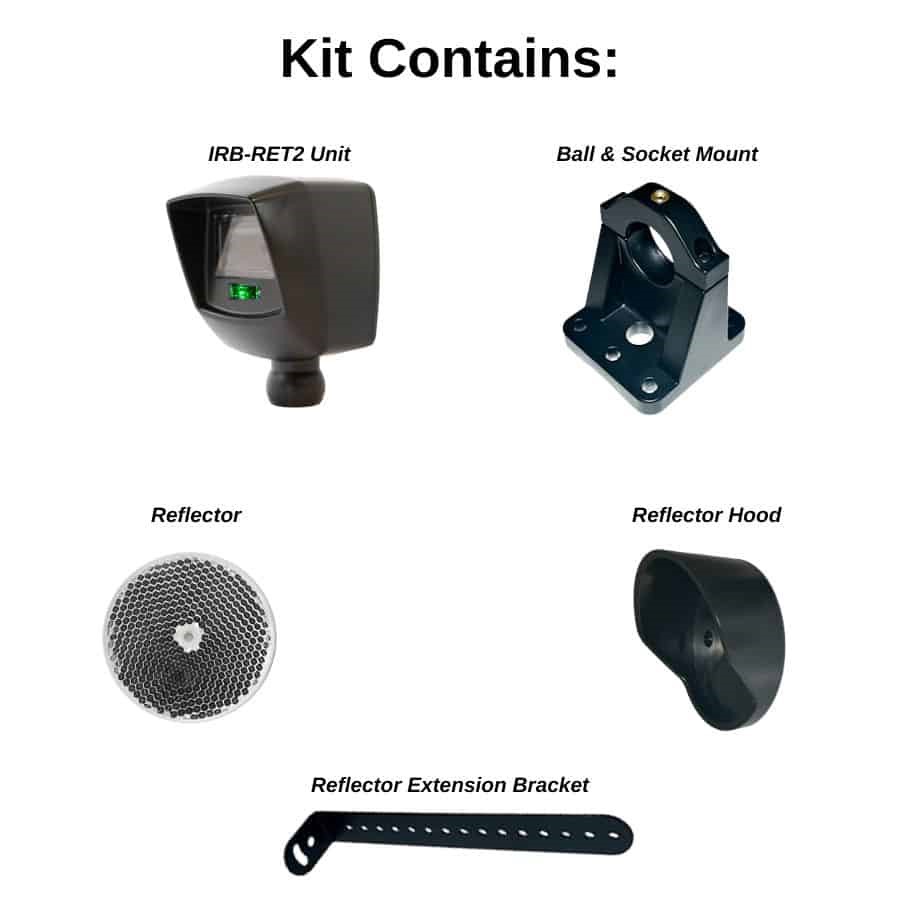

UNIVERSAL UL325 RETROREFLECTIVE PHOTOEYE KIT

• Universal UL325 Retroreflective Photoeye Kit
• Compact design
• Easy LED alignment
• Easy-to-Adjust Ball & Socket Bracket
• Rugged NEMA 4X enclosure
• Integrated sensor hood, improved reflector hood, and ball & socket bracket
• Selectable Stealth Mode for security
• 12mm conduit connection
• Up to 18m. operating range
• Six monitoring interfaces
• Effortless installation and setup

EMX Industries is offering the latest innovation in access control with the IRB-RET2 Retro-Reflective Photoeye! Designed for automatic gates and doors, this weather-proof photoeye solution has advanced entrapment protection and a unique design to make it incredibly versatile.

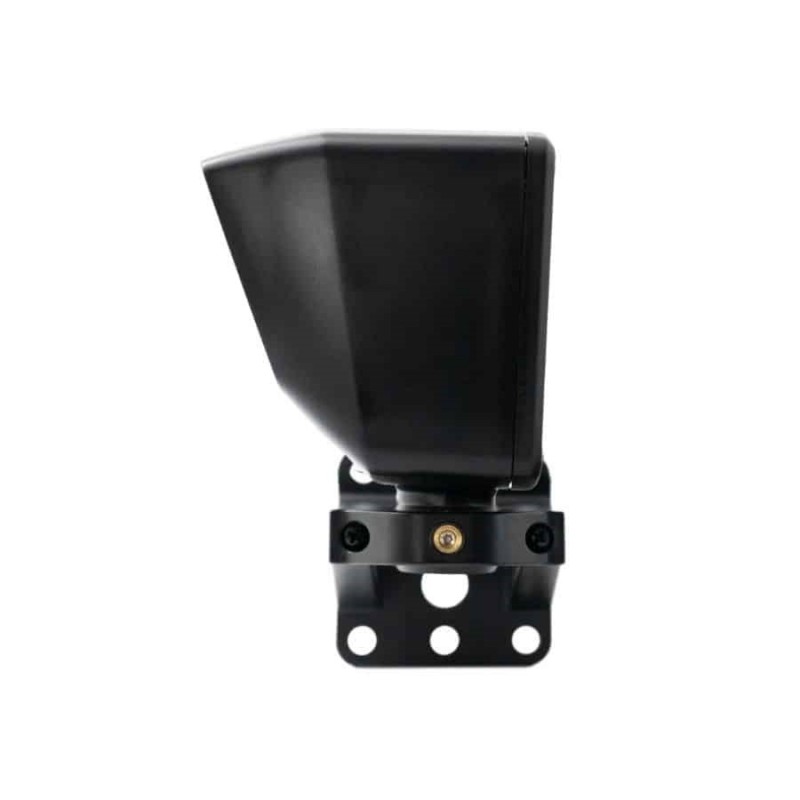

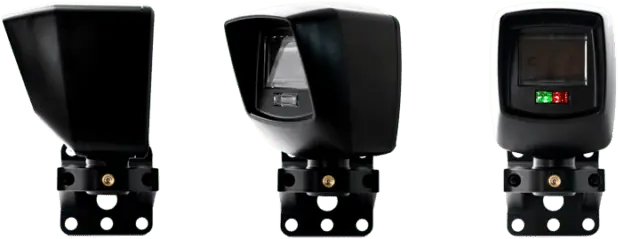

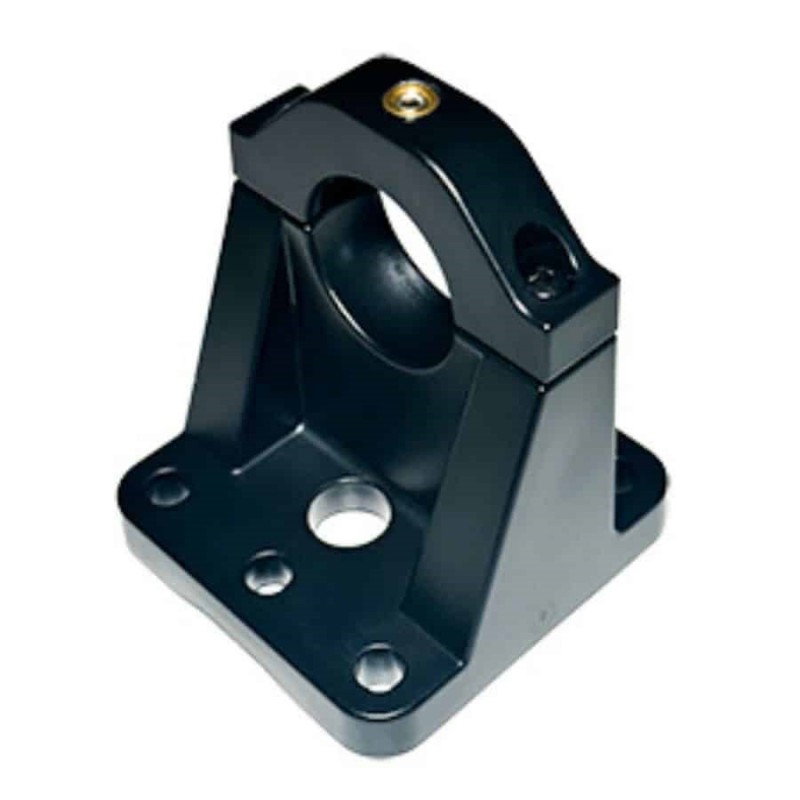

With a ball and socket bracket included, you can mount and align your photo-eye with ease! Its sleek and compact build and an easily aligned LED ensure an easy installation.

Built for safety, high performance, and versatility, you can count on IRB-RET2’s Selectable Stealth Mode to keep you safe. With Stealth Mode, your LED sensors turn OFF after 30 seconds without obstructions for a discrete installation.

EMX Retro-Reflective Photo Eye | EMX-IRB-RET2

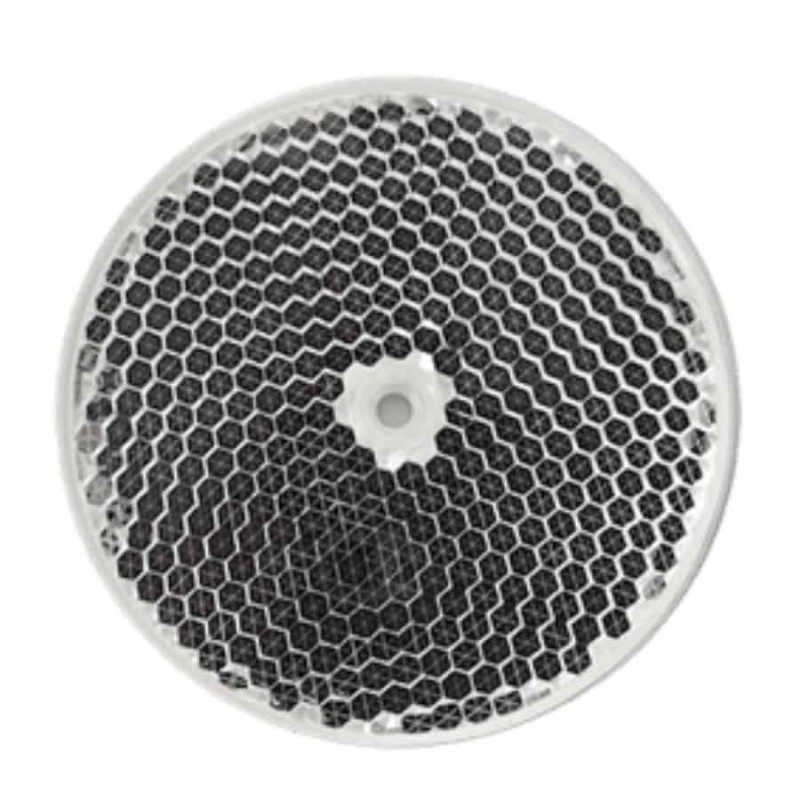

The IRB-RET2 retroreflective, infrared photo-eye is an external entrapment protection device type B1, a non-contact sensor for use with automatic gates and doors. The reflector directs the beam back to the photo eye. Therefore, wiring to the other side of the roadway is not needed. The IRB-RET2 is compatible with most operators that accommodate monitored external entrapment devices per UL325. (Six monitoring methods are available.) The IRB-RET2 operates up to 18m over a wide range of voltages (6- 40 VDC and 12-24 VAC). A red alignment indicator on the receiver provides easy set-up and alignment.

Features:

• Type B1, non-contact sensor
• UL 325-2018 compliant
• Operating range up to 18m
• NEMA 4X enclosure
• Sensitivity adjustment - potentiometer

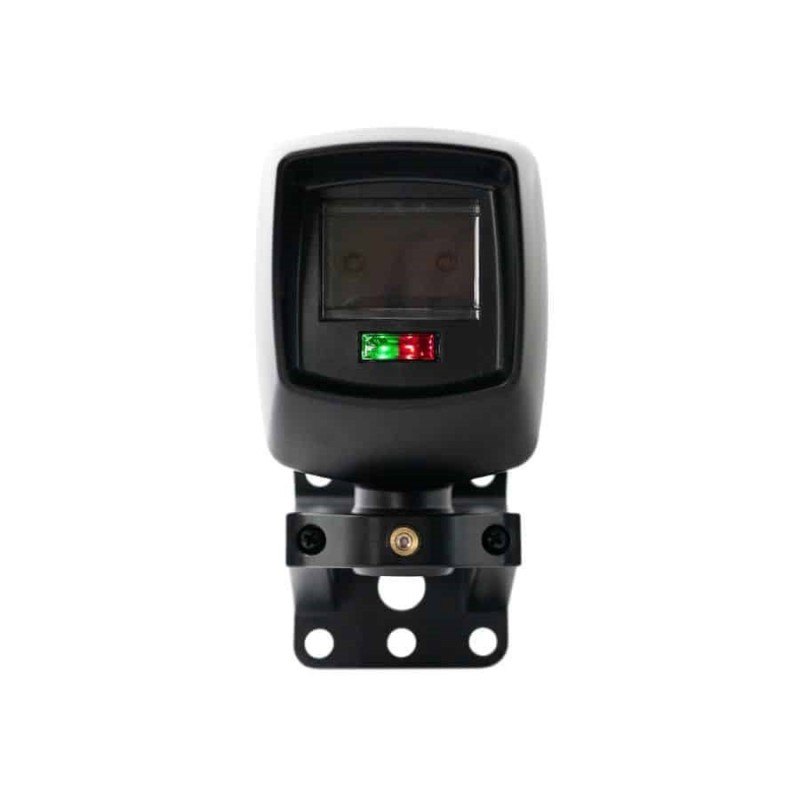

• Easy Alignment LED

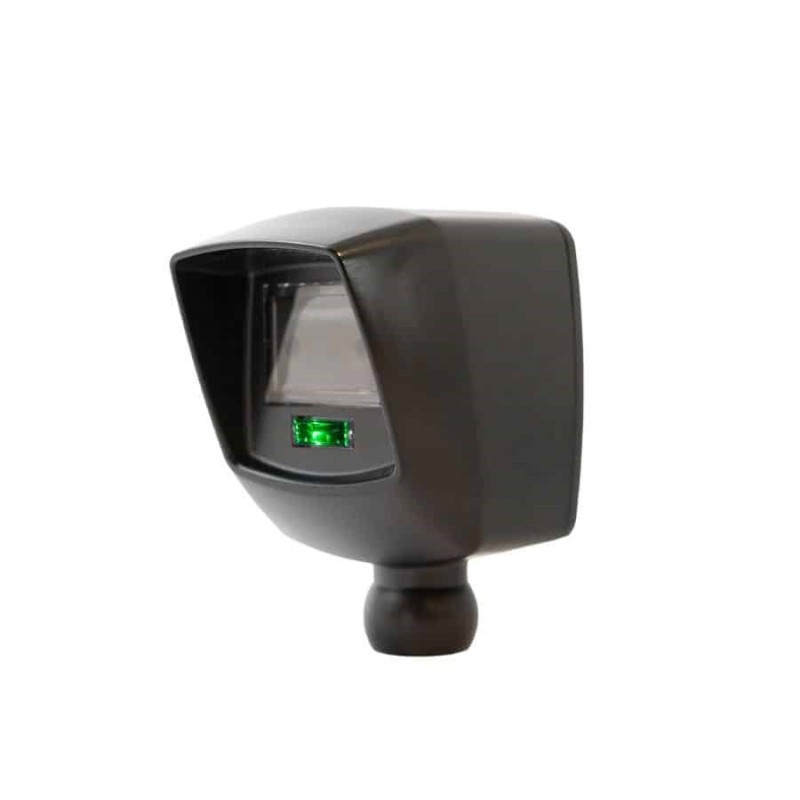

• Integrated Sensor Hood
• Ball and Socket Mounting Bracket
• Selectable Stealth Mode

The IRB-RET2 Universal UL325 Retroreflective Photo-Eye Has 6 Monitoring Interfaces.

• Normally closed
• Two-wire pulse (2 freq)
• Two-wire pulse (3 freq)
• Four-wire pulse (2 freq)
• Four-wire pulse (3 freq)
• 10k resistive termination

Specs:

• Operating range: 1.5 m to 18m
• Power: 6-40 VDC, 12-24 VAC
• Current (NC and 10K Monitoring Methods): 50 mA DC (relay activated)
• Current (Pulse Monitoring Methods): 15 mA DC
• Resistive Termination: 10K ohm across NO contact (switch selectable)
• Surge Protection: Thermal fuse, MOV
• Relay Output Operation: Light ON/Dark ON
• Response Time: 250ms
• Operating Temperature: -34° to 60°C
• Dimensions: (L x W x H) 130 mm x 80 mm x 140 mm
• Ball Joint Mount Conduit Thread: 12mm NPT
