Product SKU: BR21-351-HSx2-UG-LV-WF

Underground Brushless Double Swing Electric Gate Opener Smart WiFi Low voltage Kit | Roger Technology 36V Brushless Motor |100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits, Safety Sensor, WiFi Keypad for Smart Device APP Access Control, External 24V Transformer with 20m Low Voltage Cable | Max. 6m Opening (3M or 450KG Each Leaf)| Super Intensive Use

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Underground Brushless Double Swing Electric Gate Opener Smart WiFi Low voltage Kit | Roger Technology 36V Brushless Motor |100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits, Safety Sensor, WiFi Keypad for Smart Device APP Access Control, External 24V Transformer with 20m Low Voltage Cable | Max. 6m Opening (3M or 450KG Each Leaf)| Super Intensive Use

Product SKU: BR21-351-HSx2-UG-LV-WF

  •  In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$4,045.00

  • Roger Technology Underground Brushless High-Speed Swing Gate Opener | Max. 6m Opening (3M or 450KG Each Leaf)

  • Kit Includes

    01 Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor |100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. (QTY: 2)
    02 Underground gate motor release system with a standard lever. (Roger Technology BR21/351/HS RL650) (QTY: 2)
    03 Hot galvanised underground gate motor box, inox, and stainless steel lid. (Roger Technology BR21/351/HS-FU102) (QTY: 2)
    04 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    05 Pack of 3 Core 2mm Non-Shielded Cables (3m and 9m) (QTY: 1)
    06 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    07 Roger Technology Two-Button Remote Control (QTY: 2)
    08 Roger Technology Italian Made Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector (QTY: 1)
    09 10m 4 Core Non Shielded Cable (QTY: 1)
    10 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    11 EM Swipe Tag (QTY: 2)
    12 5m 4 Core Non Shielded Cable (QTY: 1)
    13 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System.

Electromechanical underground motor, HIGH-SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m. Standard version with 2m cable.

  • Italian-Made Roger Technology Brushless Ultra High-Speed Underground Swing Gate Motor
    | Max. 3m or 400kg Each Leaf (6m Opening for Double Swing Gates) | Super Intensive Use |
  • Hot galvanised foundation box and inox and AISI 304 stainless steel lid.
  • RL650 - Release system with a standard lever.
  • Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, swing gate opener with mechanical stopper in opening and closing.

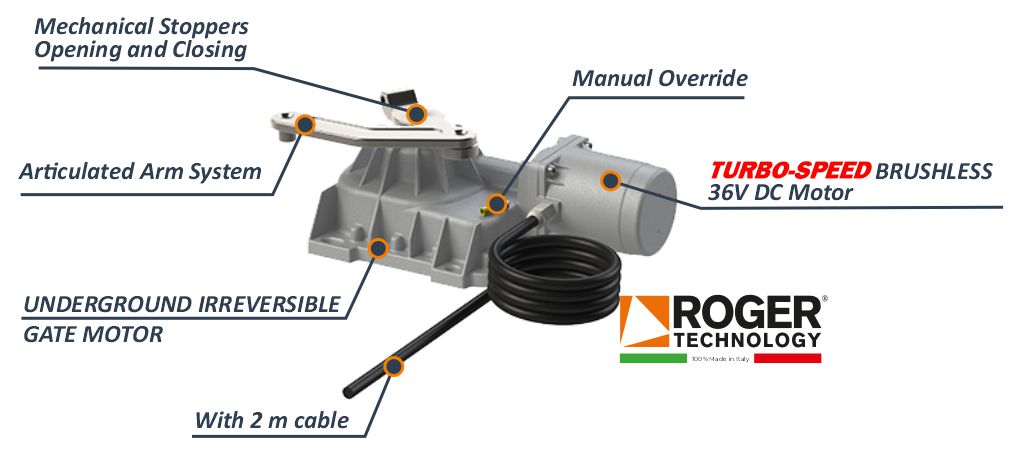

Underground 36V DC Turbo-Speed Brushless Actuator Overview

Extra Heavy Duty Single Gate Opener

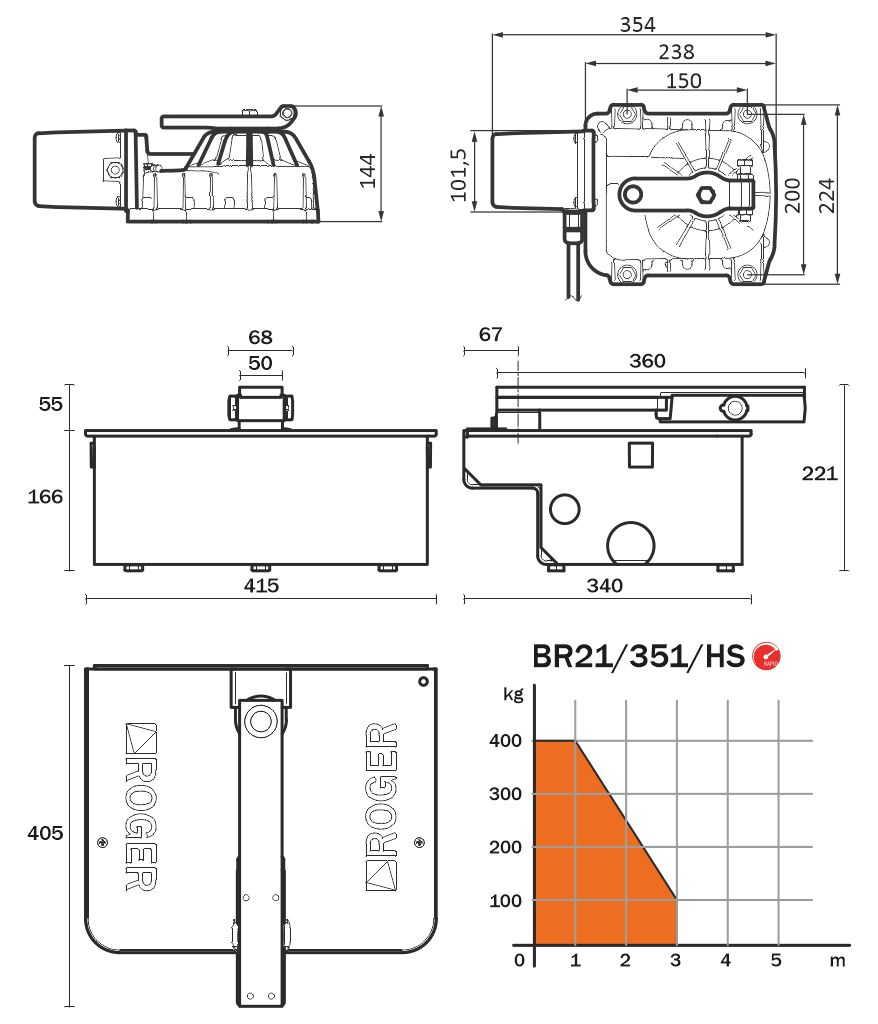

Dimensions and System Capacity

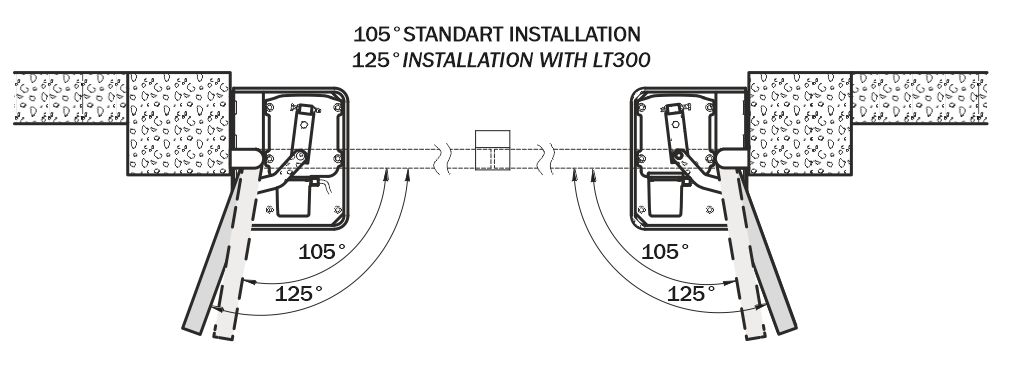

Installation Geometry



Technical Specifications



Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Torque: 50 - 200 N m
Operating temperature: -20+55°C
Protection level: IP67
Manoeuvre speed: 2 Rpm
Opening time: 10-25 s
Limit switch: Mechanical stoppers
Recommended digital controllers: 230V - EDGE1/BOX
Encoder: Digital native encoder SENSORLESS 48 PPR
Maximum opening: 105° (optional 125° with LT300)
Power supply cable length: 2m
Bearing on the main shaft: Standard
Operating cycles per day (opening/closing - 24 hours, no stop): 1300





Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features



Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C

Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F2ES]

Pair of external photocells synchronized.

Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector

Technical features

Standard power: 12/24V AC 50Hz - 12/24V DC
Absorption: TX 19mA - RX 20mA
Operating temperature: -20+55°C
Protection level: IP55
The maximum distance in an open field: 10 - 15 m
Maximum number of photocells synchronized: 2
Orientation angle: -
Relay contacts max current: 0,5A RX
Relay contacts max voltage: 30V
Installation Type: External
Maximum dimension product in mm (L x W x H): 62 x 88 x 27

Dimensions



What is a Gate Safety Sensor?

Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors are used to detect any movement near the gate. Once the sensor detects movement, it sends a signal to the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.



APC Mondo Wired Keypad with APP via Wi-Fi



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).

Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $4,045.00
