02 Bullet Hinges (Weld-On / Weld-On) with Bearing Washer Steel Pin for Swing Gates, Bi-Fold Driveway Gates, Made in Europe | CAIS HTW-140 Gate Hinge with Heavy-Duty Bearing Washer and Steel Pin(QTY: 2)
A traditional type swing-gate use up to 100% more backspace in its opening and closing if compared with bi-folding swing gates. Meaning that the standard space taken up by a conventional swing gate will be free to utilise in some other way. The CAIS TWIN DRIVE bi-folding hardware is particularly useful in places where space is at a premium, such as urban areas with high population density. The traditional swinging gate will take up valuable space and can be quite inconvenient to use at times. The CAIS TWIN DRIVE bi-folding system will free up more space for vehicles or foot traffic.

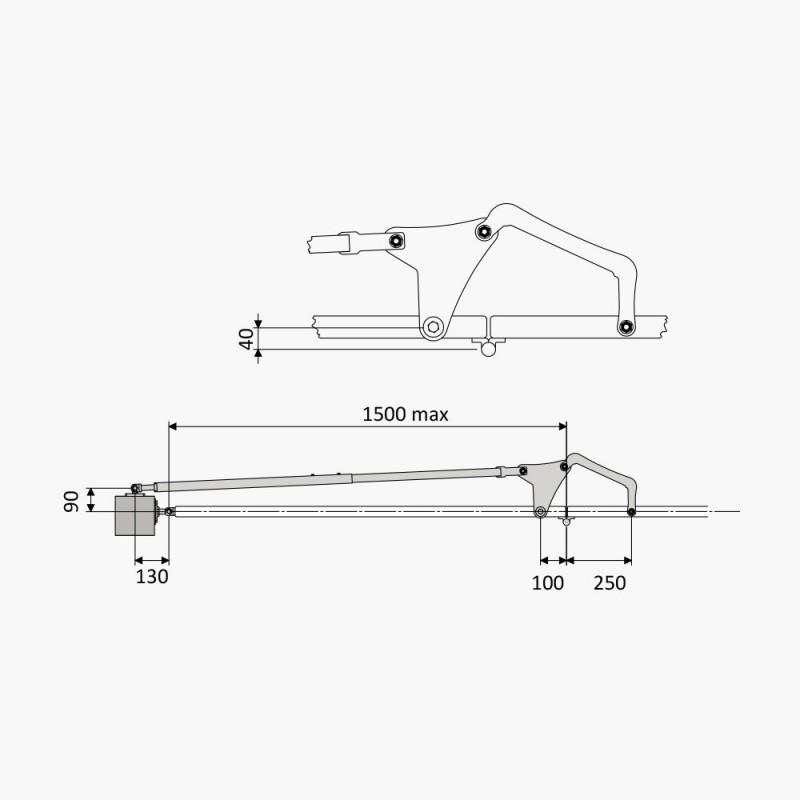

The Installation Steps | Bi-folding Driveways Swing Gate Complete Hardware
The installation does not require complicated steps and materials. No welding is required; therefore, the working time is not too long. We invite you to follow the below installation steps.
Other Benefits of Bi-Folding Gate Hardware (Swing Gate Leaf Twin Drive)

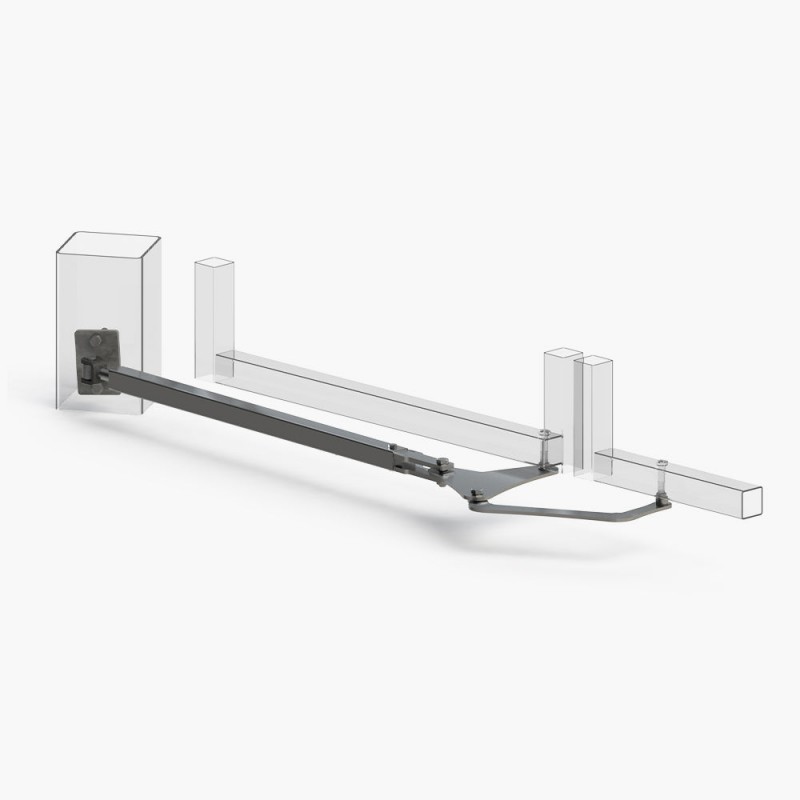

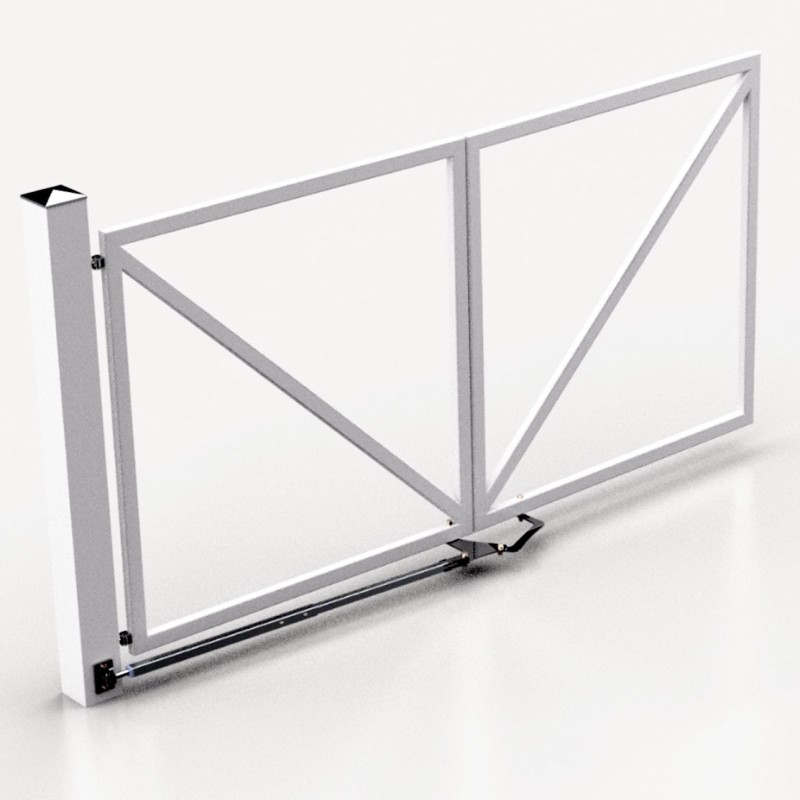

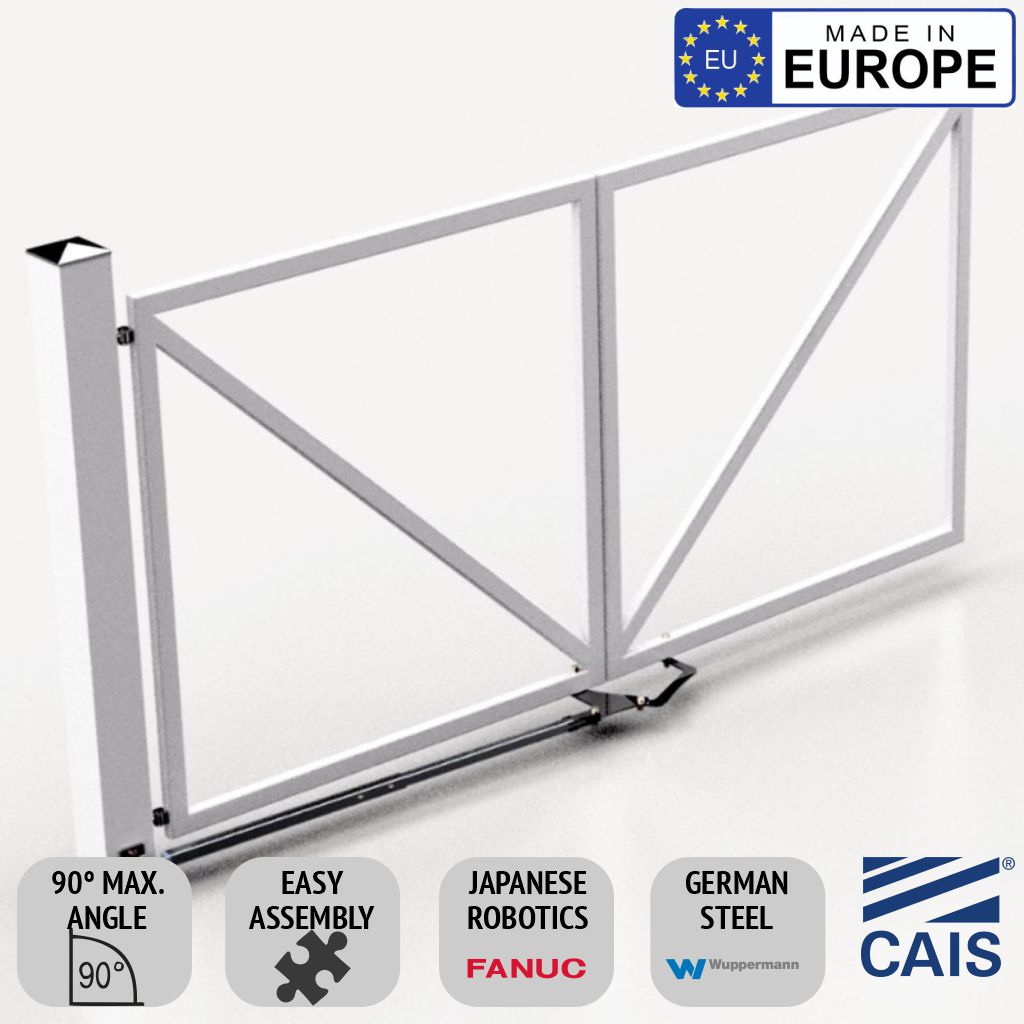

Swing Gate Bi-Folding TWIN DRIVE is an ideal solution for driveway entrance access. It is designed to allow a vehicle user full manoeuvrability around a property. A Bi-Folding Gate will be less expensive to automate than a double swing gate since it requires only one gate operator instead of two. It is a perfect solution for the entrance with a gravel surface, considering that you do not need to lay down the rails. There‘s no doubt that Bi-Folding Gates is a money and space-saving alternative that is convenient and can be very stylish.
Extremely Quiet
In the past, Swing Bi-Folding gates were originally very noisy. Older versions use steel rails and wheels, which can be very noisy compared to New CAIS TWIN DRIVE Trackless Bi-Folding System.
Reliable
The CAIS TWIN DRIVE Trackless Bi-Folding System is reliable in any weather condition, even if the wind blows heavily.
Bi-Folding Swing Gate System's Special Needs
They need a special frame, so a few factors need to be considered, such as cross-bracing. The reason why cross-bracing is fundamental is primarily to keep the leaf from sagging. A compression cross-brace transfers weight from the top bar by pushing down against the bottom hinge or a vertical component or post, which transfers the load to both hinges. Improper or missing cross-bracing will cause the Vertical deflection of the leaf. Cross-bracing should always “lean into opening”. Furthermore, the bi-folding swing gate only works properly when the internal hinges are properly welded concerning the vertical axle. You‘ll also need to consider the wiring of safety edges, as this feature should be accommodated in the frame.
