Product SKU: BH23-HS-5M-DC-SSK

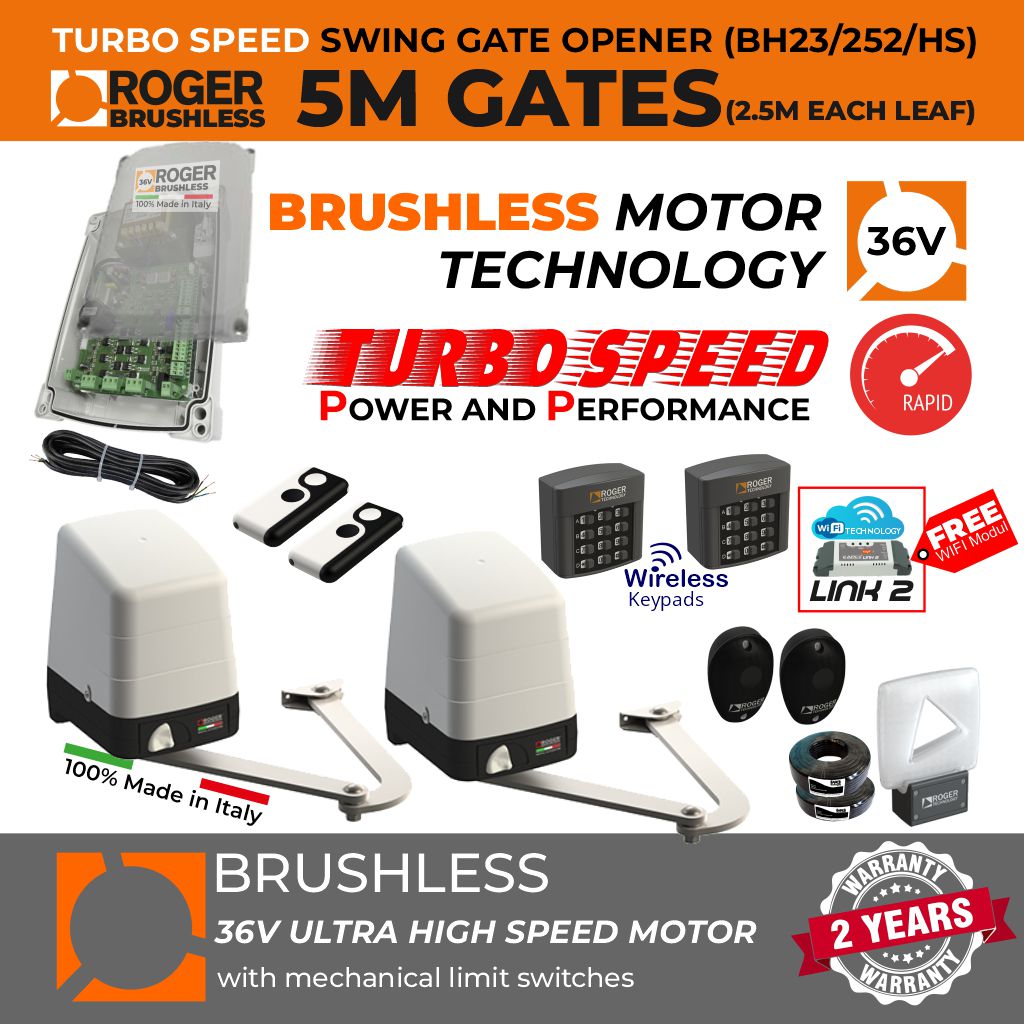

Turbo Speed Brushless Articulated Arm Swing Gate Automation Super Secure Kit with 100% Italian Made by Roger Technology BH23/252/HS Swing Driveway Gate Opener Irreversible Electric Gate Motor, Two Wireless Keypads, Remote Controls, Photocells Safety Sensor, Flashing Safety Light with Integrated Antenna and Cables | Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 5m Double Swing Gate Opening (2.5M or 250KG Each Leaf) | Super Intensive Use

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Turbo Speed Brushless Articulated Arm Swing Gate Automation Super Secure Kit with 100% Italian Made by Roger Technology BH23/252/HS Swing Driveway Gate Opener Irreversible Electric Gate Motor, Two Wireless Keypads, Remote Controls, Photocells Safety Sensor, Flashing Safety Light with Integrated Antenna and Cables | Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 5m Double Swing Gate Opening (2.5M or 250KG Each Leaf) | Super Intensive Use

Product SKU: BH23-HS-5M-DC-SSK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$3,194.00

  • 36V Brushless Ultra High-Speed Swing Gate Motor, 2.5M or 250KG Each Leaf (5m Opening Double Gate), Super Intensive Use

  • Kit Includes

    01 Turbo Speed Brushless Articulated Arm Swing Gate Opener Irreversible Motor |100% Italian Made by Roger Technology BH23/252/HS for Swing Gate Automation System. (QTY: 2)
    02 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    03 10m 3 Core Non-Shielded Cable (QTY: 1)
    04 SYNUS/2 Roger Technology Two-Button Remote Control | Dual code transmitter (modality fixed code or rolling code), 433,92 Mhz. 2 channels, with radio for copy. (QTY: 2)
    05 Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes (QTY: 2)
    06 24V AC/DC LED Flashing Safety Light with Integrated Antenna Italian Made by Roger Technology FIFTHY/24 (QTY: 1)
    07 5m 2 Core Non Shielded Cable (QTY: 1)
    08 Roger Technology Italian Made Synchronized Garage/Gate Photocells Safety Sensor [R90 F4ES] Synchronized 24V AC/DC (max. 4 pairs) | Safety Beam Infrared Technology Gate Sensor Motion Detector (QTY: 1)
    09 10m 4 Core Non Shielded Cable (QTY: 1)
    10 Roger Technology Safety Sign Board (QTY: 1)
    11 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    12 FREE WiFi Switch [Link 2] with Selected Gate Opener Kits - DUAL Relay Wifi Remote Smart Switch - IOS and Android APP Control (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Turbo Speed Brushless Articulated Arm Swing Gate Opener Irreversible Motor
100% Italian Made by Roger Technology BH23/252/HS for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 2.5M or 250KG Each Leaf (5m Opening for Double Swing Gates) |

| Super Intensive Use |

Ultra High-Speed 100% Duty Cycle Brushless Electric Gate Opener With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.

Adjustable built-in stopper

It's simple to adjust the mechanical stopper when opening and closing.

BH23/252/HS is an electromechanical articulated motor designed for swing gates. It features a brushless high-speed motor, low voltage operation, super intensive use capability, a native encoder, and irreversible operation, making it ideal for heavy-duty applications.

The BH23/252/HS has a maneuver speed of 1.5-4 RPM and an opening time of 10-18 seconds at 90 degrees. It is an irreversible motor, meaning it cannot be manually opened.



Actuator Overview

Extra Heavy Duty Single Gate Opener

Dimensions | System Capacity | Installation Geometry





Technical Specifications

Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 160W
Frequency of use: Intensive use
Torque: 50 - 230 Nm
Operating temperature: -20 C° +55 C°
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 1.5 - 4 Rpm
Opening time: 10 - 18 s
Limit switch: Mechanical stopper in opening and closing
Encoder: Digital native encoder SENSORLESS 48 PPR
Operating cycles per day
(opening/closing - 24 hours, no stop):
1200






Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115
Product weight packed (Kg): 5,8



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





SYNUS/2 Remote Control Features

SYNUS/2

Dual code transmitter (modality fixed code or rolling code), 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 8mA
Operating temperature: -10+55 °C
Number of channels: 2
Codification:

Fix code or Rolling Code

Modulation: AM/ASK
Carried frequency: 433.92MHz
Number of combinations: 65.536 (Fix code) - 4.294.967.296 (Rolling code)
Types of fixed codes clonable: MANCHESTER,PCM, Max.64bit
Number of bits of the identification code: 16 (Fix code) - 32 (Rolling code)
Number of bits transmitted: 28 (Fix code) - 144 (Rolling code)
Radio for copy: Yes
Maximum distance in open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
34 x 66 x 10.4









FIFTHY/24 | LED Flashing Light with Integrated Antenna

LED flashing light series FIFTHY 24V with integrated antenna.

Technical features

Standard power: 24V AC/DC +/- 10%
Operating temperature: -20+55 °C
Protection level: IP55
Max flashing light charge: 6,5W
Tuning frequency: 433.920 MHz
Modulation: 1Hz
Type of light: 24 LED
Maximum dimension product in mm (L x W x H): 124 x 45 x 164
Product weight packed (Kg): 0,3

Dimensions







Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F4ES] (max. four pairs).

Pair of external photocells synchronized 24V AC/DC (max. 4 pairs).

Synchronized Garage/Gate Photocells Safety Sensor [R90 F4ES]  | Safety Beam Infrared Technology Gate Sensor Motion Detector Synchronized 24V AC/DC (max. 4 pairs).

Technical features

Standard power:

24V AC - 50Hz - 24V DC

Absorption: TX 18mA - RX 27 mA
Operating temperature: -20+55°C
Protection level: IP55
The maximum distance in an open field: 10 - 15 m
Maximum number of photocells synchronized: 4
Orientation angle: -
Relay contacts max current: 0.5A RX
Relay contacts max voltage: 30V
Installation Type: External
Maximum dimension product in mm (L x W x H): 62 x 88 x 27

Dimensions



What is a Gate Safety Sensor?

Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors detect any movement near the gate. Once the sensor detects movement, it signals the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.





Roger Technology H85/TDR/E Wireless Keypad



Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.



Technical Features

Operating temperature: -10°C +55°C
Protection level: IP54
Average consumption when keypad active: 12 mA
A number of user codes storable: 450
Maximum number of digits per user code: 6
Minimum number of digits per user code: 3
Codification: Fix code - Rolling Code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
A number of combinations: 65536 (fix code) - 4.294.967.296 (rolling code)
Number of bits of the identification code: 16 (fix code) - 32 (rolling code)
Number of bits transmitted: 28 (fix code) - 144 (rolling code)
Battery: 2 x CR2032
Battery life: Minimum 2 years with 10 activations/day
Installation Type: External
Maximum dimension product in mm (L x W x H): 75 x 77 x 42



Dimensions and Predisposition

Dimensions

Predisposition for standard installation
