Product SKU: SMARTY4-HS-8000-DC-SSK

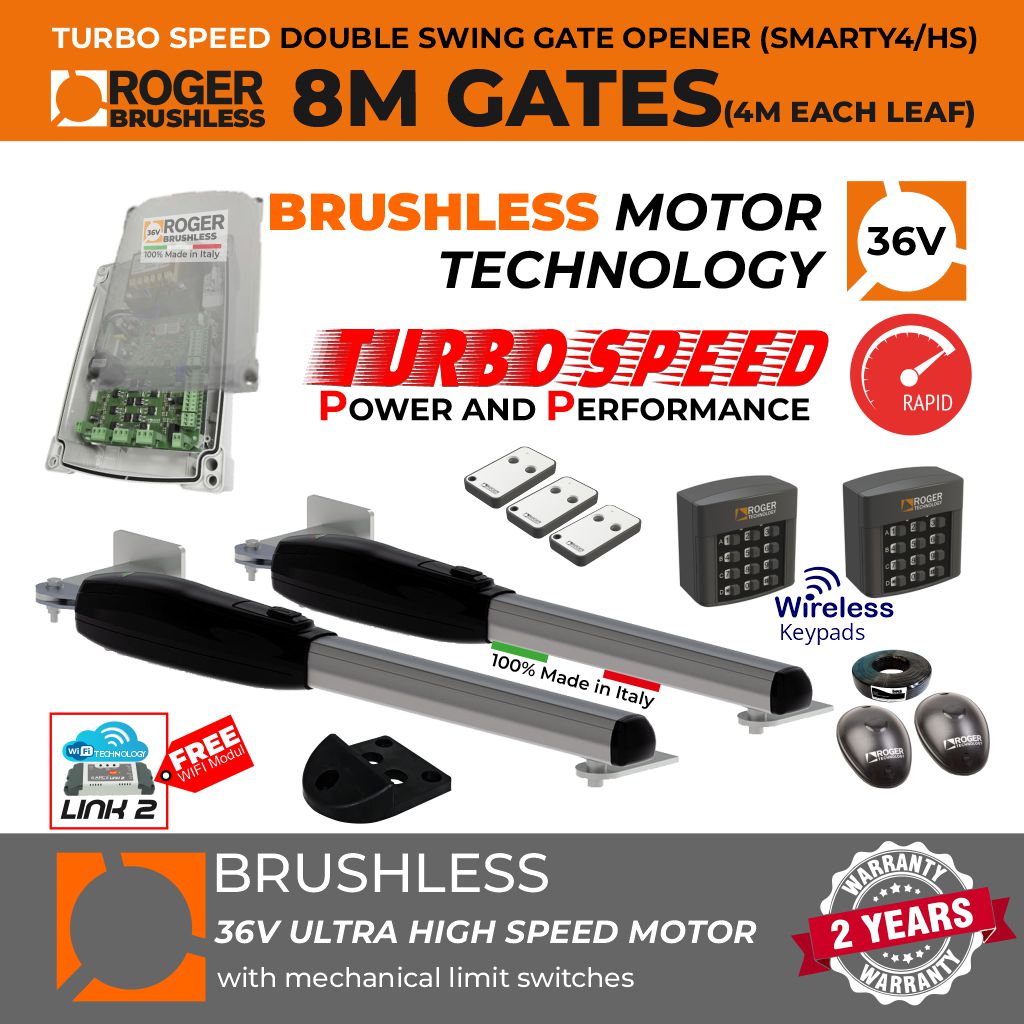

Turbo Speed Brushless 36V Double Swing Gate Opener Super Secure Kit |100% Italian Made by Roger Technology SMARTY4/HS Swing Gate Automation System for Max. 8m Opening (4M or 400KG Each Leaf) . Ultra High-Speed, Super Intensive Use, High Torque, 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits, Remote Controls, Safety Sensor, Two Wireless Keypads, Super Secure Access Controls

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Italian-Made Roger Technology 36V Brushless Ultra High-Speed Swing Gate Motor, 8m Opening (4M or 400KG Each Leaf), Super Intensive Use

Turbo Speed Brushless 36V Double Swing Gate Opener Super Secure Kit |100% Italian Made by Roger Technology SMARTY4/HS Swing Gate Automation System for Max. 8m Opening (4M or 400KG Each Leaf) . Ultra High-Speed, Super Intensive Use, High Torque, 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits, Remote Controls, Safety Sensor, Two Wireless Keypads, Super Secure Access Controls

Product SKU: SMARTY4-HS-8000-DC-SSK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$4,165.00

  • 36V Brushless Ultra High-Speed Swing Gate Opener, 8m Opening (4M or 400KG Each Leaf), High Torque, Super Intensive Use

  • Kit Includes

    01 TURBO-SPEED BRUSHLESS Swing Gate Opener Motor|100% Italian Made by Roger Technology SMARTY4/HS for Swing Gate Automation System. (QTY: 2)
    02 Pack of 3 Core 2mm Non-Shielded Cables (3m and 11m) (QTY: 1)
    03 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    04 Roger Technology Two-Button Remote Control (QTY: 3)
    05 Roger Technology Italian Made Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector (QTY: 1)
    06 10m 4 Core Non Shielded Cable (QTY: 1)
    07 Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes (QTY: 2)
    08 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    09 FREE WiFi Switch [Link 2] with Selected Gate Opener Kits - DUAL Relay Wifi Remote Smart Switch - IOS and Android APP Control (QTY: 1)
    10 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

TURBO-SPEED BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology SMARTY4/HS for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 4M or 400KG Each Leaf (8m Opening for Double Swing Gates) | Super Intensive Use |

Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.

Adjustable built-in stopper


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

Actuator Overview

Extra Heavy Duty Single Gate Opener

Dimensions and System Capacity

Installation Geometry



Technical Specifications

Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 600 - 4500N
Operating temperature: -20 C° +55 C°
Protection level: IP44
Reductor Type: Irreversible
Stroke: 370 mm
Limit switch: Mechanical stopper in opening and closing
Encoder: Digital native encoder SENSORLESS 48 PPR
Operating cycles per day
(opening/closing - 24 hours, no stop):
1000
Maximum dimension product in mm
(L x W x H):
1162 x 116 x 165
Product weight packed (Kg): 16






Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







Roger Technology H85/TDR/E Wireless Keypad



Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.



Technical Features

Operating temperature: -10°C +55°C
Protection level: IP54
Average consumption when keypad active: 12 mA
A number of user codes storable: 450
Maximum number of digits per user code: 6
Minimum number of digits per user code: 3
Codification: Fix code - Rolling Code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
A number of combinations: 65536 (fix code) - 4.294.967.296 (rolling code)
Number of bits of the identification code: 16 (fix code) - 32 (rolling code)
Number of bits transmitted: 28 (fix code) - 144 (rolling code)
Battery: 2 x CR2032
Battery life: Minimum 2 years with 10 activations/day
Installation Type: External
Maximum dimension product in mm (L x W x H): 75 x 77 x 42



Dimensions and Predisposition

Dimensions

Predisposition for standard installation







Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F2ES]

Pair of external photocells synchronized.

Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector

Technical features

Standard power: 12/24V AC 50Hz - 12/24V DC
Absorption: TX 19mA - RX 20mA
Operating temperature: -20+55°C
Protection level: IP55
The maximum distance in an open field: 10 - 15 m
Maximum number of photocells synchronized: 2
Orientation angle: -
Relay contacts max current: 0,5A RX
Relay contacts max voltage: 30V
Installation Type: External
Maximum dimension product in mm (L x W x H): 62 x 88 x 27

Dimensions



What is a Gate Safety Sensor?

Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors are used to detect any movement near the gate. Once the sensor detects movement, it sends a signal to the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.





WiFi Control Switch
















  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • Works with Amazon Alexa, Google Assistant, Smart Things
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location




Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $4,165.00
