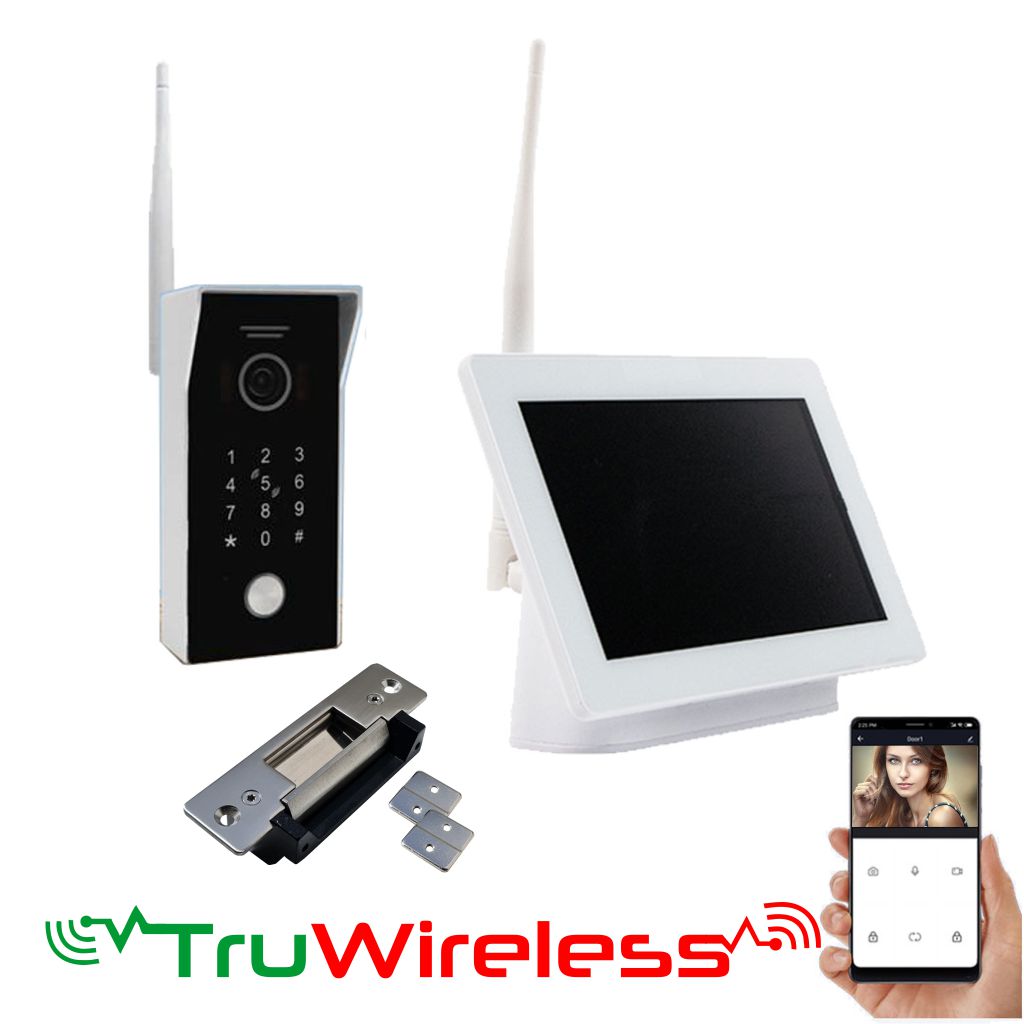

TruWireless Intercom System with Built-in HaLow WiFi Bridge

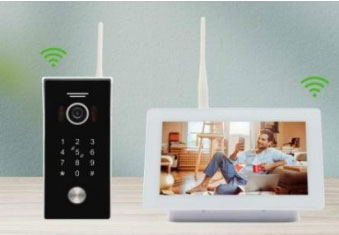

TruWireless Video Intercom System
Eyevision TruWireless Video Intercom System has built-in HaLow WiFi wireless technology that allows transmission distance much longer. 2MP camera and 7inch HD touch screen 1920*1080 provide High-quality audio and video images. Answer and remote unlock your door from your mobile phone.
- TruWireless, plug n play, complete wireless, excellent for DIY.
- High-quality image recording, using 2MP wide-angle camera.
- 7inch HD touch screen with definition 1920*1080.
- Record videos and images on an SD card.
- Seamless access control with the indoor monitoring device or Tuya APP on the smart phone.
Surface Mount Keypad Video WiFi Intercom Outdoor Station | Built-In HaLow Wi-Fi Bridge
- HD 1080P 2.0MP Camera, 110° Wide Angle View.
- LED Lights illumination for Night Vision.
- Live Video, Snapshot, Video Record.
- HaLow WiFi Frequency: 800Mhz/900Mhz, With an External Antenna that connects straight to Your home Wi-Fi (Max 15m).
- See Your Visitors On Your Smartphones or Tablets, also make two-way communication & Door/Gate Release Function.
- Unique ID Number For Connection & Communications for high-end security.
- Built-in Keypad for access control by PIN Codes and IC Cards.
- Touch Keypad, Max.200 PIN Codes Access.
- IC Card Access, Max.200 Pcs. IC Cards.
- Unlocking Time: 01 – 150 Seconds.
- Waterproof design with IP rating 54; (Surface Mount also comes with Rain Cover)
- Material: Aluminum Alloy.
- High video compression rate: H.264/HD.265
- Power Consumption: Max-150mA.
- Power Supply: DC 15V 1A.
- Dimension (L*W*D): 146*70*43mm(With Rain Cover)
Another innovative product from Eyevision®
How does it work:
When the visitor presses the call button on the door station, the unit will ring outside and also will call any/all the mobile phones and iPads programmed to the system. The user is then able to answer the call and has all the following functions:
1. Talk to the visitor
2. Open the door or gate
3. Take a video or take a picture
Additionally to this, the user can enter a code into the built-in keypad when standing at the gate or door to release the connecting door or gate.
The user can use the application installed on the Mobile device/iPad to monitor the live situation where the door station is installed. Again the user can monitor, take a video or capture a picture.
The APP for the EV-IP-KP22 can be downloaded FREE of charge from Google Play or the Apple Store.

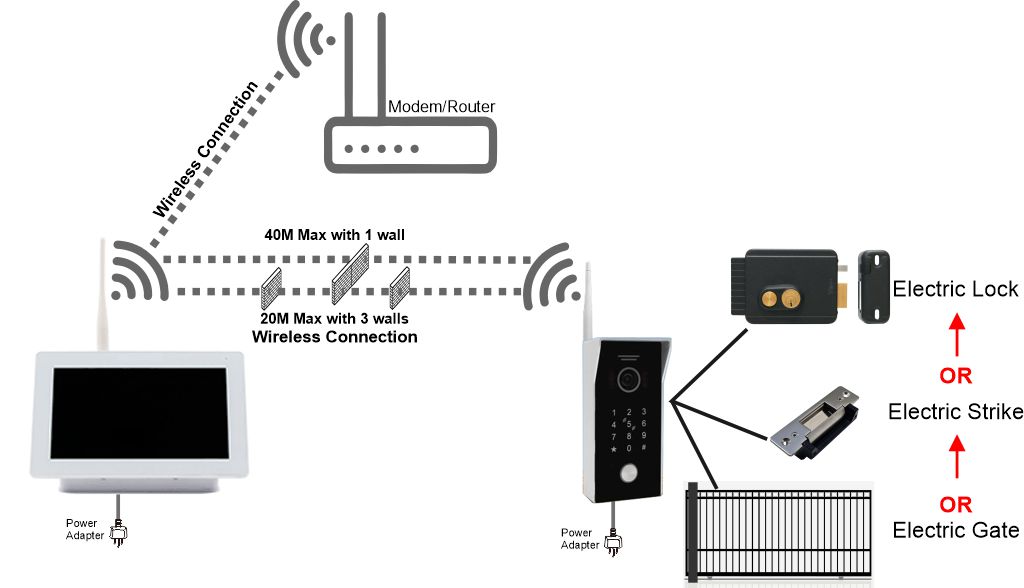

Example of How It Works
Ease of Installation:
The EV-IP-KP22 Connection to The TruWireless Wi-Fi Indoor Monitor:
TruWireless, no need for cable, perfect for DIY.
Wireless from the door station to the indoor monitor with a built-in HaLow WiFi Bridge that allows wireless communication and makes the indoor monitor portable, and stands on the desktop conveniently.

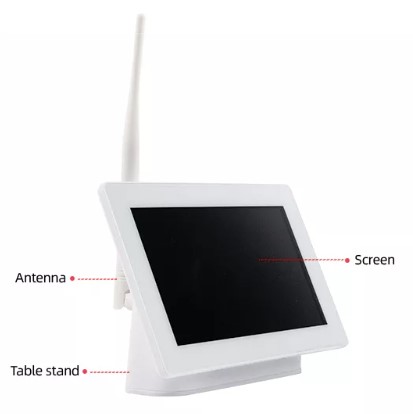

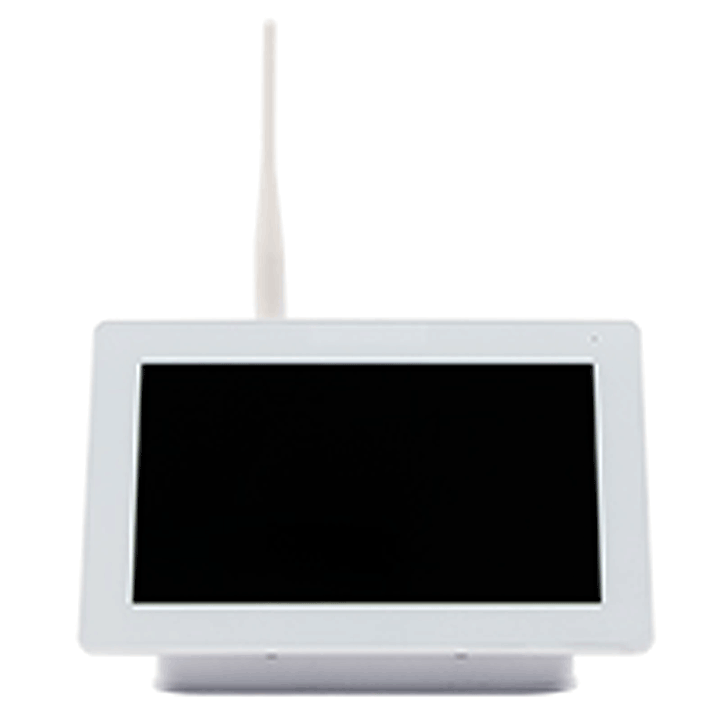

7" Monitor Eyevision TruWireless Wi-Fi Smart Intercom Systems
- 7-inch Capacitive Touch Screen, HD 1920*1080p.
- Portable desk stand.
- HaLow WiFi Frequency: 800Mhz/900Mhz, With an External Antenna.
- User-friendly Linux Operation System
- Two-Way Communication system
- Supports external SD card for Image and Video recording
- Access control with mobile app (Tuya Smart APP) supports both Android and iPhone.
- Power Supply: DC 12V 1A.
- Standby Current: Max. 150mA.
- Working Current: Max. 400mA.
- Dimension (L*W*D): 226*151*21.5mm

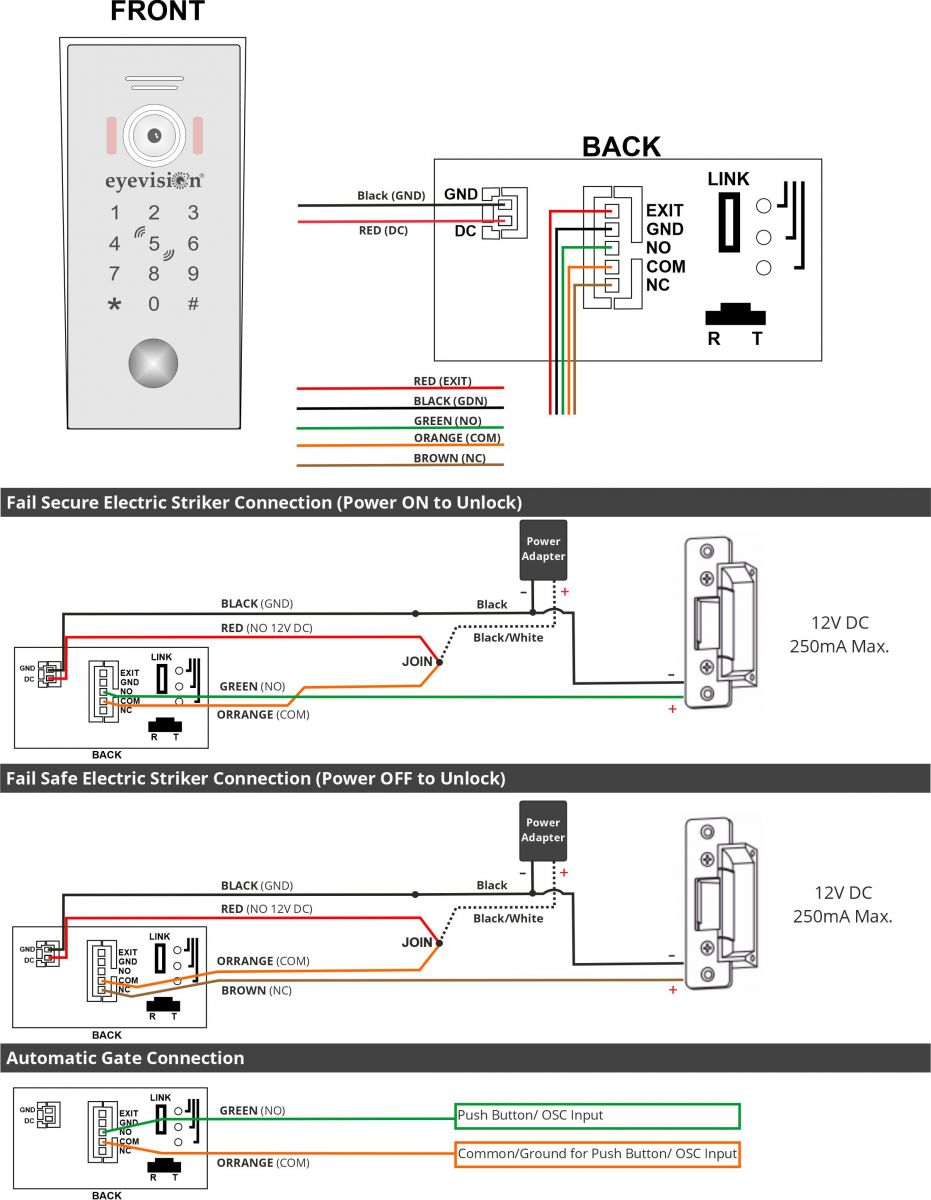

Electric Striker Wiring Options

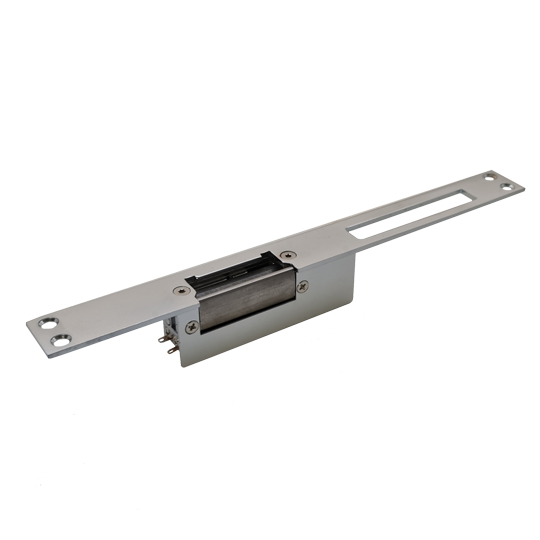

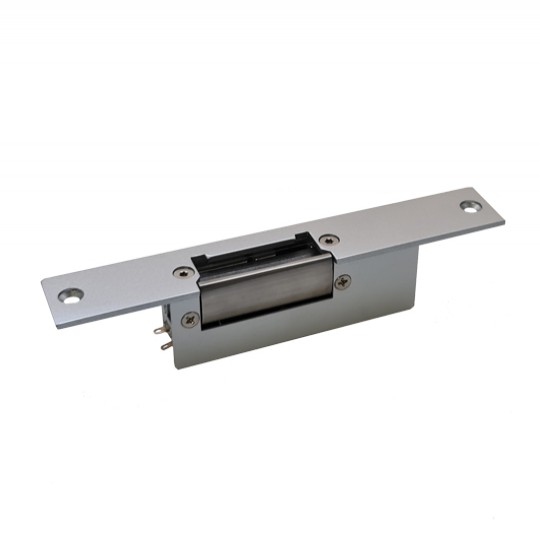

ES-138 Electric Striker
- Stainless steel design
- 12V DC 250mA Fail Secure
- Recess Mounted
- 800Kg Holding Strength
- Dimensions: 124Lx32Wx33H(mm)
