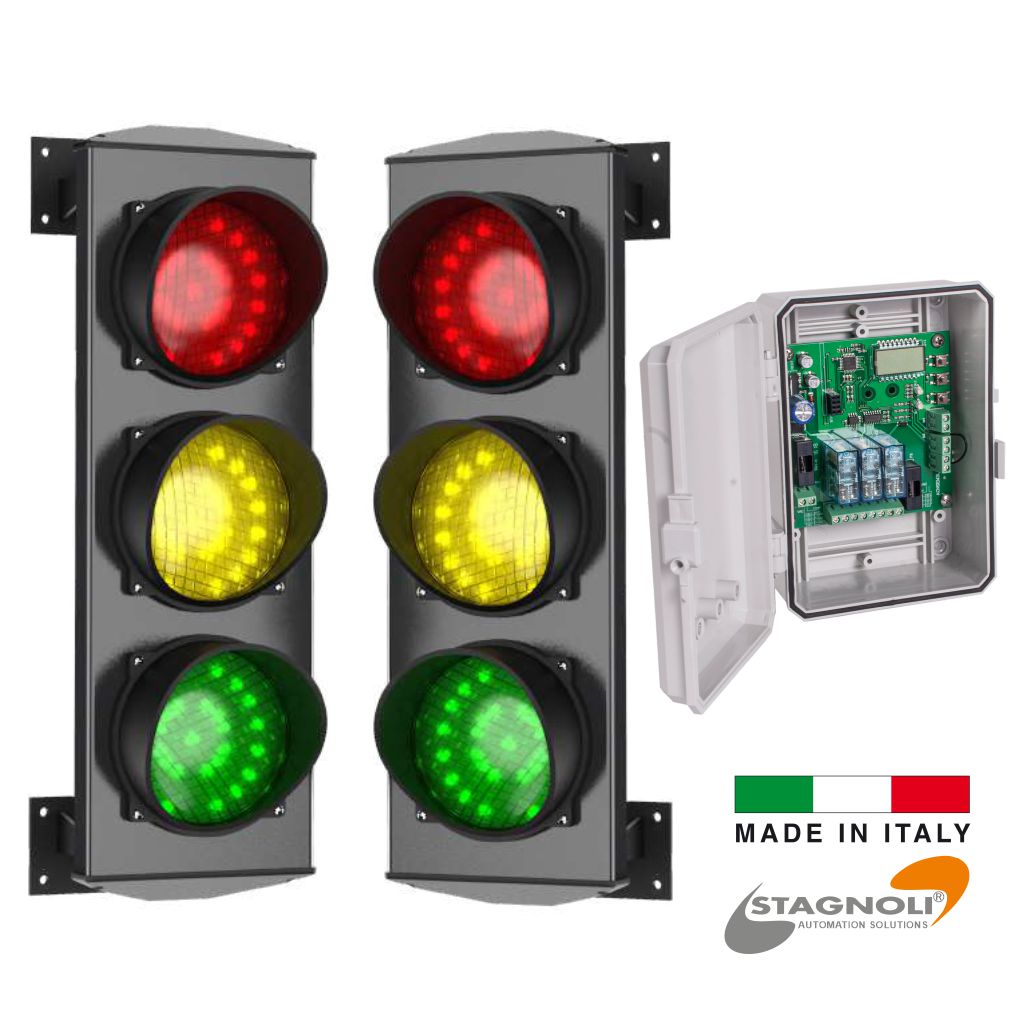

Traffic Light Controller with Two (Enter and Exit) Traffic Lights Combo | Traffic Light Control Board and 2 Red, Yellow and Green LED Triple Traffic Light Easy Traffic Flow Control | Made in Italy by Stagnoli | Specially designed for easy traffic flow control commercial and residential use.

Traffic Light Controller for Two-Lights and 2 or 3 Light Lens | 24v ACNSEM3L Made in Italy by Stagnoli

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

It can be programmed to operate cyclically or logically (e.g. when used with external sensors).

Highlights

• One Board for Two Trafic Lights
• Time-based work method
• Priority-based work method

Specifications and Wiring Diagram

Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A


Control Board Overview

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
     IN1: programmable input for traffic light 1, N.O. by default
     IN2: programmable input for traffic light 2, N.O.by default
     IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
     DL2- Traffic light operation 1
     DL1- Traffic light operation 2

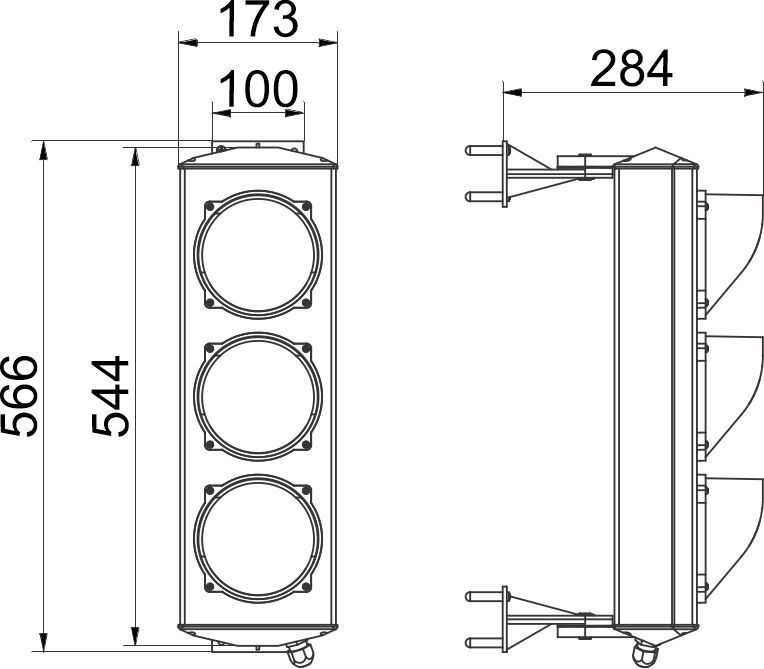

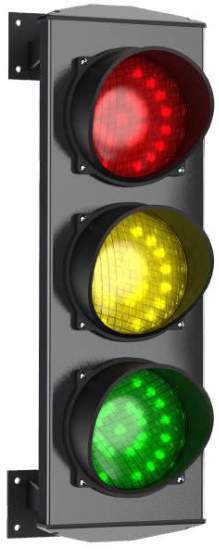

Triple Traffic Lights | Red, Yellow&Green Trafic Light Flow Control

APOLLO traffic light series with three lights (Red, Yellow, and Green), 24 V AC/DC, vandal-resistant, and IP66.

Used in parking lots, logistic areas, and industrial plants.

Traffic Control Light, 3 Colours, Red, Yellow & Green

24v Apollo Trafik Light Made in Italy by Stagnoli

Red, Yellow and Green Triple Traffic Lights for Easy Traffic Flow Control to Use Car Parks, Commercial and Residential

Technical Specification:

• Triple Traffic Lights (LED): Red, Yellow and Green
• Number of LEDs: 25
• Brightness: 50Lux
• Lens size: 120mm
• Power supply: 24v
• Protection: IP66 / Vandal-resistant
