Surface Mount Multi Key LCD Door Station with RFID Reader

2 Wire Eyevision® Apartment Door Station

Suitable for use as an add-on or replacement door station

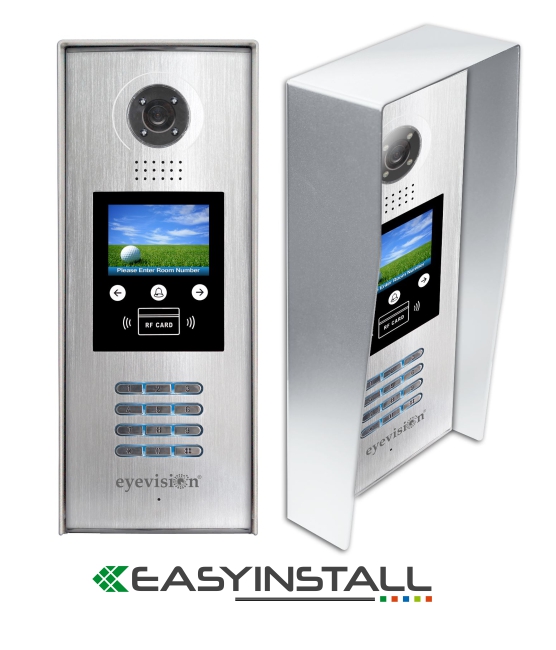

Surface Mounted Apartment Keypad Door Station, with LCD screen, compatible with all the Eyevision® 2 Wire EasyInstall Video Intercom Systems

Door Station Features

- 2 Wire connection
- 32 Apartments connection capacity
- Surface Mount with Rain Cover
- Proximity access control (max.1000pcs EM cards)
- Powerful password access control
- 3.5-inch color TFT display
- Screen Resolution 320 x 240 RGB
- Name list display for easy calling
- Multi-entry stations are supported
- IP 55 protection rate
- Compatible with all two-wire system models

Door Station Parts Labelled

Connection Terminals Descriptions

* +12V: 12VDC power output
* LK-(GND): Power ground
* LK+(COM): Common contact of the Relay
* NO.:Normally open contact of the Relay (refer to the technical guide for lock connection detail information)
* EB+: Exit button connection port
* EB-: Exit button connection port
* JP-LK: For electronic lock safety typesetting
* T/R-: USB-RS485 communication terminal negative
* T/R+: USB-RS485 communication terminal positive
* Bus (L1,L2): non-polarity bus line

Door Station Dimensions

Door Station Specifications
