Product SKU: BH30-1000-SOL-BK

Solar Powered BRUSHLESS Sliding Gate Opener Standalone Off-Grid Kit 1000 KG |100% Italian Made by Roger Technology BH30 Sliding/Roller Gate Automation System. 100% Duty Cycle, High Torque Brushless Super Intensive Use, 1 Ton Capacity Rolling Engine With Magnetic Limits Remote Controls and Reflective Safety Sensor

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Solar Powered BRUSHLESS Sliding Gate Opener Standalone Off-Grid Kit 1000 KG |100% Italian Made by Roger Technology BH30 Sliding/Roller Gate Automation System. 100% Duty Cycle, High Torque Brushless Super Intensive Use, 1 Ton Capacity Rolling Engine With Magnetic Limits Remote Controls and Reflective Safety Sensor

Product SKU: BH30-1000-SOL-BK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,994.00

  • Or in 4 payment of $498.50 with afterpay info
  • Solar Gate Opener, Brushless Electromechanical Roller/Sliding Gate Motor, Super Intensive Use 1000 KG

  • Kit Includes

    01 Italian-Made Roger Technology BH30/804 Brushless Electromechanical Sliding Gate Motor | 1000KG | Super Intensive Use (QTY: 1)
    02 Roger Technology Two-Button Remote Control (QTY: 2)
    03 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    04 24v 20 Watts Solar Panel (QTY: 1)
    05 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels (QTY: 1)
    06 APC Uno Multipurpose Battery Box (QTY: 1)
    07 9aH High Capacity Battery (QTY: 2)
    08 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    09 2m 2 Core 2mm Non-Shielded Cable (QTY: 1)
    10 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series. (QTY: 1)
    11 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    12 FREE APC Retro Reflective Safety Sensor - for Gate Opening System Safety Retro Reflective Gate Sensor (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

100% Italian Made BRUSHLESS Sliding Gate Motor, Roller/Sliding Gate Opener System.
Roger Technology Brushless BH30/804 Sliding Gate Motor

BRUSHLESS 24V Sliding Gate Automation Motor 1000kg Capacity | with magnetic limit switch



BUILT-IN SPECIAL CASE FOR BATTERY BACKUP





At a glance | Brushless 24v Automatic Sliding Gate Opener / Roller Gate Automation System

The Roger Technology BH30/804 Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.

The BH30/804 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 1000Kg with built-in digital controller B70 series, magnetic limit switch.

Includes:

- BH30/804 Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 1000 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 1000KG Capacity
  • Super-Intensive Use; (opening/closing - 24 hours no stop) 1300 | Roller Gate Automation System)







BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.

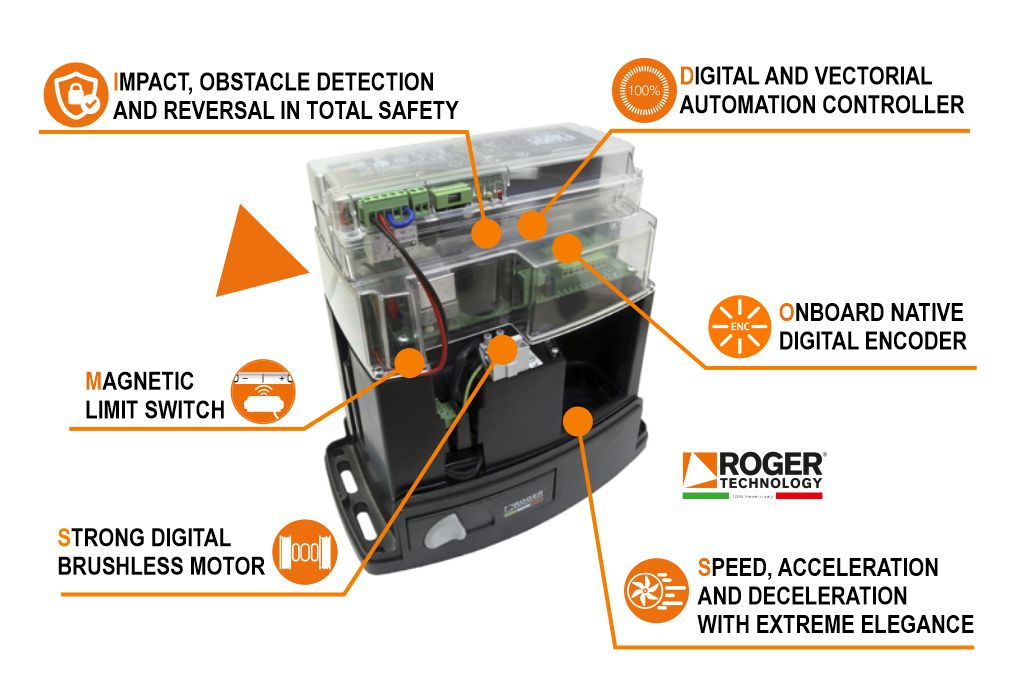

Special Features of Brushless 24v Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.

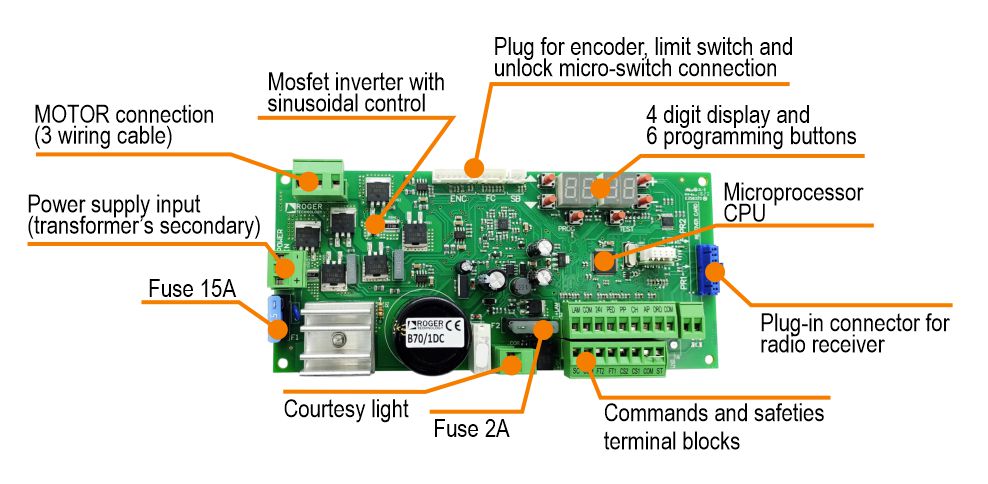

Control Board Overview



Accessories Compatibility and Controlling Options | Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03

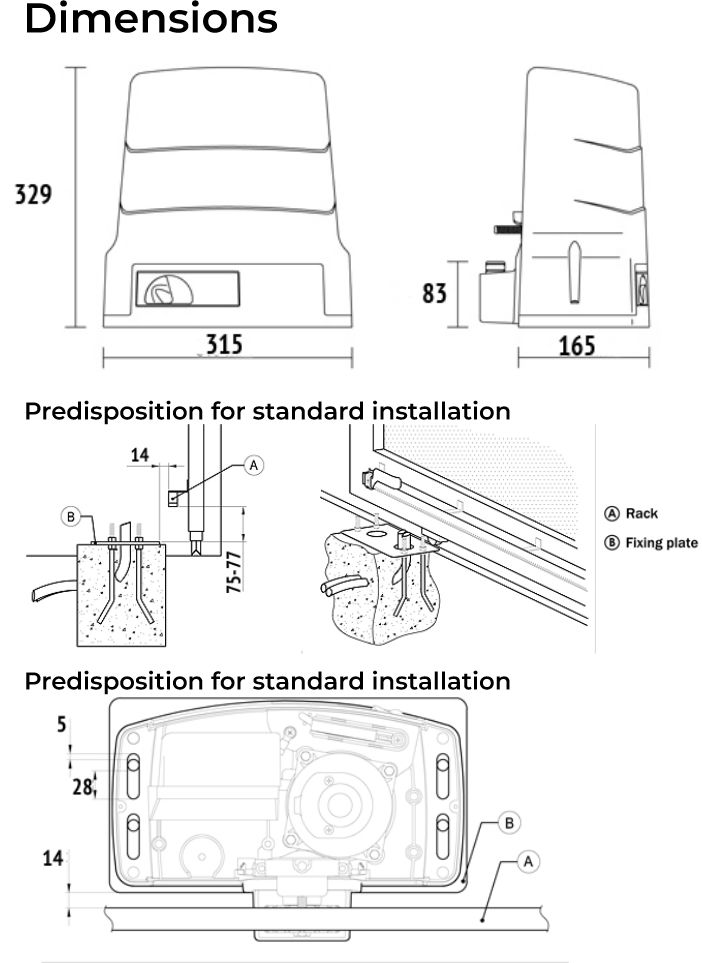

Dimensions | Italian Made Roger Technology BH30/804 Super-Intensive Use BRUSHLESS 24V Roller/Sliding Gate Electric Motor

Specifications

Max gate weight: 1000 kg
Power line supply: 230V AC - 50Hz
Motor power supply: 24V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 50 - 1000N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 12 m/min (0.20 m/s)
Limit switch: Mechanical
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital sensored, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 1300
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,3



Standard Accessories

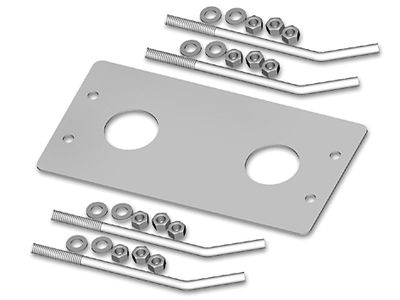

KT223

Fixing plate with stay bolts and screws M30 series.

MC775

Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.

Optional Add-On Raised Fixing Plate

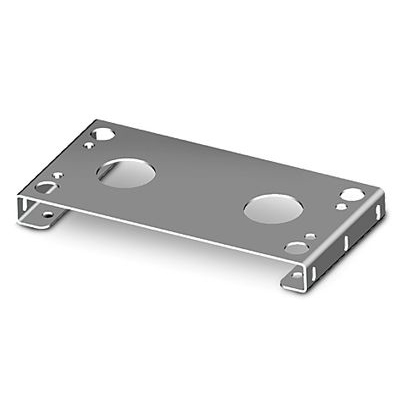

KT221

Raised fixing plate for M30 series (+3 cm).




 24V 20 Watt Solar Panel
24V 20 Watt Solar Panel

The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel

Open Circuit Voltage 42.48V
Optimum Operating Voltage 36V
Short Circuit Current 0.61A
Optimum Operating Current 0.55A
Dimensions 640 x 300 x 25MM
Cells Mono Crystalline







Solar Panel Post & Bracket for APC 20 Watt Solar Panel


This solar panel post & bracket set is suitable for the APC 10 watt and 20 watt solar panels.



24V 20 Watt Solar Panel

Kit Contents

24V 20 Watt Solar Panel
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad





APC Uno Standalone Solar System

The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without

Clear Inner Dimensions

Height 140mm
Width 165mm
Depth 170mm

Typical Configuration

Extra Heavy Duty Single Gate Opener





At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5


APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $1,994.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
