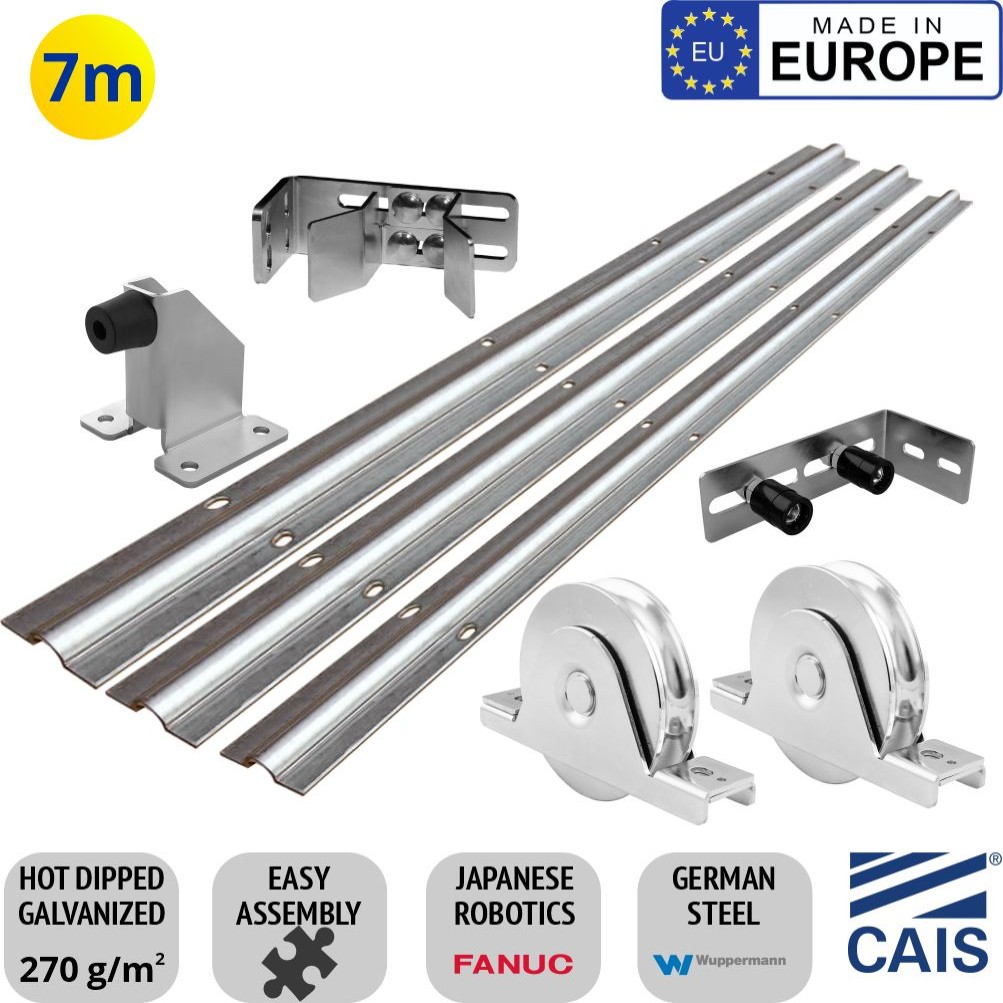

Up to 7m Complete Commercial Sliding Gate Hardware Kit | Heavy Duty Sliding Gate Hardware Pack with 14M Hot Dipped Galvanized German Steel Sliding Gate Ground Track Guide, Double Bearing Sliding Gates Wheels, Adjustable End Stop Bracket Set, Upper Rollers, Bolt Down Gate Stop | Made in Europe by CAIS

2m Galvanised Sliding Gate Track.

This 2m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.

Material: (S350GD Steel) || High-strength, hot-dip galvanized steel (Sliding Gate Rail).

CAIS ROAD 2 SLIDING GATE TRACK

Bolt down "U" Profile Ground Track Rail 2000mm long. Galvanised Finish

The CAIS ROAD Sliding Gate Track is made from hot-dip galvanised S350GD, high-strength structural steel. This sliding gate hardware is specifically developed for long-lasting use and is suitable for heavy-duty sliding driveway gate applications.

Hot-dip galvanizing ensures a homogeneous zinc coating on the surface, which protects the steel sliding gate tracks against corrosion in the long term on your sliding gate system.

This Sliding Gate Rail, S350GD Steel Track, has a (3569 kg/cm²) 350 N/mm² Newton per Square Millimetre Pressure strength in the upper strength classes of hot-dip galvanised steels. It is ideal for domestic and commercial large and heavy sliding gate systems.

CAIS Recess Mount Sliding Gate Wheels

"U" GROOVED WHEEL DOUBLE BEARING

CAIS WSO Double Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels

CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best double-bearing gate wheels for gates and driveways...

Package:
CAIS WSO Double Bearing for Sliding Gates Wheels

Usage:
- Sliding Gates & Driveway Gates

Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)

CAIS Sliding Gate Roller Guide Assembly

Two Roller overhead guide brackets and roller assemblies for Gates of up to 160mm wide.

40mm x 30mm Rollers & Bracket. Suitable as a guiding system for manual or automatic sliding gates. The bracket supplied can be mounted on walls, pillars, posts, and other supports to withstand the load.

Rollers: 67mm x 40mm Rollers

Bracket: L shape mounting bracket 260mm x 130mm.

CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper

110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.

Usage:
- Swing Gates
- Sliding Gates

CAIS DOCKER O - Adjustable End Stop Bracket Set U Guide Gate Catcher for Sliding Gate (CAIS DOCKER 0)

CAIS DOCKER O

The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.

• CAIS DOCKER O - top riser with console

Technical details:

• For profile width: 0 - 120 mm
• Material: Steel
• Surface Treatment: Heavily Galvanize
• Dimensions:
