Product SKU: SMARTY4-HS-4000-DC-SSK
Free Shipping
Kit Price:
$2,895.00

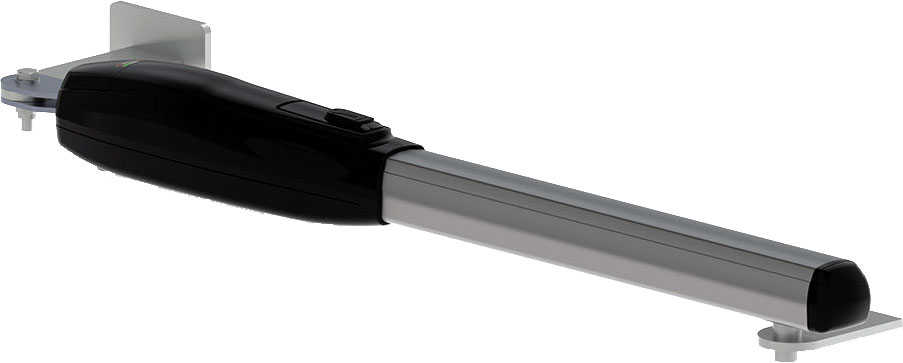

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 4M or 400KG Each Leaf (8m Opening for Double Swing Gates) | Super Intensive Use |
Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits
Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 600 - 4500N |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Stroke: | 370 mm |
| Limit switch: | Mechanical stopper in opening and closing |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): |
1000 |
| Maximum dimension product in mm (L x W x H): |
1162 x 116 x 165 |
| Product weight packed (Kg): | 16 |
The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor |
| Max power per motor: | 250W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 20W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
| Product weight packed (Kg): | 5,8 |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
| Product weight packed (Kg): | 0,03 |
Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.
| Operating temperature: | -10°C +55°C |
| Protection level: | IP54 |
| Average consumption when keypad active: | 12 mA |
| A number of user codes storable: | 450 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Codification: | Fix code - Rolling Code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92 Mhz |
| A number of combinations: | 65536 (fix code) - 4.294.967.296 (rolling code) |
| Number of bits of the identification code: | 16 (fix code) - 32 (rolling code) |
| Number of bits transmitted: | 28 (fix code) - 144 (rolling code) |
| Battery: | 2 x CR2032 |
| Battery life: | Minimum 2 years with 10 activations/day |
| Installation Type: | External |
| Maximum dimension product in mm (L x W x H): | 75 x 77 x 42 |
