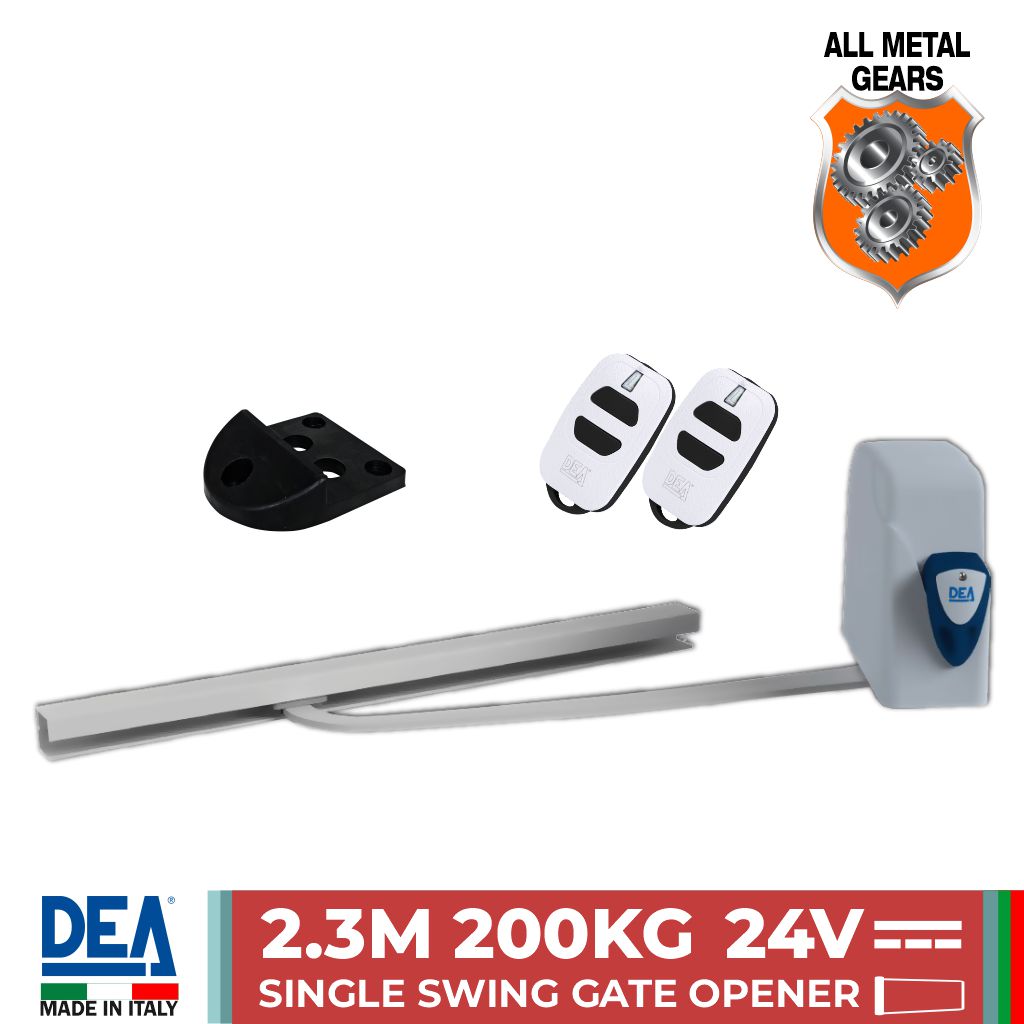

Single Swing Gate Opener Kit - DEA-MINI-2300-DC, 24V Italian Made All Metal Gear Swing Gate Motor with Built-In Control Board. Swing Gate Automation for Single Swing Driveways with No Limits, 200kg or 2.3m maximum per gate leaf. Rall sliding arm, painted galvanised steel.

Swing Gate Opener DEA-MINI-2300-DC, 24V Italian Made Swing Gate Motor Overview

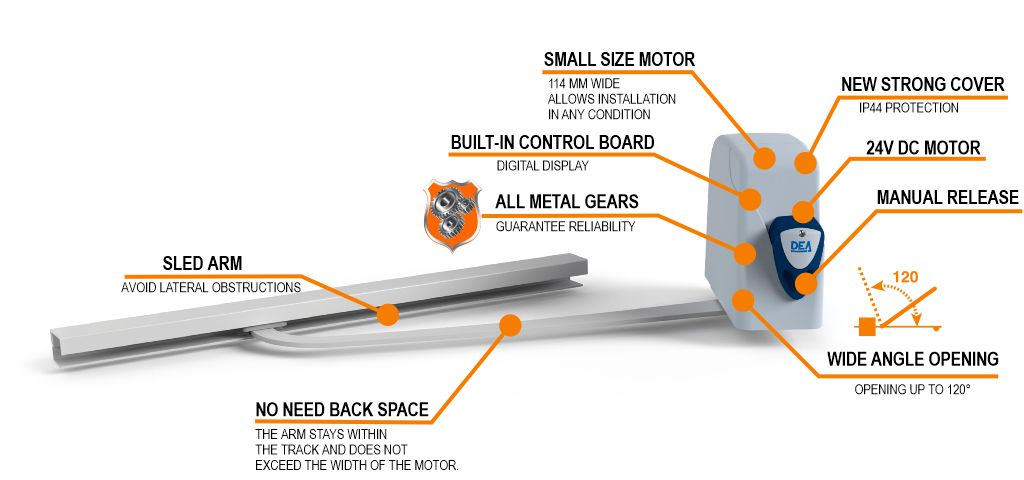

At a glance | The Swing Gate Opener/Closer

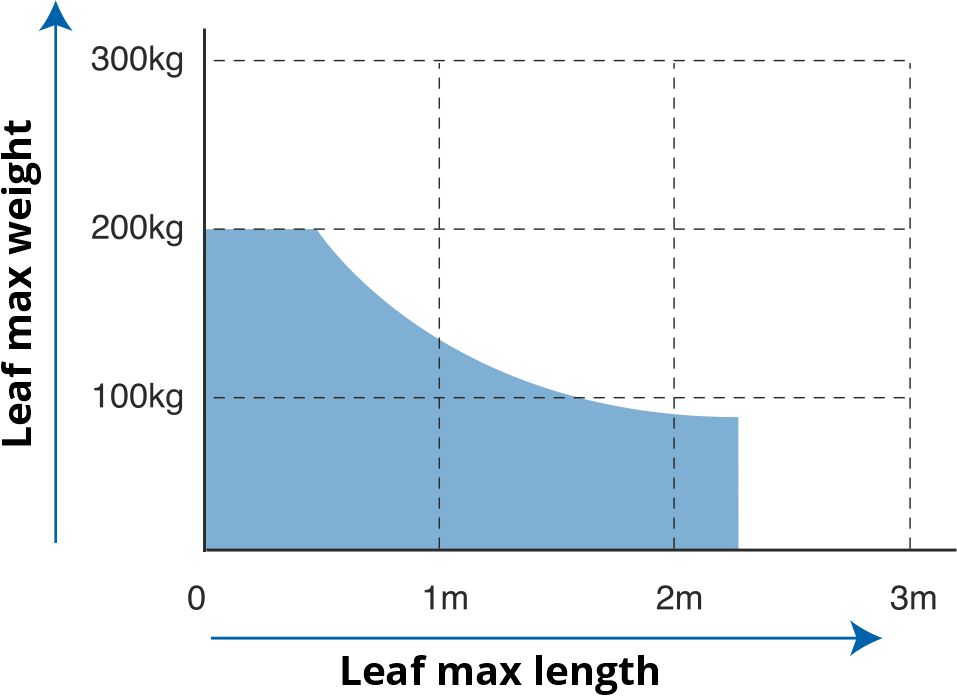

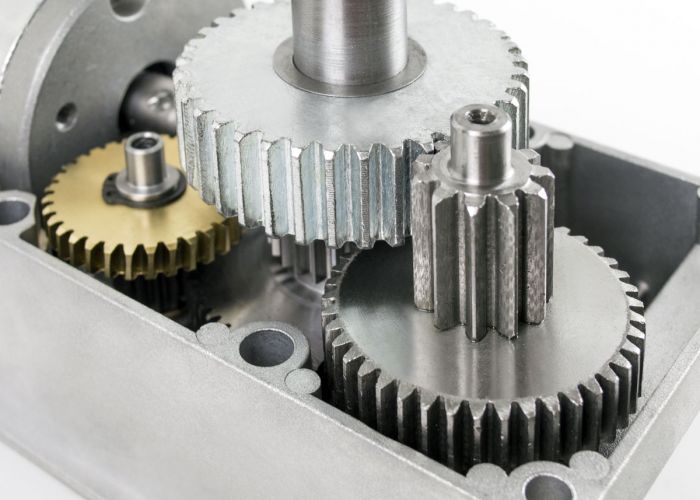

The swing gate opener DEA-MINI features a robust, all-metal gear that offers full programmability via the onboard control board with an LCD interface. It has a capacity of 2.3m and a maximum load of 200 kg per gate leaf, making it suitable for residential use with simple setups, no limit switches.

The strength of the DEA-MINI swing gate motor is its compact size. Just over 11 cm wide, DEA-MINI meets the needs of those who want to automate a swing gate but have little space for installation.

When combined with the slide arm, the motor further optimises the available space. During the opening and closing movement of the leaf, the arm remains inside the track and does not exceed the width of the motor. When manoeuvring spaces are particularly restricted, e.g., in the presence of perimeter walls, fences, or private property adjacent to the DEA-MINI swing gate motor with a slide arm, it is the ideal choice.

DEA-MINI is a safe electromechanical automation system for swing gates, equipped with a speed and slowdown regulation system for opening and closing the driveway gate. In addition to external safety accessories such as photocells and safety edges, the DEA-MINI swing gate motor is equipped with an anti-crush sensor.

Control Board Overview

• Universal control board for managing 1 or 2 motors in 24v.
• 6 inputs | 5 Outputs
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)

Accessories Compatibility and Controlling Options | DEA-MINI Swing Gate Automation

• Constant DC Accessories Output
• Automatic Swing Gate Open/Stop/Close Inputs for Full Driveway Gate Operation and Pedestrian Gate Operation
• Remote Controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit / Entry Sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (APP-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

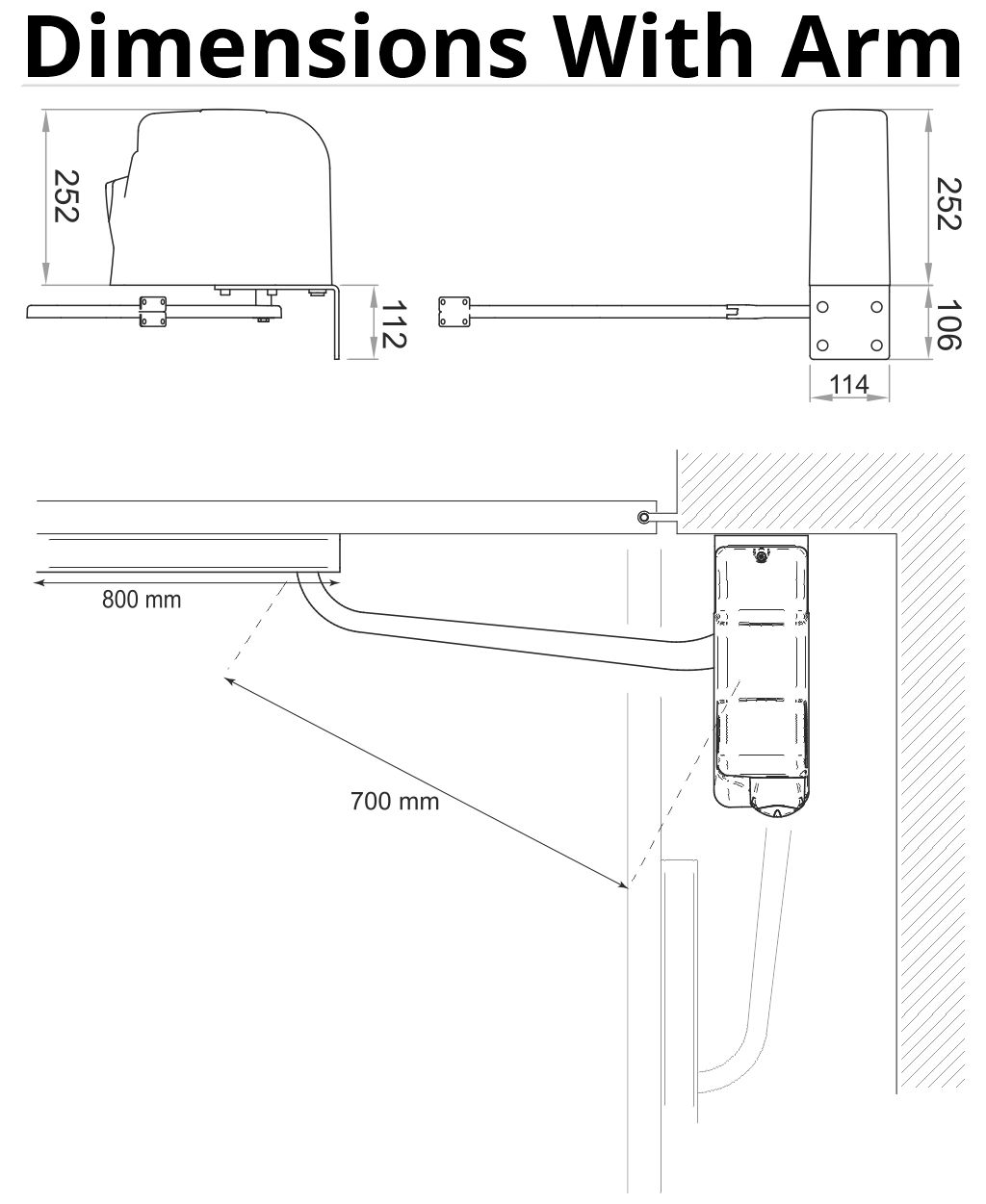

Dimensions | Italian Made DEA-MINI Electric Swing Gate Motor

Specifications

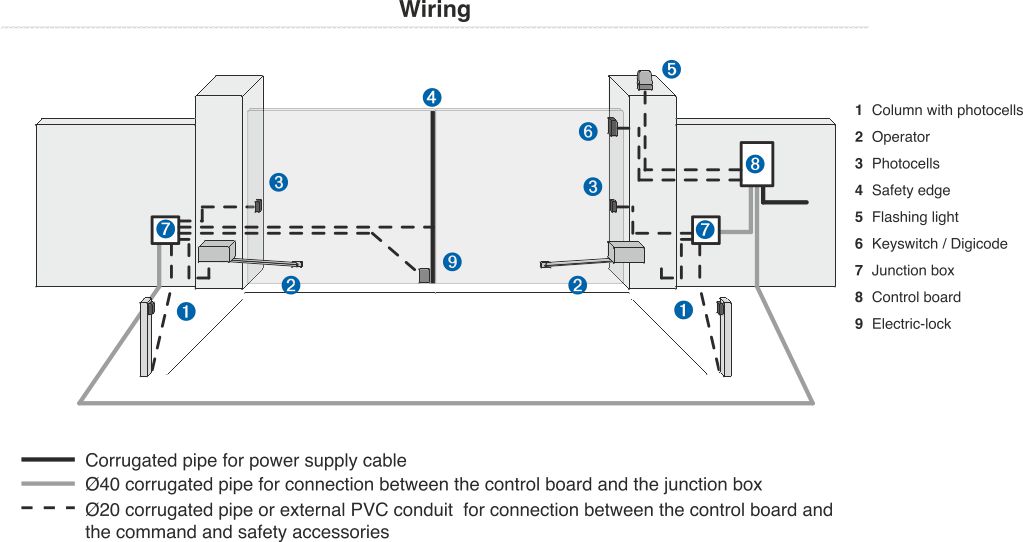

Wiring Example

65mm Rubber Gate Stop

The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.





65mm Rubber Gate Stop Dimensions
