Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F2ES]

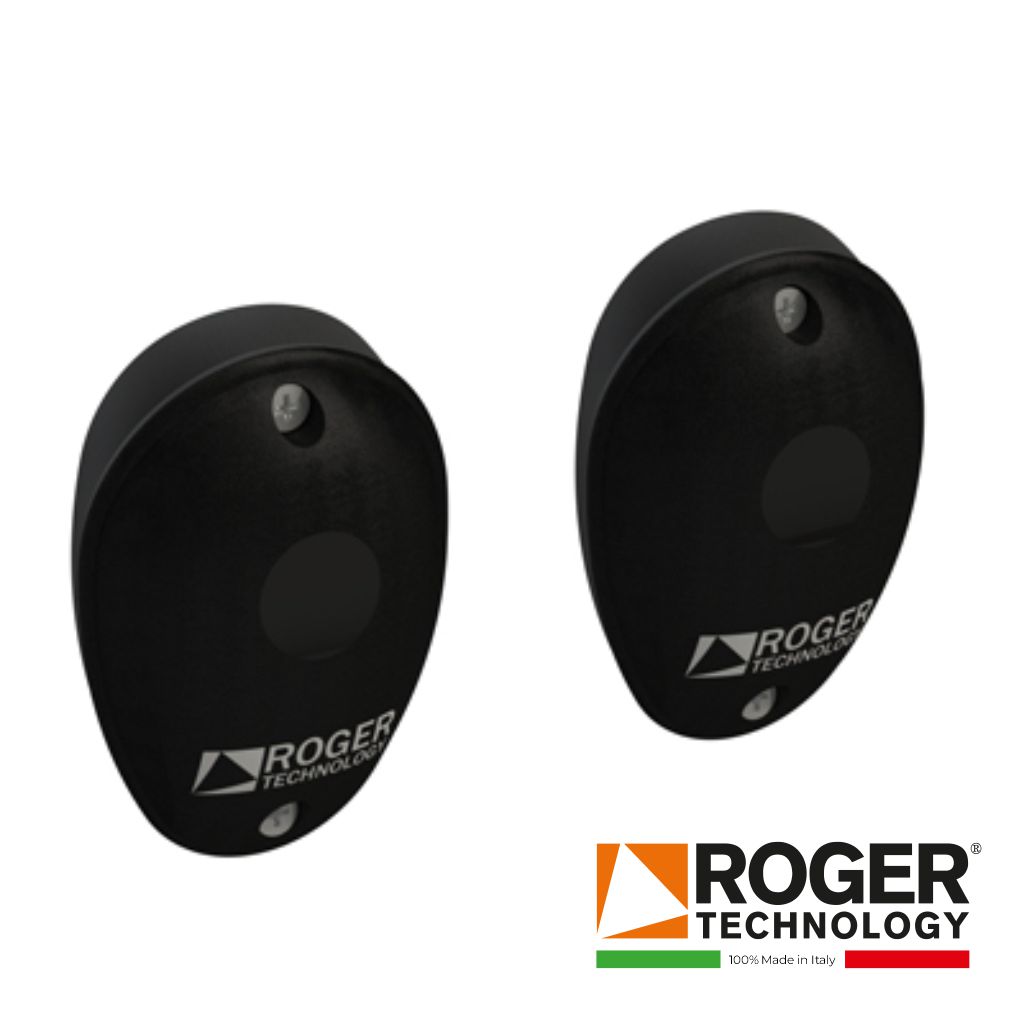

Pair of external photocells synchronized.

Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector
Technical features
Standard power: |
12/24V AC 50Hz - 12/24V DC |
Absorption: |
TX 19mA - RX 20mA |
Operating temperature: |
-20+55°C |
Protection level: |
IP55 |
The maximum distance in an open field: |
10 - 15 m |
Maximum number of photocells synchronized: |
2 |
Orientation angle: |
- |
Relay contacts max current: |
0,5A RX |
Relay contacts max voltage: |
30V |
Installation Type: |
External |
Maximum dimension product in mm (L x W x H): |
62 x 88 x 27 |

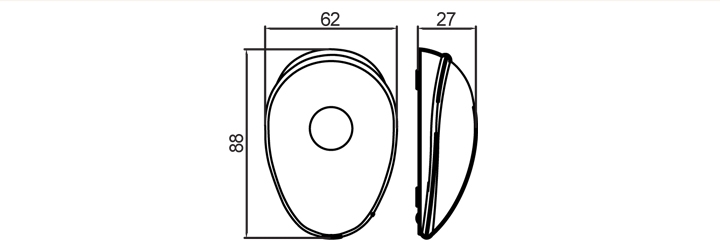

Dimensions

What is a Gate Safety Sensor?
Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors are used to detect any movement near the gate. Once the sensor detects movement, it sends a signal to the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.
