Replacement Driveway Sliding Gate High Torque Brushless Motor 1000kg. BRUSHLESS Sliding Gate Opener Replacement Motor Kit|100% Italian Made by Roger Technology BH30 Sliding Gate Automation 100% Duty Cycle, Super Intensive Use, 1 Ton Capacity Sliding Gate Motor Including Fixing Plate, Magnetic Limits, APC Two Channel Receiver and Remote Controls.

Product SKU: BH30-1000-DC-M

  • In Stock

  • New
Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,450.00

  • Or in 4 payment of $362.50 with afterpay info
  • Roller/Sliding Gate Opener, High Torque Brushless Electromechanical Sliding Gate Motor, Super Intensive Use 1000 KG

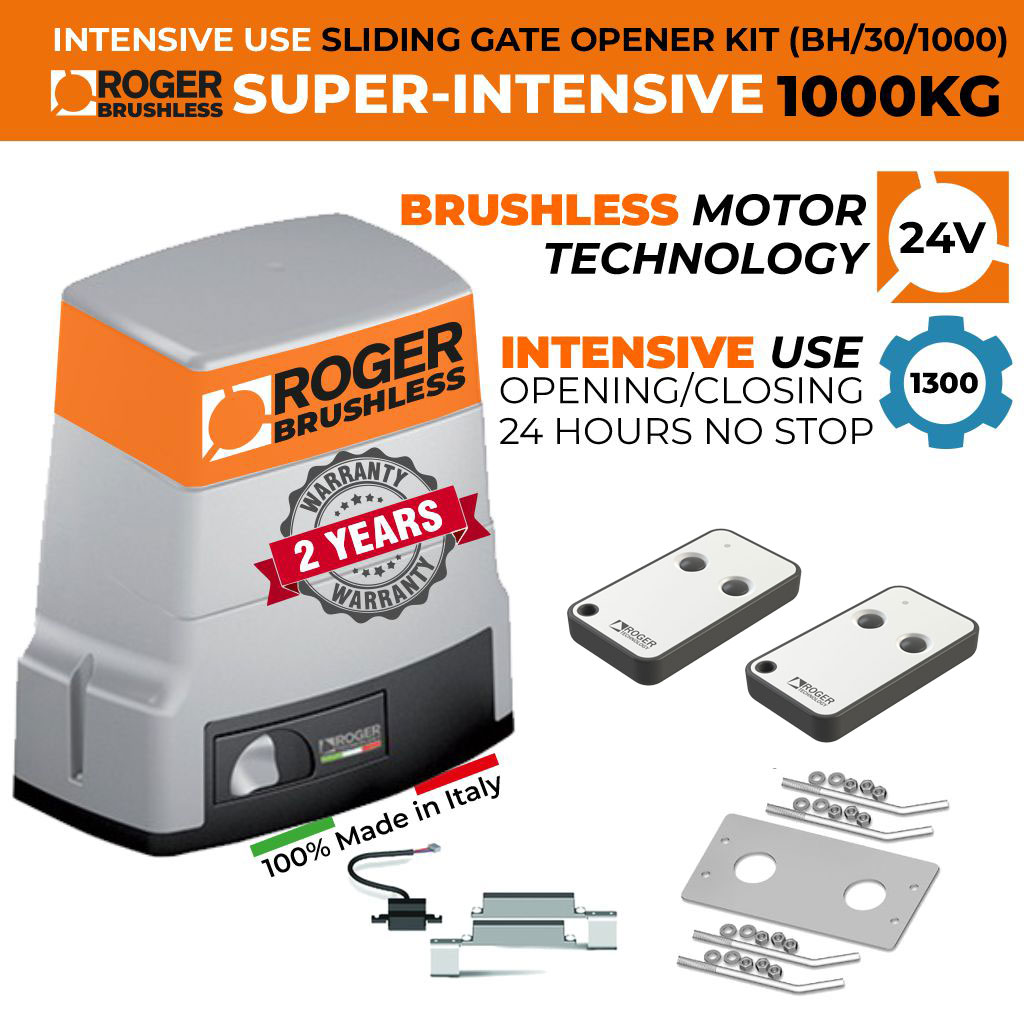

  • Kit Includes

    01 Italian-Made Roger Technology BH30/804 Brushless Electromechanical Sliding Gate Motor | 1000KG | Super Intensive Use(QTY: 1)
    02 APC Four Button Keyring Remote(QTY: 2)
    03 APC Two Channel Reciever for all gates, garage doors and other control systems(QTY: 1)
    04 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series.(QTY: 1)
    05 Roger Technology TWO Years Warranty (Excluding consumables - remotes)(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

100% Italian Made BRUSHLESS Sliding Gate Motor, Roller/Sliding Gate Opener System.
Roger Technology Brushless BH30/804 Sliding Gate Motor

BRUSHLESS 24V Sliding Gate Automation Motor 1000kg Capacity | with magnetic limit switch



BUILT-IN SPECIAL CASE FOR BATTERY BACKUP





At a glance | Brushless 24v Automatic Sliding Gate Opener / Roller Gate Automation System

The Roger Technology BH30/804 Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.

The BH30/804 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 1000Kg with built-in digital controller B70 series, magnetic limit switch.

Includes:

- BH30/804 Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 1000 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 1000KG Capacity
  • Super-Intensive Use; (opening/closing - 24 hours no stop) 1300 | Roller Gate Automation System)







BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.



Special Features of Brushless 24v Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Control Board Overview



Accessories Compatibility and Controlling Options | Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03



Dimensions | Italian Made Roger Technology BH30/804 Super-Intensive Use BRUSHLESS 24V Roller/Sliding Gate Electric Motor

Specifications

Max gate weight: 1000 kg
Power line supply: 230V AC - 50Hz
Motor power supply: 24V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 50 - 1000N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 12 m/min (0.20 m/s)
Limit switch: Mechanical
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital sensored, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 1300
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,3



Standard Accessories

KT223

Fixing plate with stay bolts and screws M30 series.

MC775

Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.

Optional Add-On Raised Fixing Plate

KT220

Raised fixing plate for M30 series (+3 cm).



APC RX2 Two Channel Receiver


The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.


Prerequisites

open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.

There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.

If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.



Other uses

The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.



Package options

The receiver can be purchase in multiple package options such as

  • Receiver only
  • Receiver with a low voltage power adapter (in case power is not available for the device)
  • Receiver and a two remote combo
  • Receiver, power adapter and a two remote combo
  • Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
  • Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
  • or any package can be made using any of the APC compatible devices



Compatible devices

  • APC-RC4S Four Button Keyring remote
  • APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
  • APC-RC450S Long Distance Remote
  • APC-KP2W Two Channel Wireless Keypad APC-KP2W
  • APC-PBS-KW Single Wireless Button with Isolation Key
  • APC-PBD-KW Double Wireless Button with Isolation Key
  • ANT-1 External Boosted Antenna



Specifications

  • 433.92Mhz High-Security Rolling Code compatible with APC devices
  • Dual Mode Receiver with momentary and latching modes
  • Normally Open and Normally Closed circuits
  • Supports 12-24V AC/DC
  • Single Remote Delete or Full Format
  • Max switching load 24VDC/2A



APC Automation Systems FOUR Button Keyring Remote Control





  • Featuring High Security rolling codes transmitting a unique code chosen at random
  • Slim design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC control boards


Your Customised Kit Includes:

No Changes.
