Corner Turning Sectional Sliding Gate Hardware Secondary Leaf Kit with Gate Hinges and Rotating Wheel

Upload Images (Max. 5 images can be uploaded)

no file chosen

Corner Turning Sectional Sliding Gate Hardware Secondary Leaf Kit with Gate Hinges and Rotating Wheel


  • In Stock

Get More Info..

Kit Price:


  • Or in 4 payment of $136.25 with afterpay info
  • Corner Turning Sliding Gate Hardware Secondary Gate Leaf Kit with Gate Hinges and Radius Rotating Sliding Gate Wheel

  • Kit Includes

    01 Hinge for sectional sliding gate system (connecting the main gate with the following gate leaves) (QTY: 2)
    02 Rotating Sliding Gate U-groove Wheel for Radius Gate Hardware Secondary Leaf (QTY: 1)
  • Product Information

Product Information

Corner Turning Sectional Sliding Gate Hardware

Sectional Sliding Gates, also known as Radius Corner Sliding Gates or Turning Sliding Gates, are an excellent choice for properties with limited side space. These gate systems, provide a space-saving solution while offering convenience, functionality, and aesthetic appeal. With their innovative design, these gates allow for easy operation and smooth sliding motion. They are not only practical but also add a touch of elegance to any property. Whether it's for residential or commercial use, Sectional Sliding Gates are a reliable and stylish option.

Sectional Turning Sliding Gate Hardware Primary Leaf Kit

Sectional turning sliding gate kits are specially designed for space-saving (Gate-Panels Follow a Curve Around The Corner). If you need your gate to slide around a corner in a limited space, a turning corner sliding gate hardware set is just what you need.

Corner turning multi-pannels gate systems can be configured with a tight radius of 500mm or a larger radius of 1000mm for accommodating larger panels.

  • The 500mm radius in the tighter turn requires panels between 400mm and 750mm wide. Additionally, there should be a clearance of 900mm past the opening to allow the turn.
  • The panels should have a width ranging from 400mm to 1500mm and extend 1400mm beyond the opening to accommodate the turn, considering the 1000mm radius.

Sectional turning sliding gates are made up of the primary main leaf and the following secondary gate panels that are hinged together and have pivoting wheels.

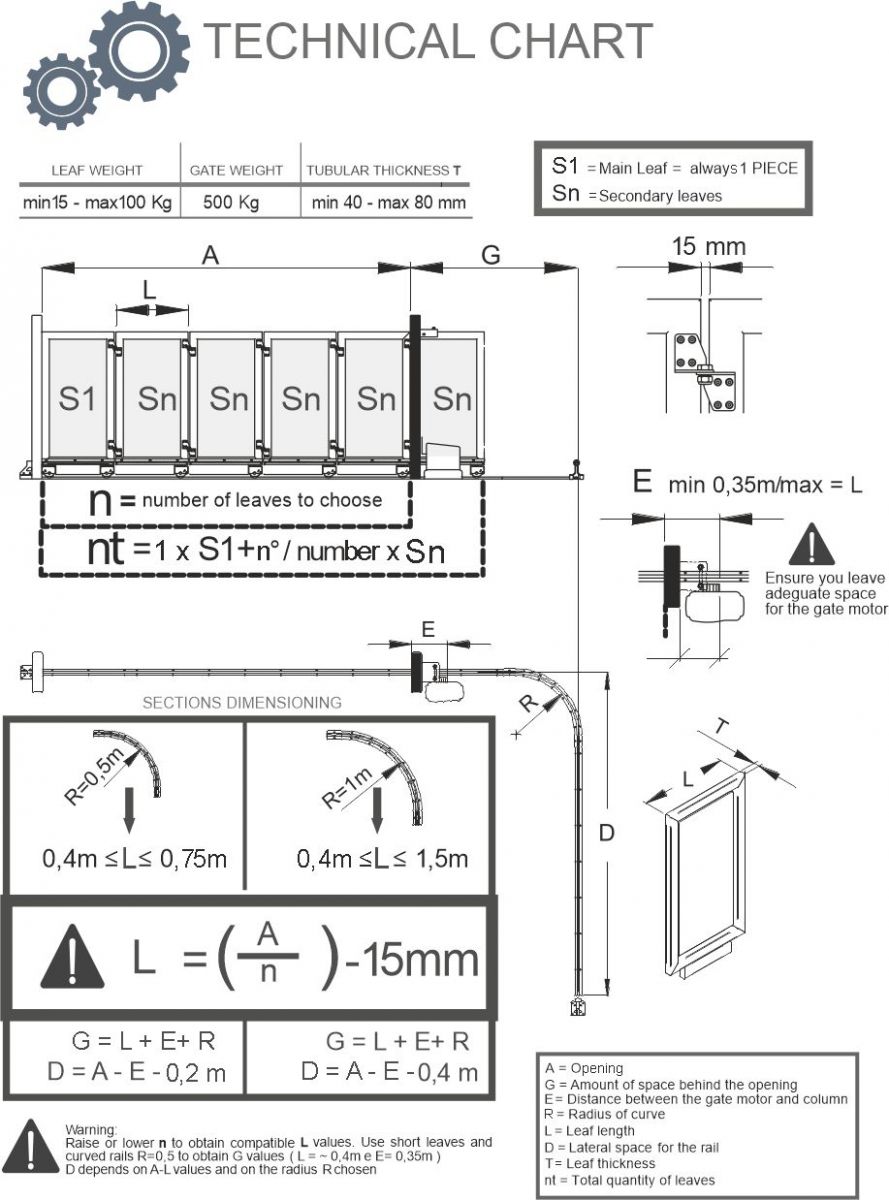

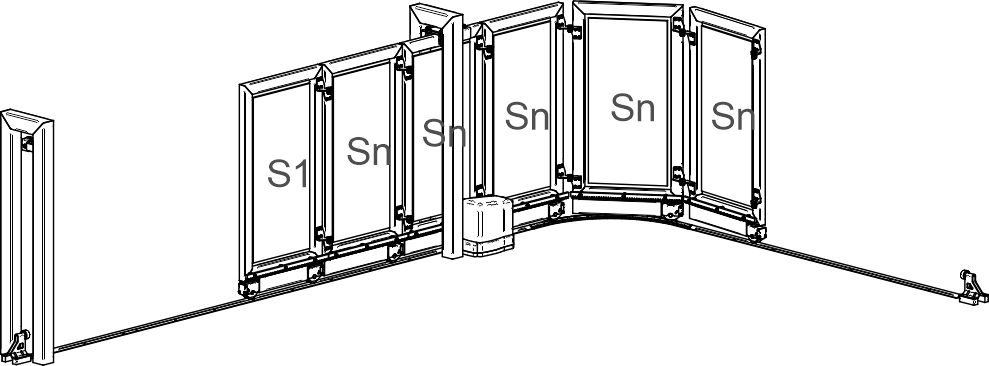

Corner Turning Sectional Sliding Gate Hardware Dimensions
| Dimensioning Primary and Secondary Gate Leaves and Ground Rail Size of Opening Position |


What is a corner-turning sectional sliding gate system?

Corner sliding gate kits are complete packages that include all the necessary hardware and components to build a sliding gate with rounded corners. These kits include a specially designed rounded gate track, wheels, hinges, and other accessories for gates with turning corners while still offering the functionality of a sliding gate.

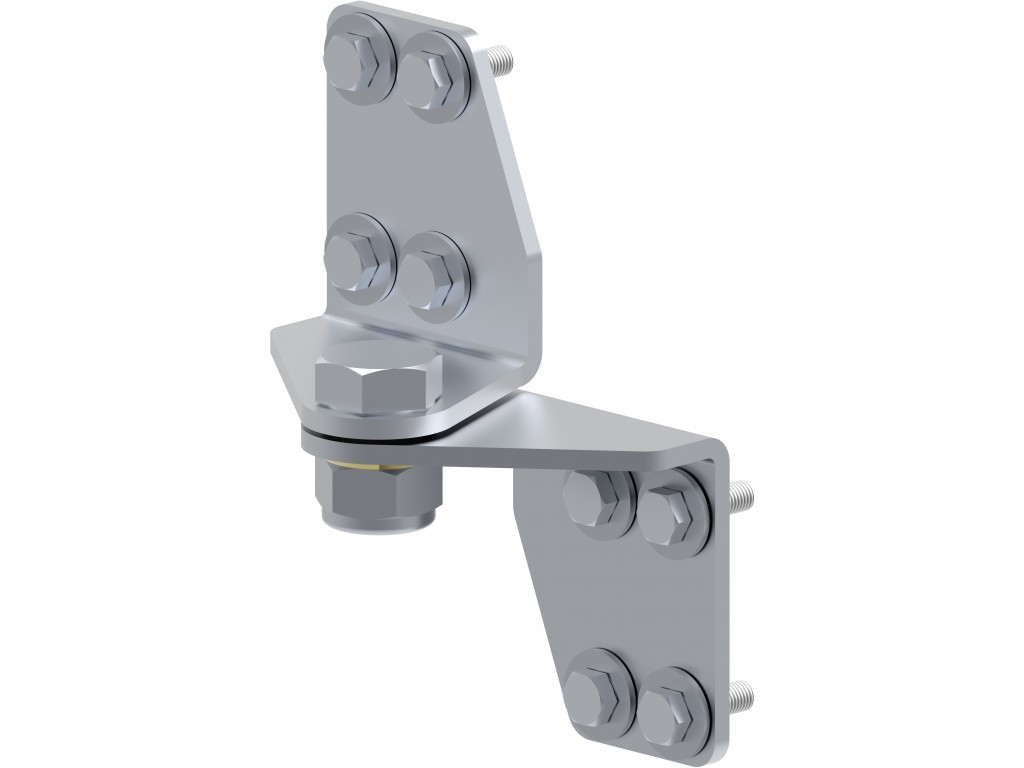

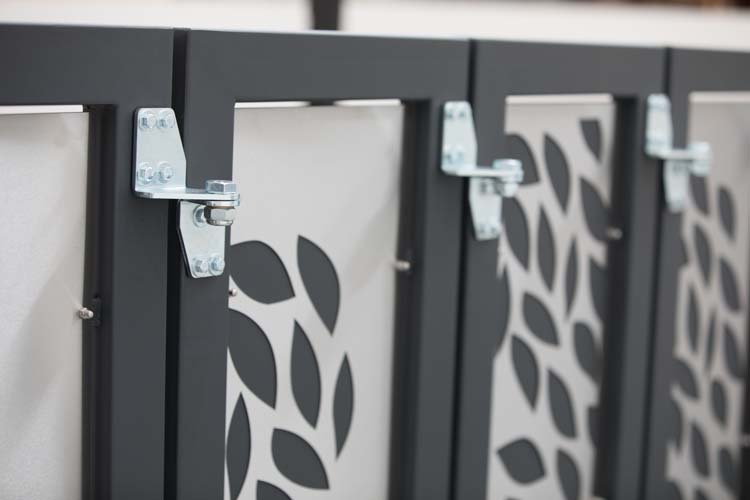

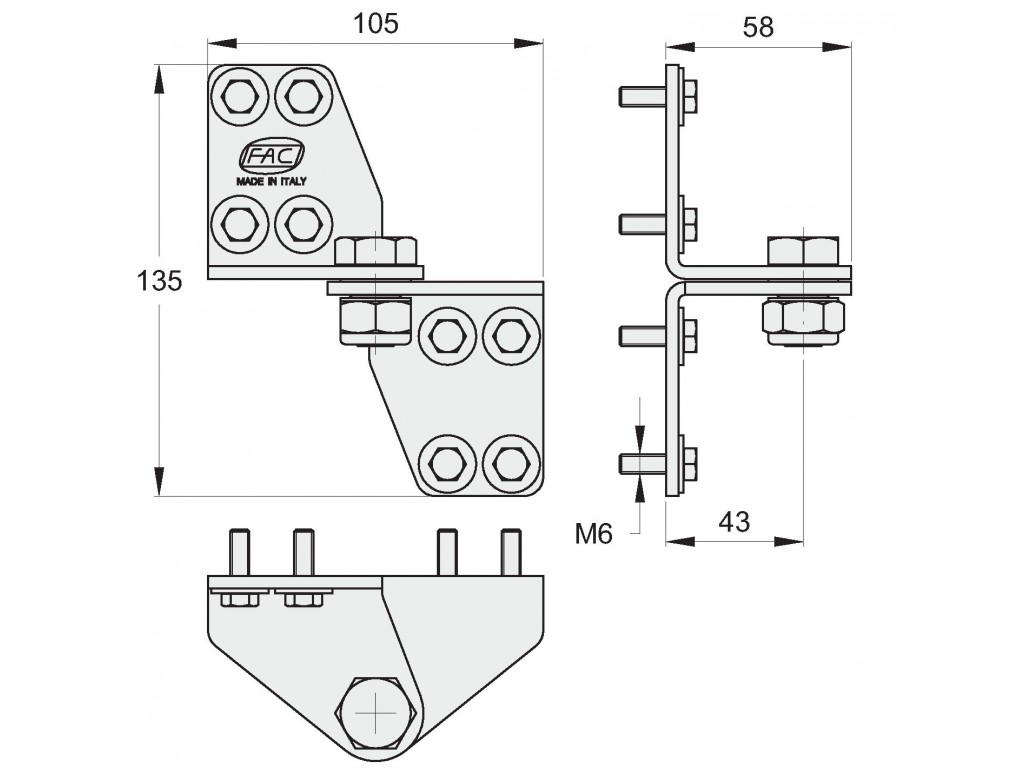

Hinges for the radius gate system's following gate leaves

Italian-made high-quality, heavily galvanized steel hinge for the sectional sliding gate system's secondary gate leaves.

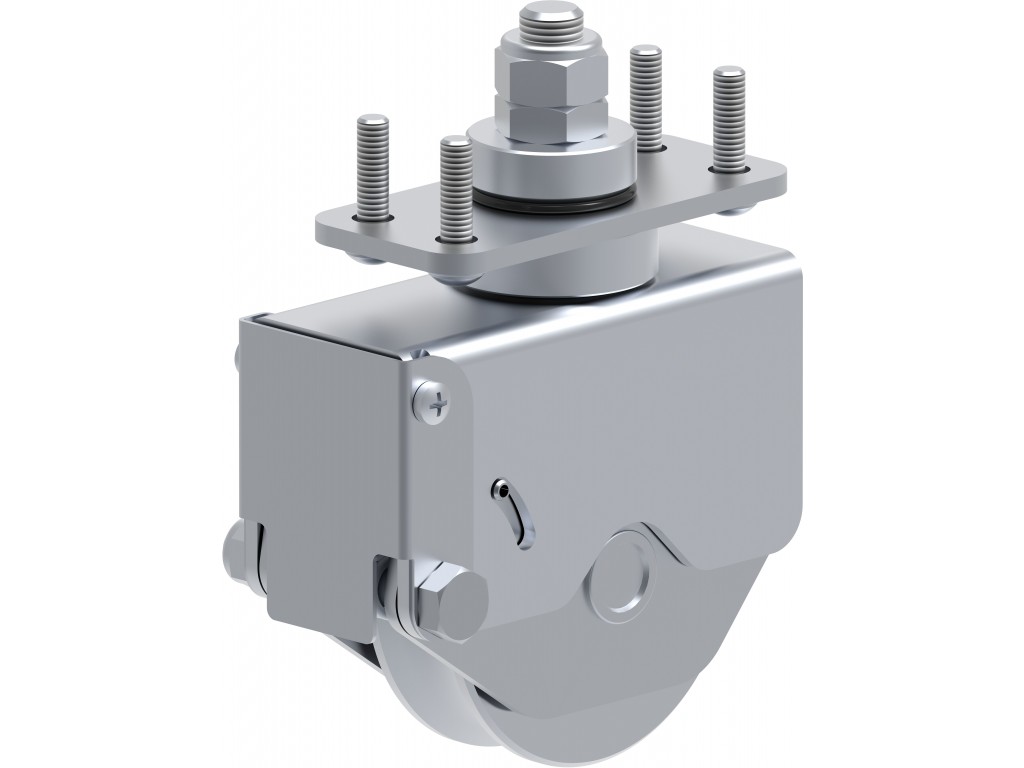

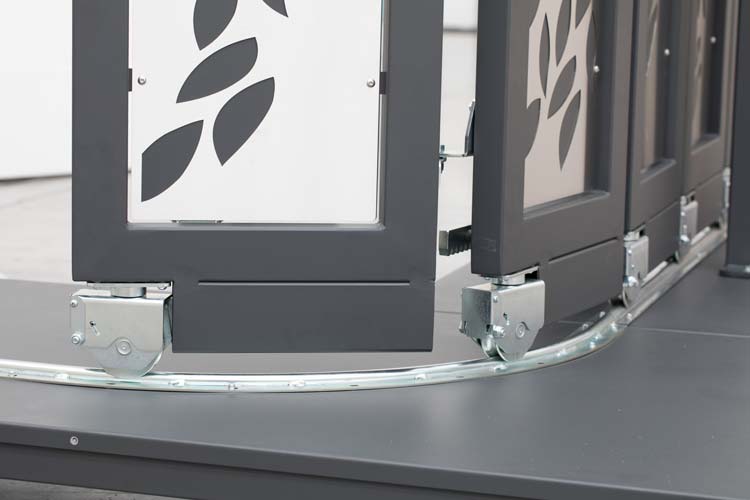

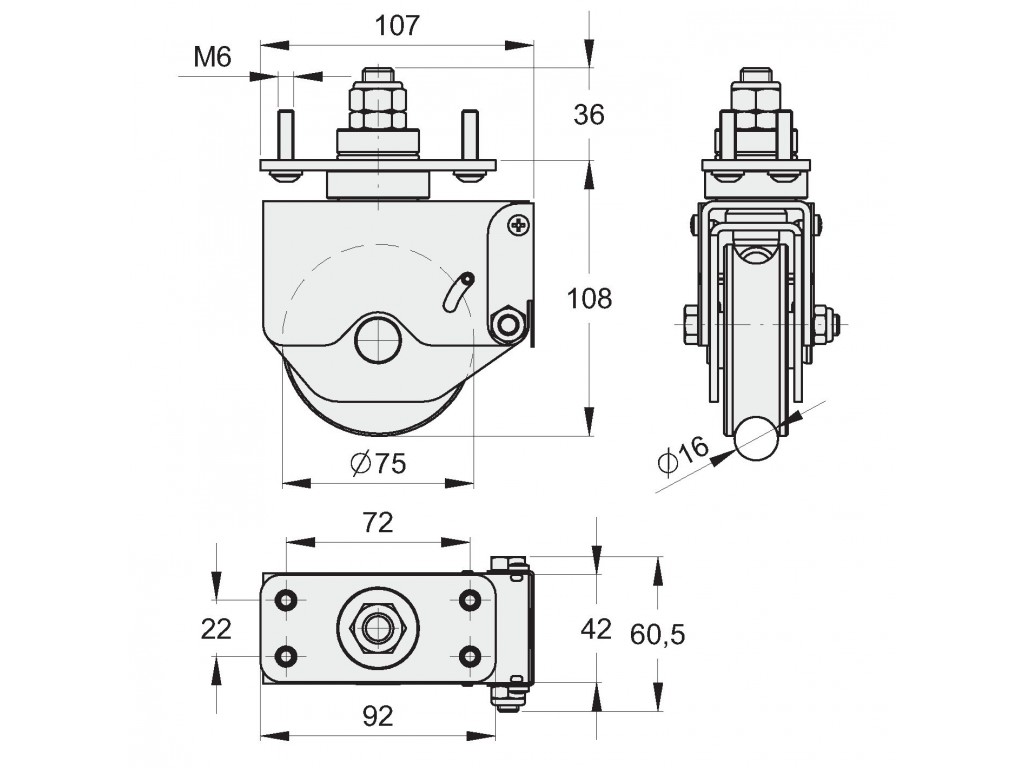

Rotating gate wheel for radius corner sliding gate systems secondary gate leaves

Italian-made high-quality, heavily galvanized steel sliding gate rotating wheels for radius corner turning sectional sliding gate systems secondary gate leaves.







What are the Specifically Designed Components for the Corner-Turning Sectional Sliding Gate?

The Corner-Turning sectional sliding gate is a type of gate that is specifically designed to allow vehicles to make a turn at corners while still being secured by the gate. It consists of multiple gate panel sections that can slide horizontally along a track, allowing the gate to turn a corner with the special sliding gate corner track, rotating wheels and hinges system.

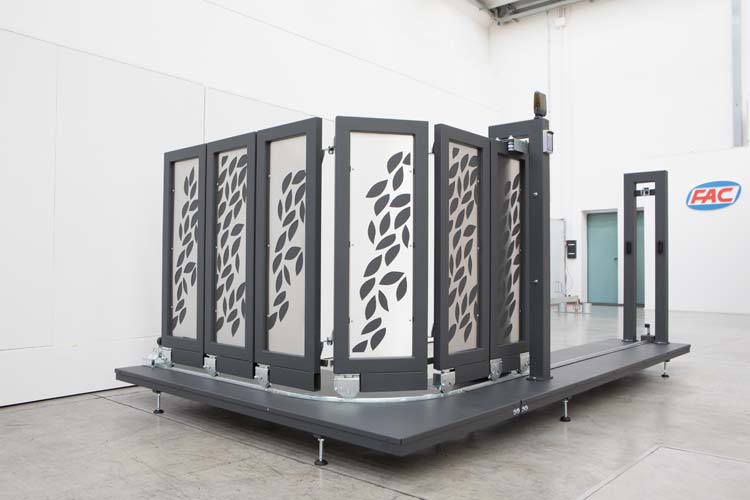

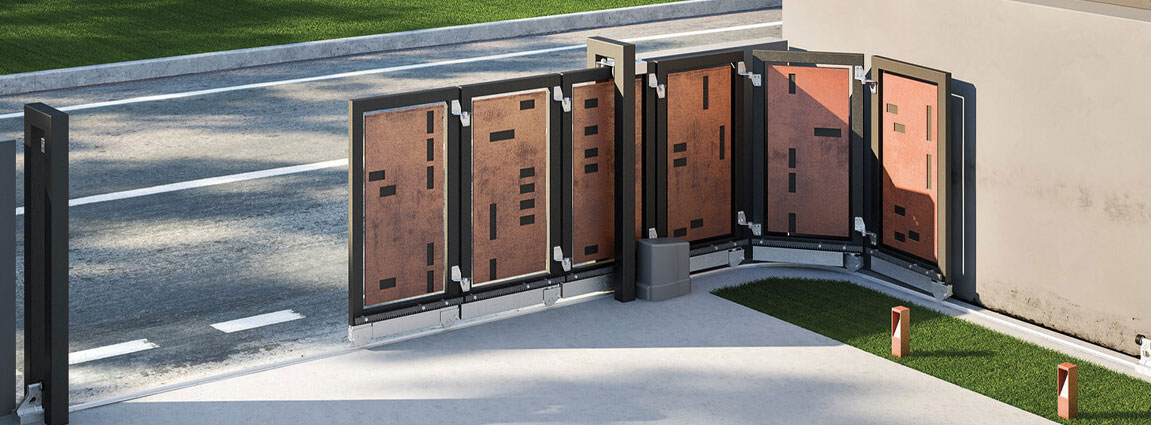

How does a corner-turning sectional sliding gate work?

A Corner-turning sectional sliding gate is a type of gate that is commonly used in industrial and commercial settings. It is designed to maximize space utilization and provide efficient access control.

This type of gate consists of multiple sections or panels connected by hinges. When the gate is closed, the panels are aligned in a straight line, forming a solid barrier. However, the panels can be folded in a corner-turning motion when the gate needs to be opened.

The corner-turning motion is achieved through special design tracks, wheels, and hinges. The gate panels are mounted on rollers/wheels that glide along a track system. As the gate is opened, the panels are guided along the track and folded in a corner, allowing maximum clearance and space efficiency.

Corner-turning sectional sliding gates are often automated, using motors and control systems to open and close the gate. This automation allows for convenient operation and enhances security by integrating with access control systems.

Overall, the corner-turning sectional sliding gate is a versatile and space-saving solution for industrial and commercial applications, providing efficient access control while optimizing space utilization.

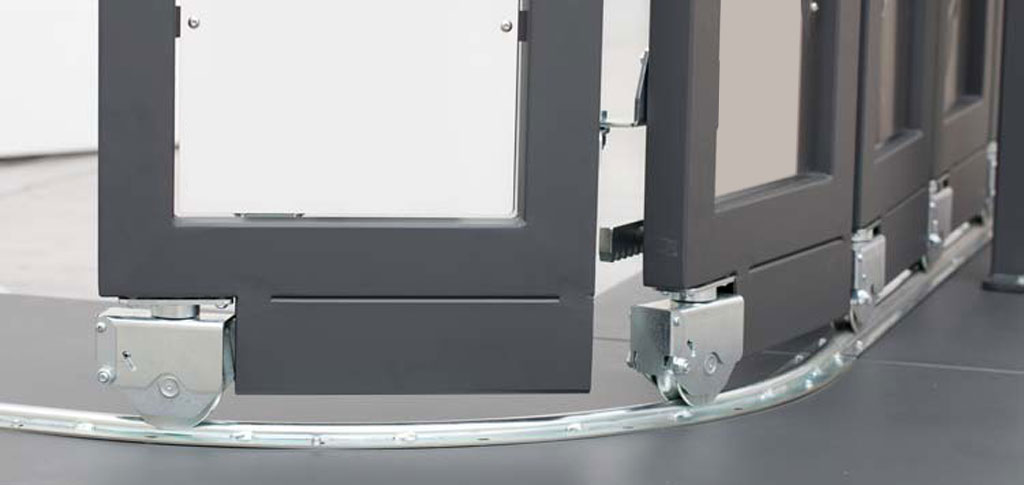

What are the advantages of using corner-turning sectional sliding gate kits?

Corner-turning sectional sliding gate kits offer several advantages over traditional gate systems. Here are some of the key benefits:

Smooth operation:

Corner-turning sectional sliding gate kits are designed to provide smooth and effortless operation. Precision bearings and rollers ensure the gate moves smoothly along the track, reducing friction and making it easier to open and close.


Unlike swing gates that require a large area to open, sliding gates move parallel to the fence or wall they are installed on. This means you can make the most of your available space, even in areas with limited room for gate opening.

Enhanced security:

Turning sectional sliding gates provides enhanced security for your property. They are difficult to force open, making it more challenging for intruders to gain unauthorized access. Additionally, radius corner sliding gate kits often come with advanced locking mechanisms, further enhancing security.


These Italian-made corner-turning sectional sliding gate hardware are made from high-quality, heavily galvanized steel, making them strong and durable. They can withstand harsh weather conditions and are resistant to corrosion, ensuring a long lifespan.


Corner sliding gate hardware kits offer your property a sleek and modern look. They come in various designs and finishes, allowing you to choose one that complements your architectural style.

Ease of installation:

Radius Corner Sliding Gate Kits come with detailed installation instructions and pre-drilled components, making them relatively easy to install. This can save you time and money compared to more complex gate systems.

Corner-turning multi-panel sliding gate kits

Provide convenience, security, durability, and an aesthetically pleasing solution for your property's entrance. Sectional turning sliding gate hardware kits (Gate-Panels Around The Corner Design) are made in Italy with high-quality, heavily galvanized steel.
