Quad Splitter

Quad Splitter

Product SKU: EV-DQSW

  • In Stock

Price :


Get More Info.. Get More Info..

Product Information

Eyevision® Quad Splitter For Quad Splitting CCTV Signal on the A-BusV10R Eyevision® Systems

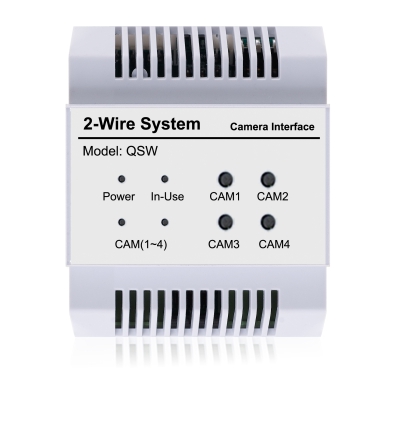

This 2 Wire Eyevision® quad splitter is designed for use with the Eyevision® A-Bus V10R 10 inch range of intercom systems. With the use of a quad splitter, the user can view four CCTV cameras on the screen at the same time (please see graphic interface examples below).

Eyevision® Quad Splitter

Example of Quad Split Function on A-BusV10R Monitor

Eyevision® Quad Splitter


Power Supply

24V DC via PC6 or DPS with PS5

Power Consumption

Standby 0.2W; Working status 3.5W

Working temperature:

-15ºC ~ +55ºC


2 wire,non-polarity

Please note: A 12V Power Supply is still required for each CCTV camera.

Wiring Example with Quad Splitter & Four CCTV Camera's

Eyevision® Quad Splitter

Package Contents

- 1 x Quad Splitter
- 1 x User Manual
